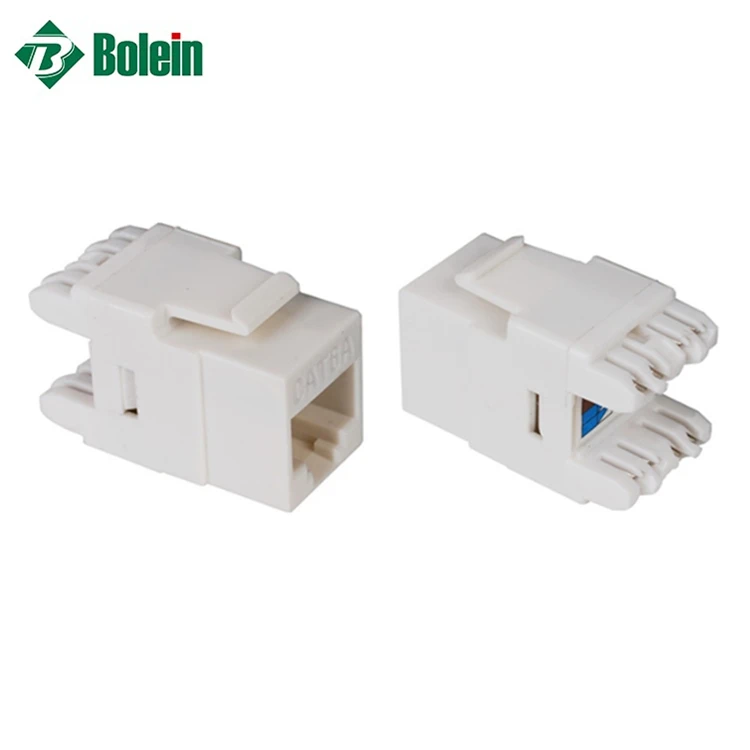

Bolein OEM Toolless Insert RJ45 90 Degree or 180 Degree Modular Plug Cat.6a UTP Keystone Jack

A). Modules are also call ‘inserts’. The most common, popular and practical type of modules is Keystone Jack developed by AMP.

B). The insert can be an essential element of the surface mount box, as well as a part of the modular patch- panel.

C). One side of the module has a female connector for patch-cord connection; the other side of the module has an IDC-type (insulation displacement contact)connector or a screw connection for the backbone cable. A special tool is needed for backbone cable termination to the IDC-type connector. With the help of this tool each cable conductor is fitted between the convergent IDC contact blades. The contact blades cut the conductor's PE jacket and come into direct contact with the copper wire. There are different types of the IDC-type connectors: 110, Krone, universal Dual IDC. Different types of IDC require different tools for termination.

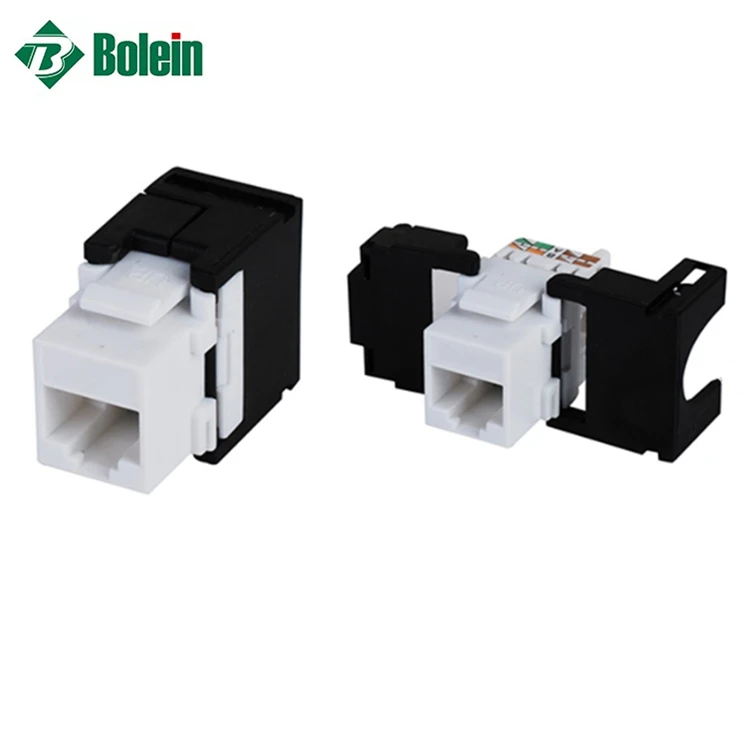

D). Toolless Keystone Jack is a special type of module. It doesn't need any additional tools for termination. The module's hinged cover snaps down to crimp wires.

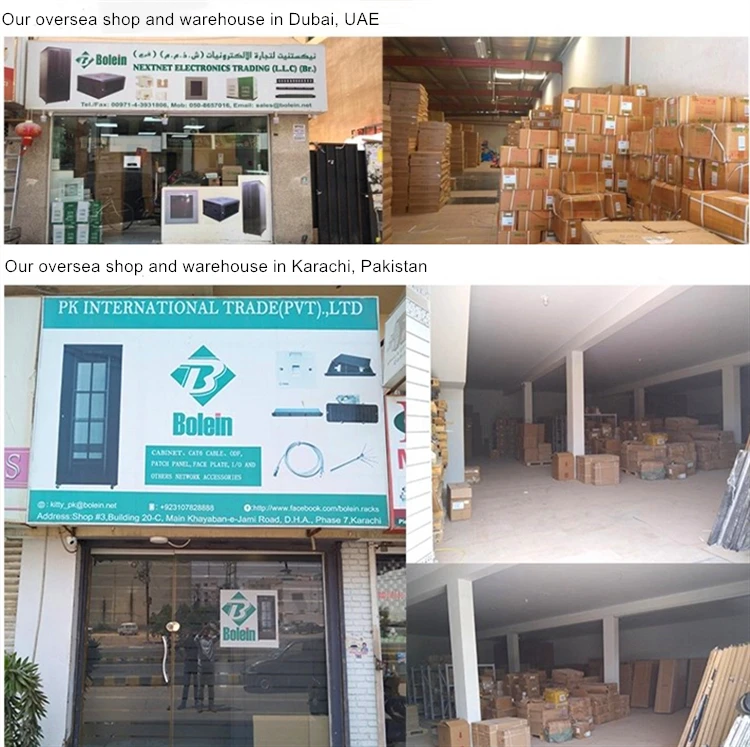

We have stock & warehouse in UAE (Dubai), Pakistan (Lahore, Karachi) & China, it is easy for customer to take products directly from one of the warehouses according to their own situation. We have partnership with local logistics company, so we can provide the best delivery service. Even for UAE and Pakistan customers, there are door-to-door transportation services.

We also offer customers OEM, lifetime warranty and return policy.

Good quality, good price, good service and good gurantee to our clients. Clients satisfaction is the AIMS of Bolein.

BOLEIN, starting from 2008, specializes in the innovative line of structured cabling products and fiber optic solutions as well as network cabinet, catering to a wide range of telecommunication services. After years of marketing development and testing, Bolein has become a brand that customers count on the most for the best product performance and expert care and advice. BOLEIN carries out a strict quality assurance system, and our excellent quality and services got recognition from clients all over the world.

We are expanding our global presences, and operating in multinational markets offering global service and local knowledge. By now, our overseas offices have been set up in Dubai, UAE and Karachi, Pakistan.
