4K HDMI KVM Switch USB Switcher box 2X1 for windows
- Category: KVM Switches >>>
- Supplier: Wanying Kaifeng Electronic Co. Ltd.
Share on (62317752520):
Product Overview
Description
Product Description

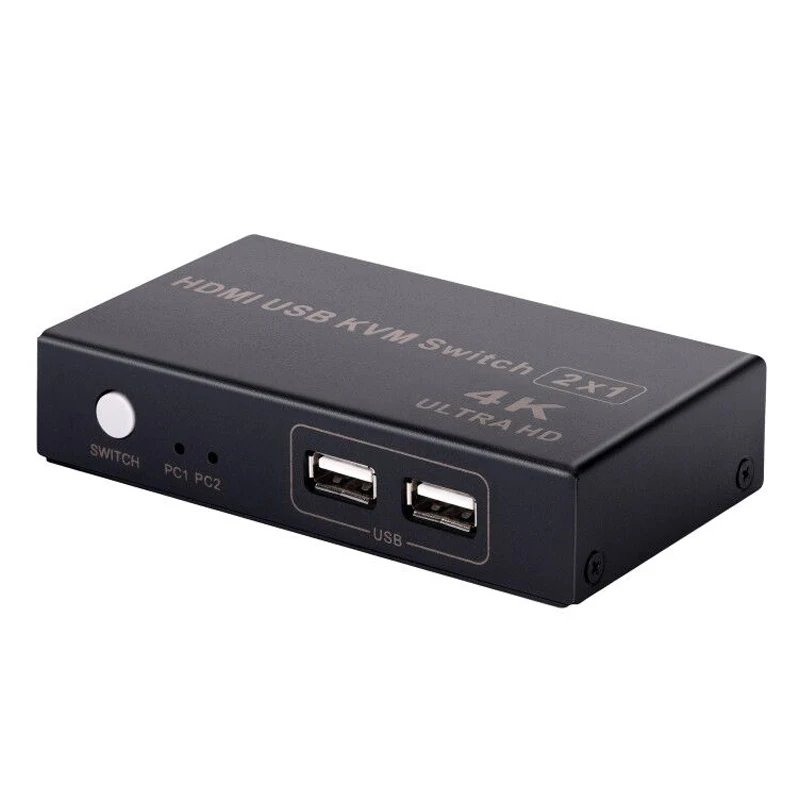

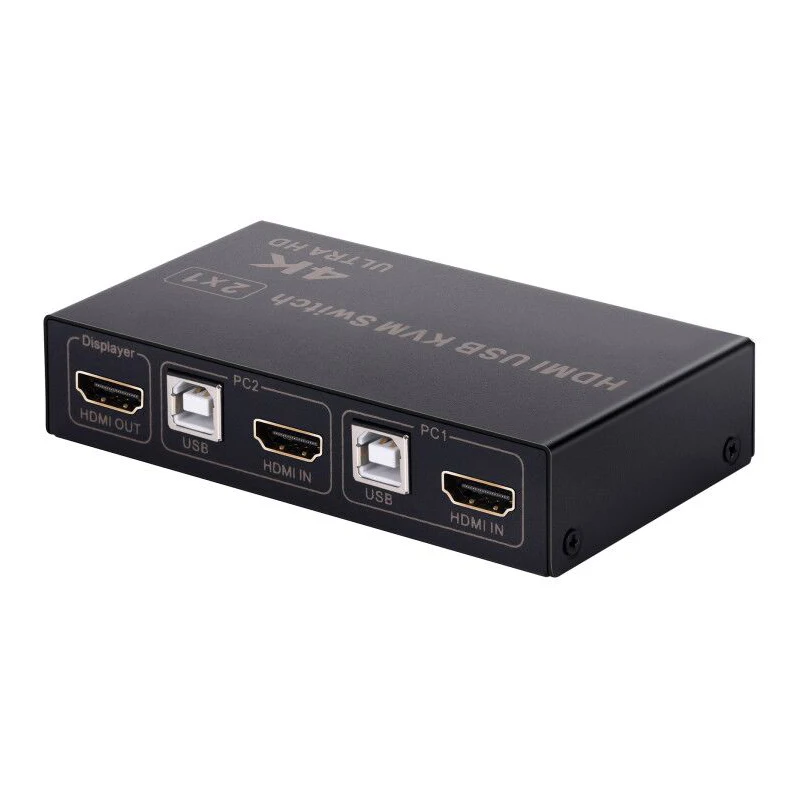

4K HDMI KVM Switch USB Switcher box 2X1 for windows
1. Introduction
HDMI USB KVM Switch allows you to share one USB keyboard, USB mouse, and monitor to control 2 computers.
It is designed for multitask with two computers at your convenience, increasing productivity in the office or at home ; You can switch between 2 computers using a manual switch located on the top of the KVM unit.
2. Features
- Control 2 host devices with only 1 set of keyboard, mouse and monitor to
- Support keyboard hot keys and front panel key to control KVM switch
- Compliant with HDMI 1.4
- Support resolution up to 4K@30Hz.
- Support Windows/Mac OS
- No power required
3. Package Contents
1)HDMI KVM Switcher 2X1
2)5V USB DC cable(for most device, it needs no external power supply)
4. Specifications
| Standards | HDMI 1.4; HDCP 1.4 |
| Maximum Pixel Clock | 340MHz |
| Maximum data rate | 10GBPS |
| Resolution range | up to 4Kx2K 30Hz, 3D, 1920*1080 60Hz |
| Connector: | HDMI-A interface |
| Impedance | 100Ω |
| HDMI cable range | <5M (resolution: 1920 * 1080 60Hz) |
| Interface Protocol | USB2.0 |
| PC input interface type | USB-B |
| Output Interface Type | USB-A |
| Power adapter | DC 5V |
| Power consumption | Maximum 2W |
| Operation Temperature | -5℃~ +70℃ |
| Operation Humidity: | 5%~90% |

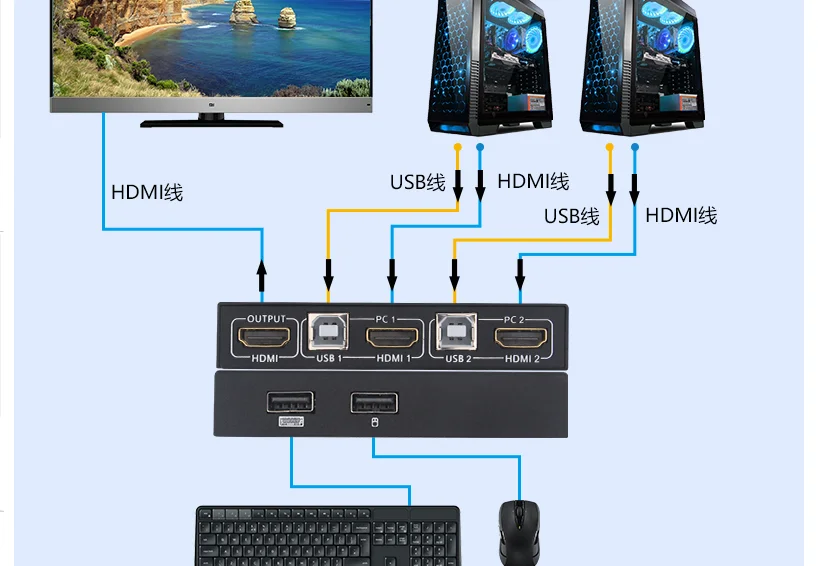

5. Application Example
Our Services
Company Information
FAQ
Q1: What about the lead time?
A1:Sample needs 3-5 days,mass production time needs 1-2 weeks for order quantity more than 100 PC.
Q2:How about the payment terms?
A2:We accept T/T, paypal or cash as payment .
Q3:What are your strengths?
A3:Our biggest advantage is the ODM service.
Q4:If we I am not clear about the how to use the products, what should I do?
A4:Each of our products has a manual, you can read it or you may contact with us.
