150 Ton Mobile Hydraulic Press For Truck Solid Tire Tyre

Product Overview

Description

150 Ton Mobile Hydraulic Press For Truck Solid Tire Tyre

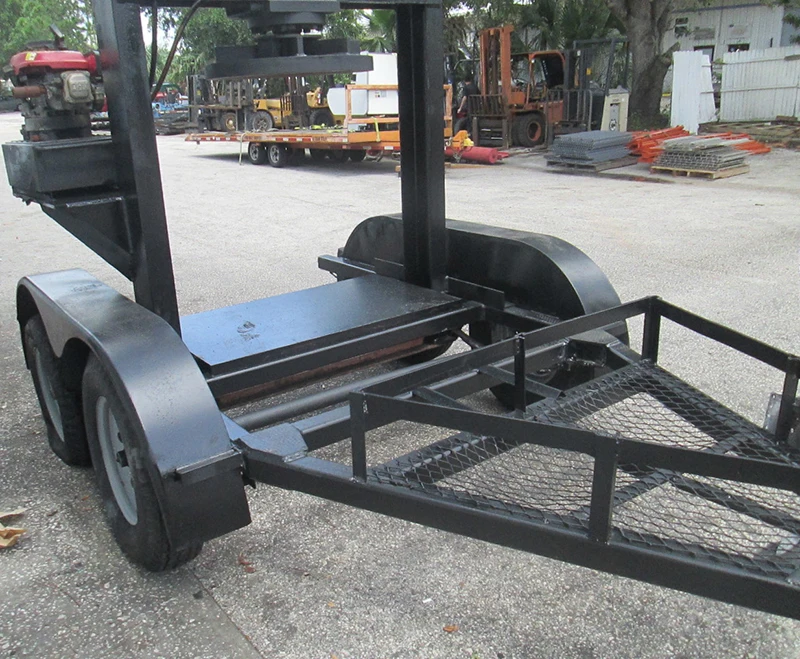

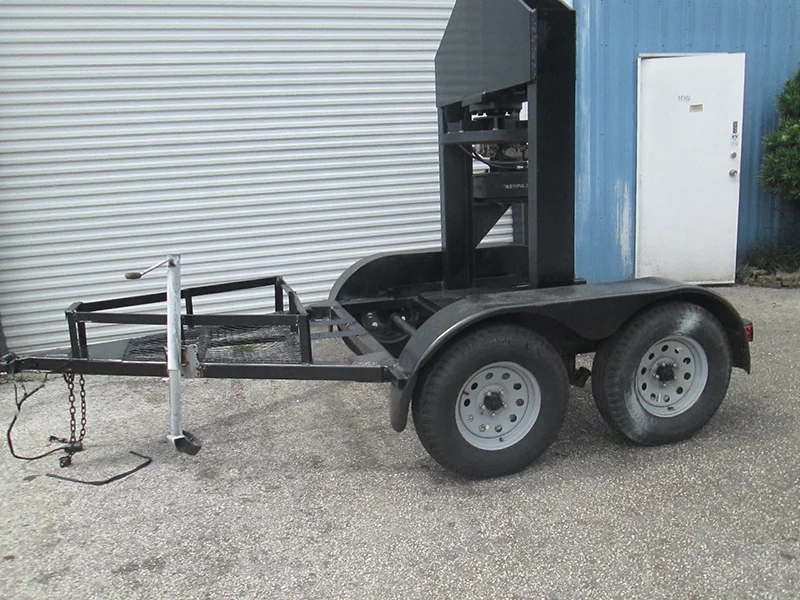

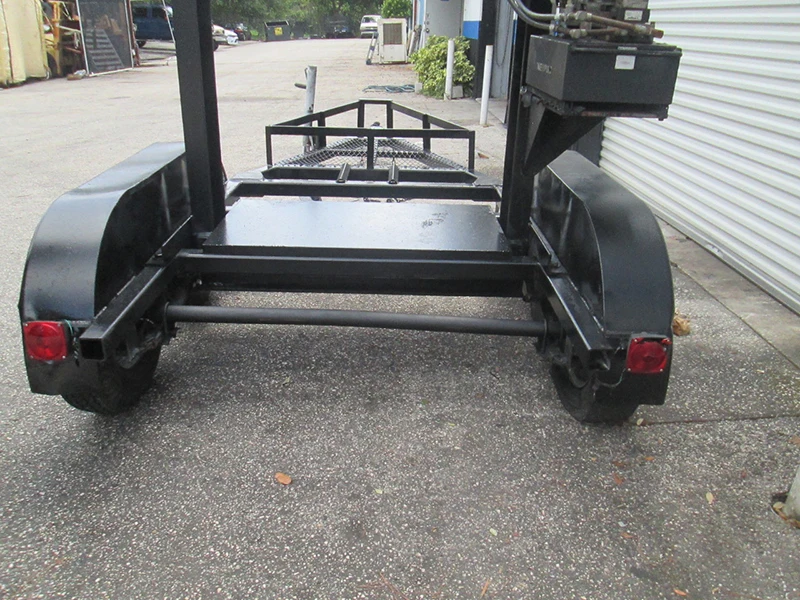

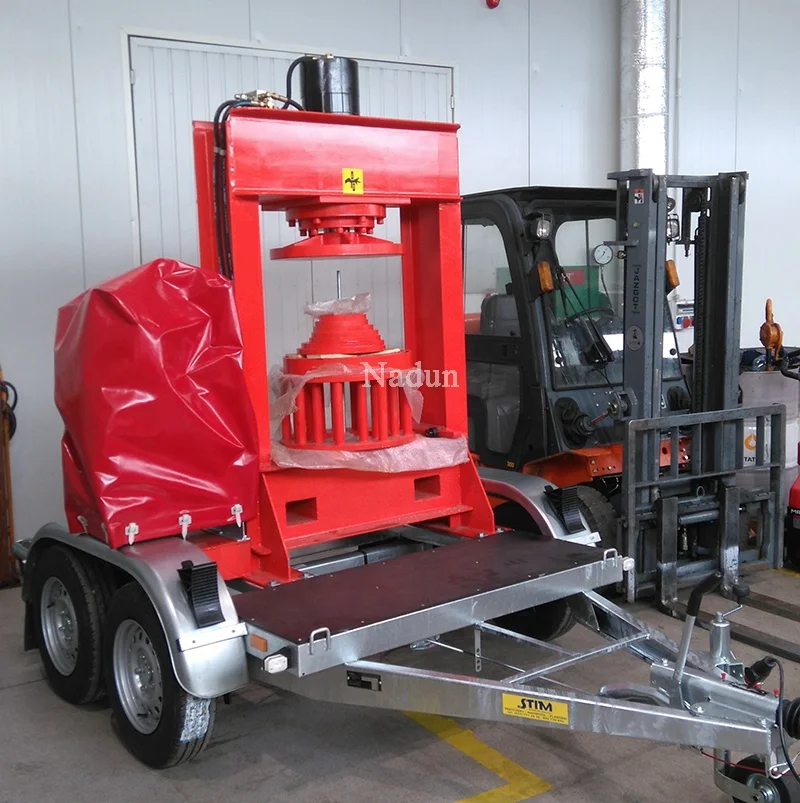

 Trailer mounted forklift tire press. Heavy duty "H" Frame press, convenient mobile use for any on site repairman.

Forklift Tire Press Machine heavy-duty frame, The construction is welded by large-scale beam and channel beam
High-grade Hydraulic Cylinder, The piston rod is grinded and hard-chromium plated

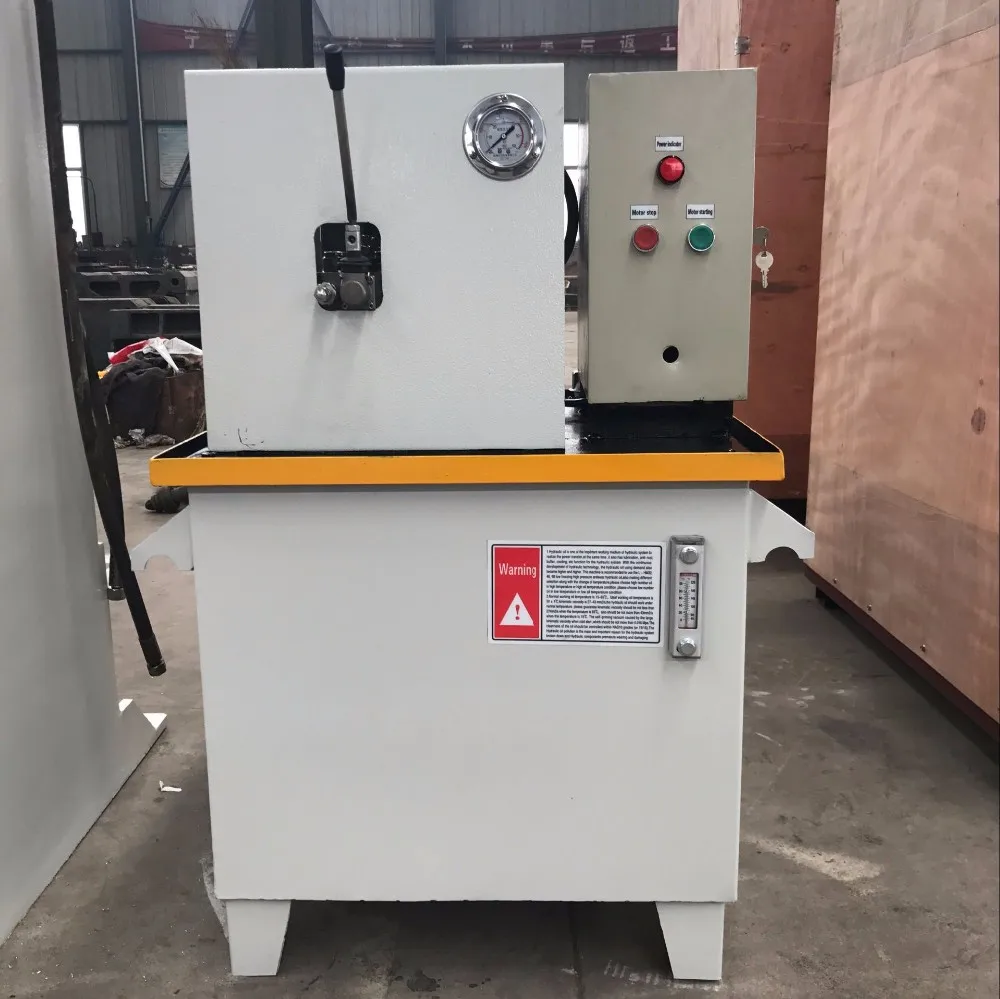

Compact Hydraulic Power Unit, First level quality in the area
Operation Panel, Operated by a handle for Down/Up, Any position can be stopped when the handle released.

Forklift solid tire press machine
Specification	Unit	YM-80T	YM-100T	YM-120T	YM-160T	YM-200T
Nominal force	Kn	800	1000	1200	1600	2000
Max system pressure	Mpa	31.5/25	31.5/25	31.5/25	31.5/25	31.5/25
Opening Height	mm	500	800	1000	1000	1200
Stroke	mm	300	300	400	600	550
Worktable	mm	500*400	600*500	1000*800	1200*800	1400*1000



All the parameters of the Hydraulic Solid tire Press Machine can be customized, any detail please click me.



Five points to install solid tires Note:
1, before the correct pressure to check the tire and rim models are correct, has been deformed or damaged wheels do not use.
2, before the combination of rims and tires, please clean up the wheels and tires, not the debris left in the internal.
3, before the combination of rims and tires. You can use the oily lubricant or soapy water to wipe the rim of the bead rim. Do not use oily lubricants.
4, the combination of wheels and tires should pay attention to the case of fitting, do not force the installation, so as to avoid danger.
5, wheel and tire combination need to be operated by the tire industry commissioner, do not self-combination.





1. Set the emergency stop button, press the emergency stop button, and the press stop immediately.
2. The limit switches are provided on the upper and lower floors.
3. Install hydraulic support safety valve circuit in the lower chamber of piston oil cylinder to ensure safety.The hydraulic interlock circuit is also set up to ensure that the main cylinder is unable to output pressure when it is not open.







We also provide solid tire press machine without trialer, for more details please contact me.



1. What's the Payment Terms ?
T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight.

2. How to ensure the quality?
We have partners in many countries. The machines have CE, ISO, SGS and other certificates.

3. What is your trade terms?
FOB, CFR and CIF all acceptable.

4. Whether to accept cash on delivery?
Sorry,you have to make a payment as described.

5. Do you have any after-sale services?
Sure! The telephone and video technical training could be provided. If there is something wrong with machine parts(usually we will attach the spare parts in delivery), we will send to you freely; if the problem caused by you, the parts will be send and the charge should beared by you.
