Semi auto Stacker for Lithium Battery Electrode Stacking Machine for Laboratory Pouch Cell Pilot Line
- Category: >>>
- Supplier: Shenzhen Tico Technology Co. Ltd.
Share on (62317762154):
Product Overview
Description
Technical Parameter
Model | STC-BDP200 | ||||||
Working voltage | AC110V/220V optional | ||||||
Stacking length | L20~200mm | ||||||
Stacking width | W20~200mm | ||||||
Separator roll diameter | Max φ250mm | ||||||
Travel stroke | 300mm | ||||||
Air source | 0.5~.7MPa | ||||||
Operation mode | Semi-auto | ||||||
Dimension | Control box: L650 * W400 * H700mm Working part: L200 * W200 * H380mm | ||||||
Weight | 60 kg | ||||||
Products Description

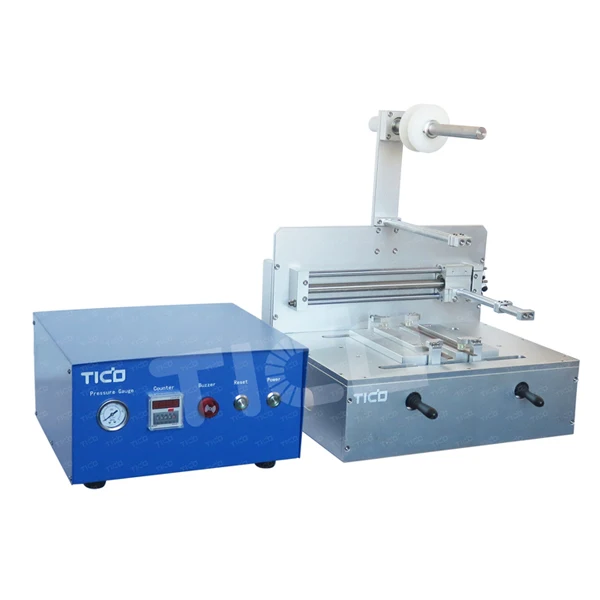

STC-BDP200 semi-auto stacker is used for pouch cell electrode stacking for battery anode, cathode and separator film by "Z" shape to make a pouch battery core. The stacking size is adjusted from L20~200mm, to W20~200mm.
Features:
● Stacking size is adjustable.
● It is designed with counter for battery electrode stacking layers
● Desktop designed, exquisite size.
● Control part and working part split design, easy to operate.
Application:
● Battery lab
● Battery research
● Lithium ion battery lab
● Material research
● Trial-production
