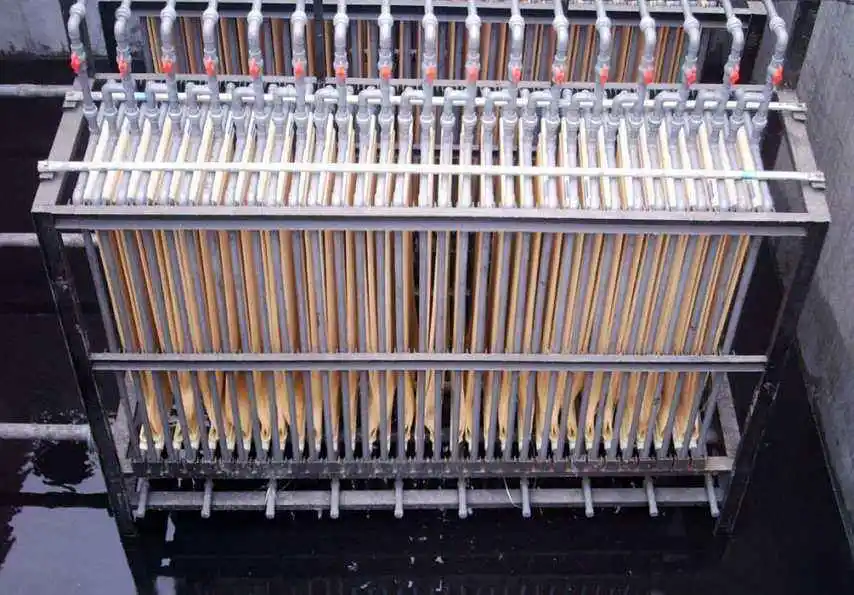

NIPS/TIPS PVDF Hollow Fiber Membrane for Waste Water Treatment
- Category: >>>
- Supplier: Ningbo Haishu Ecofine Purification Equipment Factory
Share on (62317802604):
Product Overview
Description
Product Description
NIPS / TIPS PVDF Hollow Fiber Membrane for Waste Water Treatment Product utilization NIPS / TIPS composite legal system prepared with the support tube PVDF fiber composite membrane with high strength, high flow, ultra-hydrophilic anti-pollution performance, ideal material for the MBR.The woven nylon tube as internal support by NIPS / TIPS composite technology in the surface of the braided tube step molding with a controllable aperture separation layer.This film can be used for a variety of microfiltration,ultrafiltration system.Is currently on the market along with the large flow (Max.2000L / H), high intensity (high peel andtensile strength). Hydrophilic (self-wetting the dry film without coating glycerol) three major characteristics of the hollow fiber membranes.

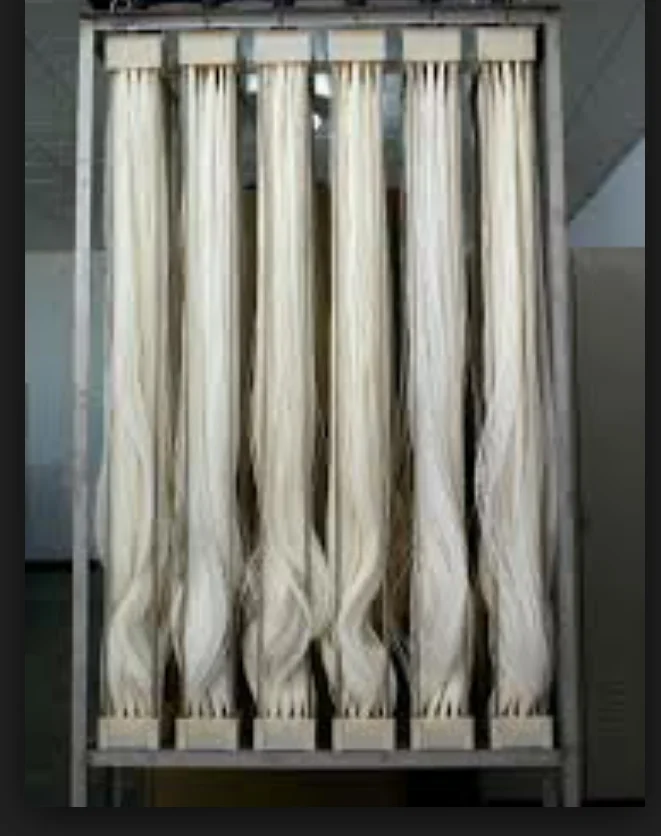

NIPS / TIPS PVDF Hollow Fiber Membrane
Product Technical Features
Within supporting protection of ultra-high-tensile strength braided tube
The super hydrophilic modifier protection since wetting and hydrophilic properties
NIPS / TIPS Production of large water flux.
Within supporting protection of ultra-high-tensile strength braided tube
The super hydrophilic modifier protection since wetting and hydrophilic properties
NIPS / TIPS Production of large water flux.
Name | Description |
Material | Hydrophilic PVDF |
Tensile Strength | >300N |
Peel Strength | >0.4MPa |
Size | 2.6/1.8 mm |
Micron rating | 0.1-0.3um |
Porosity | 60-80% |
Flow rating ( pure water) | 1000- 2000L/m2.h.bar |
Operating pressure | 0.01-0.03 MPa |
Temp. | 5-50C |
PH | 2- 12 |
Life time | 5 years |
