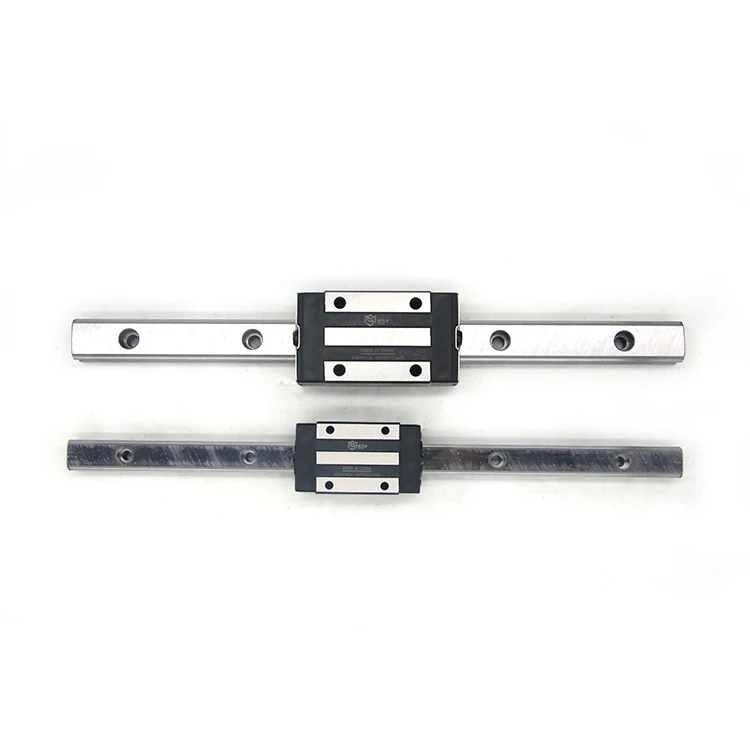

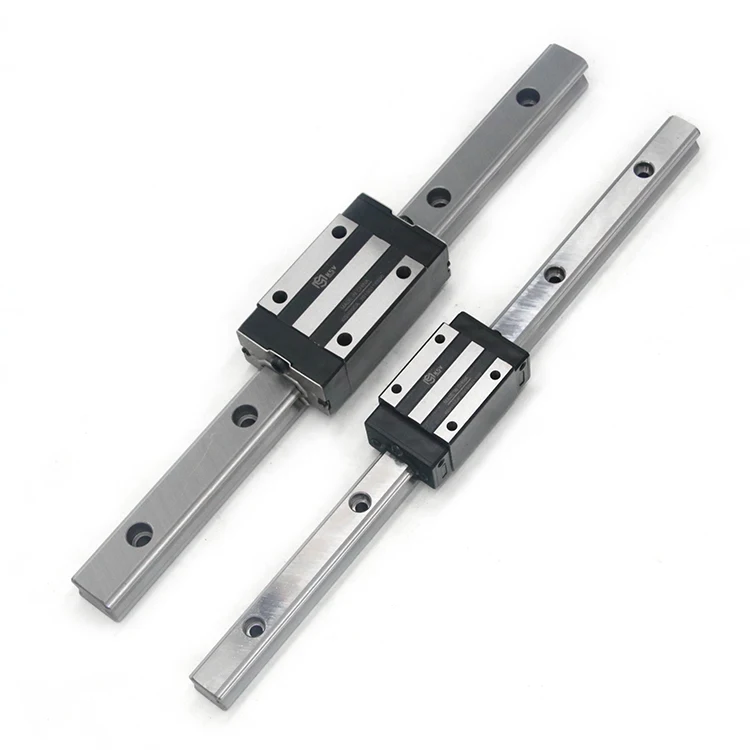

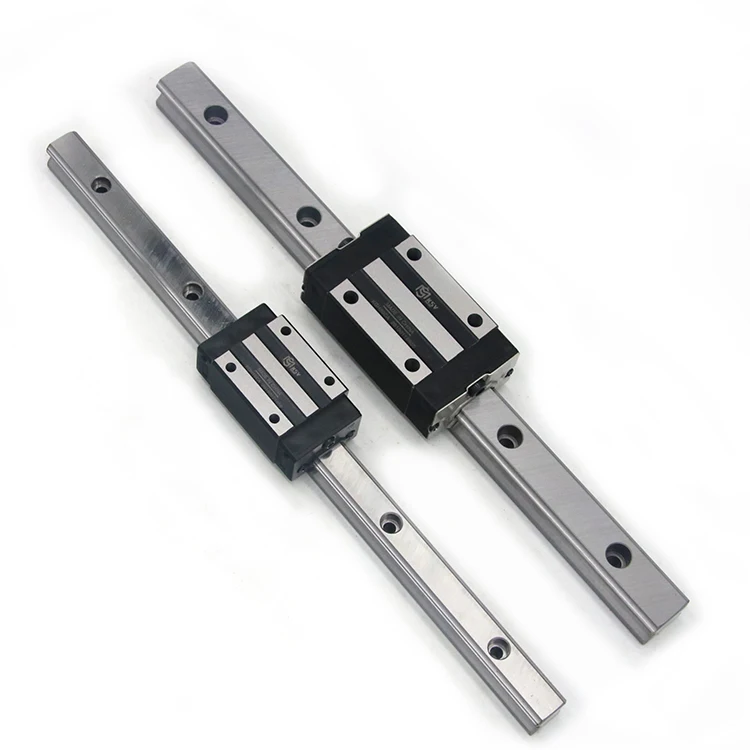

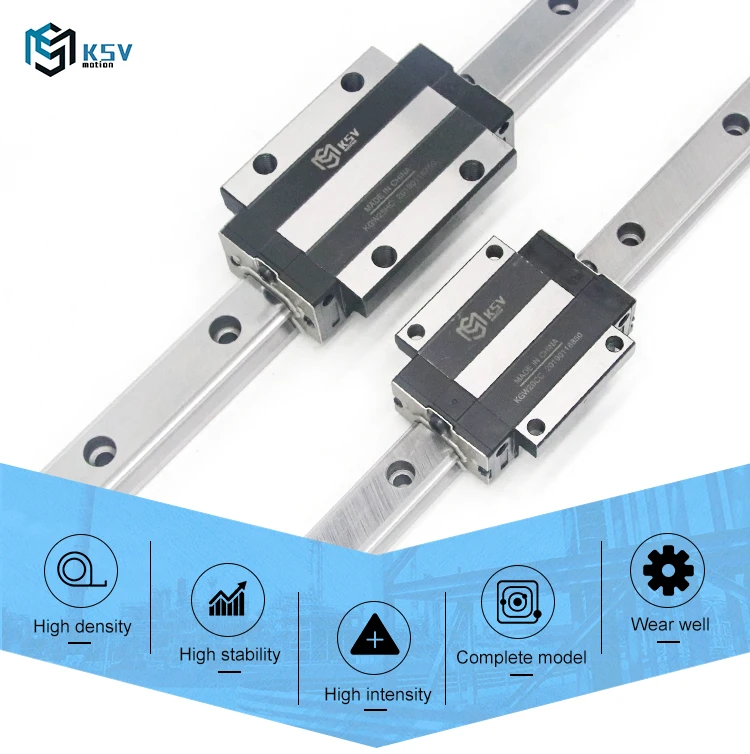

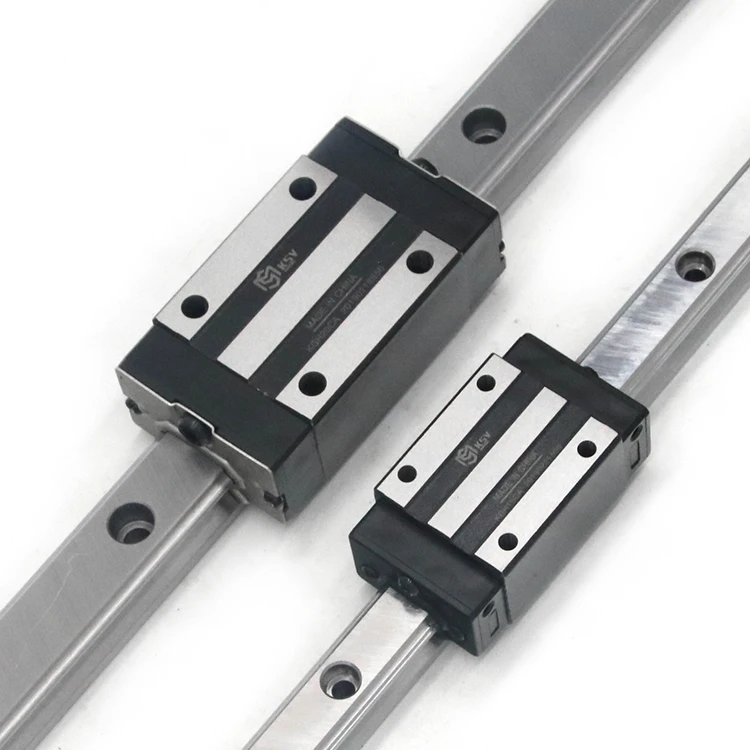

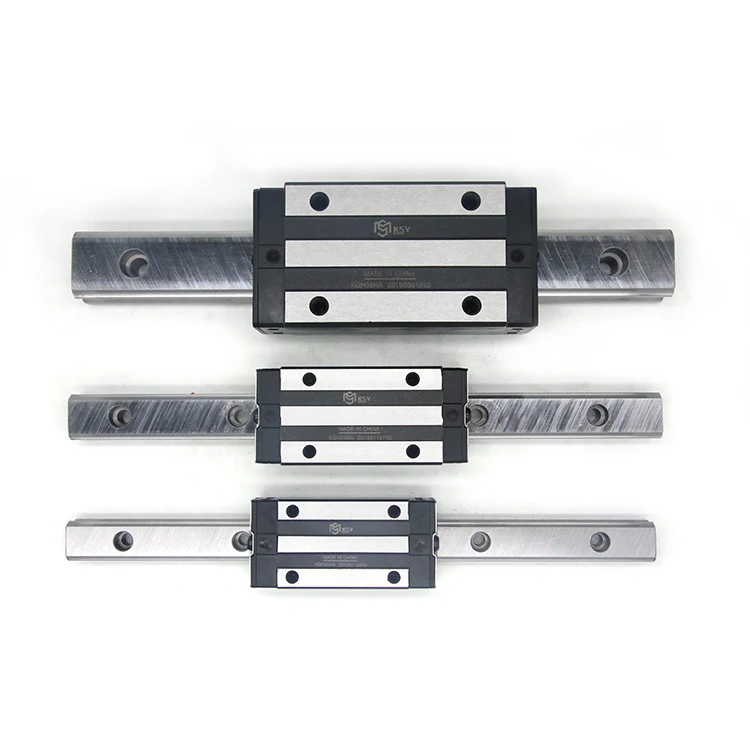

Factory Price HGH20CA Linear Motion Guide Slide Block HGR20 CNC linear guide block

Product Overview

Description



Product Name	KSV MOTION Linear Guide
Material	Bearing Steel
Advantage	High precision, low wear, high speed movement, high load, easy assembly, interchangeability, simple construction
Delivery Details	5-15 Days After Order
Applications	CNC Machine Tools,Electronic Equipment,Automation Equipment,Laser Equipment, Medical  Equipment (CT),Lathe,Horizontal Miling Machine,Planer,Shearing Machine Etc.



  Feature

(1) High positioning accuracy
When the linear guide is used as the linear guide, since the friction of the linear guide is rolling friction, not only the friction coefficient is reduced to 1/50 of the sliding guide, but also the difference between the dynamic friction and the static friction is small. Therefore, when the bed is running, there is no slippage, and the positioning accuracy of μm can be achieved.

(2) less wear
The traditional sliding guide will inevitably cause poor platform motion accuracy due to the reverse flow of the oil film, and the lubrication will not be sufficient due to the movement, resulting in the wear of the running track contact surface, which seriously affects the accuracy. The wear of the rolling guide is very small, so the machine can maintain accuracy for a long time.

(3) High-speed motion low-power horsepower
Since the friction of the linear guide is very small, the bed can be operated with less power, especially when the bed works in a regular round-trip operation, and the power loss of the machine can be significantly reduced.
