Heat Sealing Machine for Pouch Cell Making

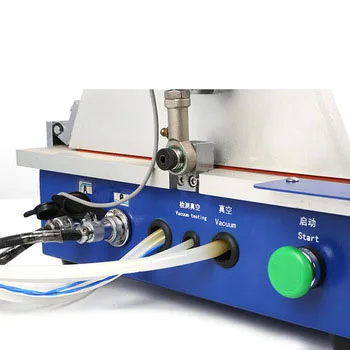

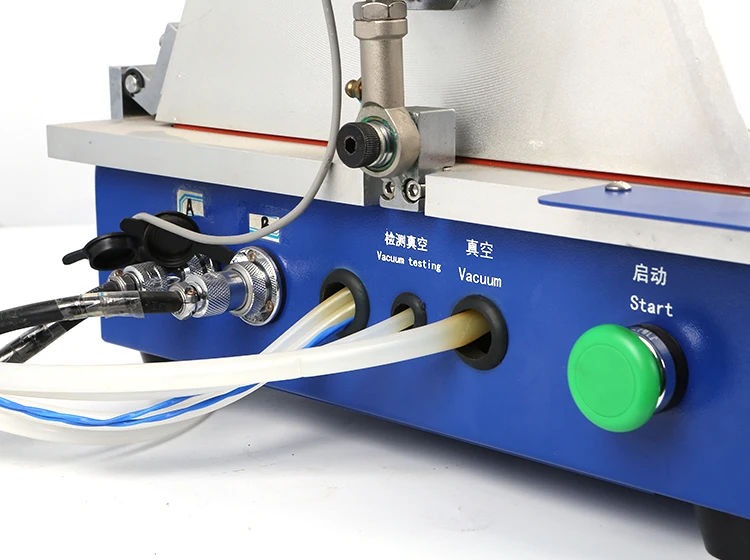

This equipment is mainly used for vacuum hot sealing after electrolyte diffusion of pouch cell Li-ion batteries(medium,small size). This equipment accurate controls the main vacuum pumping box and pneumatic heat sealing components to automatically complete the vacuum heat sealing of laminated- aluminum battery case.

 Features :

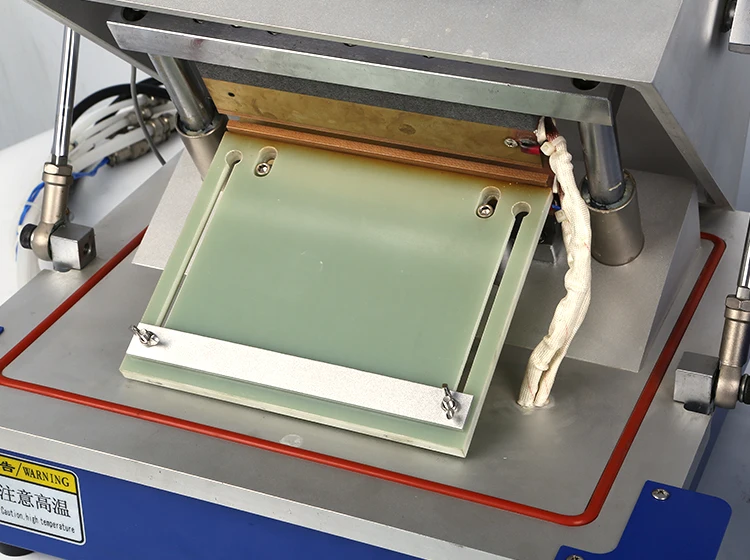

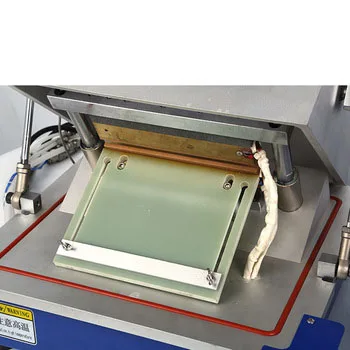

1. The sealing head is made of copper material so that the heat transfer effect is good to save power consumption and improve work efficiency and more energy-saving than other similar products.
2. Pressure of upper and lower sealing heads can be regulated by pressure regulating valve to meet different technological parameter demands.
3. The lower and upper sealing heads are driven by cylinder through two linear-guide bushes that makes them move up and down flexibly and ensures the parallelism demand after sealed by right guidance.

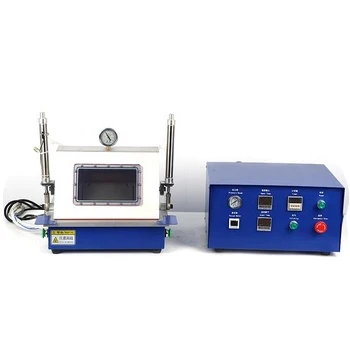

4. Through perspective window to observe the changes inside the chamber during work.
5. The cover chamber is driven by cylinder, guided by rotating guide bush to move up and down flexibly, accurate guide can ensure the sealing demand.
6. This equipment is applicable for different sizes of batteries and easy to regulate.

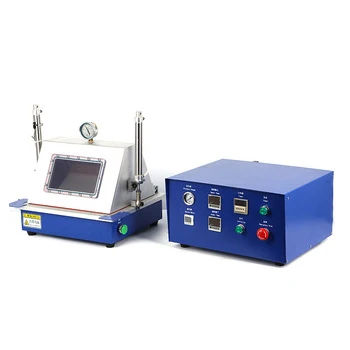

7. Split design of main machine and control box makes the equipment can work either in the glove box or the production line.


 Application :

•


  Battery lab





•


  Battery research





•


  Lithium ion battery lab





•


  Material research





•


  Trial-production




 Product show
