China Brand Stonex R1 Dual Axis Total Station Reflectorless Distance 800m Total Station
- Category: >>>
- Supplier: Shanghai Magcach Technology Co. Ltd.
Share on (62317870180):
Product Overview
Description
Product Description

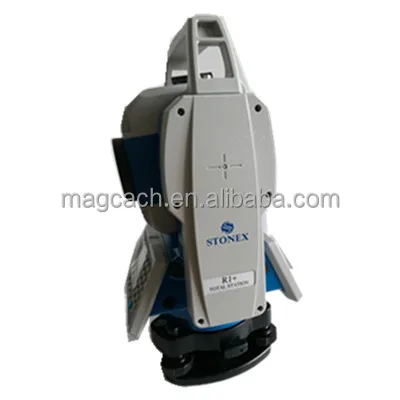

China Brand Stonex R1+ Dual Axis Total Station Reflectorless Distance 800m Total Station
Technical Parameter
Model | R1+ | ||
Telescope | Mirror tube length | 160mm | |
| imaging | Positive | |
| Effective diameter of objective lens(EDM) | 44mm | |
| Magnification | 30X | |
| field | 1°30′ | |
| Discrimination (JIS) | 2.8″ | |
| Shortest range of visibility | 1.0m | |
Range finder | Ranging light source | (visible lase)650~690nm | |
| Spot diameter | 12mm*24mm ellipse (50m) | |
| Laser grade | Class3 | |
| Measuring range(good weather condition) | Non-prism | 800m |
|
| Mini prism | 1200m |
|
| Single prism | 5000m |
| Precision of distance measurement | Prism | ±(2+2×10-6·D)mm |
|
| Reflector,Non-prism | ±(3+2×10-6·D)mm |
| Measurement time | 1.0s/0.3s(precision / tracking); initial:2.5s | |
| Minimum reading of distance measurement | Precision measurement mode:1mm | |
| Range of temperature setting | -40ºC~+60ºC | |
| temperature range | 1ºC(automatic correction) | |
| Atmospheric correction | 500hPa-1500 hPa | |
| atmospheric pressure | 1hPa(automatic correction) | |
| Prism constant correction | -99.9mm ~ +99.9mm | |
Long level bubble | Tube type bubble precision | 30″/2mm | |
| Circular bubble precision | 8′/2mm | |
| Graphical electronic level | 30″/2mm;range:3′;Accurancy:1″ | |
Laser counter point device | Light spot size / energy | Adjustable | |
| Laser class | Class2/IEC60825-1 | |
| wavelength | 635nm | |
| accuracy | ±1.5mm/1.5m | |
Angle measurement | Reading system | Absolute coding system | |
| Minimum reading | 1″ | |
| Precision | 2″ | |
| Display unit | 360°/400gon/6400mil | |

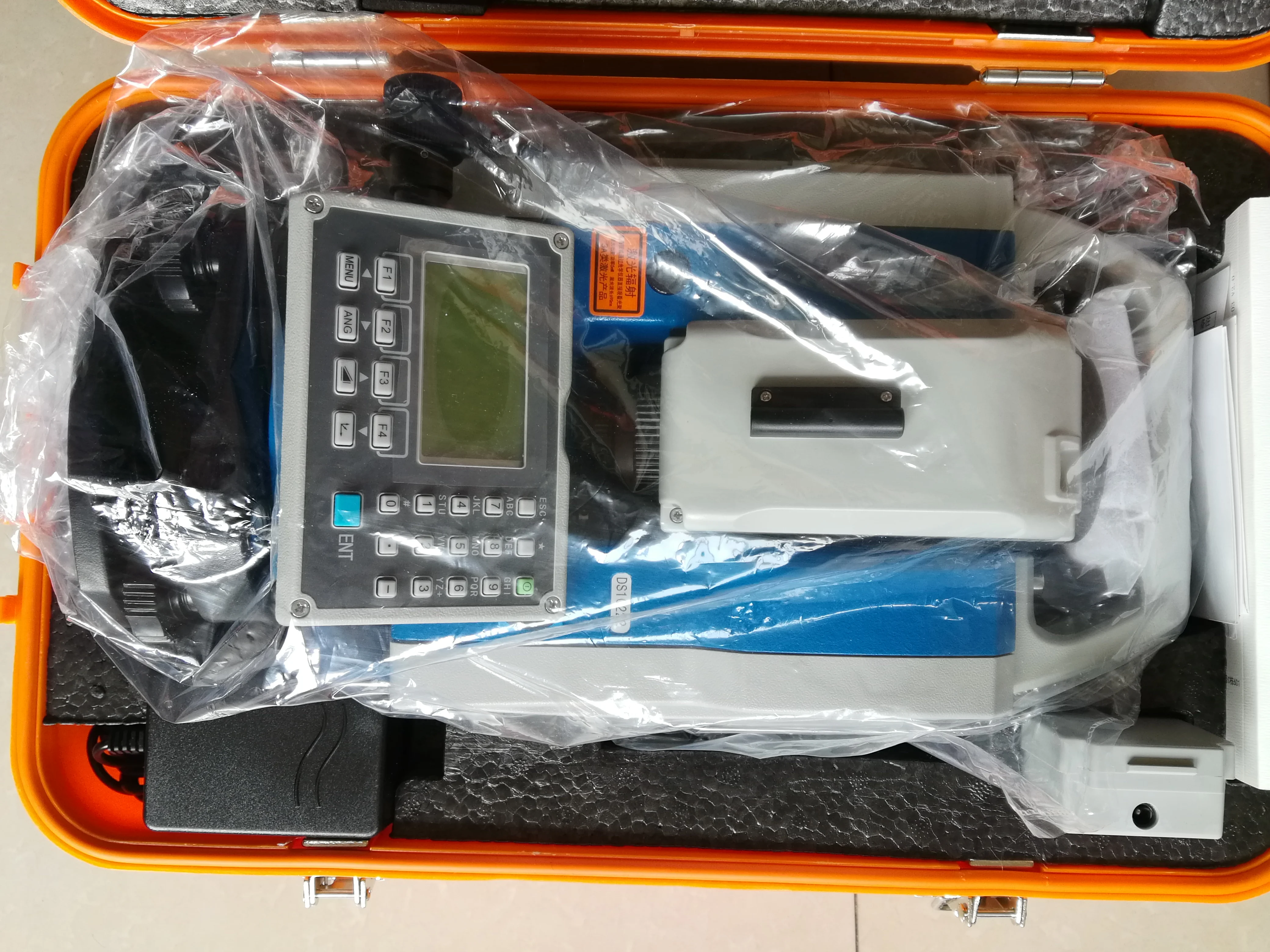

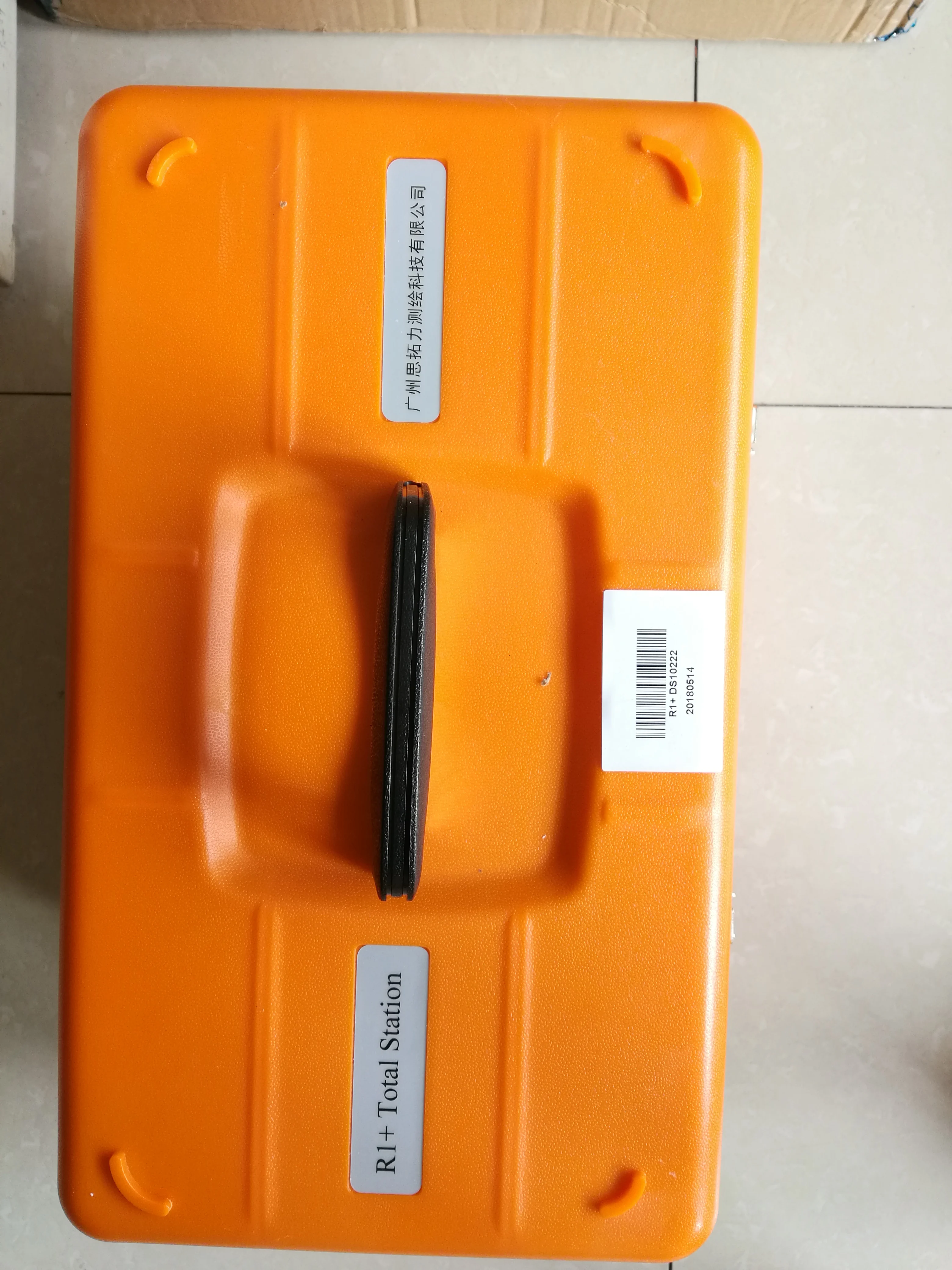

Packaging & Shipping
