CE Vertical glass edging polishing machine for glass straight edge

CE Vertical glass edging polishing machine for glass straight edge

Category: >>>
Supplier: Foshan Addtech Glass Machinery Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

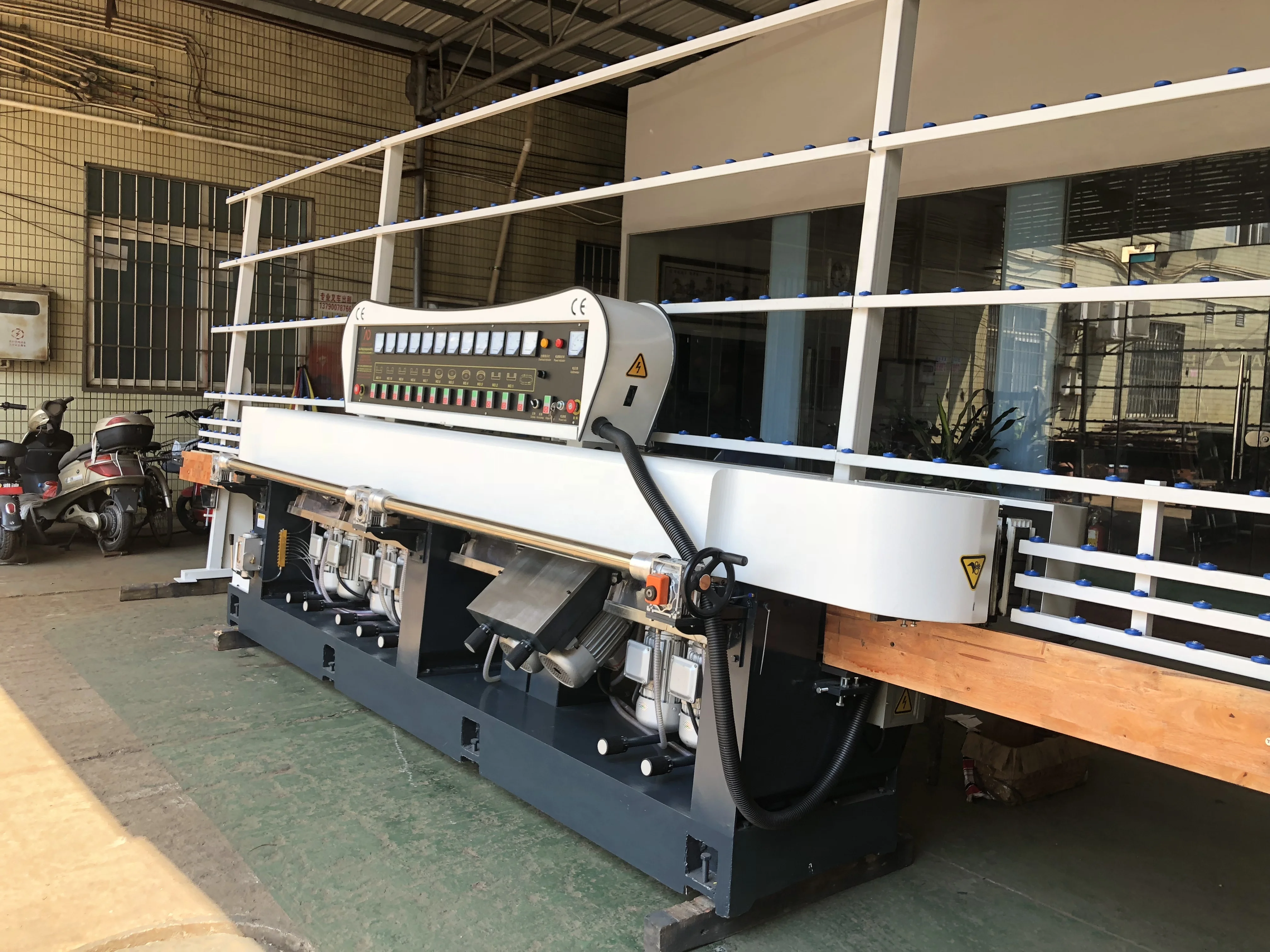

ADZM11325 Glass straight line edging machine

1. Suitable for grinding straight edge of different size and thickness flat glass.

2. The coarse grinding, fine grinding, chamfering and polishing can be finished at one time.

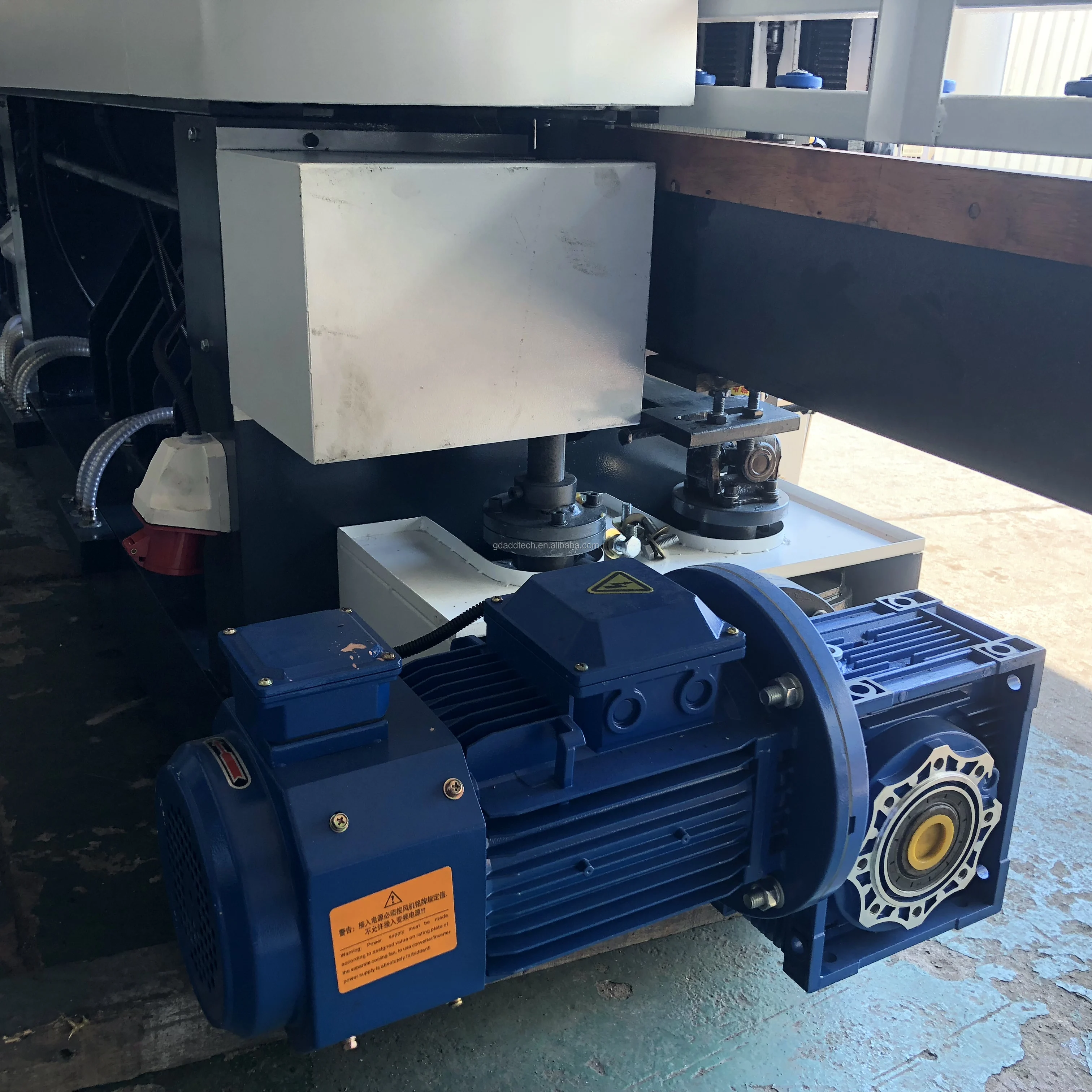

3. Working speed and working load can be adjusted smoothly by continuously variable
mechanism transmission.

4. Adjust front rail to match different glass thickness.

5. The machine is equipped with automatic clamping system and voltage stabilizing system.

6. With easy operation, high precision and efficiency, this machine becomes one of indispensable
equipment for glass procession.

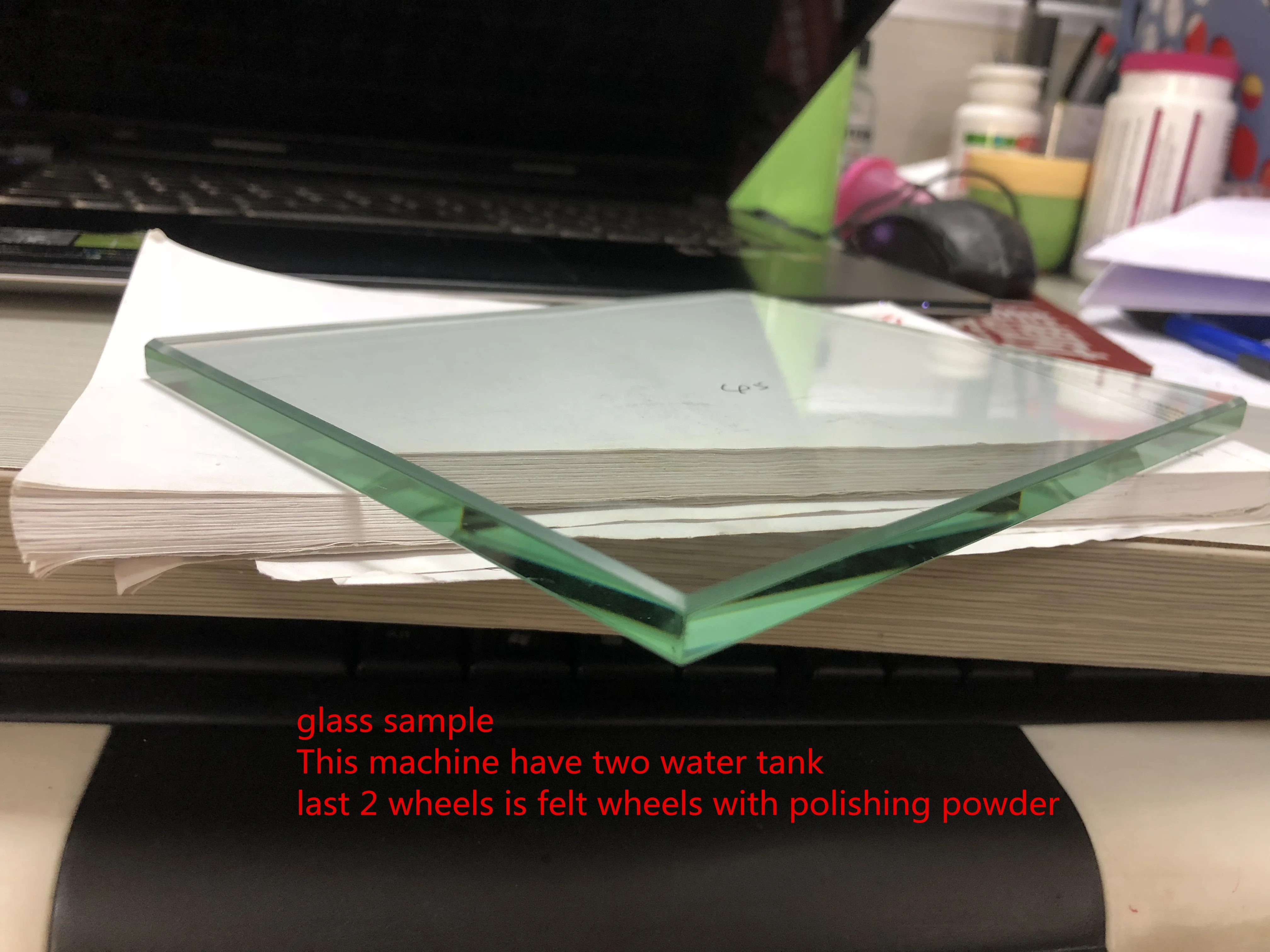

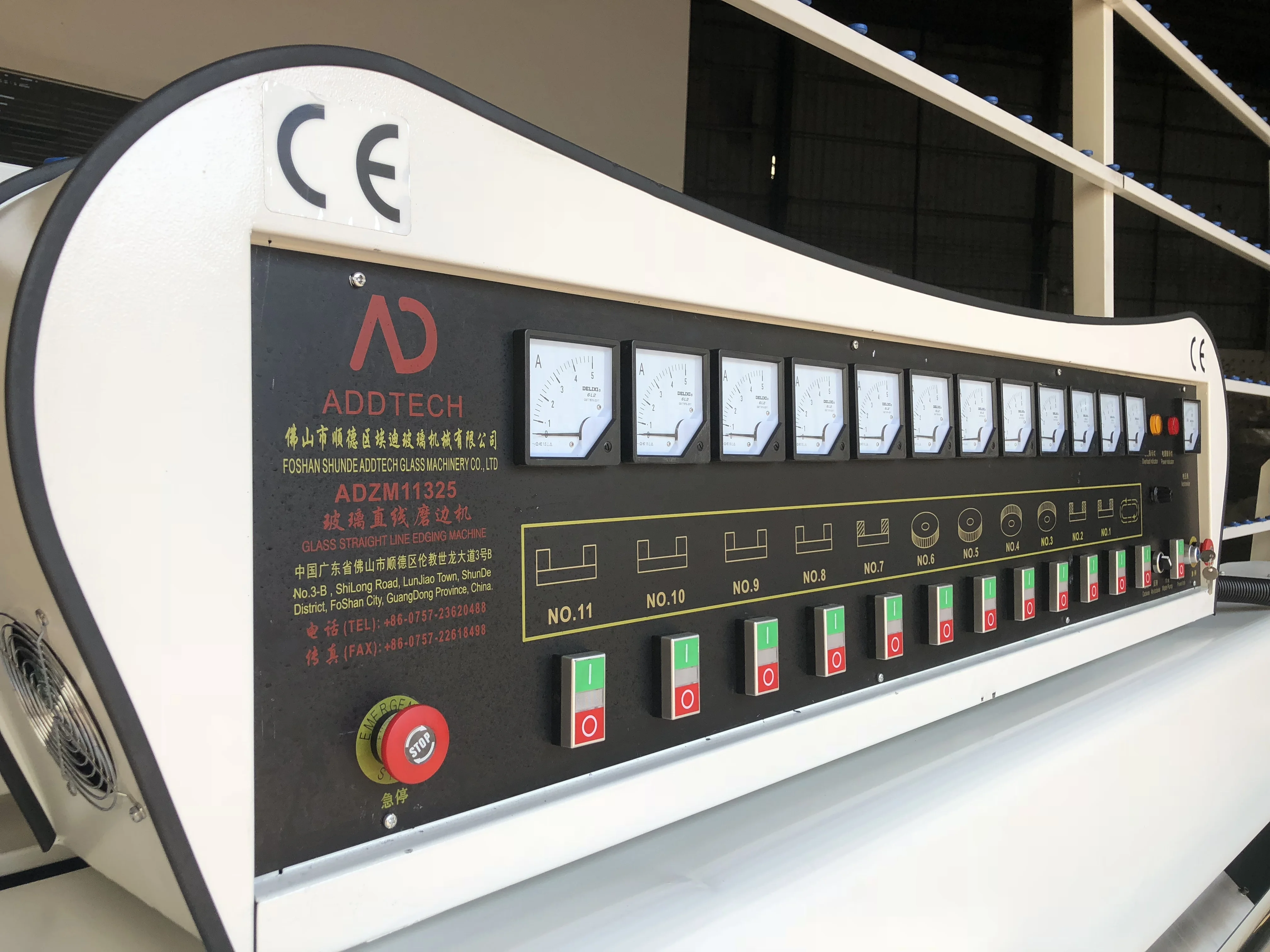

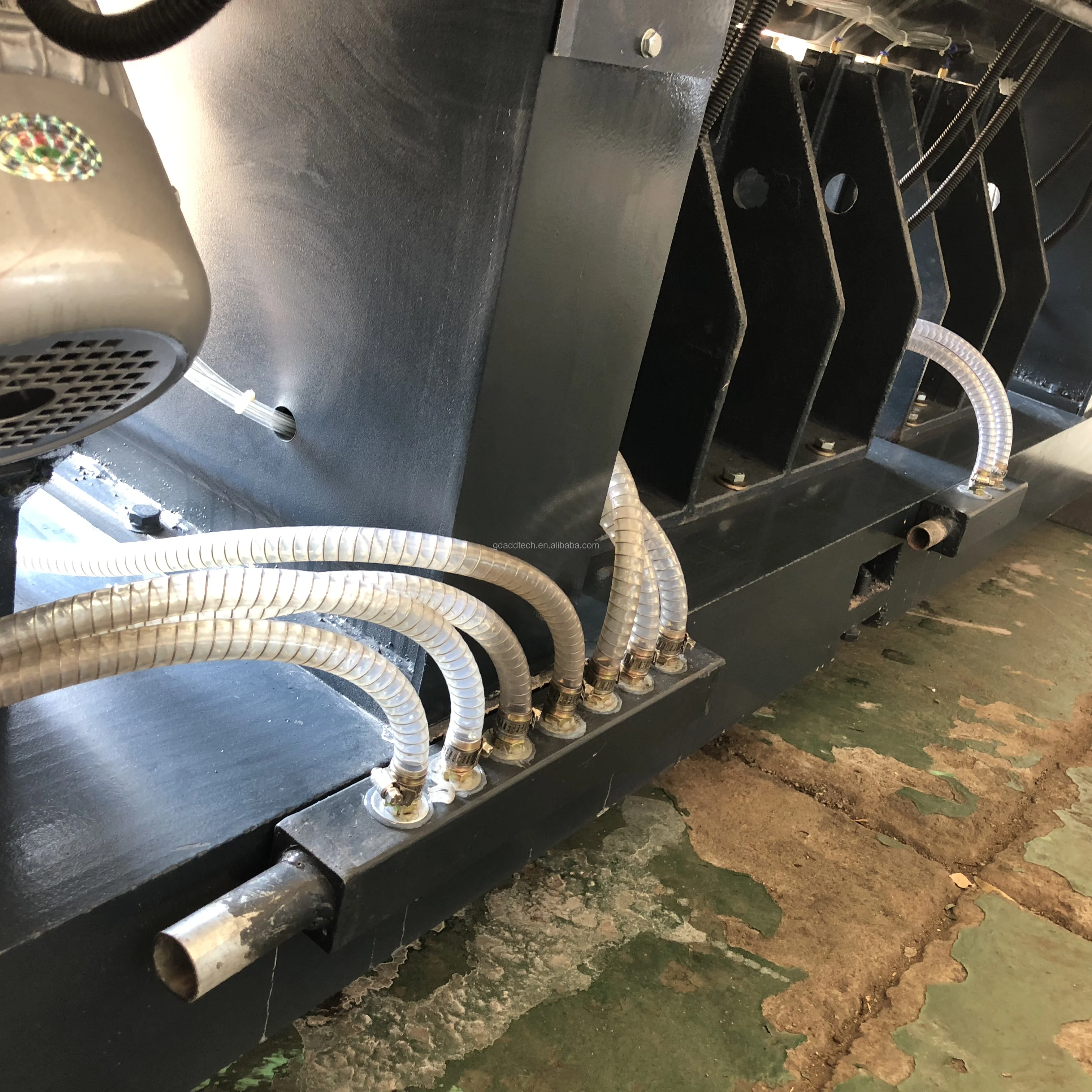

ADZM11325 11 motors glass edging machine ( two water tank)

We can accorrding to your any request to do . Example :motor brand ,with PLC or without ,any overall dimension .

TECHNICAL SPECIFICATIONS
Item	Specifications
Min glass size	80*80mm
Glass thickness	3-25mm
Feeding speed	0.5-5m/min
Weight of machine	3200kg
Voltage	220/380/415/480V,50/60HZ
Installed Power	24kw

Certifications

Detailed Image

Front Plate:Hollow Rubber with hole

General confirguration : thin glass no easy to broken

Front Plate :Solid Rubber

As you like ,you can choose this one .

Chain & Iron frame

General confirguration: Very stronnger for big glass

Belt & Fluency strips

As you like , you can choose . we have AT30 & AT20 . also very stronger

Our Company

We are a professional glass machinery company for glass machine manufacturer and sales! We had exported to more than 50 countries until 2019, And areas like South America,,South Africa,India all over the world!

Our Workshop
