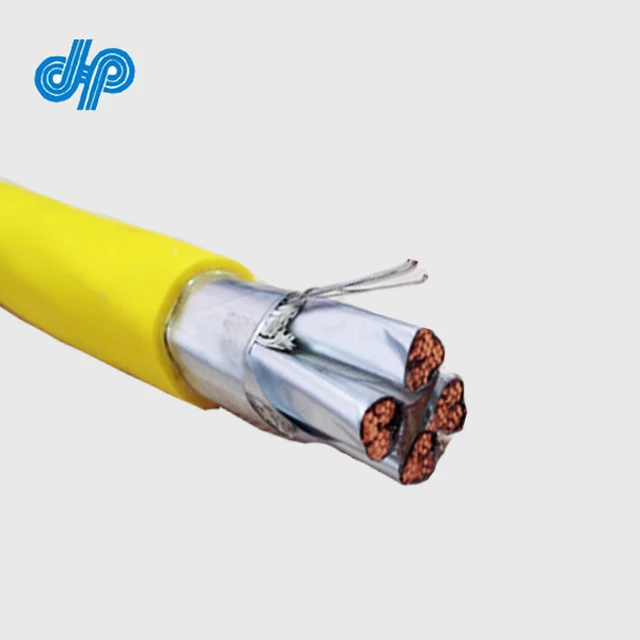

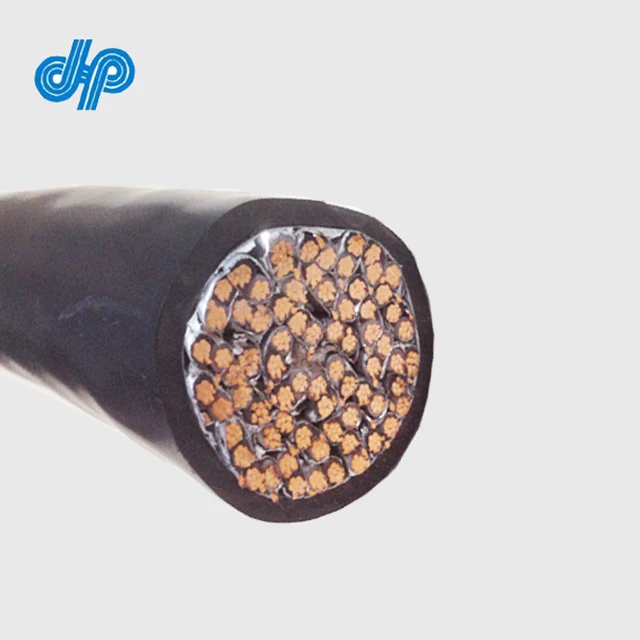

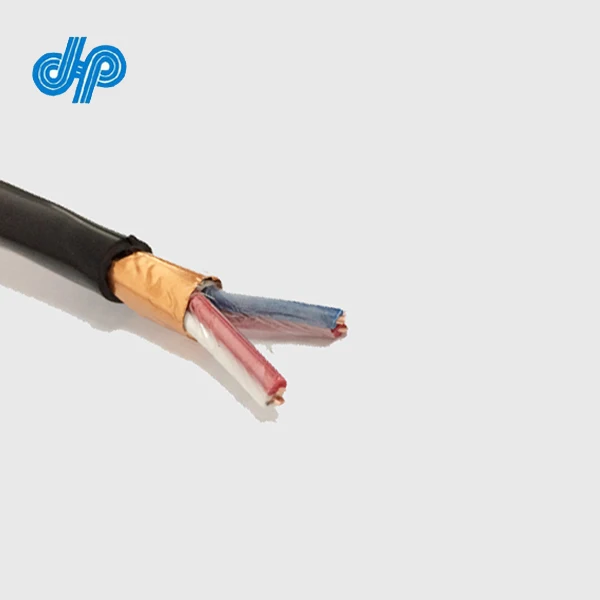

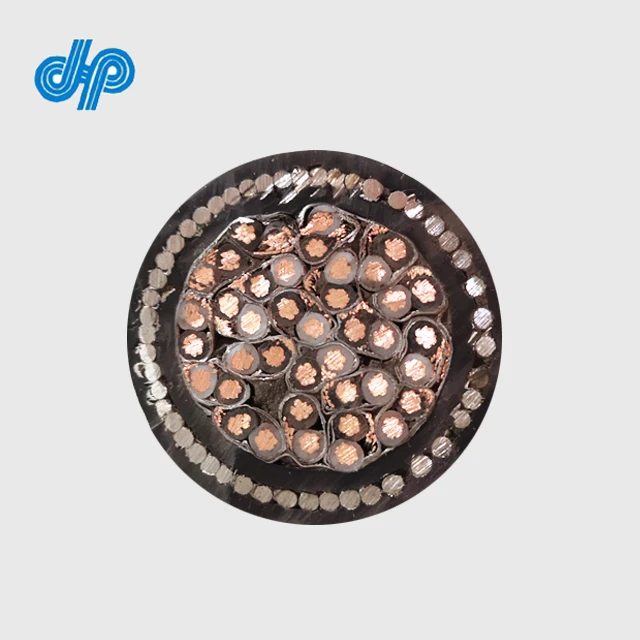

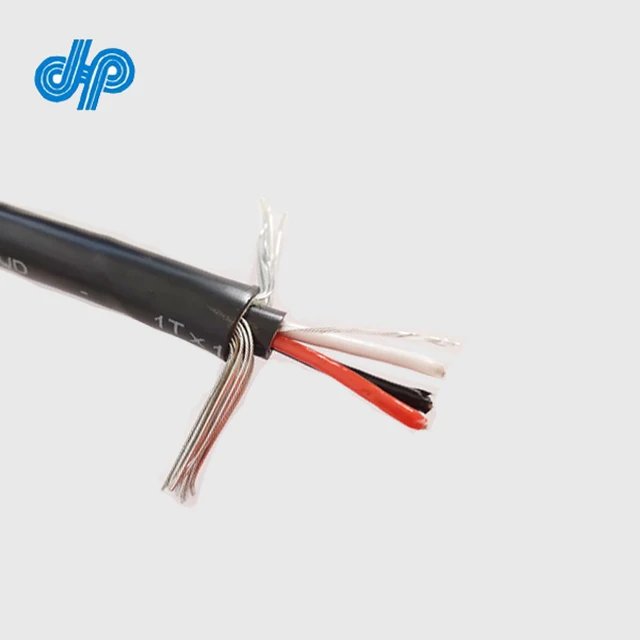

1 2 4 5 6 8 10 12 16 18 20 Pairs x 1mm2 CU/XLPE/IS/OS/PVC/SWA/PVC Instrumentation Cable

Product Overview

Description



1 2 4 5 6 8 10 12 16 18 20 Pairs x 1mm2 CU/XLPE/IS/OS/PVC/SWA/PVC Instrumentation Cable



Application:
BS5308 cables are designed to carry communication and control signals in a variety of installation types including the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. BS 5308 cables are designed to form part of an intrinsically safe system and the technical information required to determine their suitability for this application is contained within the datasheet. Part 2 Type 2 cables are designed where a greater degree of mechanical protection is required namely outdoor / exposed or direct burial at suitable depth. Being BS 5308 Part 2 the insulation material is PVC, whilst the PVC sheathing material has an OI >30% and HCL <15% and the LSZH material is of type LTS3. Individually and collectively screened pairs are available within the range where further signal security is required.

Standards: BS/PAS 5308, BS EN 60228, BS 6234, BS 50363, IEC 60332-1, IEC 60332-3-24

Conductor: Class 5 plain copper conductors

Pairing: Two insulated conductors uniformly twisted together

Insulation: PVC (Polyvinyl Chloride)

Drain Wire: Tinned copper

Screen: Aluminium/Polyester tape

Bedding: PVC (Polyvinylchloride)

Armouring: Galvanised SWA (Steel Wire Armour)

Sheath: PVC (Polyvinyl Chloride) OI >30% HCL<15%

Sheath Colour: Blue or Black

Voltage Rating: 300/500V

Temperature Rating:
Fixed: -30ºC to +70ºC
Flexing: -5ºC to +50ºC

Minimum Bend Radius: 18 x Overall Diameter

Type: Pairs/Traids

1Pair, 2Pairs, 4Pairs, 6Pairs, 8Pairs, 10Pairs, 12Pairs, 16Pairs, 20Pairs, 24Pairs

1Traid, 2Traids, 4Traids, 6Traids, 8Traids, 10Traids, 12Traids, 16Traids, 20Traids, 24Traids

Sizes: 0.5, 0.75, 1.0, 1.5, 2.5 mm2

CU/XLPE/IS/OS/PVC/SWA/PVC, CU/XLPE/OS/PVC/SWA/PVC,  CU/XLPE/IS/OS/LSZH/SWA/LSZH, CU/XLPE/OS/LSZH/SWA/LSZH

TCU/XLPE/IS/OS/PVC/SWA/PVC, TCU/XLPE/OS/PVC/SWA/PVC,  TCU/XLPE/IS/OS/LSZH/SWA/LSZH, TCU/XLPE/OS/LSZH/SWA/LSZH

CONDUCTOR AREA SIZE	MM2	0.5	0.5	0.75	1	1.5
Conductor Stranding	No. x mm	1 x 0.8	16 x 0.2	24 x 0.2	1 x 1.13	7 x 0.53
Conductor resistance max	ohm/km	36.8	39.7	26.5	18.2	12.3
Insulation resistance min	Gohm/km	5	5	5	5	5
Capacitance unbalance at  1 kHz(pair to pair screen)	pF/250m	250	250	250	250	250
Max. Mutual Capacitance @  1 kHz forNon OS or OS cables  (except one-pair and two- pairs)	pF/m	115	115	115	115	120
Max. Mutual Capacitance @  1 kHz IS/OS cables  (include 1 pair and 2 pair)	pF/m	75	75	75	75	85
Max. L/R Ratio for adjacent cores (Inductance/ Resistance)	UH/ohm	25	25	25	25	40
Test voltage Core to core	V	1000	1000	1000	1000	1000
Test voltage Core to screen	V	1000	1000	1000	1000	1000
Rated voltage max	V	300/500	300/500	300/500	300/500	300/500
