Patented technology Heavy-duty energy-conservation transmission and torque converter assembly
Enhanced heavy-duty drive axle of outstanding performances
The design of cab and access passages is ergonomically optimized to create the best driving and riding experience for the operator from the first touch of the machine.
Human-oriented design Guarantee safety and reduce fatigue
Long-tested super-strong heavy-duty structural parts
Frame structure of super-strong carrying capacity
Secure and reliable frame hinge joints
Excellent quality power and drive systems
Diversified bucket design
High strength wear-resistant bucket design
Application of high strength wear-resistant material
Specially enhanced critical portions
Optimized boom hinges
Higher convenience
Various attached toos meeting requirements of different working conditions

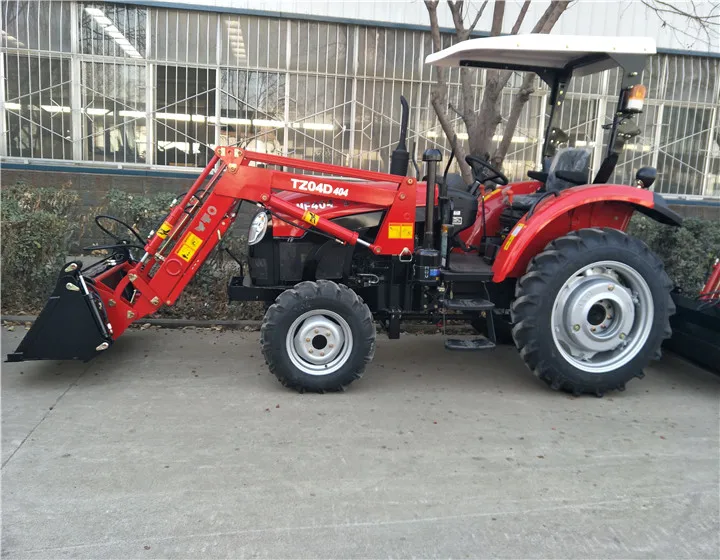

Loader Model
TZ04D
Matching Tractor(hp)
30-55
Max. Lifting Height at Implement Pivot Pin(mm)
2740
Dumping Height(mm)
2100
Overloading Height(mm)
2560
Dumping Distance(mm)
600
Ground Clearance at Arm Pivot Pin(mm)
1360
Max. Tip in Angle
48
Tip out Angle
58
Crowd Angle at Lowered Lift Arm
135
Digging Depth
100
Lifting Force at Implement Pivot Pin
Q1 2144 Q2 1321
Bucket
normal bucket
4in1 bucket
Bucket Model
04DP140
04DF140
Bucket Width(mm)
1400
1400
Bucket Capacity(m³)
0.21
0.26
Bucket Net Weight(kg)
98
175
control parts
joystick with 2-way valves
double joystick with 3-way valves

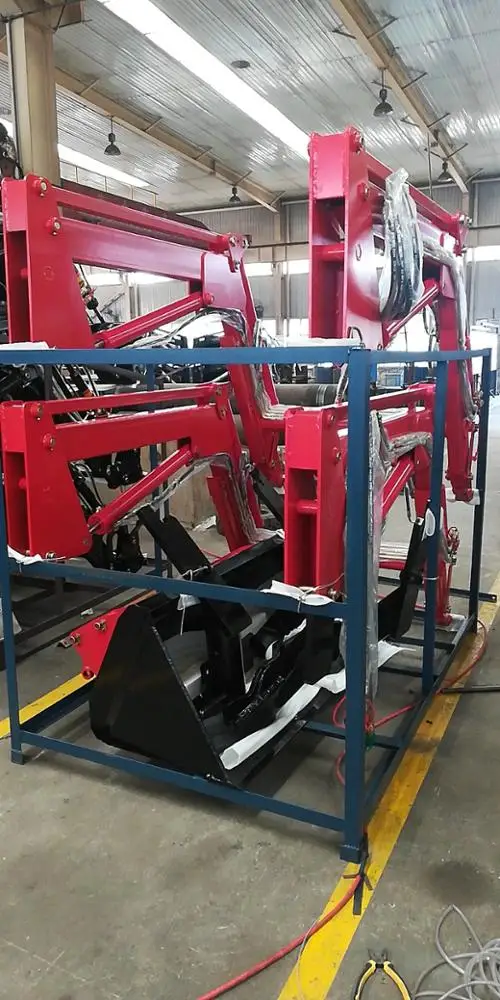

Packing & Delivery
