Factory Price Customized 150mm Width Hot Calender for Battery Electrode Calendering Process
- Category: >>>
- Supplier: Shenzhen Tico Technology Co. Ltd.
Share on (62318103024):
Product Overview
Description
Technical Parameter
Model | STC-JS150 | ||||||
Working voltage | AC110/220V optional up request | ||||||
Roller | Dia.100 x W150mm (other width can be optional ) | ||||||
Roller hardness | >HRC62 | ||||||
Pressing thickness | Max 10mm/s adjustable | ||||||
Heating temperature | Room temperature to 120℃ adjustable, digital display | ||||||
Power | 720W | ||||||
Dimension | L720 * W230 * H330mm | ||||||
Weight | 62kg | ||||||
Products Description

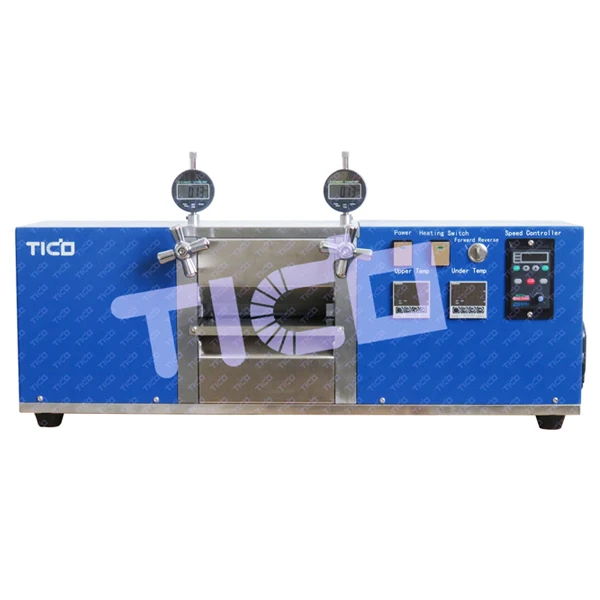

This hot roll press is used for battery electrode pressing, max temperature to 120℃ adjustable and digital display by thermostat. The pressing gap and pressing speed is adjustable. Equipped with 150mm width rollers, the other width roller can be optional upon request.
Features: ● High roller hardness HRC62, surface plated by chrome treatment.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Heating temperature max up to 120℃,digital display by thermostat.
● Safety protection cover is designed to prevent hand injured from high temperature.
● Slotting design for the metal frame is good for heat radiation.
● Pressing thickness can be adjusted.
● Rolling speed can be adjusted by speed controller.
● Electric rolling makes uniform pressing force.
● Forward&backward are available.
Application:
● Battery lab
● Battery research
● Lithium ion battery lab
● Material research
● Trial-production
Recommend Products
Company Profile
Certifications
Exhibition
Contact Us
FAQ
1.Are you a manufacturer ?
A: Yes, our factory located in Shenzhen China,We have more than 9 years experience for producing battery equipment.We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
A: Yes, our factory located in Shenzhen China,We have more than 9 years experience for producing battery equipment.We have our own designing and production department.
2.What certificate of your product have ?
A : Our products reaches CE certification.
3.Do you accept customized product ?
A : Yes.
4.Do you offer training service for users ?
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ?
A : Yes, we can.
