Semi-automatic winder for winding electrodes with separator together in the research of Li-ion cylinder batteries
Features : 1. Feeding electrode channel can be regulated from up to down, left to right, front to back. 2. Winding support wheel ensures the winding tightness of battery core. 3. End winding supporter increases the winding accuracy of battery core. 4. Froward & reverse is optional ,he speed can change steplessly. 5. Small dimension, nice appearance, simple operation.
Application :
Battery lab
Battery research
Lithium ion battery lab
Material research
Trial-production
CYLINDRICAL CELL LAB EQUIPMENT
Item Name
Cylindrical cell winding machine
Power supply
220V/50Hz
Power
40W
Rotating speed
0~170r/min, adjustable
Applicable cylindrical battery core
Dia < Φ30
Dimension
L360mm*310mm*280mm
Weight
25Kg

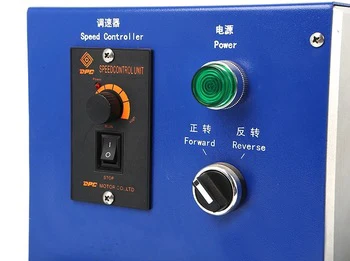

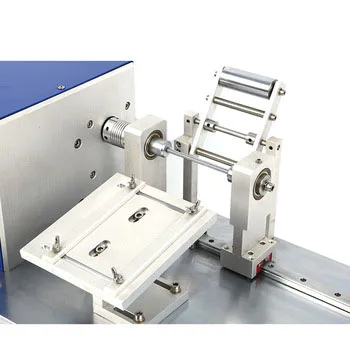

Product show
Hot Products
Company Information
Certifications
FAQ
1.Are you a manufacturer ?
A: Yes, our factory located in Shenzhen China, We have more than 9 years experience for producing battery equipment. We have our own designing and production department.
2.What certificate of your product have ? A : Our products reaches CE certification.
3.Do you accept customized product ? A : Yes.
4.Do you offer training service for users ? A : Yes, we have video to show users how to use it.
5.Can you offer overseas installation service ? A : Yes, we can.
