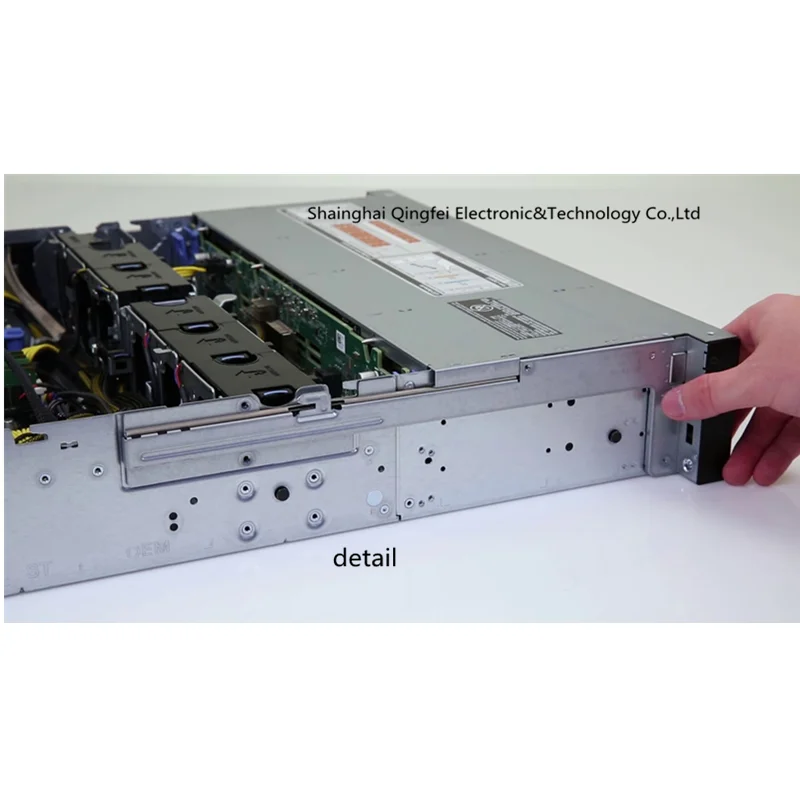

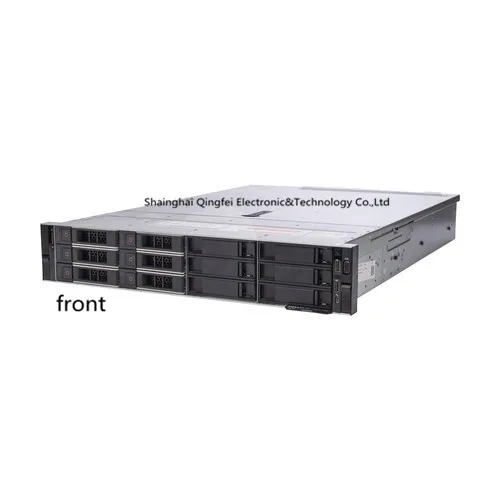

Dell EMC PowerEdge R540 Server Intel Xeon 2U Rack Server network server
The PowerEdge R540 is a 2U, dual socket rack system with 8-3.5 SATA drives or 12- 3.5 inch drives system and supports up to:
• Intel Xeon Processor Scalable Family processors,MAX AMT processors: two
• 16 DIMM slots
• 14 drives or solid-state drives
• Two redundant power supply units (PSU) or single cabled PSU
Specification
Product Name | Dell R540 server |
Drive bays | Front drive bays: Up to 12 x 3.5" SAS/SATA HDD max 120TB Rear drive bays: Up to 2 x 3.5" SAS/SATA HDD Optional DVD-ROM, DVD+RW |
Processors | Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor |
Memory | 16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 516GB max |
Storage controllers | Internal controllers:PERC H330，PERC H730p，PERC H740p，PERC HBA330 Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem:HWRAID 2 x M.2 SSDs 120GB, 240 GB External PERC (RAID):H840 External HBAs (non-RAID):12 Gbps SAS HBA |
Power supplies | Titanium 750W Platinum 495W Platinum 750W Platinum 1100W 240HVDC 750W Hot plug power supplies with full redundancy option |
Integrations and connections | OpenManage integrations:Microsoft® System Center VMware® vCenter™ BMC Software Nagios & Nagios XI HP Operations Manager i (OMi) |
Network daughter card options:2 x 1GE LOM (optional) OCP 2 x 10GE SFP+ or BaseT or 2 x 1GE Front ports:Video USB 2.0 USB 3.0 IDRAC Direct USB Rear ports:Video Serial 2 x USB 3.0 iDRAC network port With Optional Riser: Non rear storage config 1xFH/FL + 1xHH/HL (2U Right riser) slots + 3 HH/HL slots Rear storage config 1xHH/HL (1U Left Riser) + 1xHH/HL (1U Right risers) slot 1xHH/HL (1U Left Riser) + 1x FH/HL (1U Right riser) |
item | Features | Description |
1 | Serial port | Use the serial port to connect a serial device to the system. For more information about the supported serial port, see the Technical speci\u0080cations section. |
2 | Drive | Two optional rear drives supported for 12 x 3.5 inch system. |
3 | Low pro\u0080le riser right slot | Use the card slot to connect half-height PCIe expansion card on low pro\u0080le riser. |
4 | Low pro\u0080le riser left slot | Use the card slot to connect half-height PCIe expansion card on low pro\u0080le riser. |
5 | Power supply unit (PSU) | For information about supported PSUs, see the Technical speci\u0080cations section. |
6 | LOM riser ports | Use the Ethernet or SFP+ ports to connect Local Area Networks (LANs) to the system. For more information about the supported Ethernet or SFP+ ports, see the Technical speci\u0080cations section. |
7 | Ethernet ports (2) | Use the Ethernet ports to connect Local Area Networks (LANs) to the system. For more information about the supported Ethernet ports, see the Technical speci\u0080cations section. |
8 | USB 3.0 port | Use the USB 3.0 port to connect USB devices to the system. These ports are 4-pin, USB 3.0-compliant. |
9 | iDRAC9 dedicated network port | Use the iDRAC9 dedicated network port to securely access the embedded iDRAC on a separate management network, see the Integrated Dell Remote Access Controller User’s Guide at Dell.com/ idracmanuals. |
10 | VGA port | Use the VGA port to connect a display to the system. For more information about the supported VGA port, see the Technical speci\u0080cations section. |
11 | CMA power port | The Cable Management Arm (CMA) power port enables you to connect to the CMA. |
12 | System identi\u0080cation button | Press the system ID button: • To locate a particular system within a rack. • To turn the system ID on or off. To reset iDRAC, press and hold the button for more than 15 seconds. |
Xa | Xb | Y | Za (with bezel) | Za(with bezel) | Zb | Zc |
482.0 mm (18.97 inches) | 434.0 mm (17.08 inches) | 86.8 mm (3.41 inches) | 35.84 mm (1.41 inches) | 22 mm (0.87 inches) | 647.07 mm (25.47 inches) | 681.755 mm (26.84 inches) |
