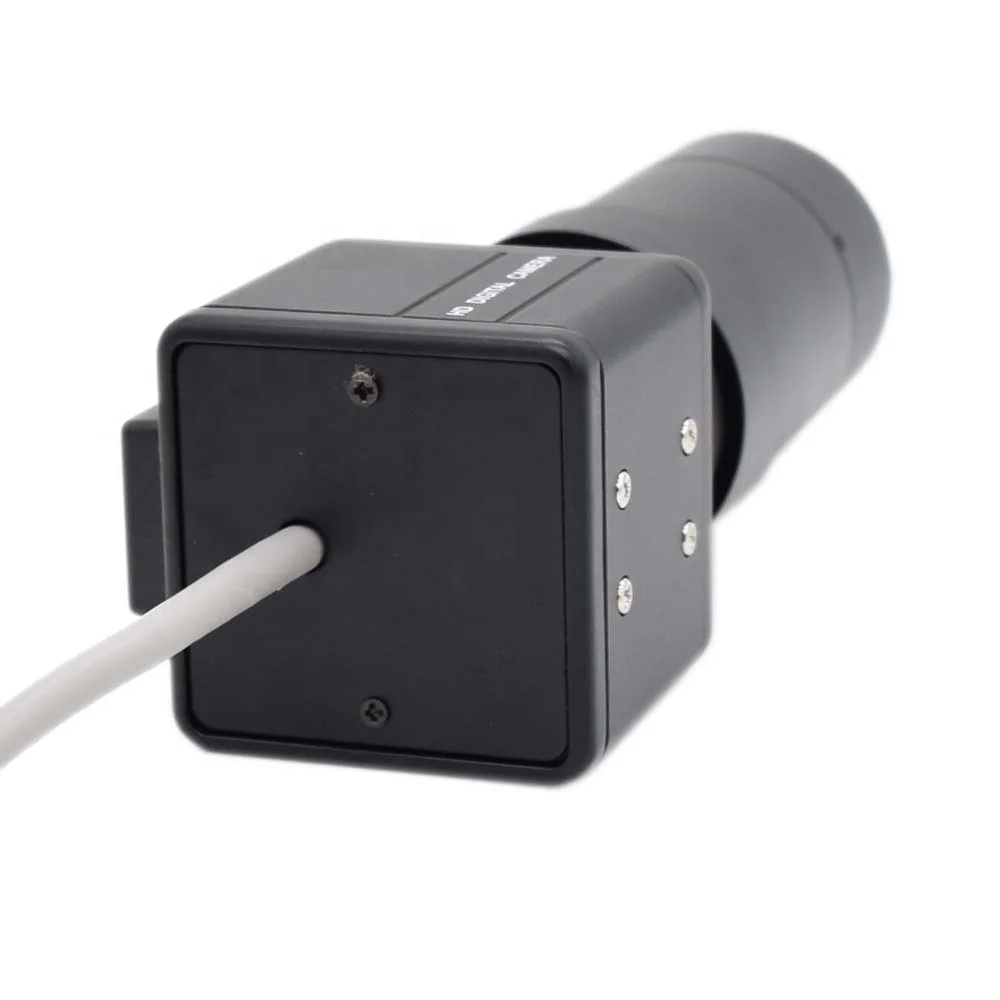

Fast Rate Global Shutter USB Box Camera Industrial Vision Camera black and white with 6 60mm Manual Zoom Varifocus CS Mount lens

This camera uses a global shutter chip with a resolution of 640*480, pure hardware black-and-white pixels, and a maximum frame rate of 90 frames, saving video data streams. The main application scenarios are: accurate recognition of moving objects, no shadow and no tail.



Maximum effective pixel	640*480
Sensitivity	2800 mV/Lux-sec @ 530nm
Pixel Size	3µm x3µm
Image area	image area: 1968 µm x 1488 µm
Chip packaging	3910 µm x 3410 µm
Output image format	MJPEG  / YUV2(YUYV)
Camera board assembly technology	SMT (ROSH)
focusing
Object distance	2CM-100M
visual angle	Standard 70 degrees
Signal-to-noise ratio	39dB
dynamic range	69.6dB
Chip packaging	3910 µm x 3410 µm
Supported resolution and frame rate (MJPEG default)	640*480:
shutter type	Global Shutter
Interface type	USB2.0 High Speed
AEC Automatic Exposure Control	Support
Automatic White Balance AEB	Support
Automatic Gain Control AGC	Support
Adjustable parameters	Brightness contrast, color saturation, tone sharpness, gamma white balance contrast exposure

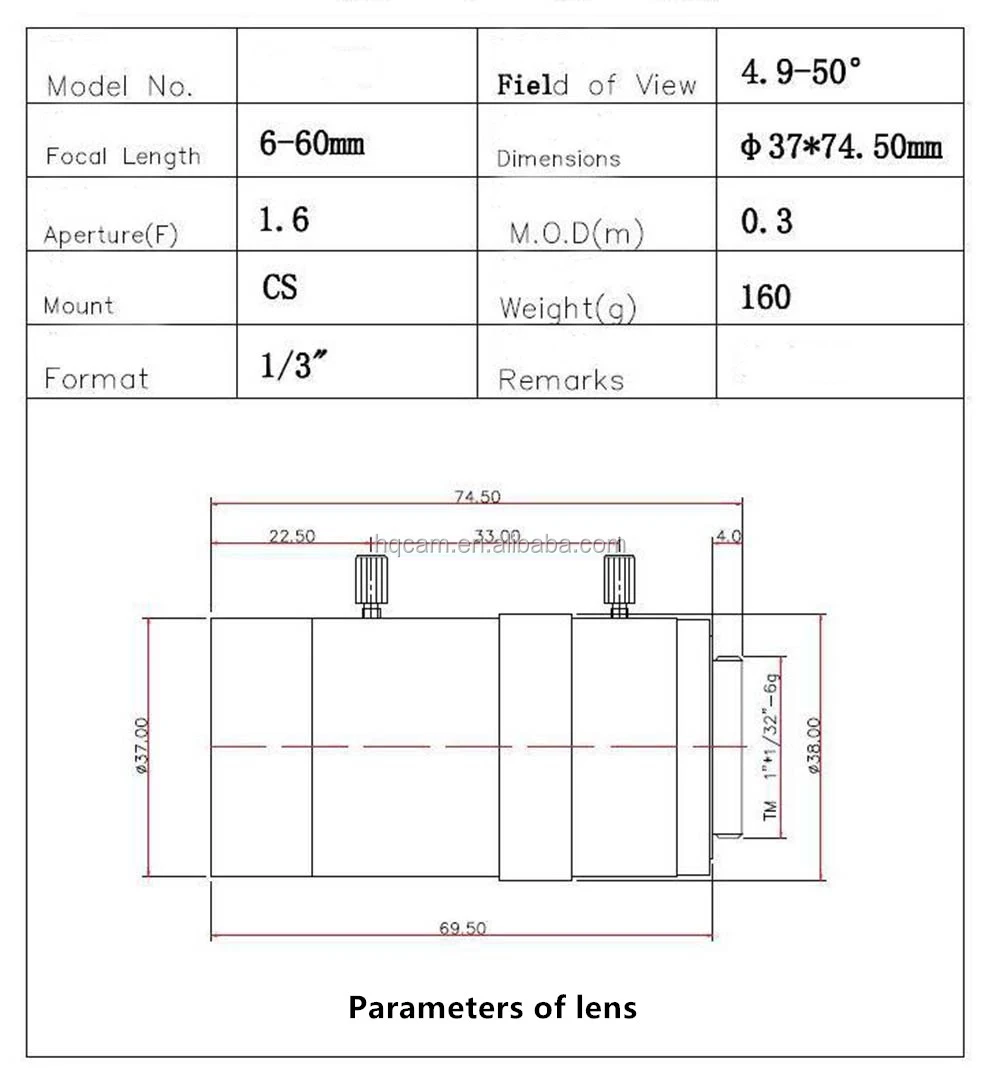

Lens specification	Size:  1/4,  Relative Illumination (Sensor): 70%
	Infrared filter: 650±10nm
Power supply and interface	USB BUS POWER  4P-2.0mm
Voltage	DC5V
Electric current	163mW(VGA)

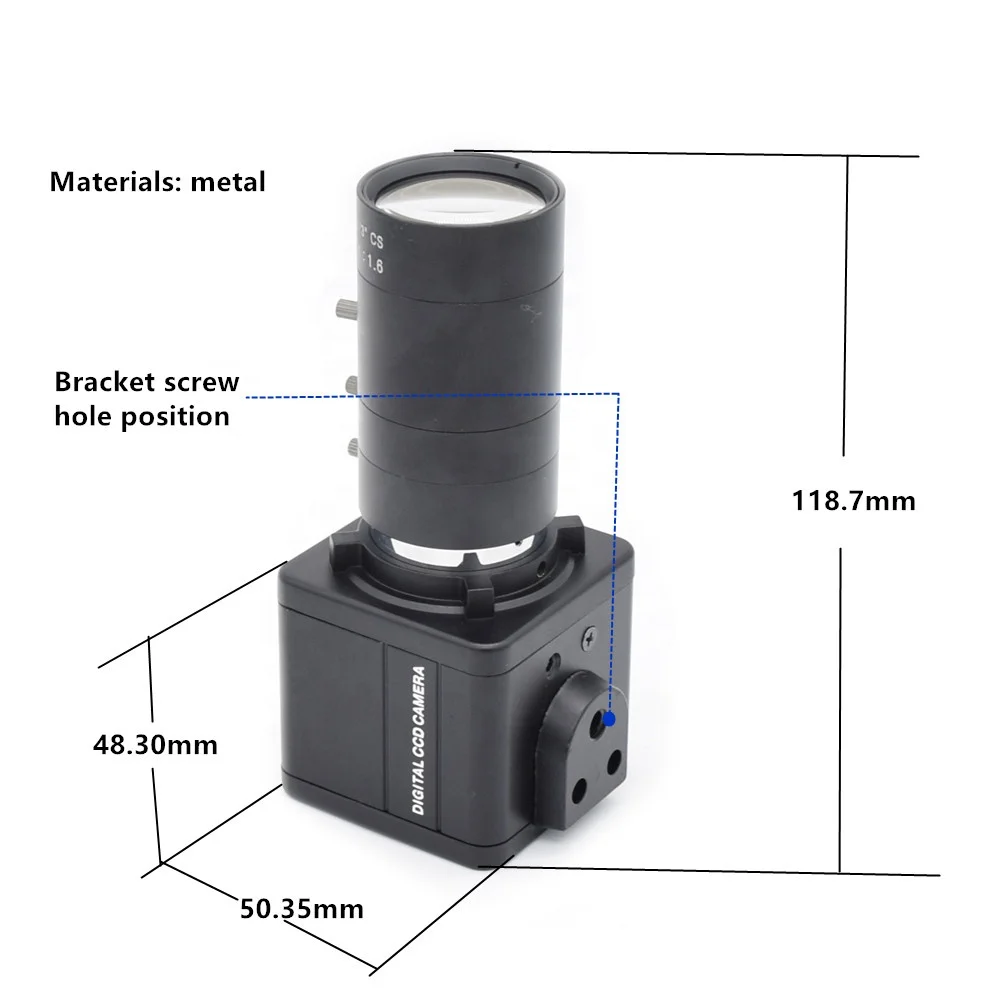

size	38mm*38MM
Storage temperature	-20°C to 70°C
working temperature	0°C to 60°C
Working humidity	15%-85%
System support	Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26)
	MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC





The picture above is taken by a global high-speed camera.
If you shoot a moving fan, you can see the fan page. This camera is suitable for shooting moving objects. Ordinary is invisible.
The following picture is taken by a color HD non-global camera.
