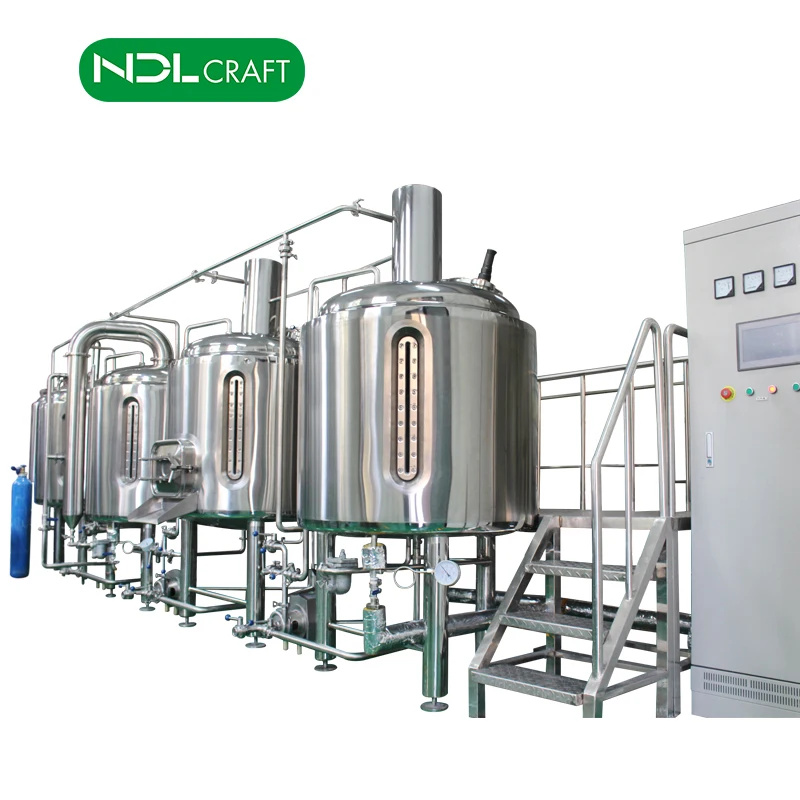

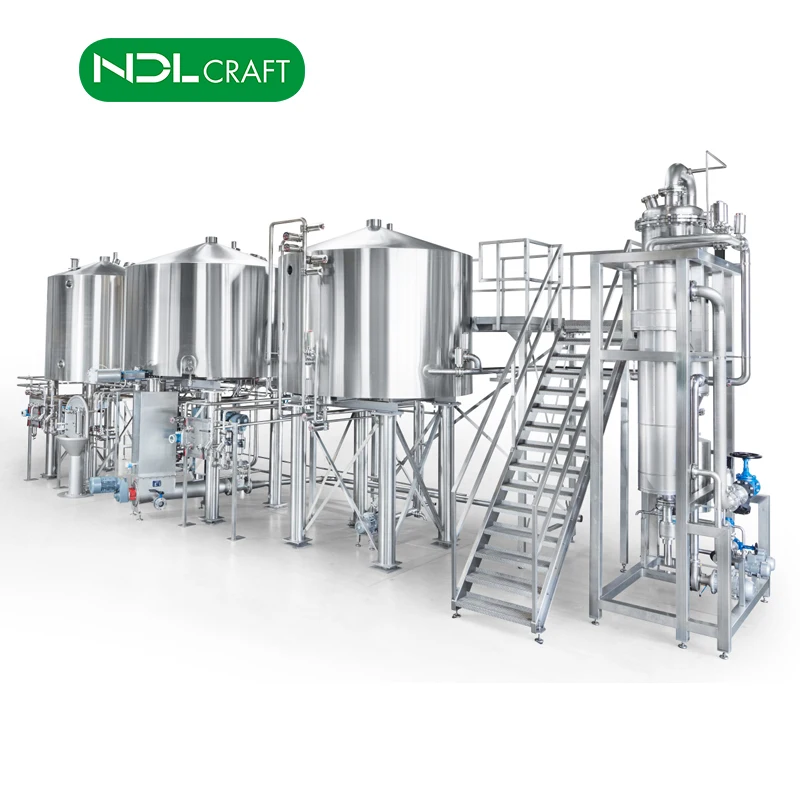

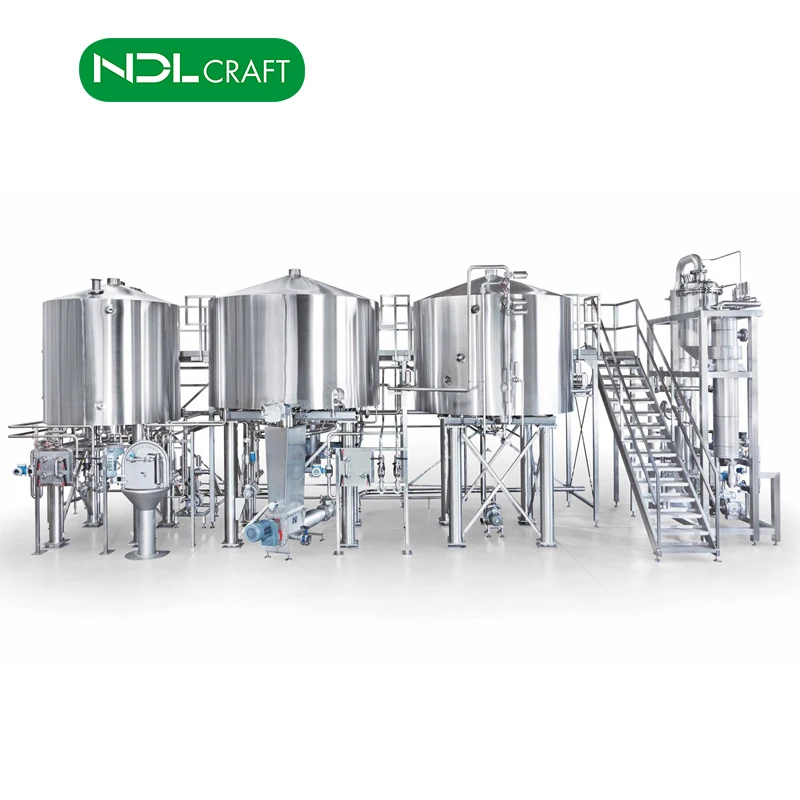

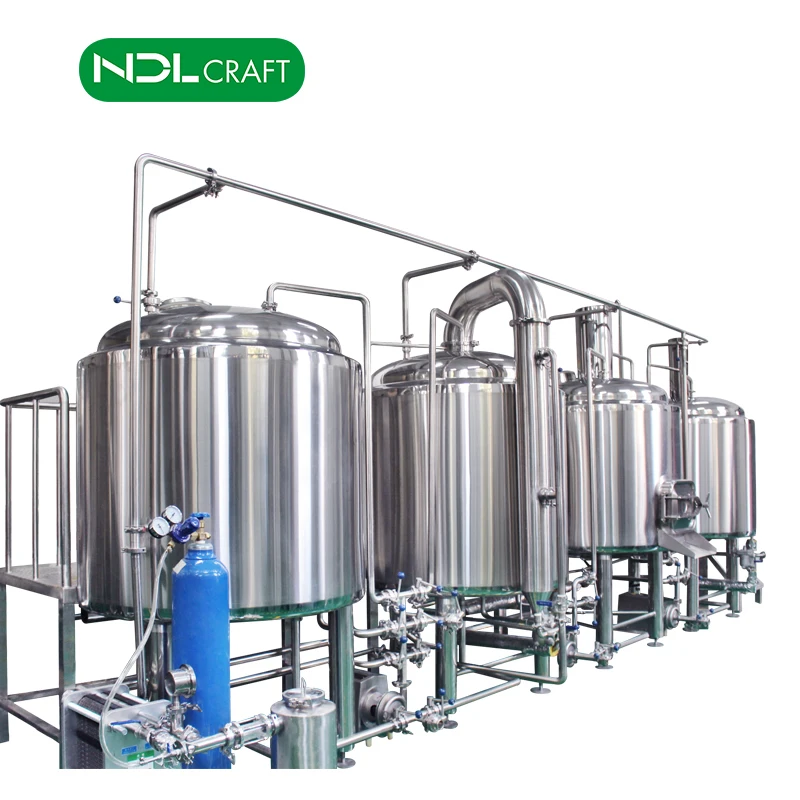

500L 1000L Brew House Turnkey Beer Brewery System
- Category: >>>
- Supplier: SHANDONG SHENDONG CO. LTD.
Share on (62318268277):
Product Overview
Description
500L 1000L Brew House Turnkey Beer Brewery System
Product Description
1. 1000L Brewery Configuration
1000L Beer Brewing System | |
Milling System | 300-500KG/h |
Mashing System | 1000L 2 vessels/3 vessels/4 vessel brewhouse |
Fermentation System | 1000L/2000L |
Control System | PLC /PID |
CIP System | 100L |
Cooling System | 2000-3000L |
Chiller | 5HP*2 |
2. 1000L Brewhouse System

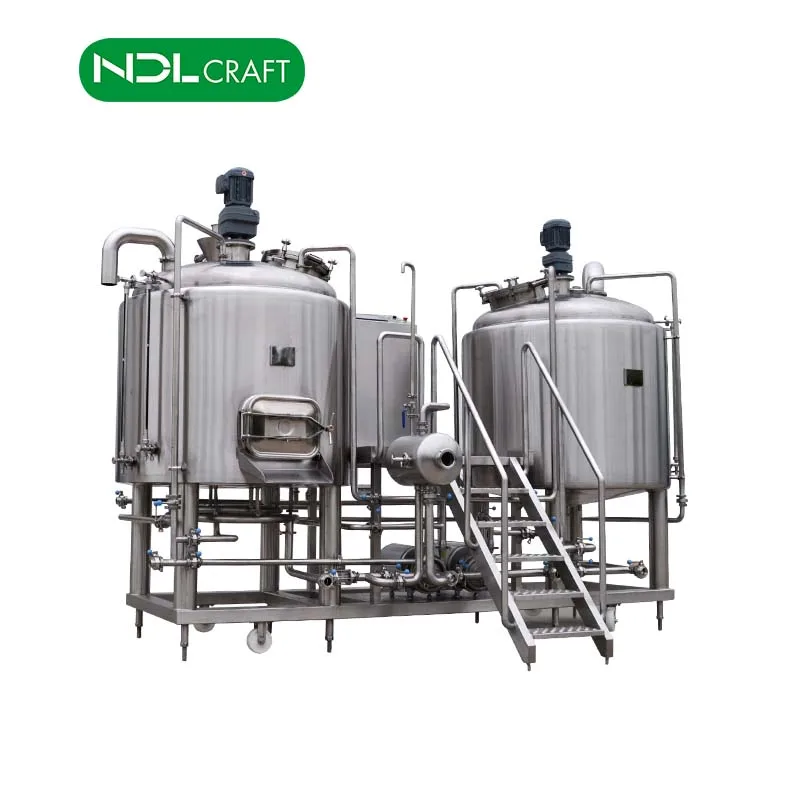

The alternative to a four-vessel production-based brewhouse with dedicated process tanks is two and three-vessel systems with tanks that preform multiple processes, here we are based on two vessel system. These combination tanks can be a more affordable way to start a brewery, they take up less floor space, and depending on your production goals, they might be able to last your business a very long time.
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out. For that reason, this combination vessel will have the diameter and build of a dedicated Lauter but will have a mixer design similar to a dedicated Mash Tun.
The next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle but is equipped with a tangential fitting for whirlpooling. These vessels are heated with bottom and side steam jackets. Internal calandrias are typically not used in this application because they are an obstruction to the whirlpooling process.
1000L brewhouse can be in various combinations:
Our experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With an NDL Brewhouse, you will hit your gravity targets quicker and run up and down the platform less often.
Send Inquiry>>
3. 1000L Fermentation System
Item | Introduction | |
01 | Volume | 1000L |
02 | Dimension | 1260*2650mm |
03 | Material | Stainless steel 304 or 316, or red copper |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimple jacket on the cone and side Or single wall with jacketed, or single-layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port, and so on. |
Send Inquiry>>

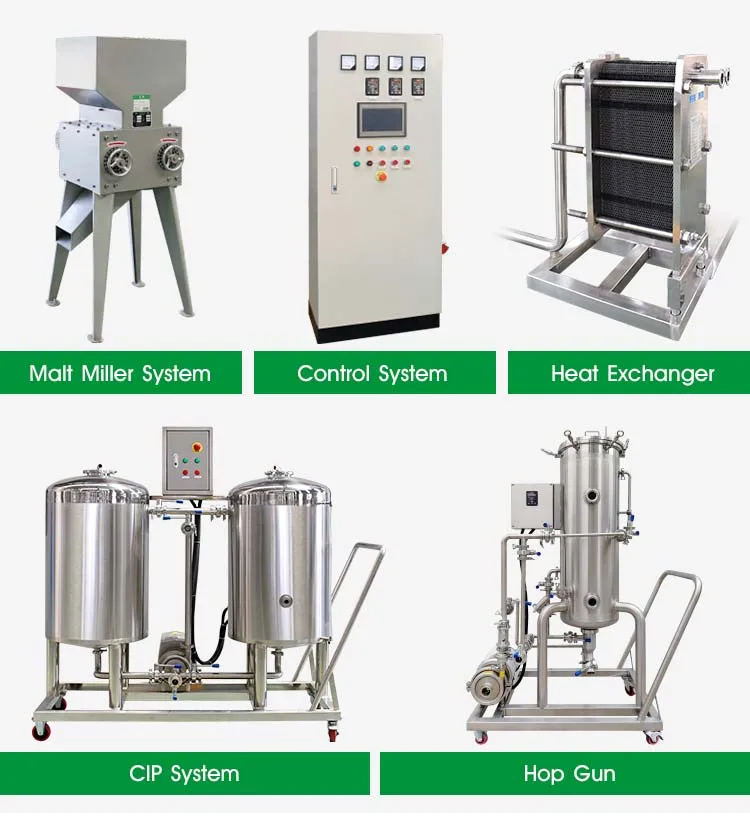

4. Auxiliary Equipment
5. Accessories
6. Quality Control
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes and institutes production and quality control methods according to both European and American quality standards.
Based on the customized requirements of global customers, the company has established an ERP management system and has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification, ISO14001 Environmental Certification, ISO18001 Occupational Health and Safety System Certification, DI, and DII Pressure Vessel Certification. We have also been recognized at a national-level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.
