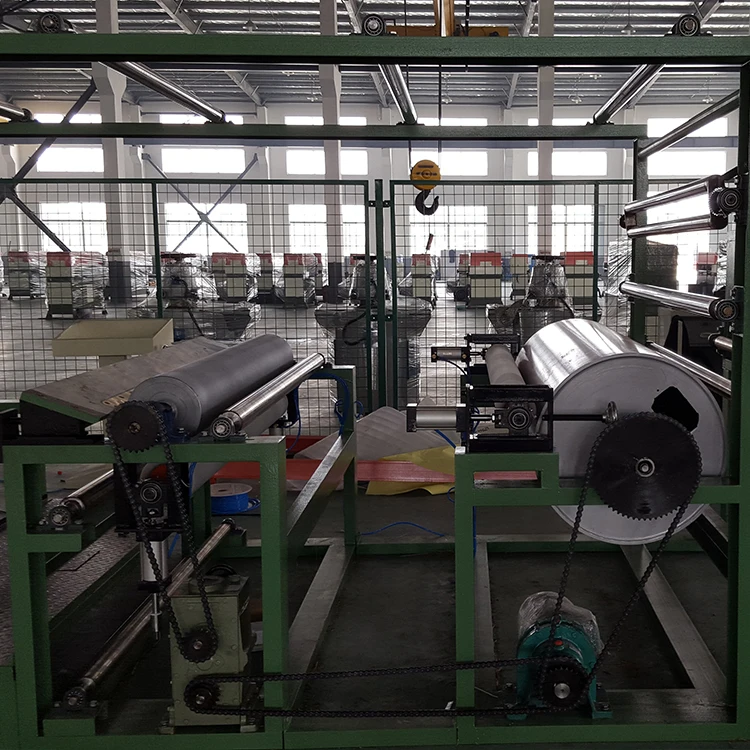

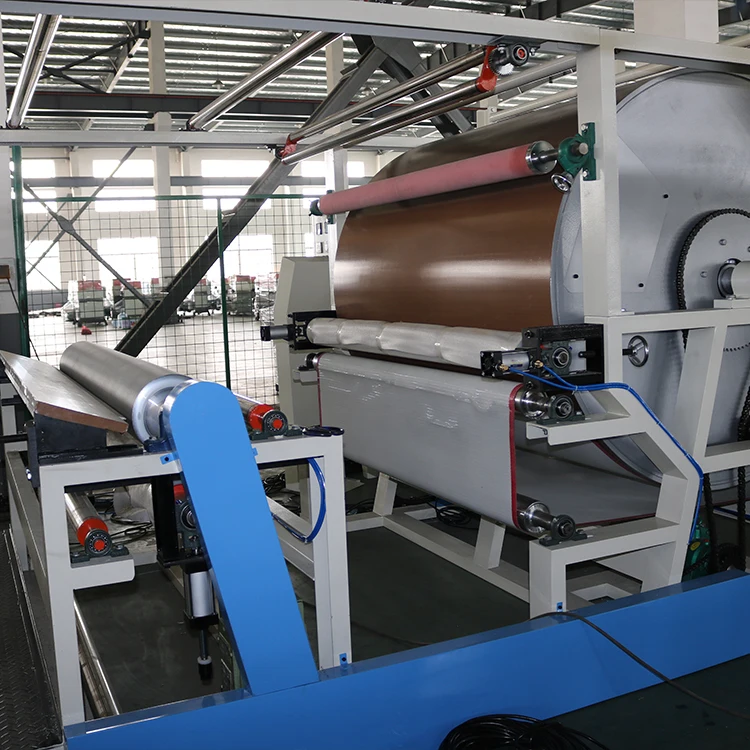

customizable sandpaper coating machine
- Category: >>>
- Supplier: Yancheng Hickey Machinery Co. Ltd.
Share on (62318323639):
Product Overview
Description
Product Description

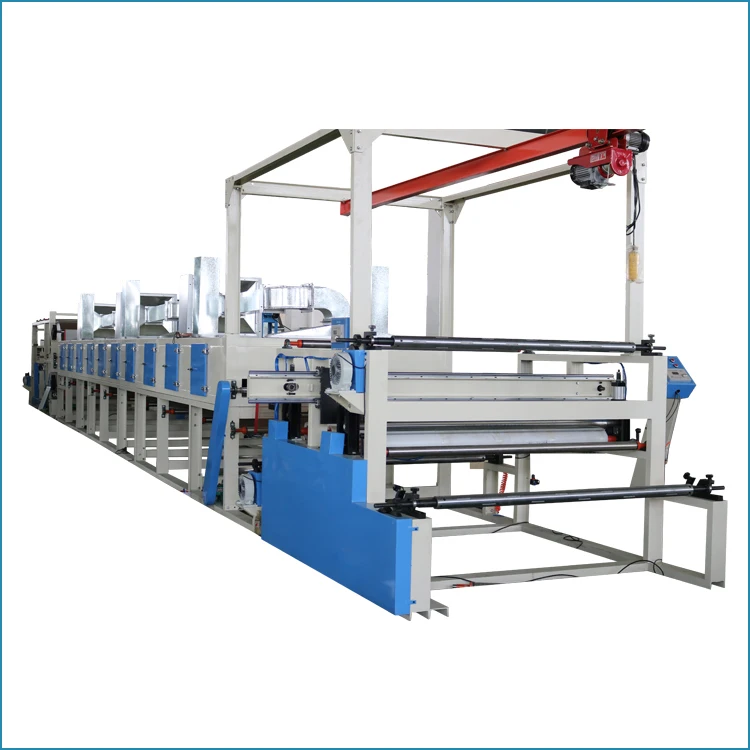

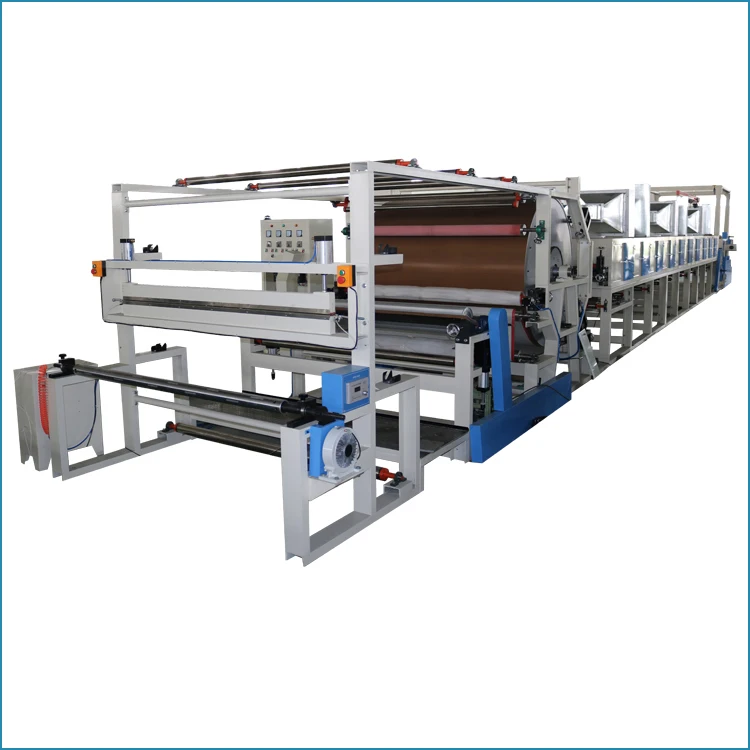

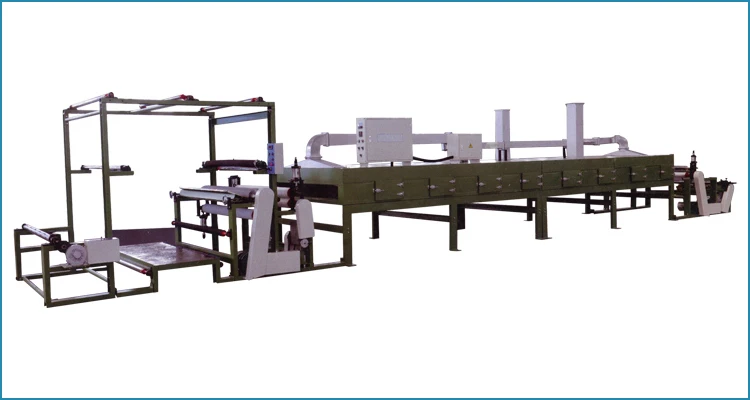

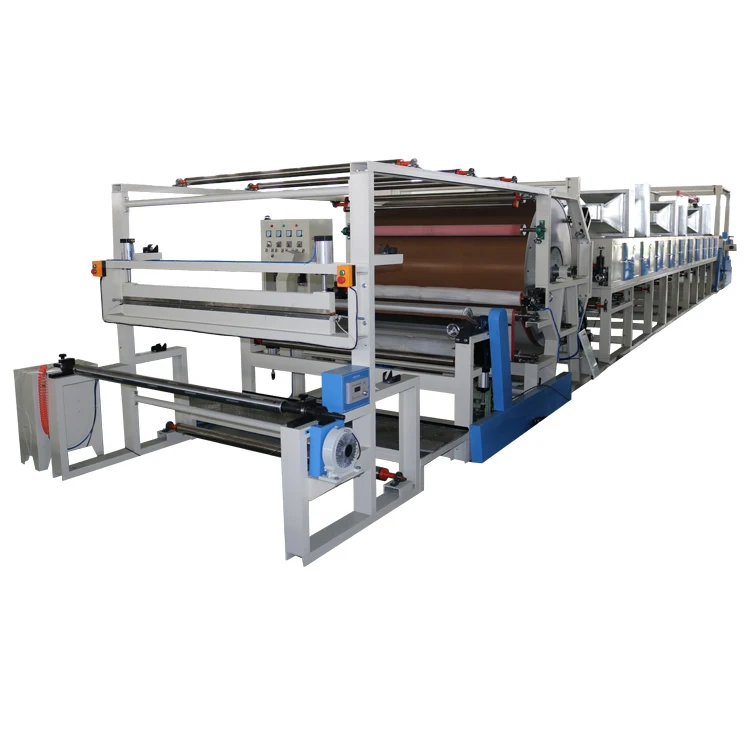

HC-SP-1600 sandpaper coating machine for sandpaper deep processing making machine
Working Principle | ||||||||
Sandpaper laminating machine (alias: sandpaper velvet laminating machine, sandpaper velvet machine, sandpaper back velvet laminating machine), this machine is a special-purpose equipment for the production of sandpaper, sand disc and other sandpaper deep processing industry. | ||||||||
1. The principle is that the water-repellent glue is scraped on the sandpaper and then laminated with the flannel, so that the anti-tear-proof multi-textured sandpaper can be obtained. | ||||||||

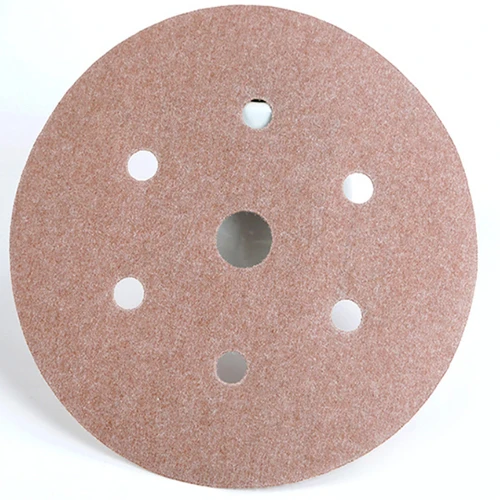

2. Secondly, the finished sand disc or sand disc of various specifications can be obtained after being punched by the cutting machine. | ||||||||
3. Suitable for deep processing of sandpaper and many other industries. | ||||||||
Product Parameter | ||
Model No. | HC-SP-1600 | |
Glue type | scraping | |
Roller width | 1600mm (customizable) | |
Oven length | 8000mm (customizable) | |
Heating method | Electrial heating | |
Heating power | 1.5KW*32 | |
Machine power | 75KW | |
Motor power | 3KW+1.5KW*18+2*1.1KW | |
Coating speed | 1-10m/min | |
Overall dimension | 13800*2200*2400mm | |
Machine weight | 6000KG | |
OEM service | YES | |
Detailed Images
Features and Advantages | ||||||||

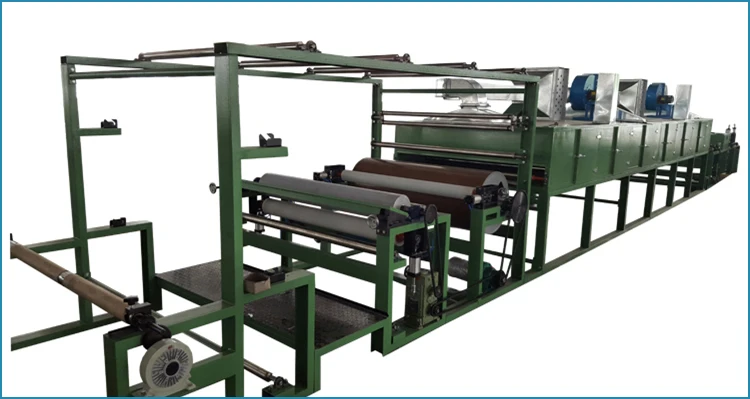

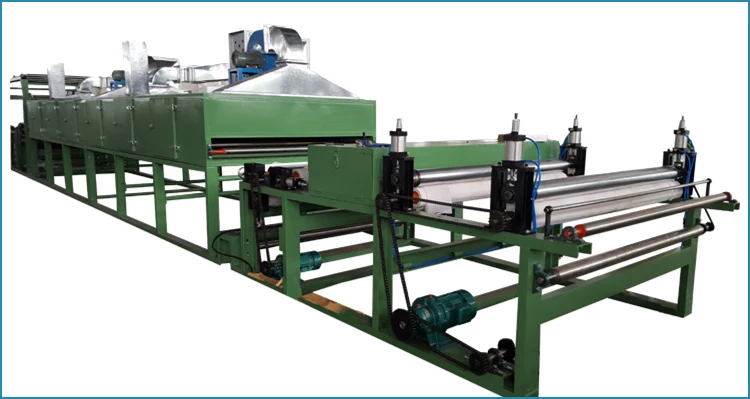

▪ This machine uses glue as adhesive. It is glued on the sandpaper and then laminated with the flannel. After pressed by compression roller , it is pressed into the oven to be dried, and then wound up by the winding device. | ||||||||
▪ The oven box has a thick insulation layer on all four sides to reduce loss, with automatic thermostat to save energy. | ||||||||
▪ The hot air circulation system is adopted to make the internal temperature of the oven uniform. | ||||||||
▪ The customer can choose DC motor or inverter linkage as needed to make the machine have better controllability. | ||||||||
Glue coating device
Glue coating device

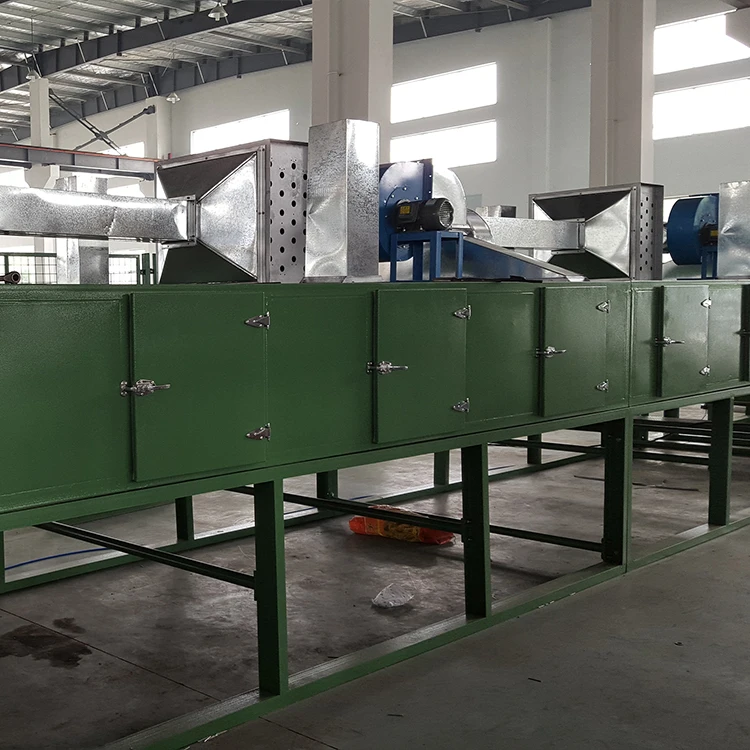

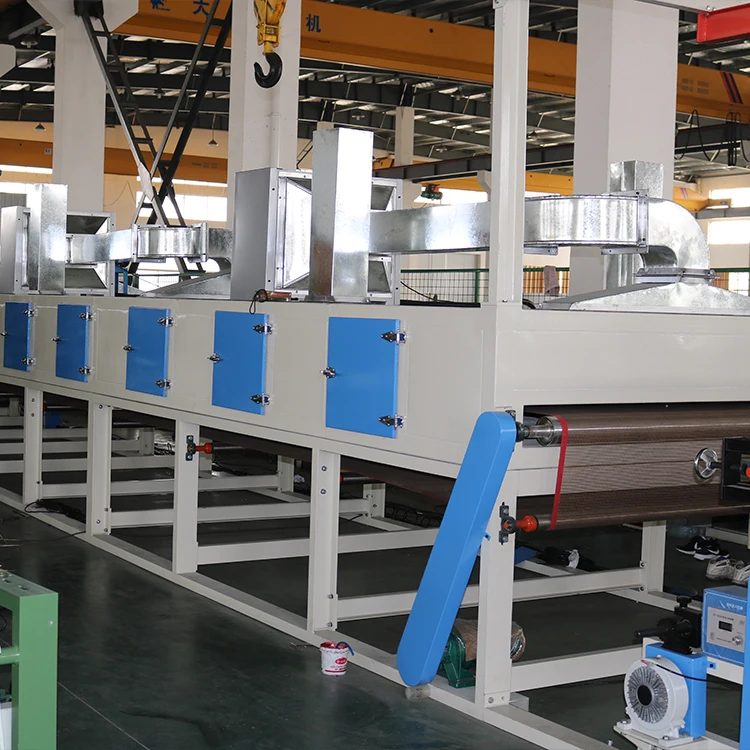

Oven
Oven
Pressing and cross cutting device
Pressing and cross cutting device
Hot-sale products |
Ultrasonic quilting machine
PUR hot melt glue laminating machine
Hot melt powder laminating machine
Glue dot transfer laminating machine
Flame laminating machine
Water based glue laminating machine
Embossing machine
Bronzing machine
Dot paste coating machine
Application

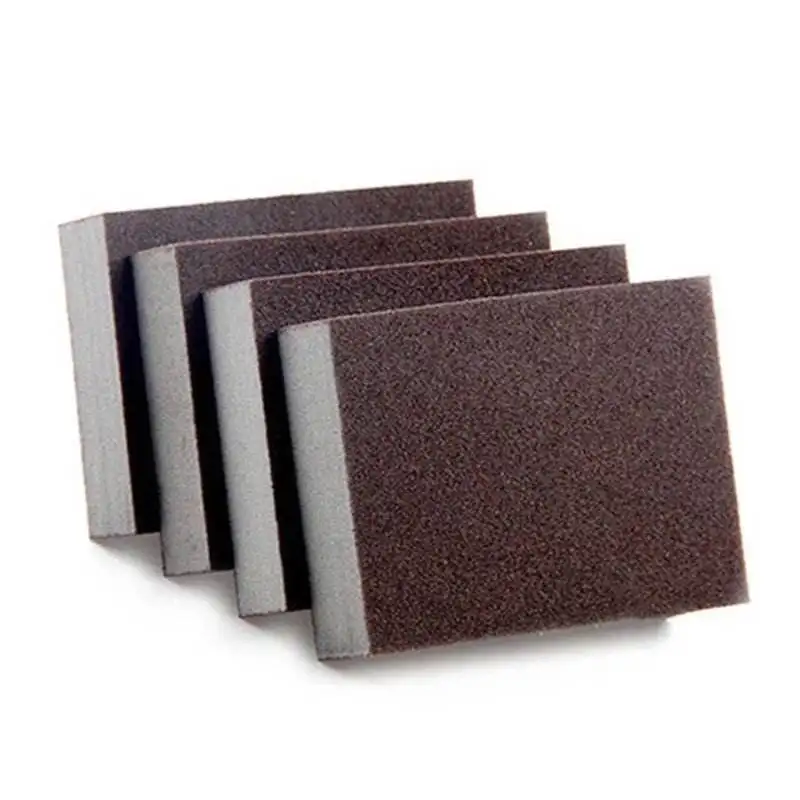

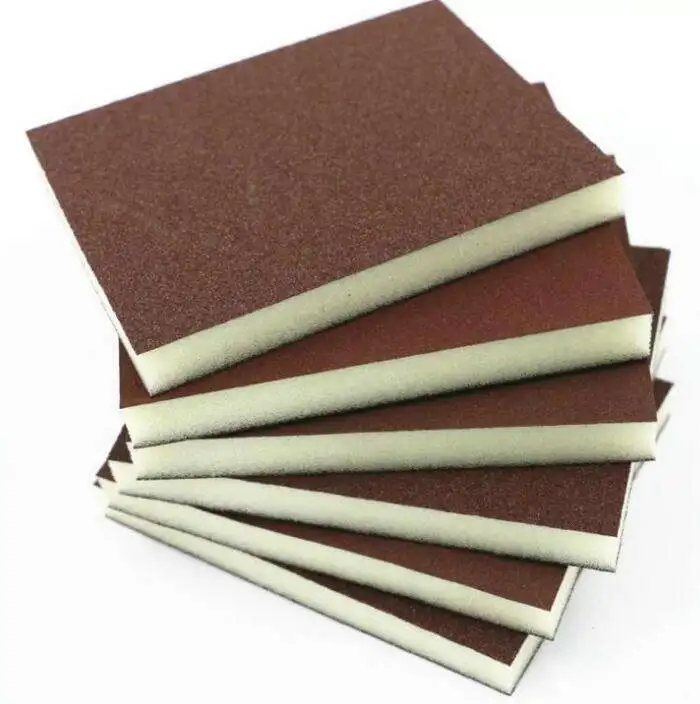

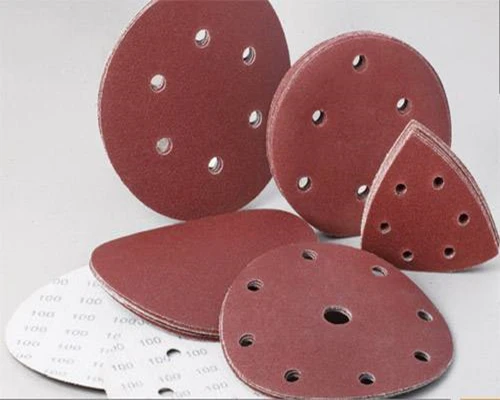

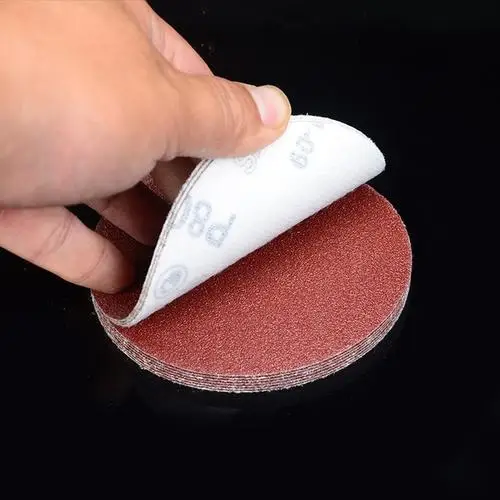

Laminating material | Sand disc mainly used for polish in below industries | ||||||
sandpaper to flannel | automotive industries | ||||||
sandpaper to vellvet | furniture industry | ||||||
sandpaper to anti-adhesive paper | metal surface | ||||||
sandpaper to plush | Surface polishing for car | ||||||
sandpaper polar fleece | Surface polishing for furniture | ||||||
Certification
Chamber of Commerce Certificate
High-tech enterprise certification
Technological Innovation Award
Company Introduction
Yancheng Hickey Machinery Co., Ltd is is a professional manufacture of all kinds of laminating machines, rapid thermal shaping machine, and footwear machines, located in Yancheng, Jiangsu province, China. We have manufacturing experience of laminating machines for more than 20 years.
International Cooperation
Hickey adhere to take the road of the development of science and technology innovation.We enjoy good sale in over 20 countries and regions. We have close technical cooperation and trade relations with Italy, Germany, Turkey, USA and other countries and regions.
Packing&Shipping
Inner Package: Protective Film, etc |
Outside Package: Standard Export Container |
FAQ
1. Q:Are you a trading company or a manufacturer ? | ||||||||
A: We are a manufacturer. | ||||||||
2. Q:Where is your factory ? | ||||||||
A: Our factory is located in Yancheng, Jiangsu, China, about 4 hours from Shanghai. All clients are most welcomed to visit us. | ||||||||
3. Q: What is your MOQ of this item? | ||||||||
A: 1 set per style. | ||||||||
4. Q:How about the lead time ? | ||||||||
A: It depends on your order quantity. Normal size laminating machine costs 20 days. | ||||||||
5. Q: How do you guarantee the quality? | ||||||||
A: We have certificate of patent and professional QCs. | ||||||||
