OEM USB RS232 USB RS232 WE 1800 BT 1.8 m to Wire Ended Converter Cable
- Category: >>>
- Supplier: Shenzhen Utech Electronics Co. Ltd.
Share on (62318405081):
Product Overview
Description
Products Description
FTDI chipset USB RS232 cable USB-RS232-WE-1800-BT 1.8m USB to Wire Ended Black Interface Converter Cable
This Utech USB_RS232 cables are a family of USB to RS232 levels serial UART converter cables incorporating FTDI’s FT232RL USB to serial UART interface IC device which handles all the USB signalling and protocols. The cables provide a fast, simple way to connect devices with an RS232 level serial UART interface to USB.

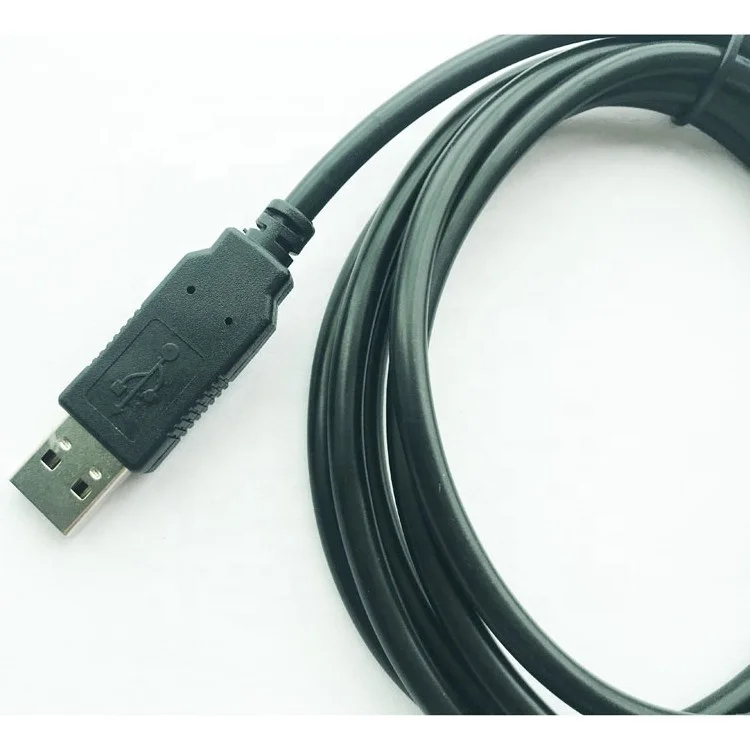

Each USB-RS232 cable contains a small internal electronic circuit board, utilizing the FT232R, which is encapsulated into the USB connector end of the cable.
The integrated electronics also include the RS232 level shifter plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified).

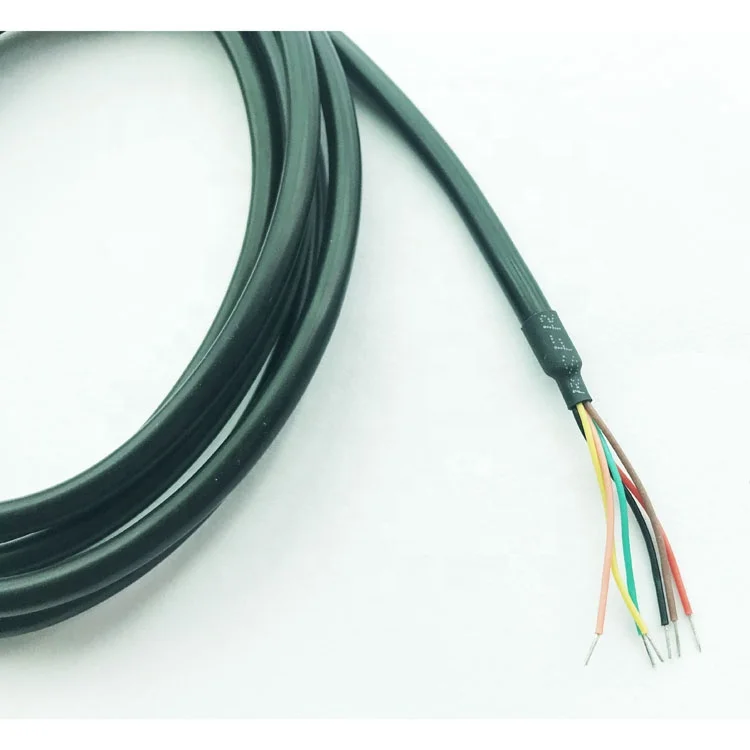

The other end of the cable is bare, tinned wire ended connections by default, but can be customized using different connectors to support various applications.
Each USB-RS232 cable contains a small internal electronic circuit board, utilizing the FT232R, which is encapsulated into the USB connector end of the cable.
The integrated electronics also include the RS232 level shifter plus Tx and Rx LEDs which give a visual indication of traffic on the cable (if transparent USB connector specified).
The other end of the cable is bare, tinned wire ended connections by default, but can be customized using different connectors to support various applications.
Product Paramenters
Features and Benefits
1. USB-RS232 converter cable provides a USB to RS232 serial interface with customised end connectors.
2. Entire USB protocol handled by the electronics in the cable USB.
3. EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.
4. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
5. Internal EEPROM with user writeable area.
6. FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX "direct" drivers provide a DLL application programming interface.
7. Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
8. Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
9. Data transfer rates from 300 baud to 1 Mbaud.
10. Support for FT232R FTDIChip-ID? feature for improved security. 11. Low USB bandwidth consumption.
12. UHCI / OHCI / EHCI host controller is compatible.
13. USB 2.0 Full Speed compatible.
14. -40°C to +85°C operating temperature range. Cable length is 1.80m (6 feet).
15. ESD Protection for RS-232 I/O's
±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
16. FCC and CE are compliant. Custom versions available on request (subject to MOQ).
2. Entire USB protocol handled by the electronics in the cable USB.
3. EIA/TIA-232 and V.28/V.24 communication interface with low power requirements.
4. UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
5. Internal EEPROM with user writeable area.
6. FTDI’s royalty-free VCP allow for communication as a standard emulated COM port and D2XX "direct" drivers provide a DLL application programming interface.
7. Visual indication of Tx and Rx traffic via LEDs in the transparent USB connector.
8. Fully assisted hardware (RTS#/CTS#) or X-On / X-Off software handshaking.
9. Data transfer rates from 300 baud to 1 Mbaud.
10. Support for FT232R FTDIChip-ID? feature for improved security. 11. Low USB bandwidth consumption.
12. UHCI / OHCI / EHCI host controller is compatible.
13. USB 2.0 Full Speed compatible.
14. -40°C to +85°C operating temperature range. Cable length is 1.80m (6 feet).
15. ESD Protection for RS-232 I/O's
±15kV Human Body Model (HBM)
±15kV EN61000-4-2 Air Gap Discharge
±8kV EN61000-4-2 Contact Discharge
16. FCC and CE are compliant. Custom versions available on request (subject to MOQ).
Typical Applications
1. USB to serial RS232 level converter.
2. Upgrading legacy peripherals to USB.
3. Interface Microcontroller UART or I/O to USB.
4. Interface FPGA or PLD to USB.
5. USB Instrumentation PC interface.
6. USB industrial control.
7. USB password-protected file transfers.
2. Upgrading legacy peripherals to USB.
3. Interface Microcontroller UART or I/O to USB.
4. Interface FPGA or PLD to USB.
5. USB Instrumentation PC interface.
6. USB industrial control.
7. USB password-protected file transfers.
