shanghai 5 gallon bottle bucket drum one side labeling machine
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (62318560942):
Product Overview
Description

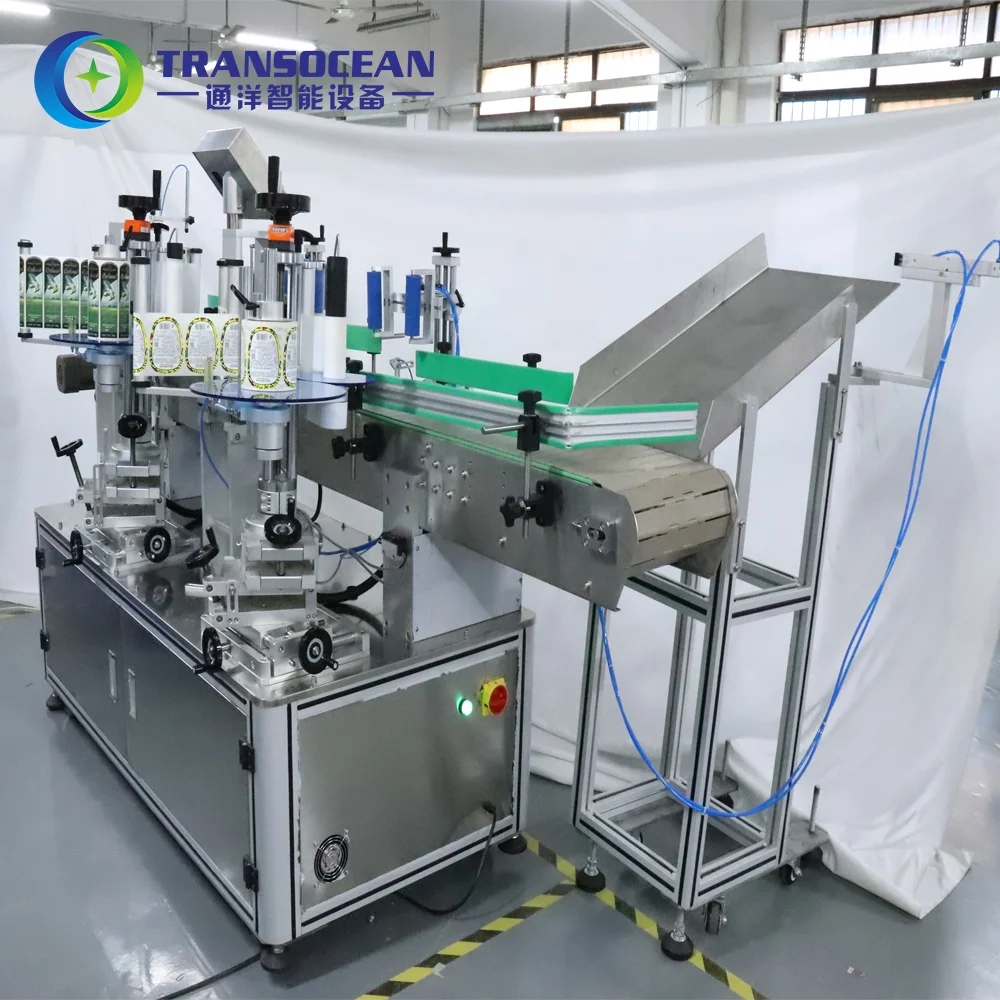

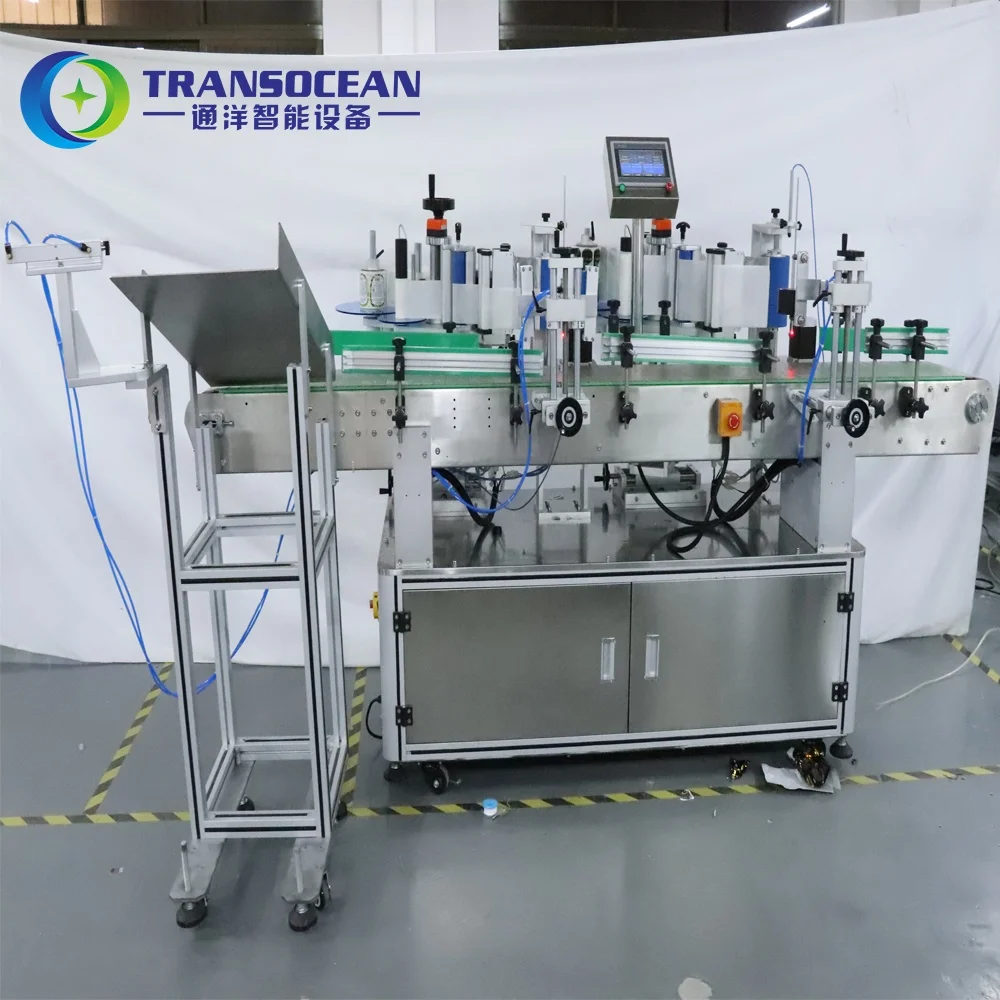

Name: automatic double heads round bottle labeling machine for paste front, back and bottle neck label
1. Applicable label and bottle:
1). Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2). Apply to wine round bottle, or cylindrical products which can standing steady.
2. Basic use:
1). Can paste bottle body front and back label, and bottle neck label.
2). It can paste a circle or half a circle for label, front side and back side. Can positioning right place for labeling.
3). widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.
SPECIFICATIONS | ||||||
Labeling accuracy | ±1mm (excluding products, labels, error) | Labeling speed | 15-35 pcs/min(related to the product and label size) | |||
Apply the product diameter | 15-120mm (Can be customized) | Apply label size | Length:20 -290 mm; Width: 20-130 mm (Can be customized) | |||
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | 76mm | |||
Apply labels outside diameter | 240mm | Voltage | 220V | |||
Power consumption | 1525W | Air pressure | 0.3---0.6Mpa | |||
size (length*width* height) | Machine size: 2500*1200*1530 mm | Weight | About 400Kg | |||
Remark
1). That is standard model parameter range.
2). Customer should provide us product and label sample, so that can customized the machine.

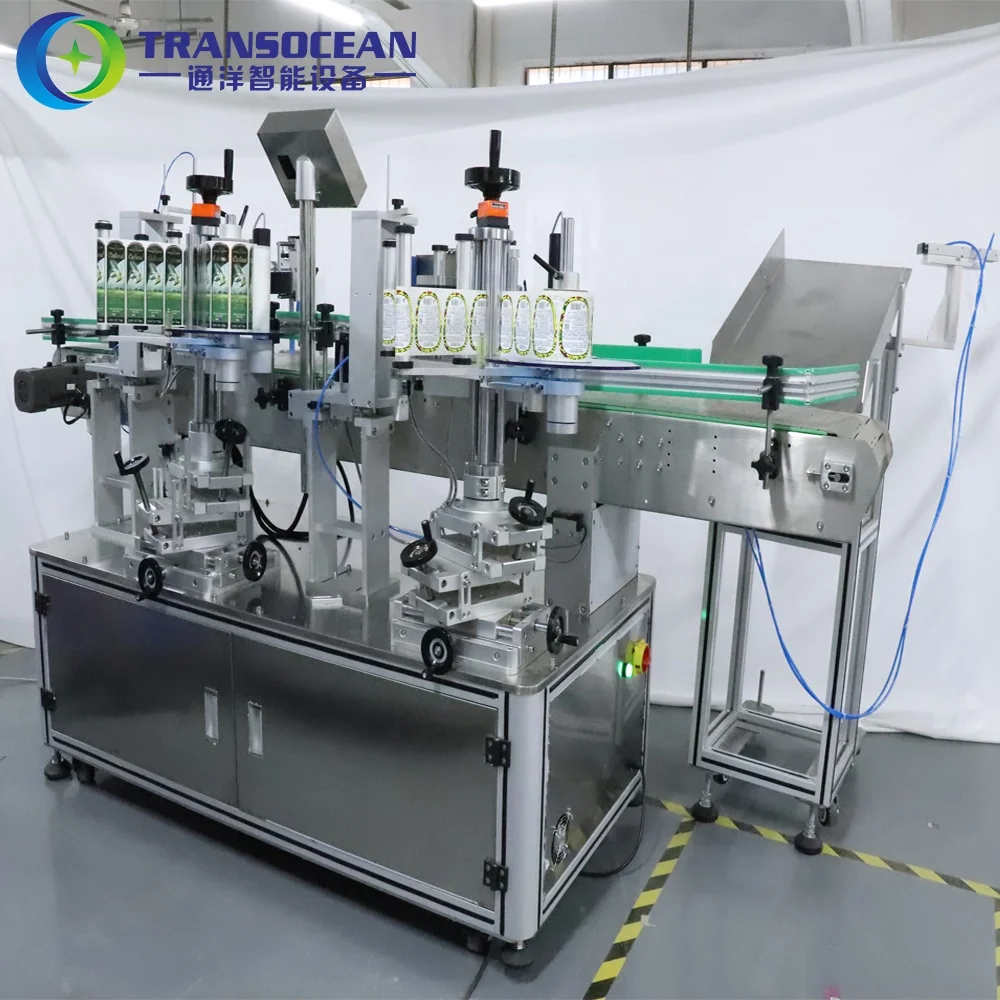

double pieces labeling heads
paste the front label first, then continue the back side label. if two label not at the same label roll.
can be connected to automatic production line
in the front side, it can be connected to automatic production line. like:
bottle unscramble machine
filling machine
capping machine
an so on.
auto sub-bottle function
with automatic sub-bottle function, let bottles separate one by one.
three-bar adjustment mechanism
Using three-bar adjustment mechanism, make full use of the stability of the triangle, the machine solid and durable.
Import label sensor
1. Germany LEUZE transparent label sensor
2. Italy Data logic sticker label sensor
3. Germany sick all-purpose label sensor, can use for transparent and sticker label.
Remark:
Standard model with Italy Data logic sticker label sensor.
Color touch screen in English
Panasonic PLC, Simple operation, do not need high-quality technical workers, easy to get started.
Other languages available: such as: Spanish, Arabic, French. and so on.
testing product sensor
Japan Panasonic testing product sensor, Automatic photoelectric tracking, with no bottle no labeling function.
Micro adjustment seat
can adjust the multi-dimensional angle of the labeling head.
positioning detecting device
The circumferential positioning detecting device can be added, and labeling can be performed at a specified position on the circumferential surface.
hot coding machine
1. code content usually be:
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Payment terms.
Pre-Sales Service
* Inquiry and consulting support.* Sample testing support.
* View our Factory.
After-Sales Service
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
