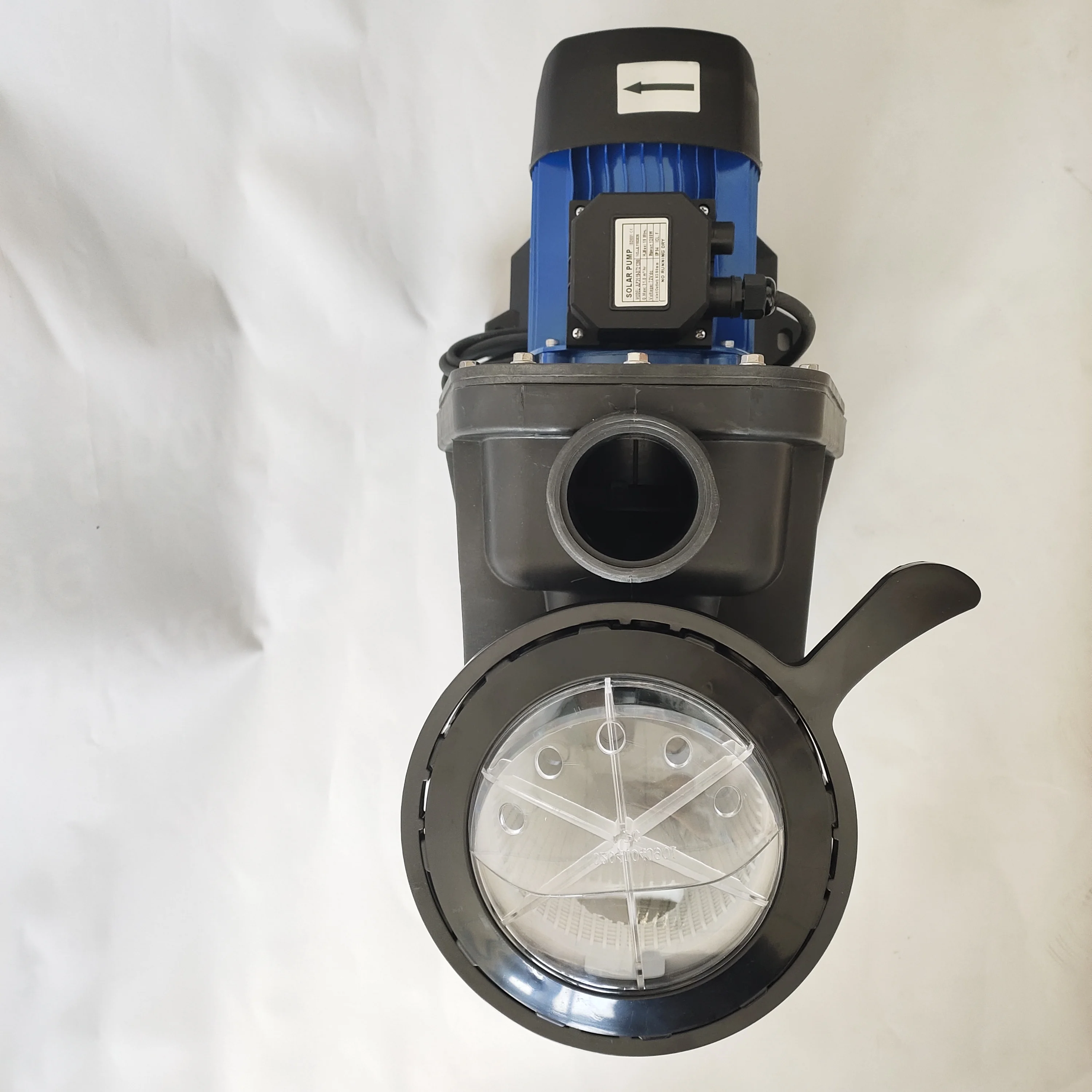

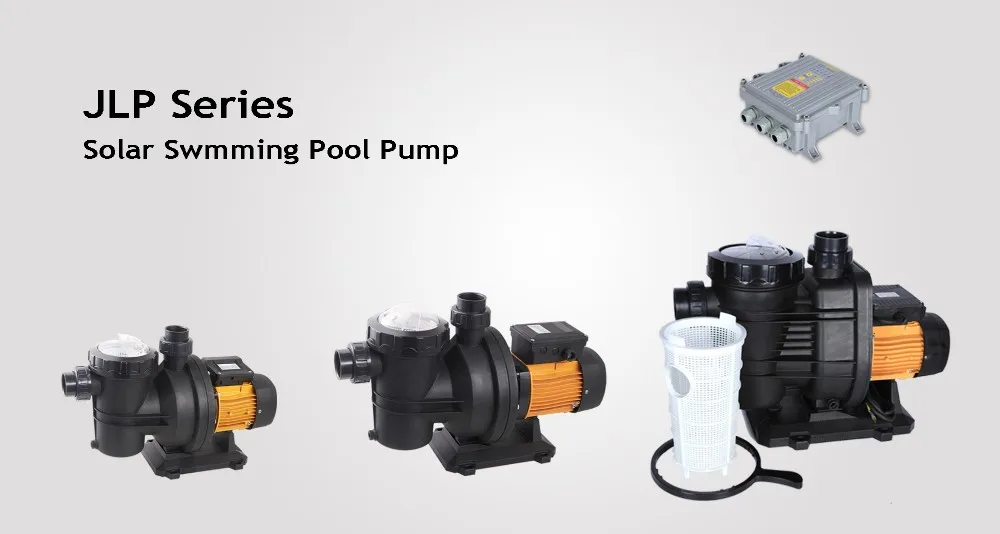

72V 900W JLP21/19 D120/900 Solar swimming pool pump for domestic pool
- Category: >>>
- Supplier: Ningbo Jilu Leader Drive Technologies Co. Ltd.
Share on (62318592587):
Product Overview
Description

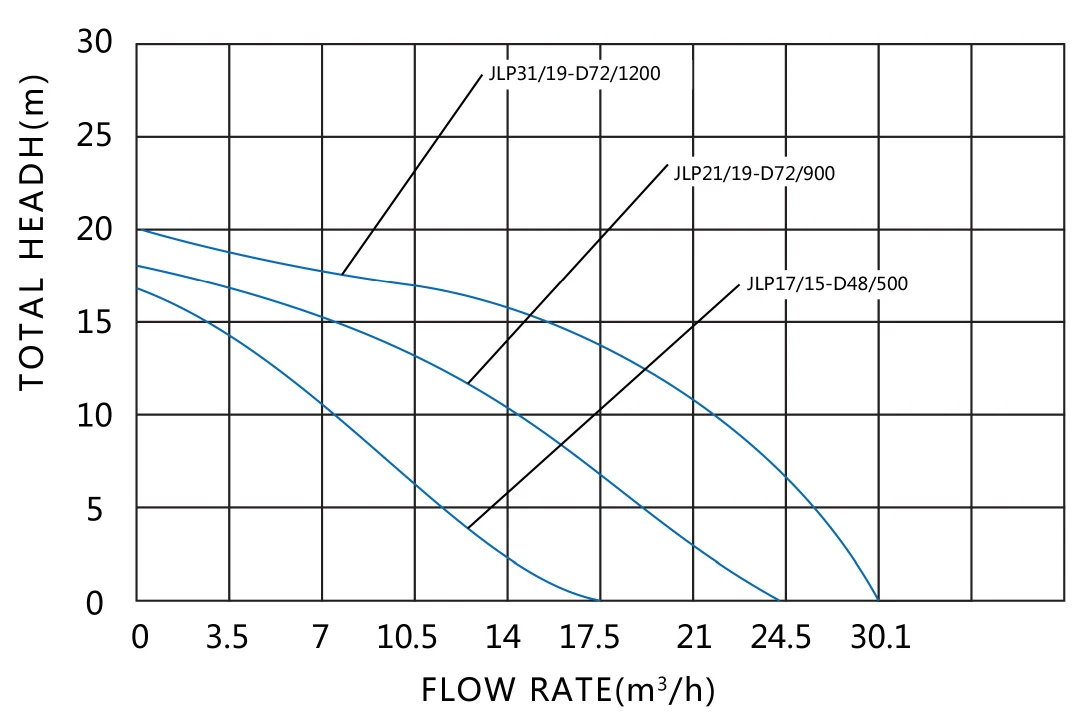

MODEL SELECTION
No | Voltage | Power | Model | Outlet/Inlet | Max.Head | Max. Suction | Max. Flow | ||
Vdc | HP | Watt | mm | Mtrs. | Mtrs. | m3/hr | |||
01 | 48/60 | 0.5 | 500 | JLP17/15-D48/500 | 50/48 | 15 | 5 | 17 | |
02 | 60/72 | 1.2 | 900 | JLP21/19-D72/900 | 50/48 | 19 | 6 | 21 | |
03 | 60/72 | 1.5~2 | 1200 | JLP31/19-D72/1200 | 63/60 | 19 | 6 | 31 | |
WE WANNA KNOW FROM YOU-
1) What's the volume of your pool?
2) How's the water quality?
3) What's the vertcal head between pump and pool pump?
PUMP DETAILS

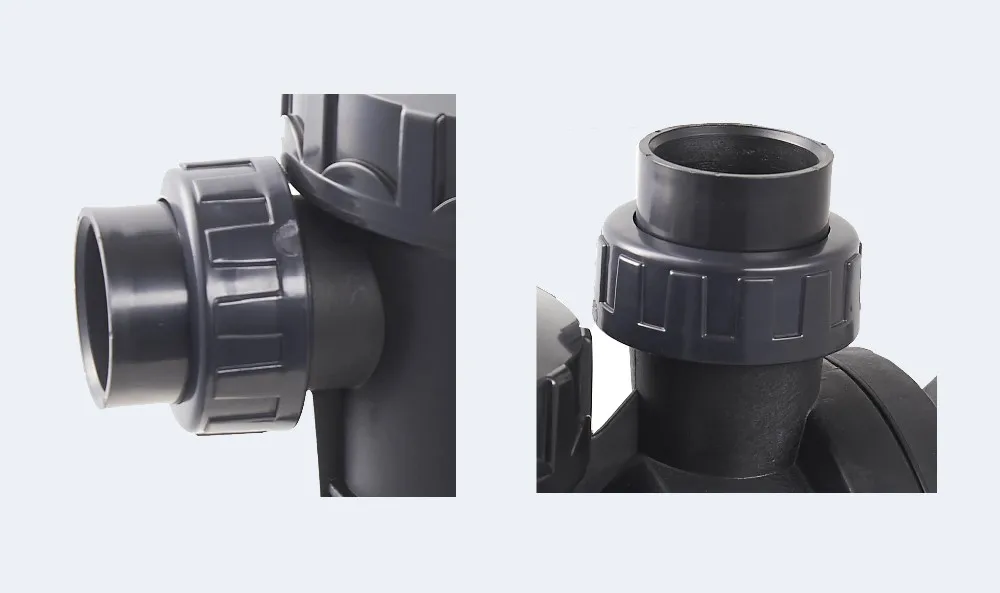

Inlet and Discharge (Outlet)
Material: Reinforced Nylon
With 2 type of connectors
-International standard
-USA standard

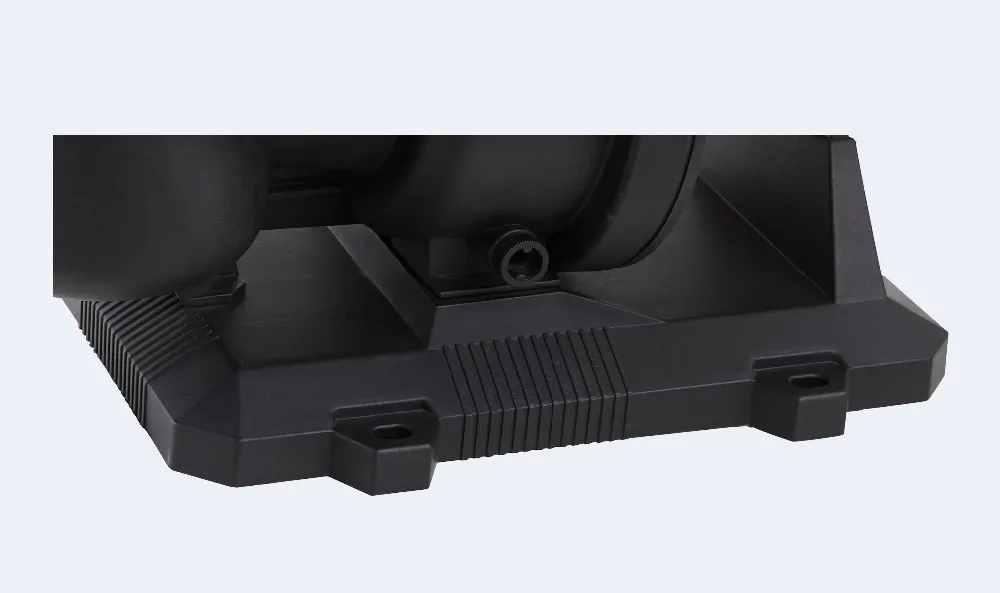

Base Plate
Integrated with pump body, with mounting holes

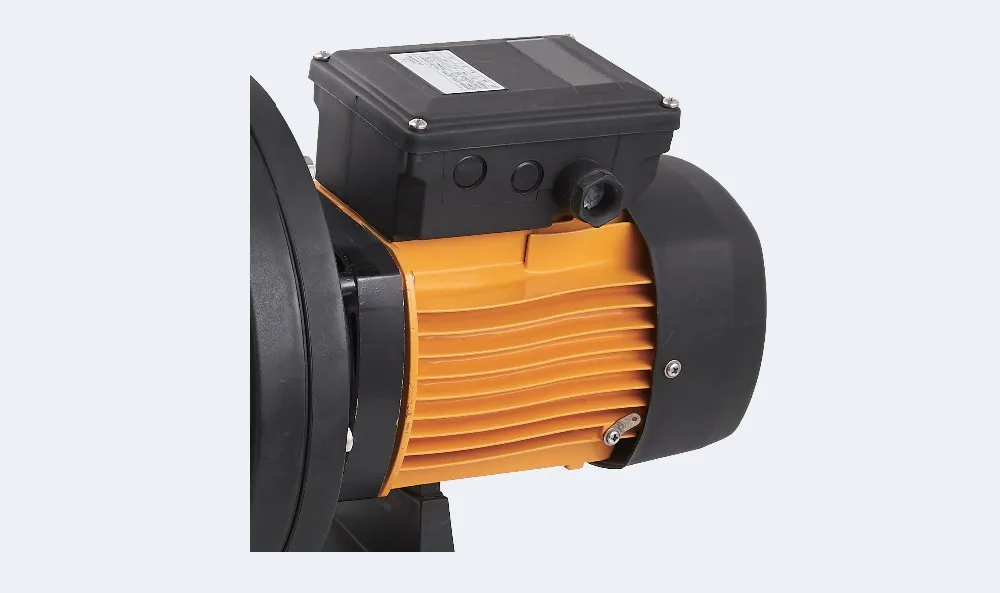

Motor Body
AISI 304 SS
Good heat dissipasion

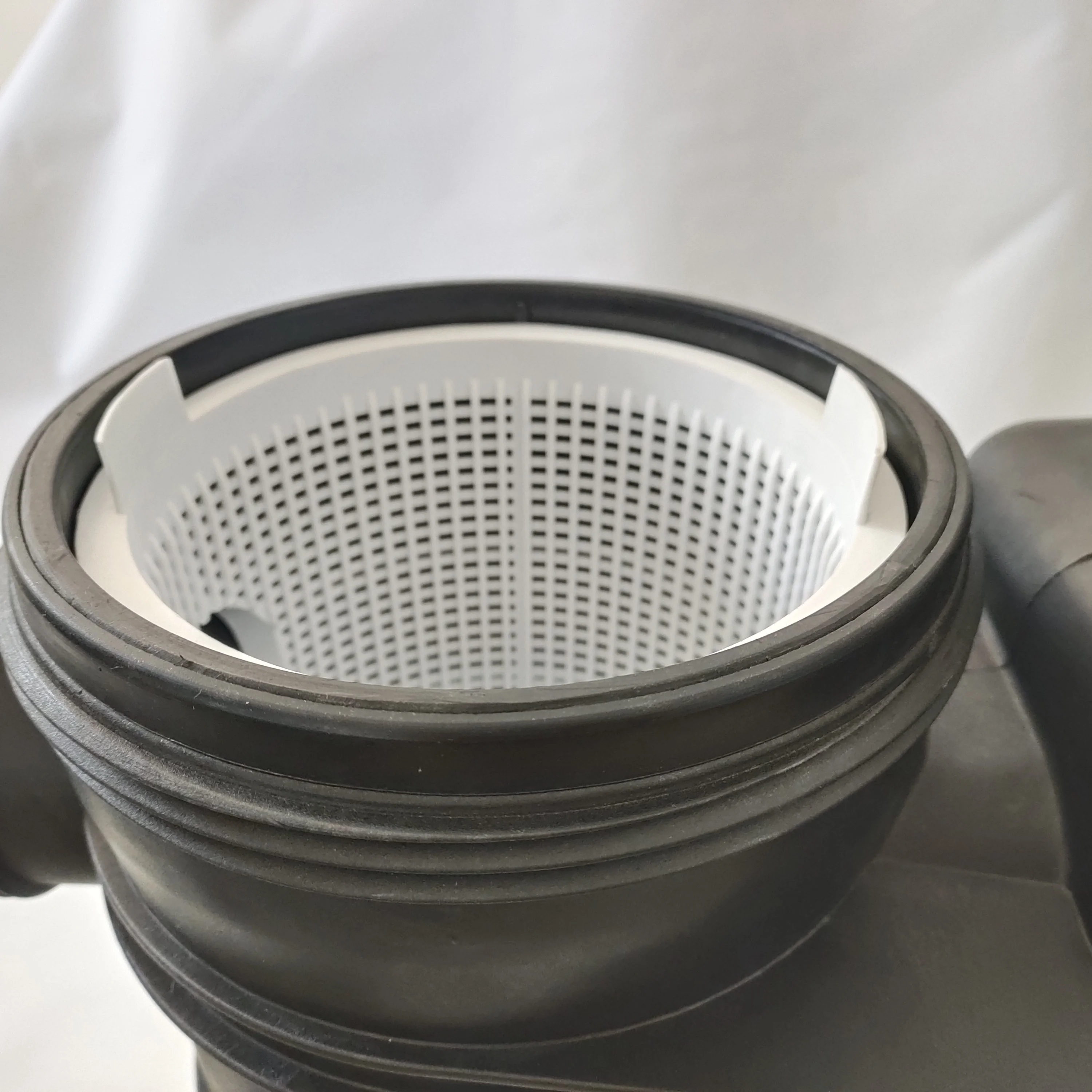

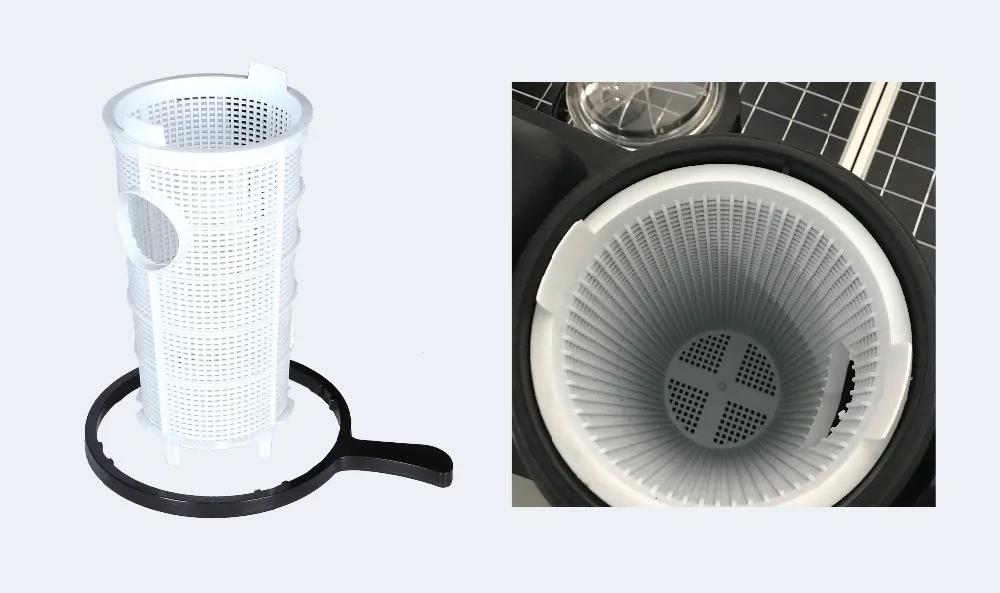

Filter
It could filter some stones and leaves directly.
Motor Stator
Reinforced plastic bobbin
100% enamelled copper wire
Stator lamination - Quantity is totally enough for corresponding motor power
Motor Rotor
Shaft - AISI 304 SS
Rotor lamination - Quantity is totally enough for corresponding motor power
Magnetic steel - N35UH NdFeB Magnet
CONTROLLER DETAILS
Controller Shell
◆ Material - Die-cast aluminum ◆ Protection degree - IP54
◆ Unique design with patent ◆ Good heat dissipassion
Cable joint
Lockhole
Mounting holes
Automatic SMT line
Semi-automatic Immersion Tin Stoves

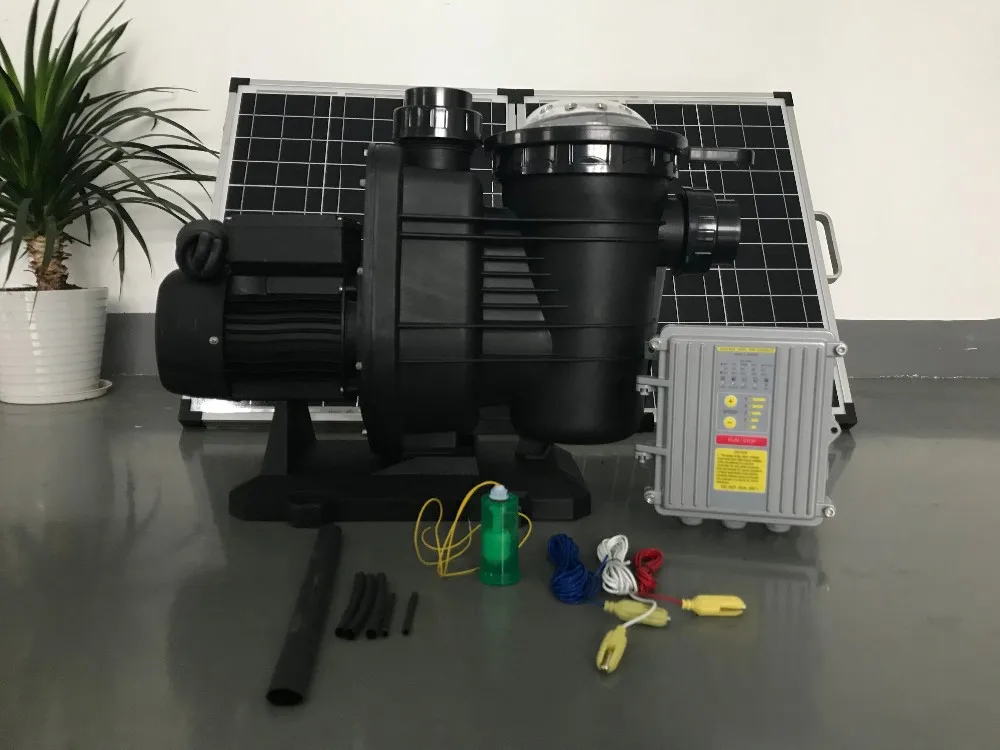

FREE PARTS
ITEMS | QUANTITY |
Float switch for water source | 1 |
Tank level sensors | 3 |
Heat-shrinkable tube | 1 |
Terminals | 5 |
Allen key | 1 |
Inlet/Outlet connectors (International standard) | 2 |
Inlet/Outlet connectors (U.S.A standard) | 2 |

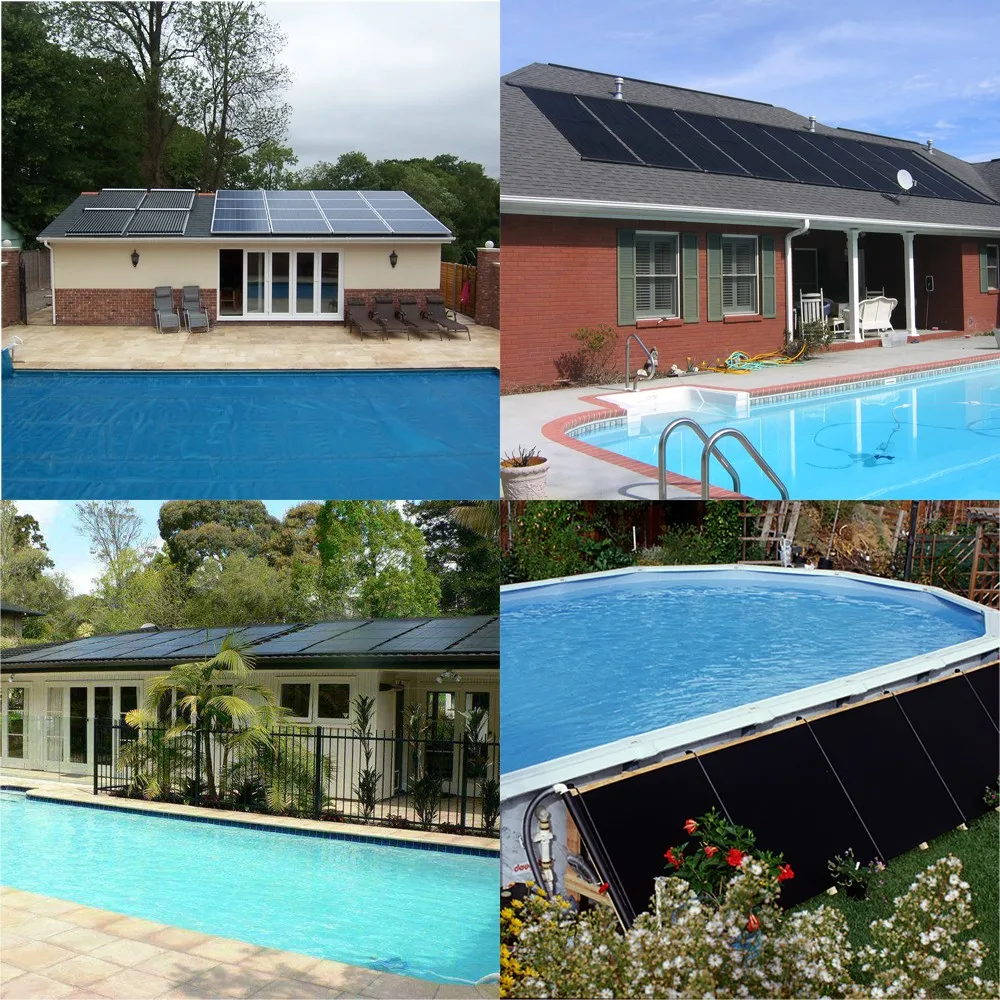

APPLICATIONS
JiLu swimming pool pump system is high quality product designed for use in residential and commercial swimming pools and spas. Power is directly from solar panels meaning no electricity costs and significant benefits to the environment.
We use sensorless brushless DC motor, which has much higher efficiency and reliability comparing to normal AC pool pump and brush DC pump. The constant working lifetime is nearing 30,000 hours(from lasb test).
The controller monitors the system with MPPT function, controling the pump speed and optimizing the amount of water pumped based on the power available.
◆ Swimming pool circulation
◆ SPA
◆ Pool cleaning
◆ Keep pool water temperature constant
PACKING & DELIVERY
Strong plywood cases
Contains all parts in one package
Clear model name print
JILU IN EXHIBITIONS
Packing & Delivery
Strong Plywood Cases
Plastic Film Column Air Bag
Clear Model Name Print
