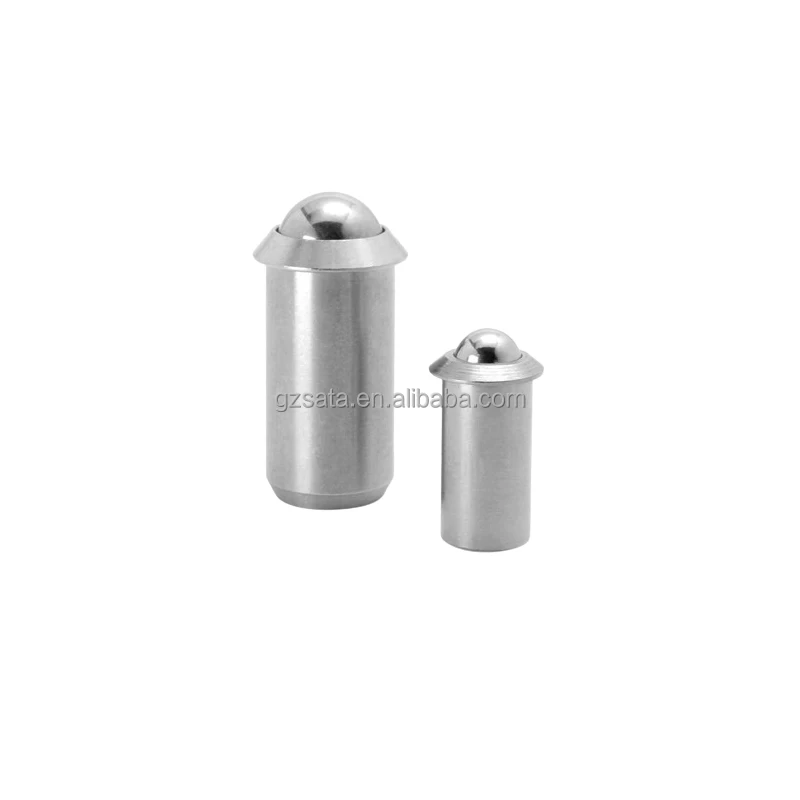

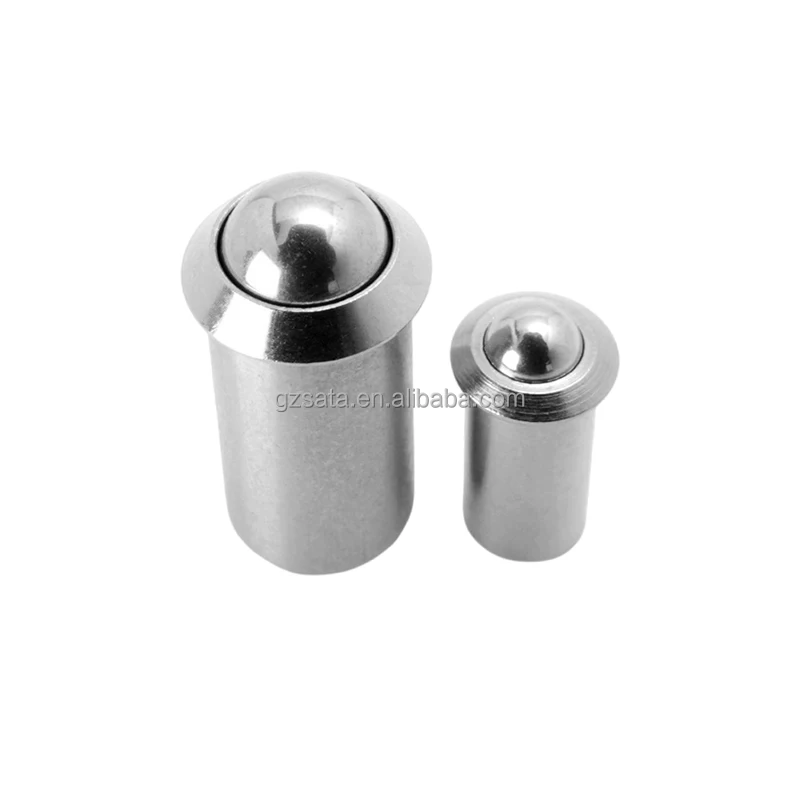

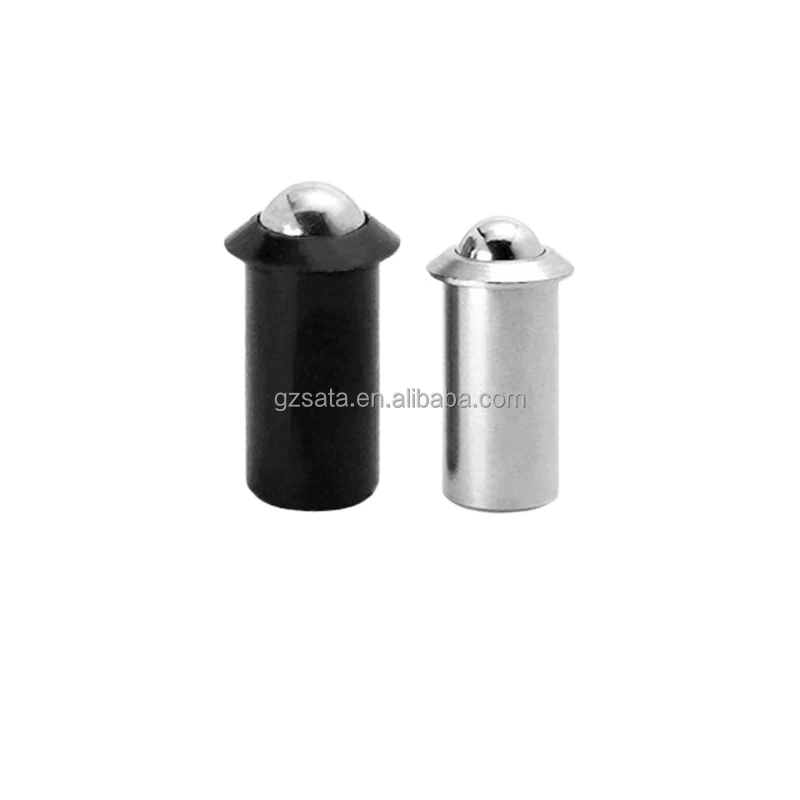

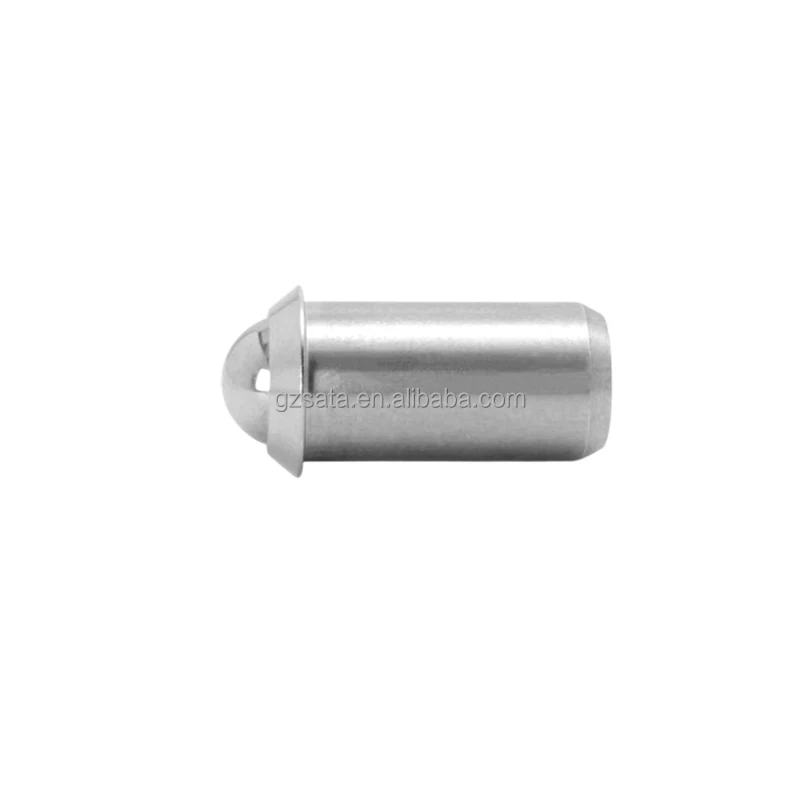

Customized Steel & Stainless Steel Press Fit Ball Nose Spring Plungers

Product Overview

Description



Product Name	Press Fit Ball Nose Spring Plungers
Body Material	Brass, Steel, Stainless Steel(303/316), etc.
Ball Material	Stainless Steel(304/420C/440C),POM, Ceramic, etc.
Spring Material	Stainless Steel(304/631)
Standard	ANSI
Customized	Available

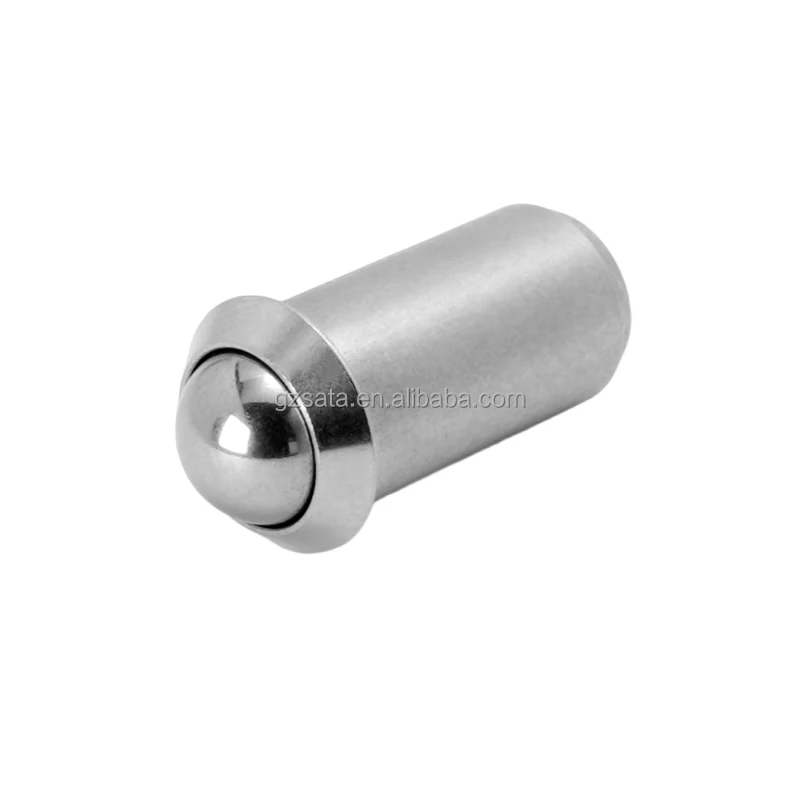

Size	Metric,Inch
Usage	Positioning,ejection
Features	Easy to install and positioning

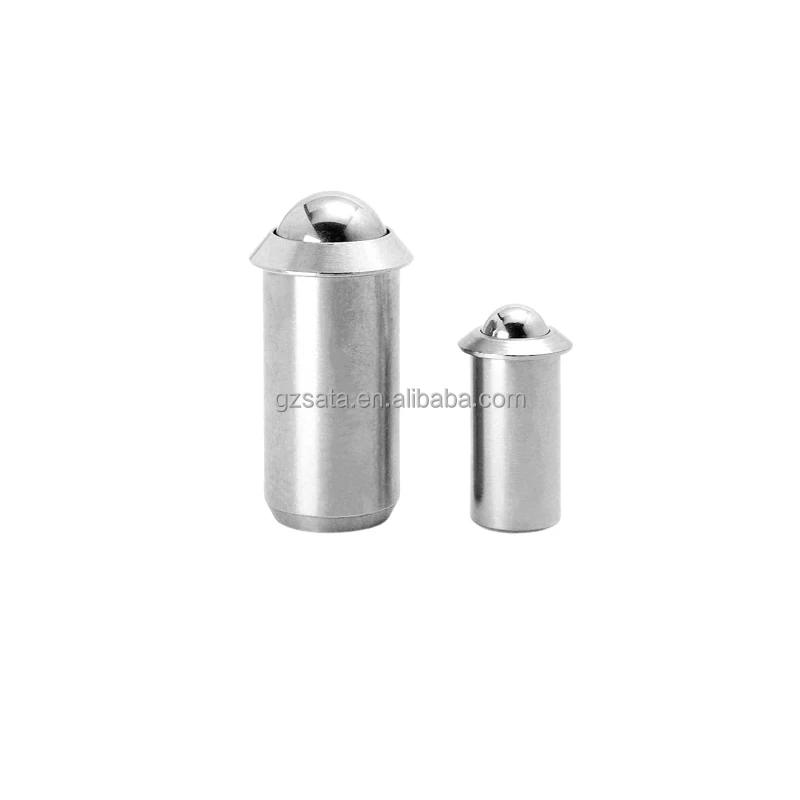

Designed with a flange to keep the plunger from being pushed through a hole when the ball is depressed. These spring plungers have a tapered end and smooth body to make them easy to press into unthreaded holes in soft material such as wood, plastic, and aluminum. Drill a slightly smaller hole for a snug fit.



Steel is strong and wear resistant.



Stainless steel is chemical resistant and may be mildly magnetic.



Plastic is chemical resistant and lightweight; plastic noses are extra soft to minimize marring soft surfaces such as aluminum.



Brass is corrosion resistant in wet environments.

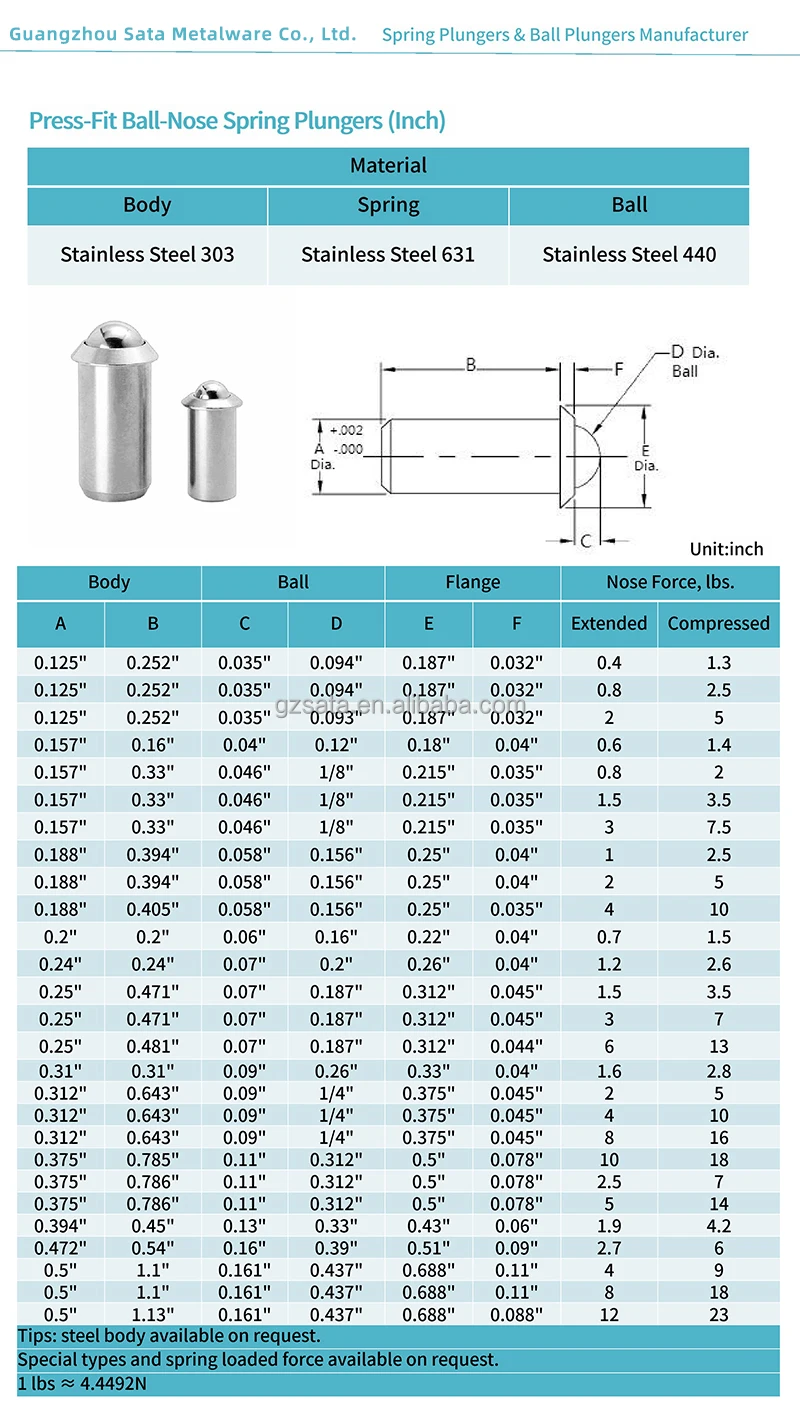

Extended nose force is the force required to begin to depress the nose. Compressed nose force is the force required to depress the nose flush with the body. When using a plunger as a detent or stop, a lighter nose force with a shallower hole releases more easily, while a heavier force with a deeper hole holds more securely.



There are types of spring plungers available on request.
