» Excellent Expertise in design tools: Allegro, Pads, and Mentor Expedition. » High density SMT designs (BGA, uBGA, PCI, PCIE, CPCI…) » Flex PCB designs of all sorts » Complete assembly drawings » In-Circuit Test data generation (ICT) » Drill, panel and cutout drawings designed » Professional fabrication documents created » High-speed, multi-layer digital PCB designs- Bus routing, differential pairs, matched lengths; Fast PCB design in 2-3 days. » Concentrate on the PCB design Wi-Fi Module, BLE Module, GPS Tracking application.RF Modules,Medical-Care devices,LED PCB Boards. » We come up with the design as per customer requirement,and take care for the RAW material cost at the outset of design. » Full control for the PCB design, from requirement, Schematic, PCB Layout, SI/PI/EMI inspection, we will locate the design issues in the inspection processing.
We have more than 100 sets of import production equipments ,such as advanced SMT machines, automatic solder
We can provide one-stop professional solution and production assembly services. And Chengle has the certification of ROHS, ISO9001,ISO 13485 ICTI, CE, etc.

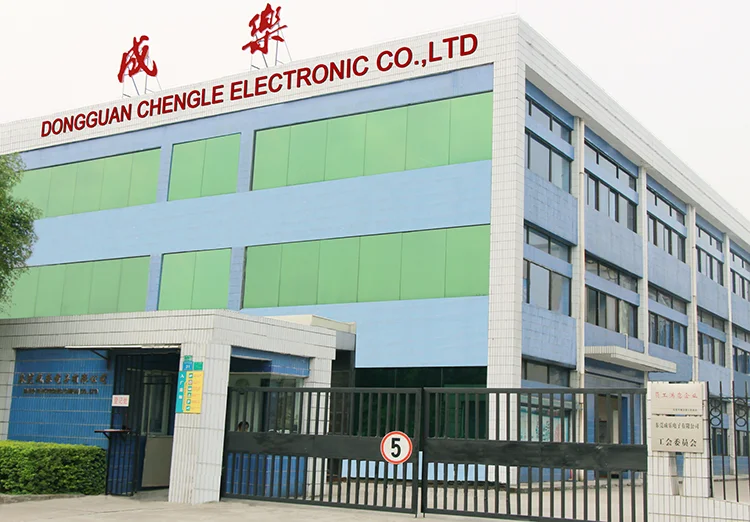

Dongguan Chengle Electronic Co., Ltd. is a high-tech enterprise specializing in the research and development of toy products, PCBA, health care products, home appliances, educational electronic products, etc., with more than 20 years of experience in R&D, design, production, assembly and procurement.
More than 400 employees and the area is more than 3200 square meters.

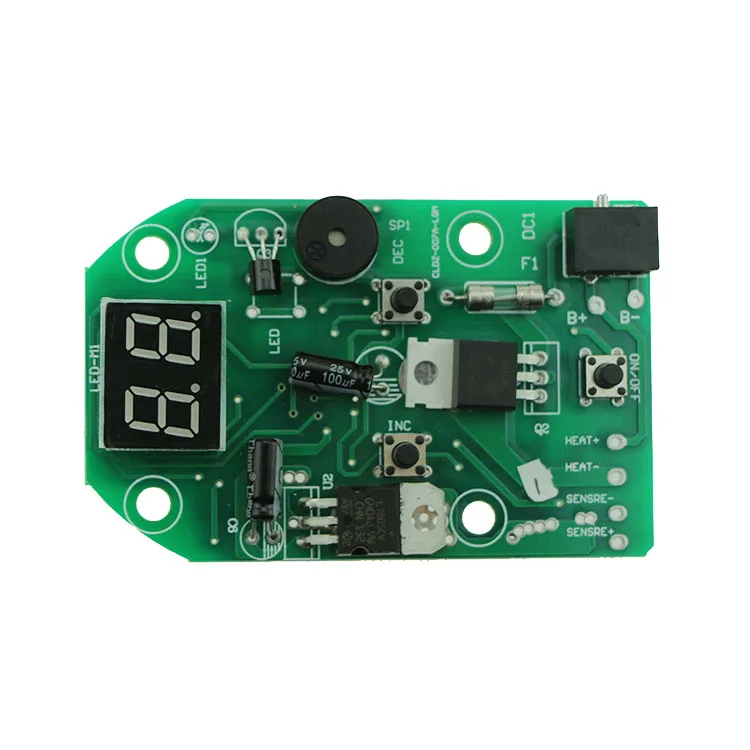

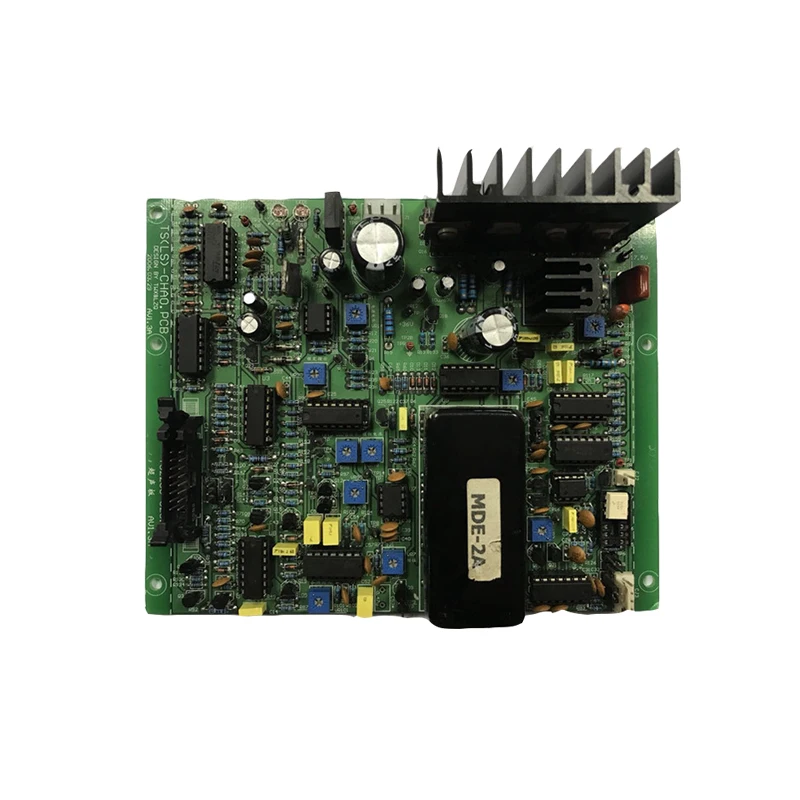

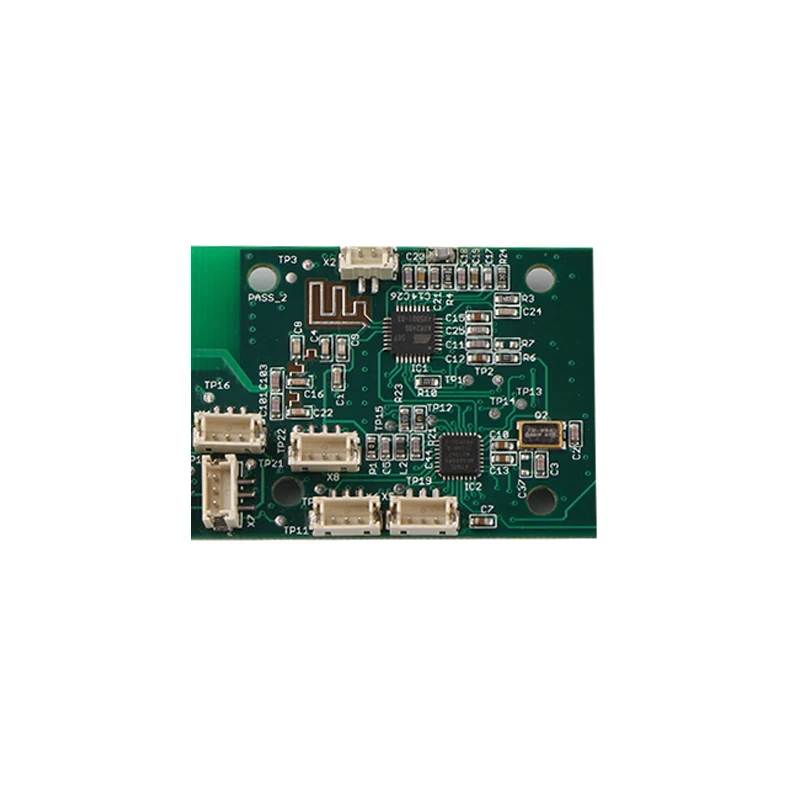

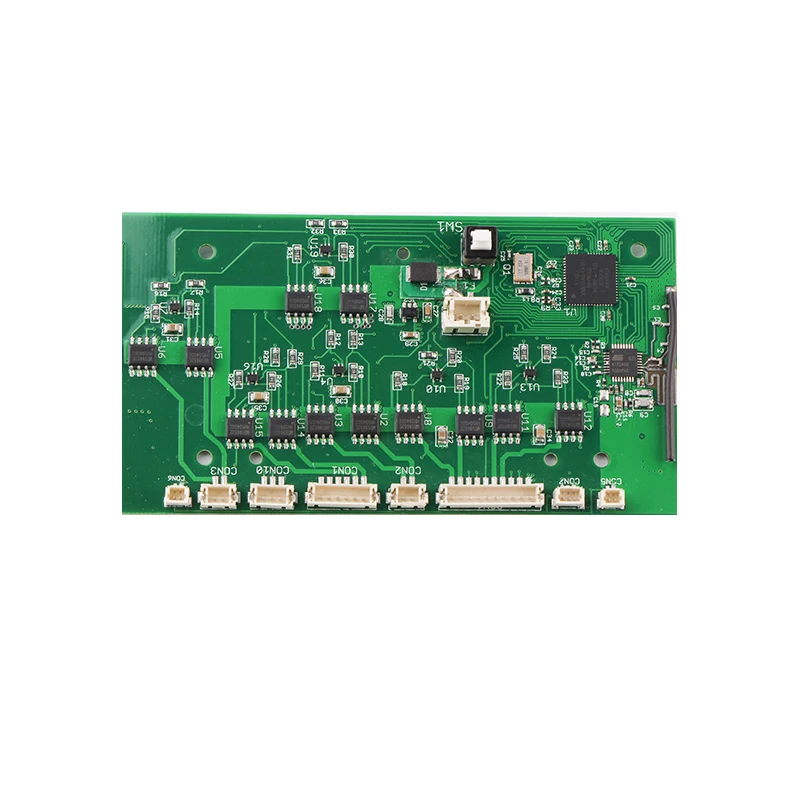

Chengle is providing high quality bare PCB and PCB assembly service,including components sourcing, function test,conformal coating and complete assembly for clients all over the world.
FAQ
Q
1.What service can you supply ?
A
We are OEM PCB and PCBA manufacturer since 2004 ,we can provide turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q
What file you need to prepare if you want to get an quotation from us?
A
For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.
Q
Can i get a sample to test your quality ?
A
Yes,it is reasonable to get a sample to test quality at first,but you should pay for sample,and we will return all sample cost in future mass production is more than 20sqm.
QHow can we guarantee you receive an good quality product?For PCB, we will use Flying Probe Test, E-test etc. for it.
A
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
