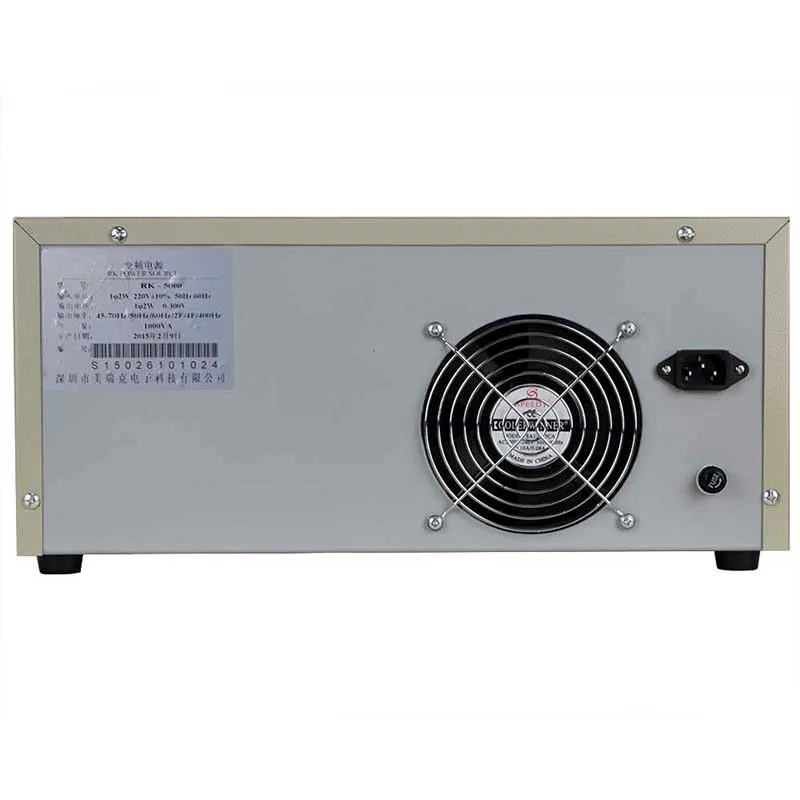

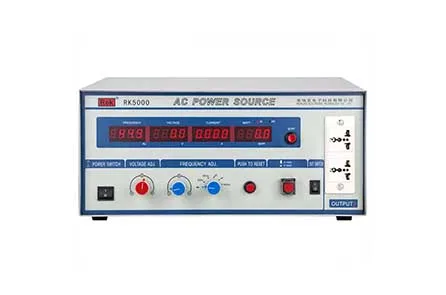

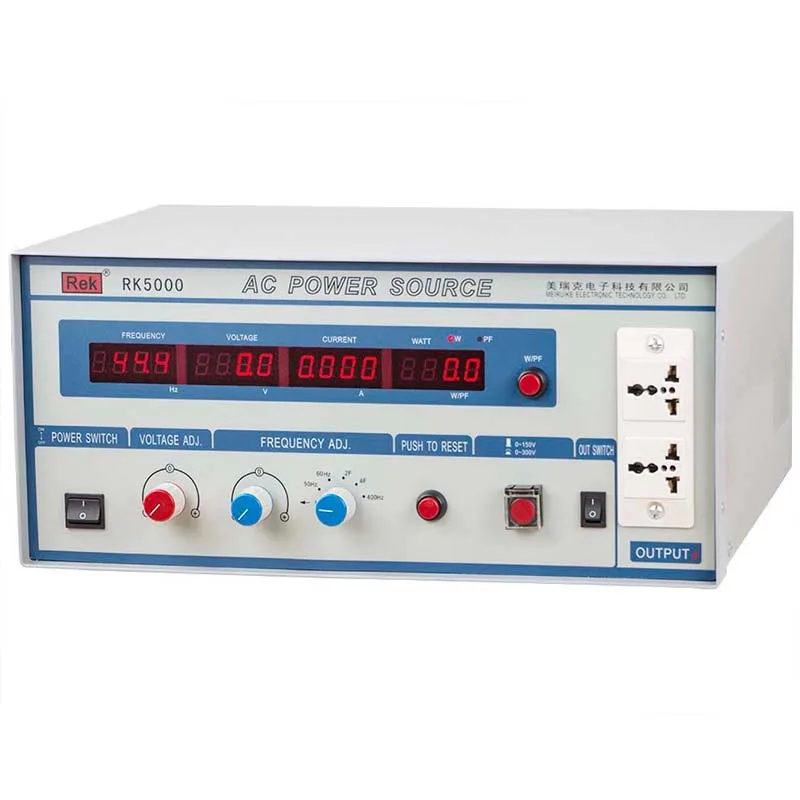

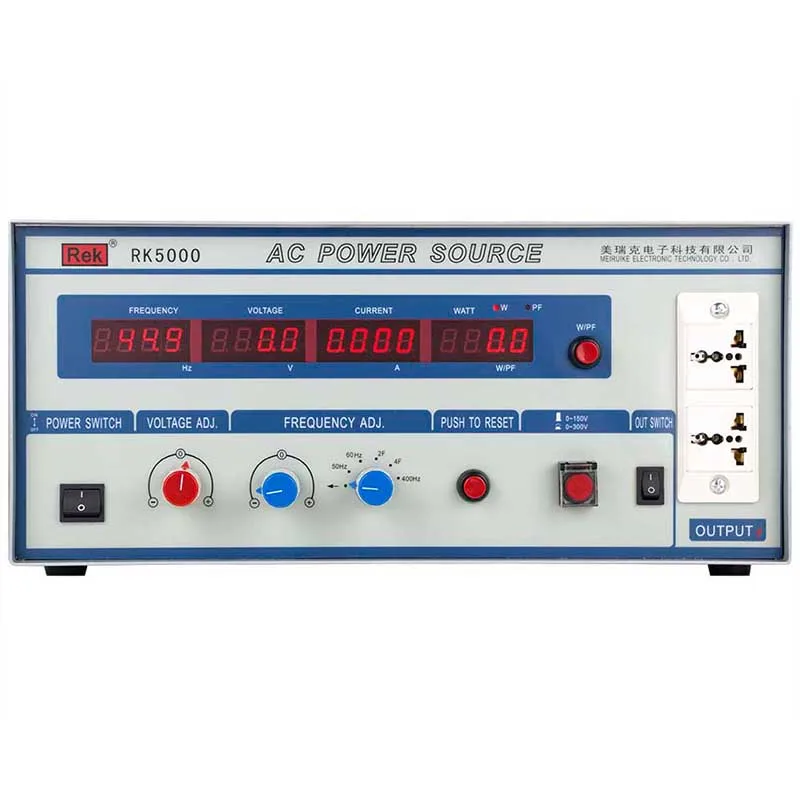

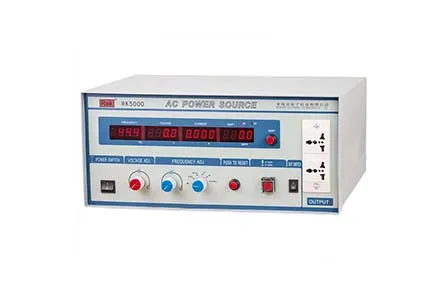

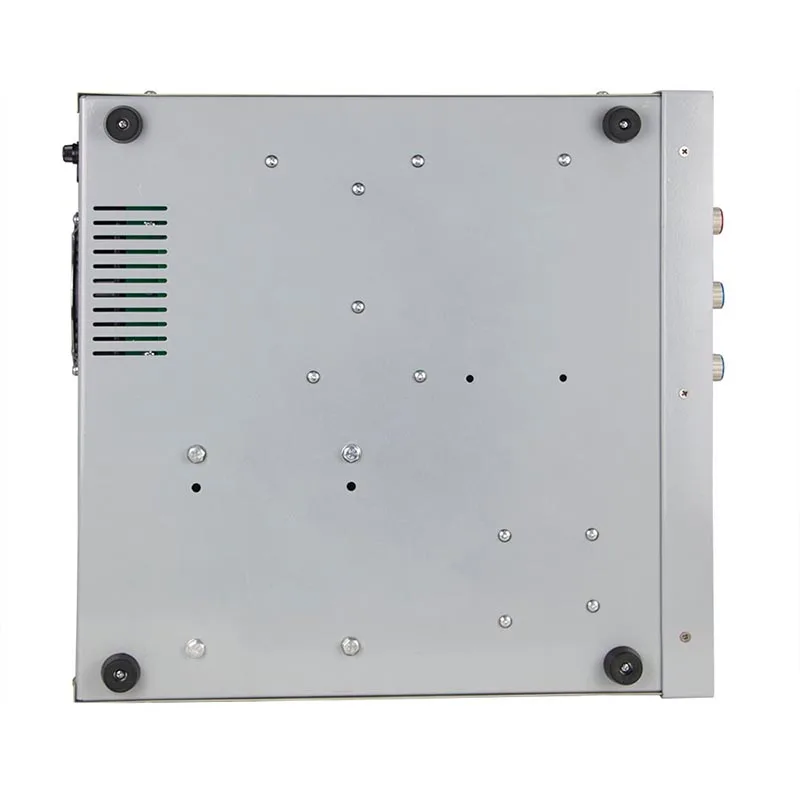

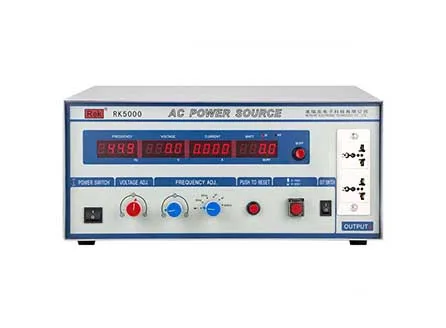

Chinarek AC Power Source RK5000 adjustable Variable frequency power supply meter Pressure Hipot tester Resistance Electronics
- Category: >>>
- Supplier: Shenzhen Meiruike Electronic Technology Co. Ltd.
Share on (62318815445):
Product Overview
Description
Product Description
Product Name | variable frequency ac power supply | variable frequency ac power supply | |
Model | RK5000 | ||
Capacity | 500VA | ||
Circuit mode | IGBT/SPWM mode | ||
Input | Phase number | 1 phase 2w | |
voltage | 220V±10% | ||
Frequency | 47Hz-63Hz | ||
Output | Phase number | 1 phase 2w | |
voltage | LOW=0-150VAC HIGHT=0-300VAC | ||
Frequency | 45Hz-70Hz 50Hz 60Hz 2F 4F 400Hz | ||
Maximum current | L=120V | 4.2A | |
H=240V | 2.1A | ||
Load regulation rate | 1% | ||
Waveform distortion | 1% | ||
Frequency stability | 0.01% | ||
LED display | voltage V, current A, frequency F, power W | ||
Voltage resolution | 0.1V | ||
Frequency resolution | 0.1Hz | ||
Current analysis | 0.001A | ||
Protection | over current, over temperature, overload, short circuit | ||
Weight | 24KG | ||
Size | 420*420*190mm | ||
Operating environment | 0 ° C ~ 40 ° C, ≤ 85% RH | ||

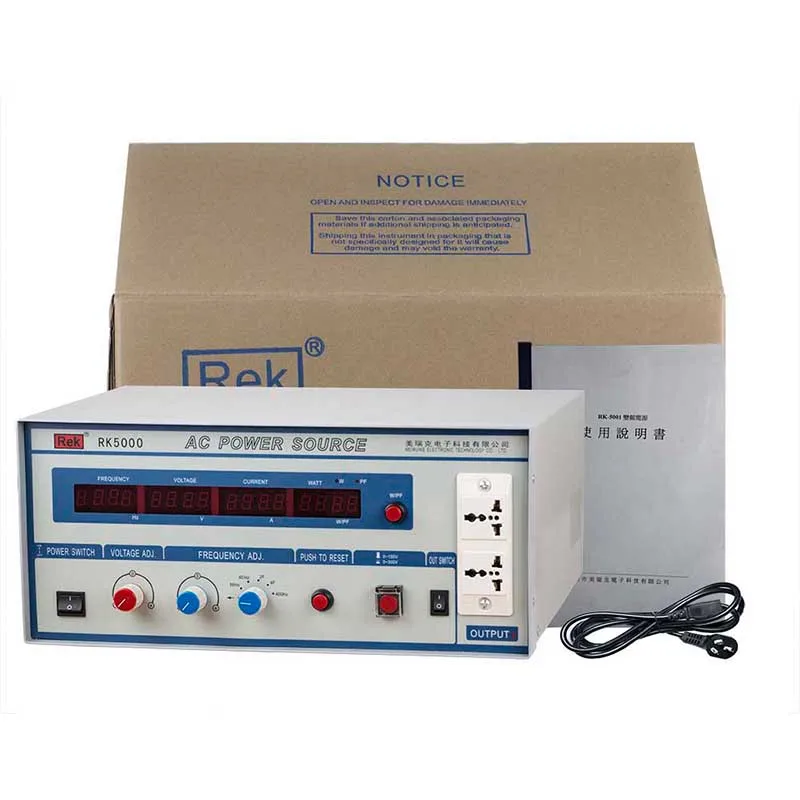

Accessories | power cord | ||
- product description
The RK5000 variable frequency power supply is based on the microprocessor and is fabricated by MPWM. It is designed with active component IGBT module. It adopts digital frequency division, D/A conversion, instantaneous value feedback, sinusoidal pulse width modulation and other technologies to increase the output of the isolation transformer. The stability of the whole machine has the characteristics of strong load adaptability, good output waveform quality, simple operation, small size and light weight. It has short-circuit, over-current, overload and over-heat protection functions to ensure reliable operation of the power supply.
Product Usage
Widely used in home appliance manufacturing, electrical machinery, electronics manufacturing, IT industry and computer equipment manufacturing industries and laboratories and electronic and electrical products testing institutions
1. High-precision frequency stabilization, knob type quickly adjusts voltage and frequency.
2. The transient response speed is fast.
3, high precision, 4 windows simultaneous measurement, display: frequency, voltage, current, power, power factor, no need to switch
4, with overvoltage, overcurrent, overload, over temperature and other multiple protection and alarm functions
5, no radiation interference, harmonic content is small, and after special treatment, no interference
6, to provide the world's standard voltage, frequency, simulation test various electrical products
