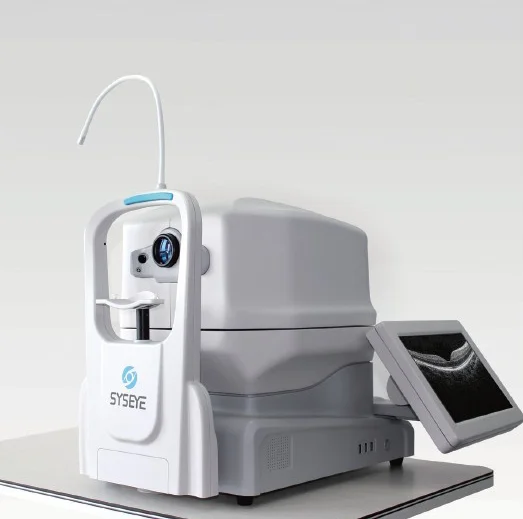

RetiView 500 automatic OCT Optical Coherence Tomography optional external mouse or keyboard
- Category: >>>
- Supplier: Shanghai Top View Industrial Co. Ltd.
Share on (62318822942):
Product Overview
Description
RetiView 500 automatic OCT Optical Coherence Tomography optional external mouse or keyboard

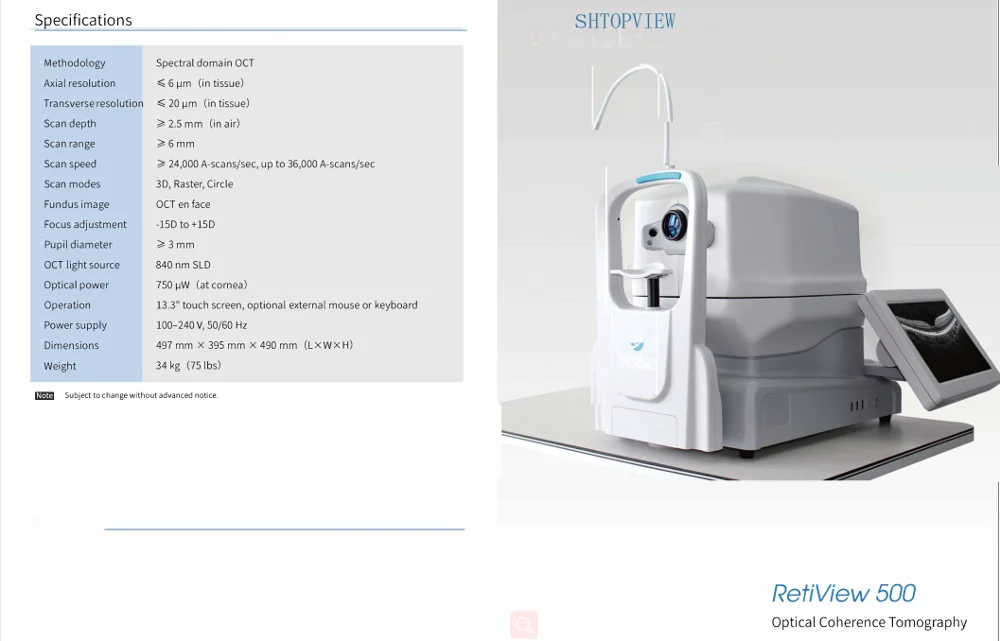

Specifications
| Methodology | Spectral domain OCT |
| Axial resolution | ≤6 µm (in tissue) |
| Transverse resolution | ≤20 µm (in tissue) |
| Scan depth | ≥2.5 mm (in air) |
| Scan range | ≥6 mm |
| Scan speed | ≥24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 3D, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -15D to +15D |
| Pupil diameter | ≥3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3” touch screen, optional external mouse or keyboard 100-240 V, 50/60 Hz |
| Power supply | 497 mm × 395 mm × 490 mm (L × W × H) |
| Dimensions Weight | 34 kg (75 lbs) |

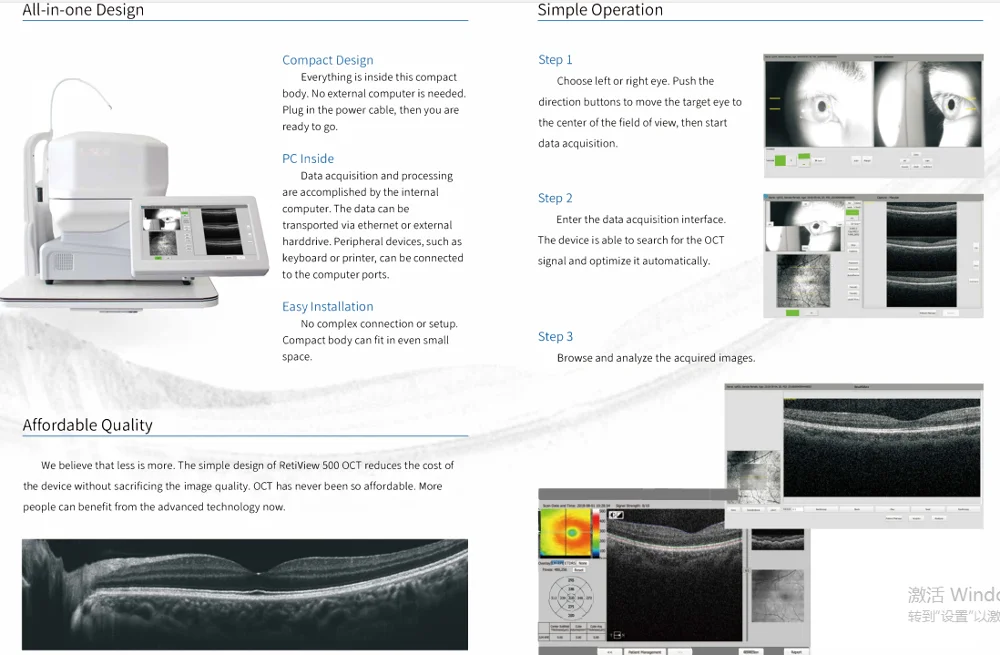

Compact Design :
Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
PC Inside
Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
Easy Installation
No complex connection or setup. Compact body can fit in even small space.
Affordable Quality:
We believe that less is more. The simple design of RetiView 500 OCT reduces the cost of the device without sacrificing the image quality.
OCT has never been so affordable. More people can benefit from the advanced technology now.
Step 1
Choose left or right eye. Push the direction buttons to move the target eye to the center of the field of view, then start data acquisition.
Step 2
Enter the data acquisition interface. The device is able to search for the OCT signal and optimize it automatically.
Step 3

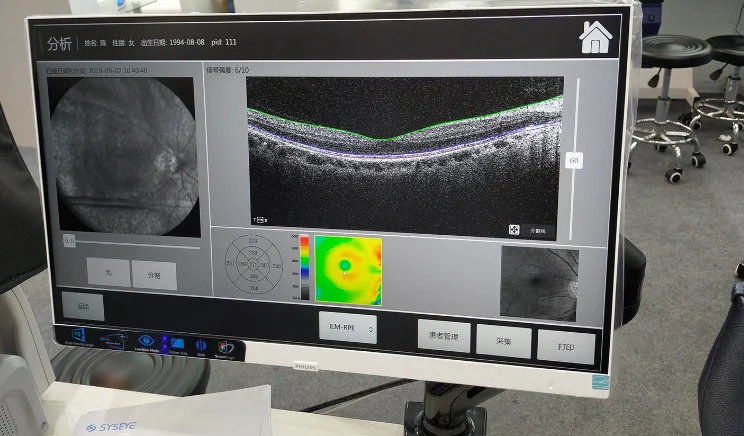

Browse and analyze the acquired images.
