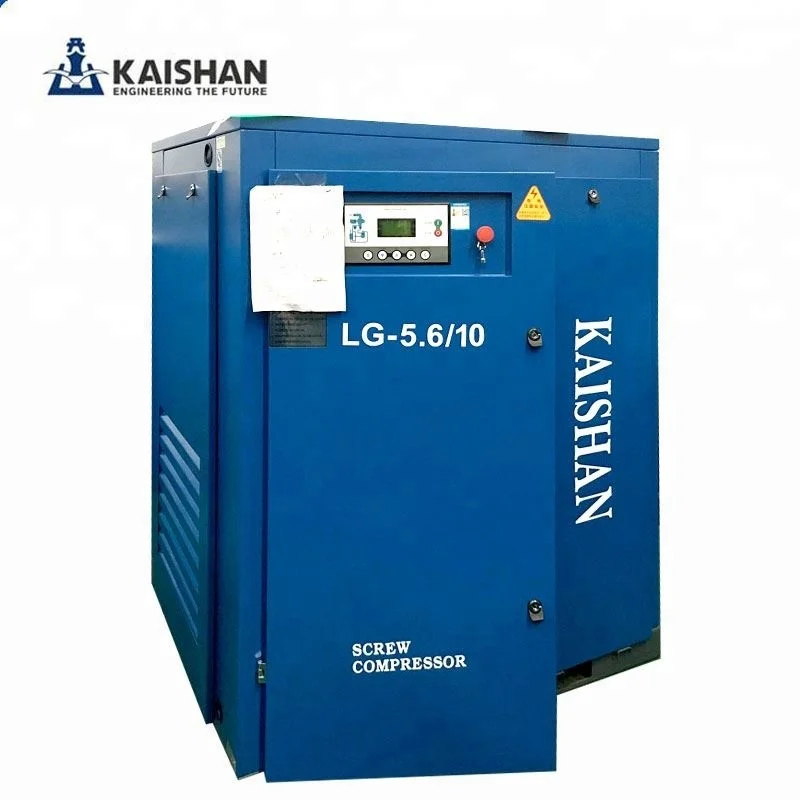

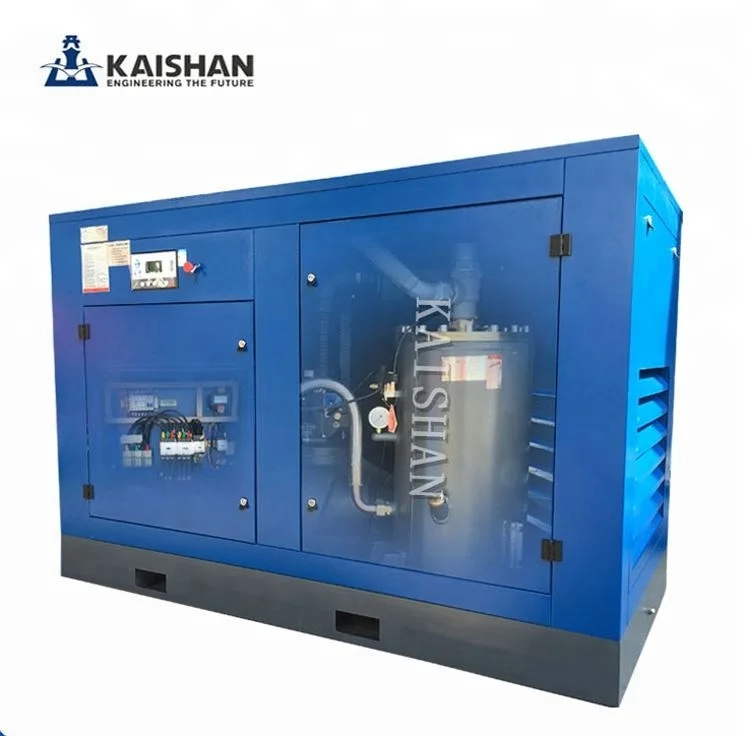

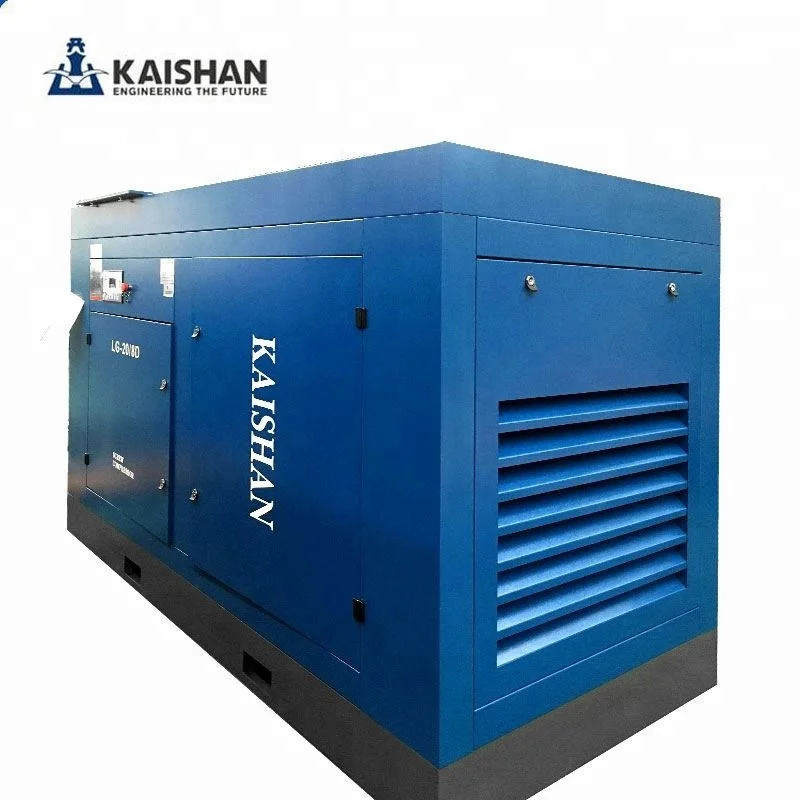

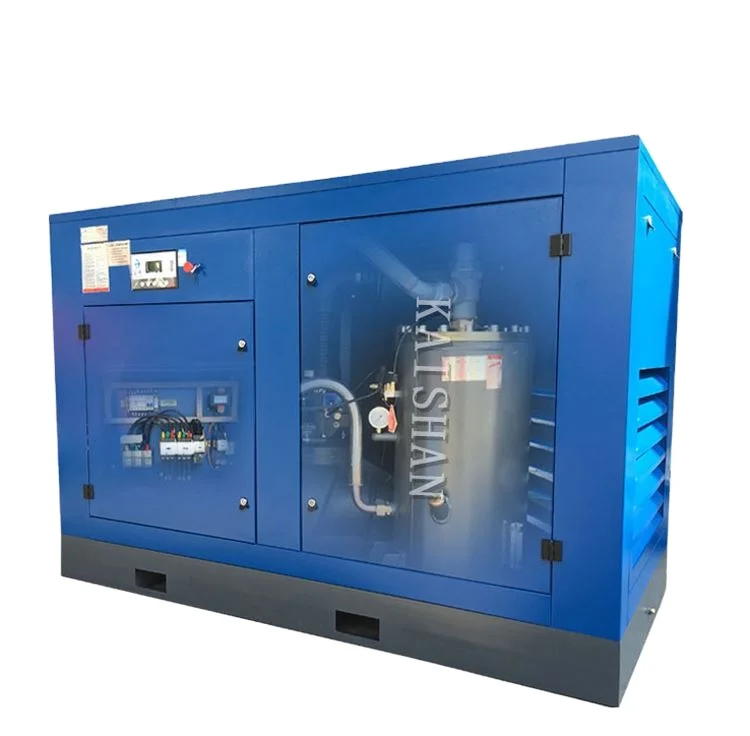

37kw 50hp color sorter machine screw air compressor with dryer




Technical parameters of LG series screw air compressor
| Model | Working pressure (bar) | Capacity (m³/min) | Motor power (kw) | Dimension (mm) | Weight (kg) | Airend model | ||
| l | w | h | ||||||
| LG-1.2/8A | 8 | 1.2 | 7.5 | 820 | 700 | 1010 | 260 | SKK44 |
| LG-1.0/10A | 10 | 1 | 7.5 | 820 | 700 | 1010 | 260 | SKK44 |
| LG-0.8/13A | 13 | 0.8 | 7.5 | 820 | 700 | 1010 | 260 | SKK44 |
| LG-0.8/13 | 13 | 0.8 | 7.5 | 900 | 700 | 1040 | 350 | SKK55LM-A |
| LG-1.7/8 | 8 | 1.7 | 11 | 1060 | 800 | 1230 | 450 | SKK55LM-A |
| LG-1.5/10 | 10 | 1.5 | 11 | 1060 | 800 | 1230 | 450 | SKK55LM-A |
| LG-1.2/13 | 13 | 1.2 | 11 | 1060 | 800 | 1230 | 450 | SKK55LM-A |
| LG-2.4/8A | 8 | 2.4 | 15 | 1060 | 800 | 1230 | 500 | SKK55LM-A |
| LG-2.2/10A | 10 | 2.2 | 15 | 1060 | 800 | 1230 | 500 | SKK55LM-A |
| LG-1.7/13A | 13 | 1.7 | 15 | 1060 | 800 | 1230 | 500 | SKK55LM-A |
| LG-2.4/8B | 8 | 2.4 | 15 | 1060 | 800 | 1230 | 550 | SKK82LM-A |
| LG-2.2/10B | 10 | 2.2 | 15 | 1060 | 800 | 1230 | 550 | SKK82LM-A |
| LG-1.7/13B | 13 | 1.7 | 15 | 1060 | 800 | 1230 | 550 | SKK82LM |
| LG-3/8G | 8 | 3 | 18.5 | 1420 | 850 | 1110 | 600 | SKK93M |
| LG-3/8 | 8 | 3 | 18.5 | 1080 | 880 | 1415 | 650 | SKK82LM |
| LG-2.7/10 | 10 | 2.7 | 18.5 | 1080 | 880 | 1415 | 650 | SKK82LM |
| LG-2.3/13 | 13 | 2.3 | 18.5 | 1080 | 880 | 1415 | 650 | SKK82LM |
| LG-3.6/8G | 8 | 3.6 | 22 | 1420 | 850 | 1110 | 650 | SKK93LM |
| LG-3.6/8 | 8 | 3.6 | 22 | 1080 | 880 | 1415 | 700 | SKK82LM |
| LG-3.2/10 | 10 | 3.2 | 22 | 1080 | 880 | 1415 | 700 | SKK82LM |
| LG-2.7/13 | 13 | 2.7 | 22 | 1080 | 880 | 1415 | 700 | SKK82LM |
| LG-5/8 | 8 | 5 | 30 | 1300 | 1100 | 1650 | 900 | SKK82LM |
| LG-4.5/10 | 10 | 4.5 | 30 | 1300 | 1100 | 1650 | 900 | SKK82LM |
| LG-3.7/13 | 13 | 3.7 | 30 | 1300 | 1100 | 1650 | 900 | SKK82LM |
| LG-6.2/8G | 8 | 6.2 | 37 | 1630 | 910 | 1220 | 900 | SKK108LM |
| LGB-6/8 | 8 | 6 | 37 | 1300 | 1100 | 1650 | 1000 | SKK93M |
| LGB-5.6/10 | 10 | 5.6 | 37 | 1300 | 1100 | 1650 | 1000 | SKK93M |
| LG-5.6/10 | 10 | 5.6 | 37 | 1300 | 1100 | 1650 | 1000 | SKK108LM |
| LGB-4.8/13 | 13 | 4.8 | 37 | 1300 | 1100 | 1650 | 1000 | SKK93M |
| LG-4.8/13 | 13 | 4.8 | 37 | 1300 | 1100 | 1650 | 1000 | SKK108LM |

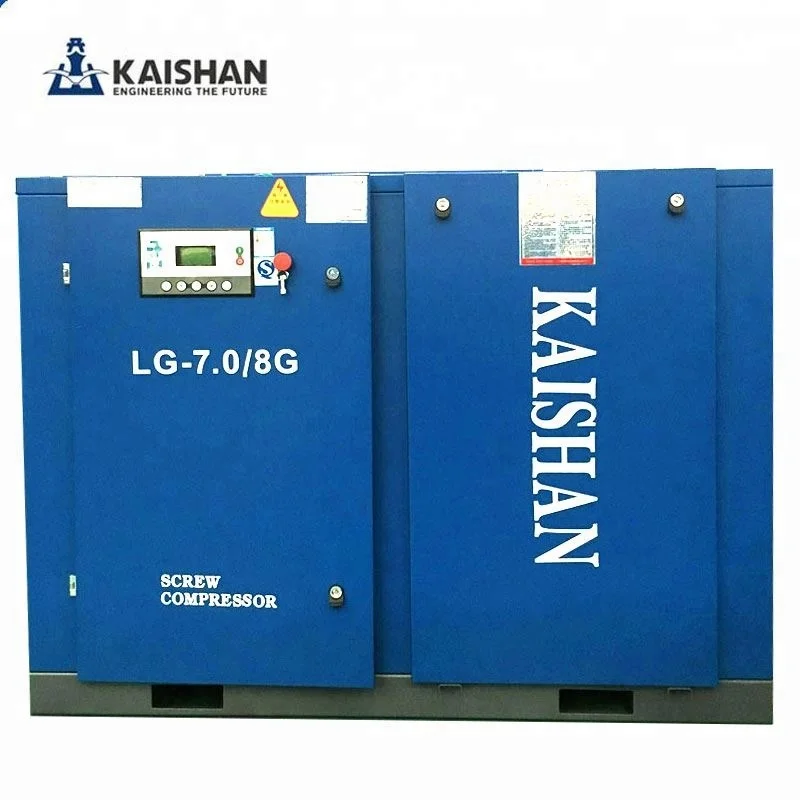

| LG-7.0/8G | 8 | 7 | 45 | 1778 | 1000 | 1300 | 1000 | SKK13LF |
| LG-7.5/8 | 8 | 7.5 | 45 | 1300 | 1100 | 1650 | 1100 | SKK108LM |
| LG-6.9/10 | 10 | 6.9 | 45 | 1300 | 1100 | 1650 | 1100 | SKK108LM |
| LG-5.6/13 | 13 | 5.6 | 45 | 1300 | 1100 | 1650 | 1100 | SKK108LM |
| LG-10/8G | 8 | 10 | 55 | 1950 | 1160 | 1550 | 1400 | SKK126LM |
| LG-8.7/10 | 10 | 8.7 | 55 | 1620 | 1230 | 1670 | 1400 | SKK126LM |
| LG-7.5/13 | 13 | 7.5 | 55 | 1620 | 1230 | 1670 | 1400 | SKK126LM |
| LGB-9.3/8 | 8 | 9.3 | 55 | 1500 | 1250 | 1566 | 1250 | SKK108LM |
| LGB-8.5/10 | 10 | 8.5 | 55 | 1500 | 1250 | 1566 | 1250 | SKK108LM |
| LGB-7/13 | 13 | 7 | 55 | 1500 | 1250 | 1566 | 1250 | SKK108LM |
| LG-13/8G | 8 | 13 | 75 | 2440 | 1160 | 1620 | 1900 | SKK148MM |
| LG-11.6/10G | 10 | 11.6 | 75 | 2440 | 1160 | 1620 | 1900 | SKK148MH-C |
| LG-9.3/13G | 13 | 9.3 | 75 | 2440 | 1160 | 1620 | 1900 | SKK126LM |
| LGB-13/8 | 8 | 13 | 75 | 1580 | 1320 | 1646 | 1600 | SKK126LM |
| LGB-11/10 | 10 | 11 | 75 | 1580 | 1320 | 1646 | 1600 | SKK126LM |
| LGB-9.3/13 | 13 | 9.3 | 75 | 1580 | 1320 | 1646 | 1600 | SKK108LM |
| LG-16/8G | 8 | 16 | 90 | 2560 | 1300 | 1620 | 2100 | SKK148LM |
| LG-13.5/10G | 10 | 13.5 | 90 | 2560 | 1300 | 1620 | 2100 | SKK148LM |
| LG-11.6/13G | 13 | 11.6 | 90 | 2560 | 1300 | 1620 | 2100 | SKK148MH-C |
| LG-20/8G | 8 | 20 | 110 | 2760 | 1340 | 1710 | 2800 | SKK170MM |
| LG-16/10G | 10 | 16 | 110 | 2760 | 1340 | 1710 | 2800 | SKK148LM |
| LG-13.5/13G | 13 | 13.5 | 110 | 2760 | 1340 | 1710 | 2800 | SKK148LM |
| LG-22/8G | 8 | 22 | 132 | 2760 | 1340 | 1710 | 2900 | SKK170LM |
| LG-20/10G | 10 | 20 | 132 | 2760 | 1340 | 1710 | 2900 | SKK170LM |
| LG-16/13G | 13 | 16 | 132 | 2760 | 1340 | 1710 | 2900 | SKK148LM |
| LG-27/8G | 8 | 27 | 160 | 2860 | 1510 | 1810 | 3600 | SKY192SM |
| LG-23/10G | 10 | 23 | 160 | 2860 | 1510 | 1810 | 3600 | SKY170LM |
| LG-20/13G | 13 | 20 | 160 | 2860 | 1510 | 1810 | 3600 | SKY170LM |
| LG-30/8G | 8 | 30 | 185 | 3400 | 2100 | 2100 | 4500 | SKY192MM |
| LG-21/13G | 13 | 21 | 185 | 2860 | 1510 | 1810 | 3700 | SKY170LM |
| LG-30/8GB | 8 | 30 | 200 | 3400 | 2100 | 2100 | 4500 | SKY192MM |
| LG-22/13GB | 13 | 22 | 200 | 2860 | 1510 | 1810 | 3700 | SKY170LM |
| LG-35/8G | 8 | 35 | 200 | 3400 | 2100 | 2100 | 4500 | SKY192LH-C |
| LG-30/10G | 10 | 30 | 200 | 3400 | 2100 | 2100 | 4500 | SKY192MH |
| LG-27/13G | 13 | 27 | 200 | 3400 | 2100 | 2100 | 4500 | SKY192MH |
| LG-40/8G | 8 | 40 | 220 | 3700 | 2200 | 2200 | 5850 | SKY192LM |
| LG-40/8GB | 8 | 40 | 250 | 3700 | 2200 | 2200 | 5950 | SKY192LM |
| LG-35/10G | 10 | 35 | 250 | 3700 | 2200 | 2200 | 5950 | SKY192LH-C |
| LG-46/8G | 8 | 46 | 250 | 3700 | 2200 | 2200 | 6000 | SKY258LM |
| LG-40/10G | 10 | 40 | 250 | 3700 | 2200 | 2200 | 6000 | SKY258LH-C |
| LG-65/8G | 8 | 65 | 355 | 4200 | 2200 | 2210 | 7400 | SKY258LMG1 |
| LG-66/8G | 8 | 66 | 355 | 4200 | 2200 | 2210 | 7400 | SKY297MM |








FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
