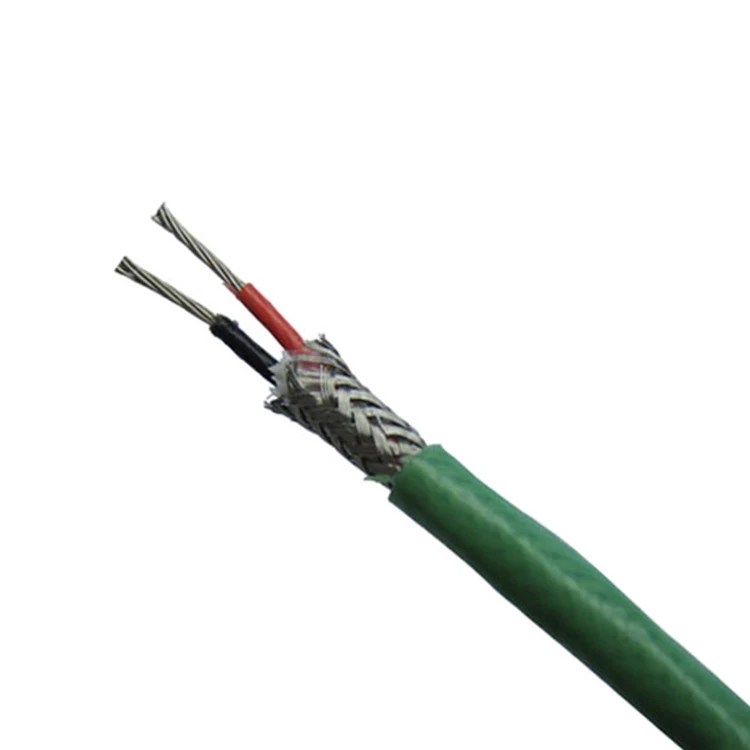

Thermocouple Extension Cable Type K Thermocouple Wire
- Category: >>>
- Supplier: Yueqing Zonzen Imp. & Exp. Co. Ltd.
Share on (62318858605):
Product Overview
Description
Features:
1) Continuous use up to 200℃
2) Short term use up to 250℃
1) Continuous use up to 200℃
2) Short term use up to 250℃
3) Excellent heat, chemical, abrasion and moisture resistance
5) Calibration test report is available
Zonzen does not use reprocessed FEP in manufacturing thermocouple wire
FEP-FEP Physical Properties
Characteristics | Insulation | Jacket |
Abrasion Resistance | Excellent | Excellent |
Cut Through Resistance | Good | Good |
Moisture Resistance | Excellent | Excellent |
Solvent Resistance | Good | Good |
Service Temperature | 200℃ Continuous 250℃ Single | 200℃ Continuous 250℃ Single |
Flame Test | Non-flammable | Non-flammable |
Model explanation:
KX-FEP-SSB-SIL-24-S
1 2 3 4 5 6
1. Calibration: Type K
2. Conductor insulation: FEP
3. Inner shield: Stainless steel braided
4. Jacket insulation: Silicone
5. Wire size: 24AWG, 7/0.20mm
6. "S" means "Stranded", "Blank" means "Solid"
Specifications:
Model no. | KX-FEP-SSB-SIL-24S | ||
Calibration | Type K (Chromel - Alumel) | ||
Size | 24AWG, 2*7/0.20MM, Stranded | ||
Cross sectional area | 0.22mm2 | ||
Construction | Parallel | ||
No. of pair | Single | ||
Material | FEP | ||
Thickness | 0.20MM | ||
Type | Extruded | ||
Inner shield | Material | Stainless steel | |
Thickness | 0.25mm | ||
Type | Braided | ||
Material | Silicone rubber | ||
Thickness | 0.80MM | ||
Type | Extruded | ||

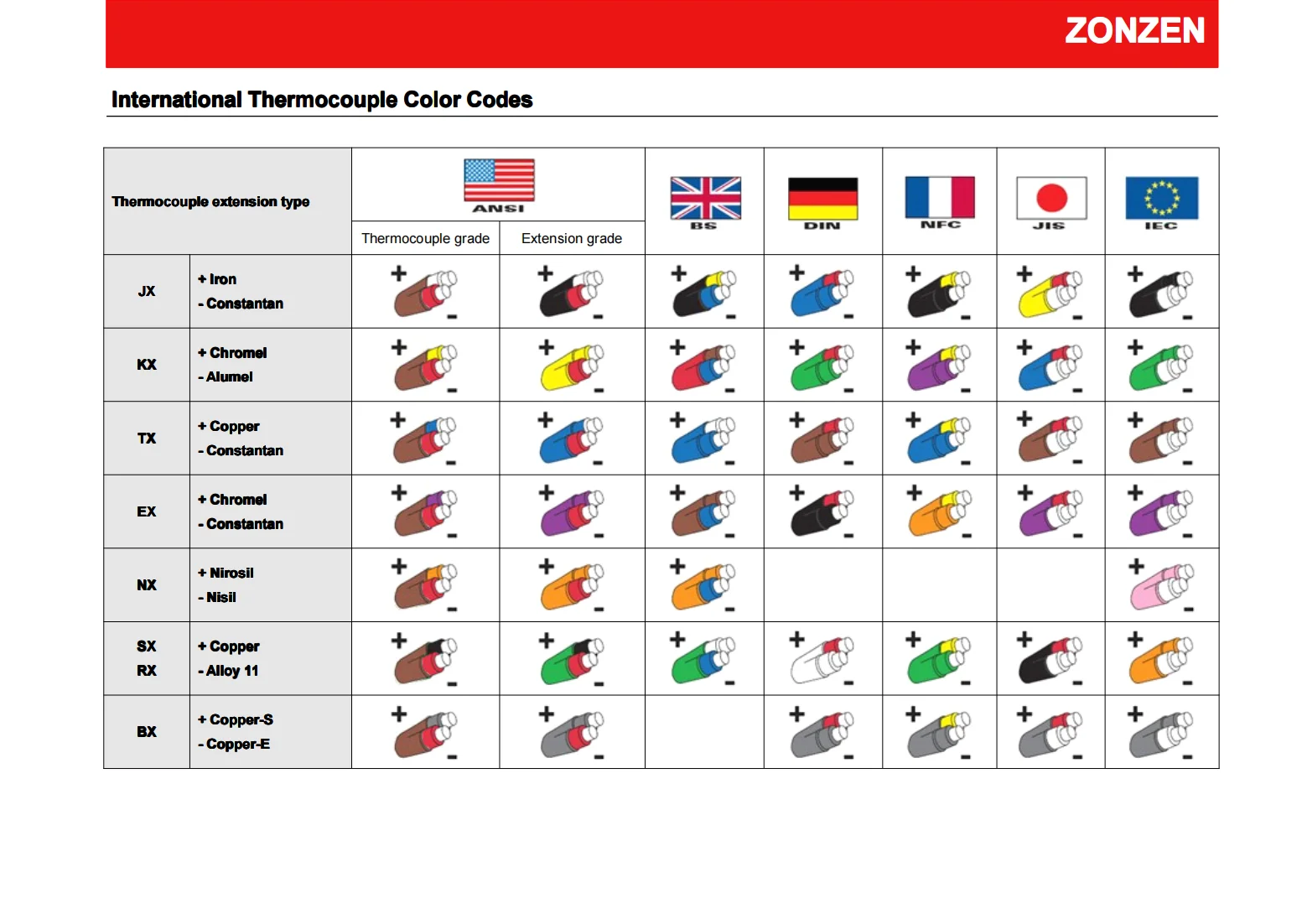

Color code | ANSI, IEC, JIS, DIN | ||
Outer diameter | 3.9mm (+/-0.2mm) | ||
Max. Operating temperature | 180℃ | ||
Conform to | ASTM E230 & IEC60584-2 & JIS C1602 | ||
Packing | 100M -1000M per Roll or spool (As required) | ||
Initial calibration tolerances | Temperature range | 0℃ to +180℃ | |
Standard Limits | +/- 2.2℃ or +/-0.75% | ||
Special Limits | +/- 1.1℃ or +/-0.4% | ||
