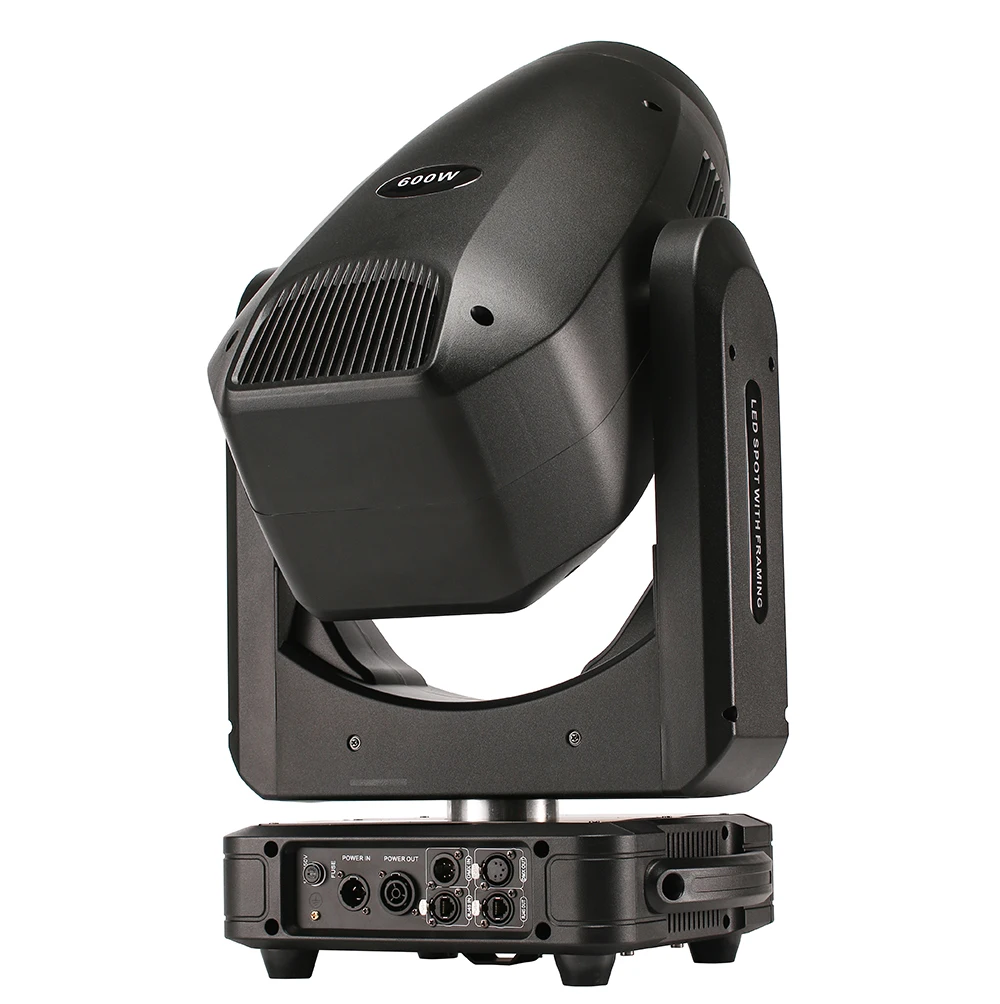

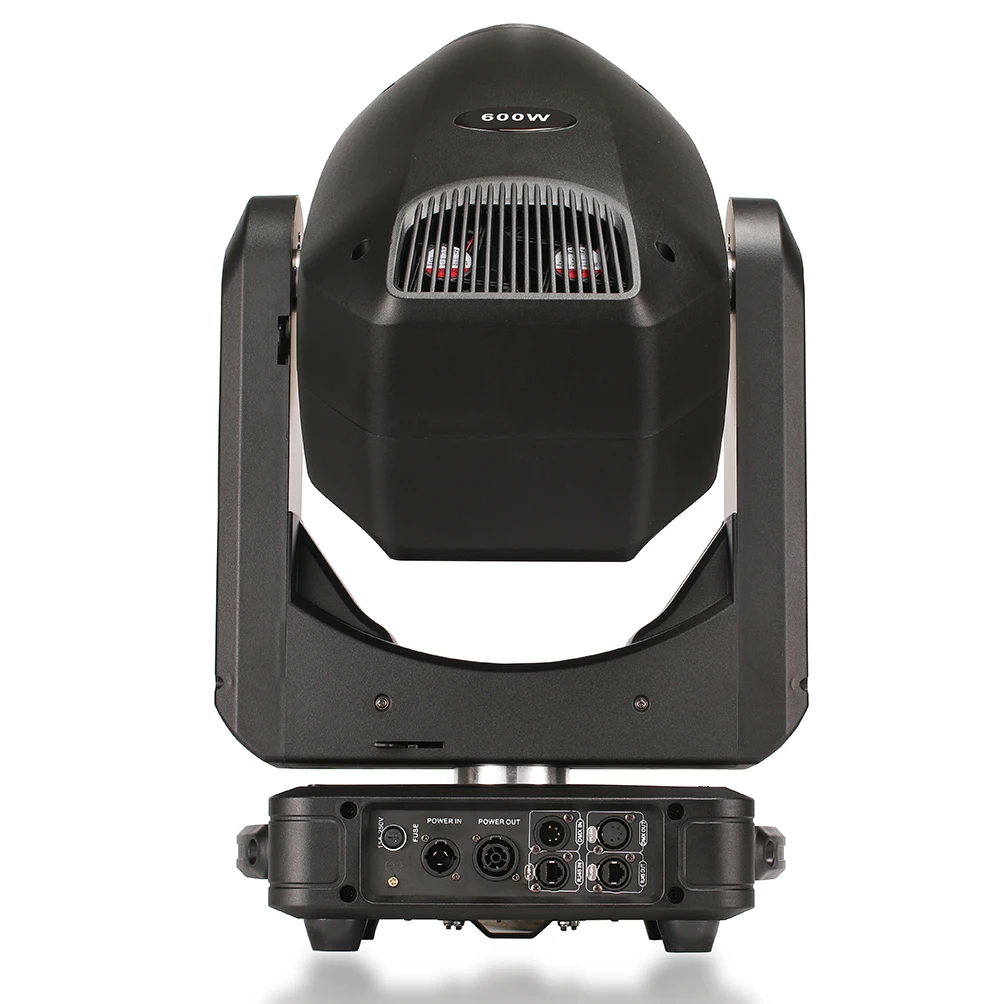

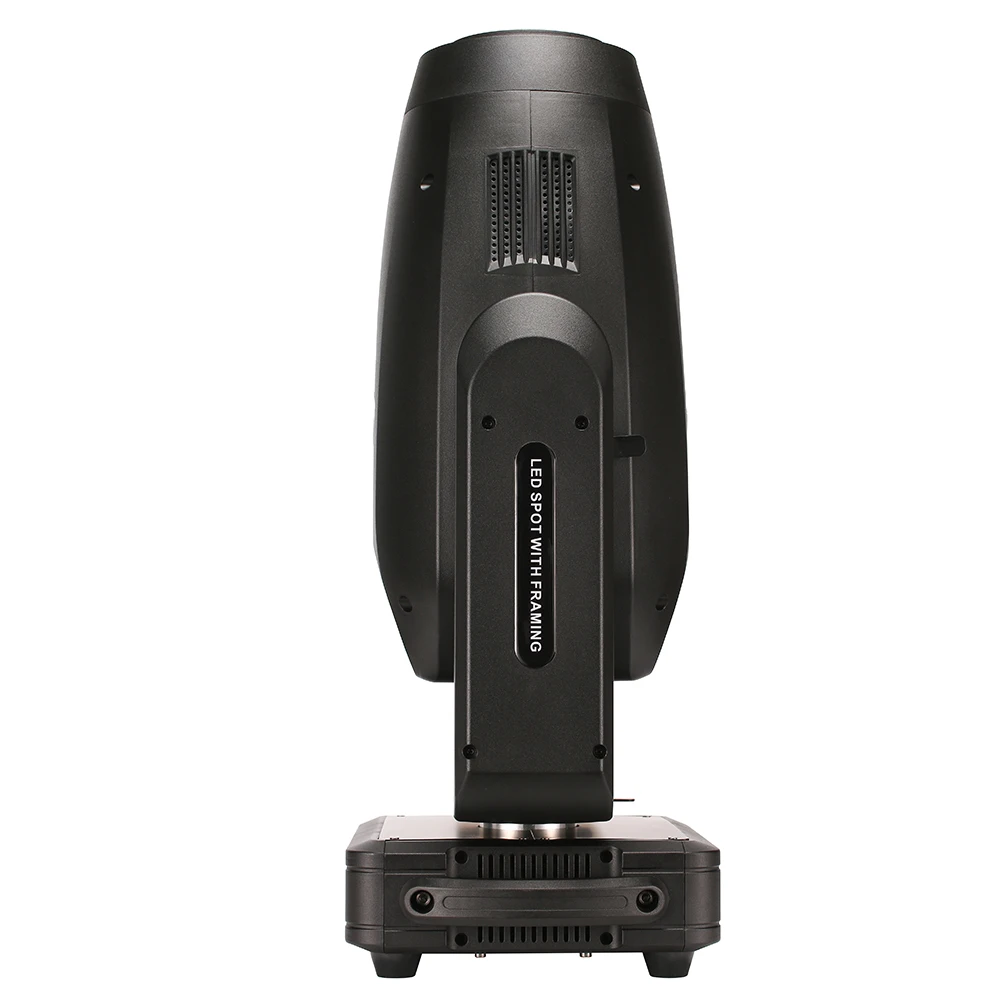

Powerful 600W LED engine CMY framing shutter blades mover light spot

Product Overview

Description

Powerful 600W LED engine CMY framing shutter blades mover  light  spot



Optics

Lamp: 600W White LED

CT: 6500K

Life: 20,000H

CRI:  ≥74 or:≥ 90

Power

Max power consumption: 850W Pf≥0.98

Power supply: Electronic auto-ranging

Input voltage range: 100–240V, 50-60Hz

Movement

Pan movement: 540°/630°optional (16bit )

Tilt movement: 270° (16 bit)

Advanced motion system: auto repositioning,

fast, quiet and smooth

Colors

CM Y color mixing

CTO linear

CT :  2700K~6500K

1 Color wheel: 7 dichroic filters +open

Gobos

1 Rotating gobo wheel: 6 interchangeable + open

1 Static gobo wheel: 7 + open

Features

Rotating prism : 5-facet prism

Focus : motorized focus

Shutter: electronic, variable from 1-25Hz or random

Dimming:0-100% linear dimming

Frost: 0-100% linear adjustment

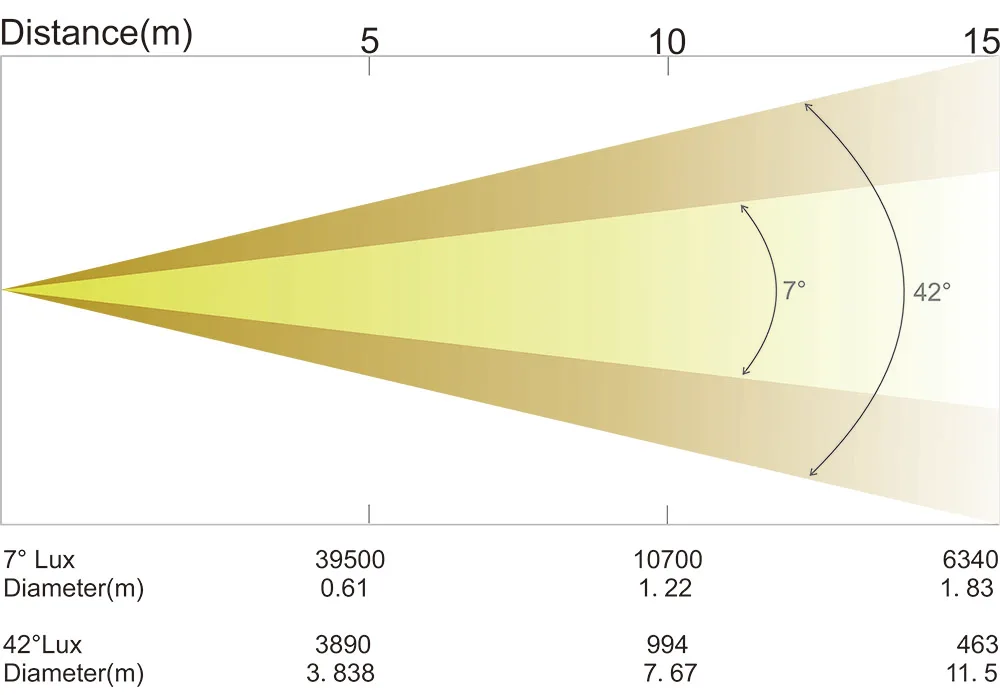

Zoom : 7°-42° linear zoom

Animation wheel: special dynamic flame or water effect, etc

Framing System

4 fast and smooth framing shutters,
each shutter blade position and angle can be controlled individually
Movement is fast & smooth, with adjustable speed
Framing shutters can be precise motion with smooth movement
Each shutter blade can block out light completely,
the framing module can be rotated at ±45°

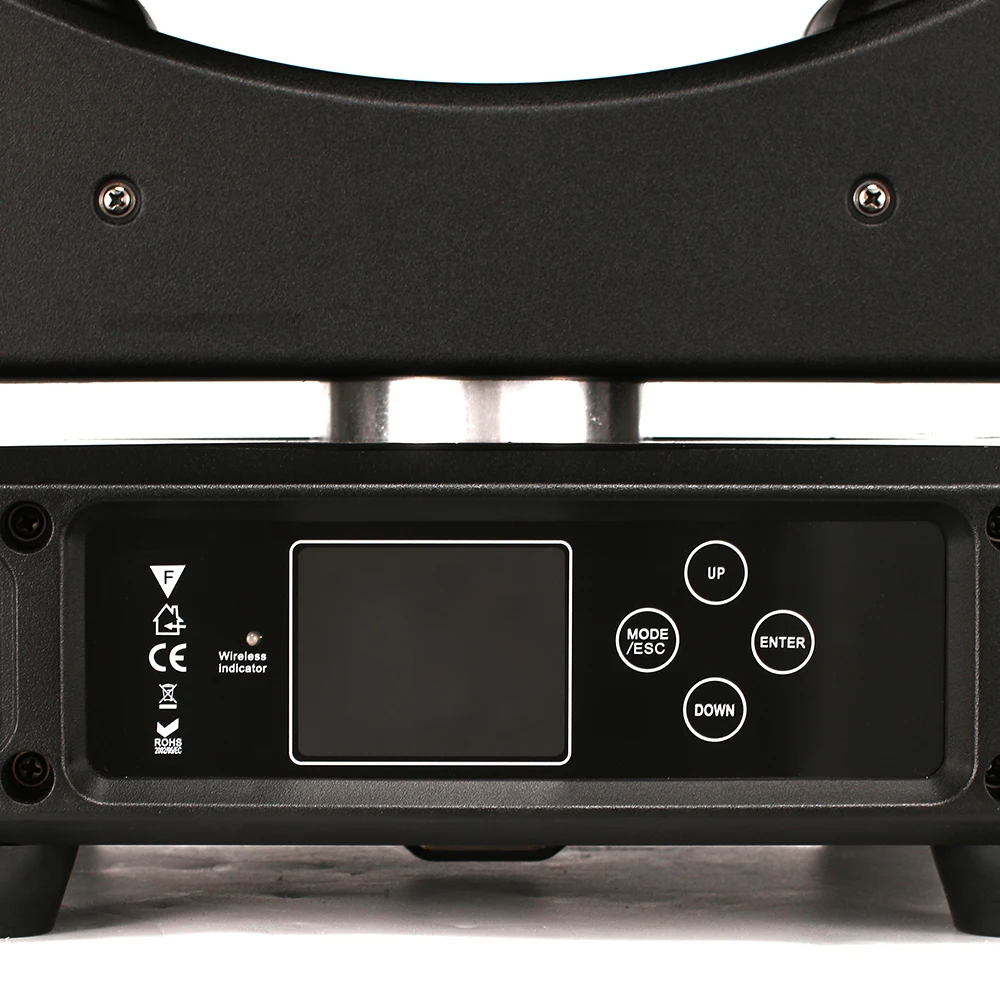

Display

LCD display with battery operated for

fast addressing

15 second standby auto lock

Pan/ Tilt disengage (hold MENU and ENTER

button)

Software

7 built-in program ( optional)

Upgrades: fast and convenient using

uploaded over DMX

Remote reset DMX address, fixture reset,

sound control by DMX

Run time of LED engine and fixture

2 Control channel modes: 34/54 channels

Other Specification

Input signal isolation

Optional installed wireless receiver

Optional ArtNET control

RDM compatible











HY-L600 is with a framing system designed to offer

lighting designers unlimited creative possibilities without any compromise.



Fitted with an LED module using a high-output,  monochromatic white light source calibrated at 6,500K, HY-L600 delivers a light output of 12,000 lumens in a highly compact format.

The optics produce an extremely uniform flat beam with no hot spot.



The selection of gobos and colours was made in collaboration with lighting designers to meet the needs of the entertainment industry.



The HY-L600’s compact ABS and metal housing features temperature controlled fan cooling to ensure reliable operation and extended LED life . It comes with an omega bracket for a variety of mounting options
