Product Overview

Description

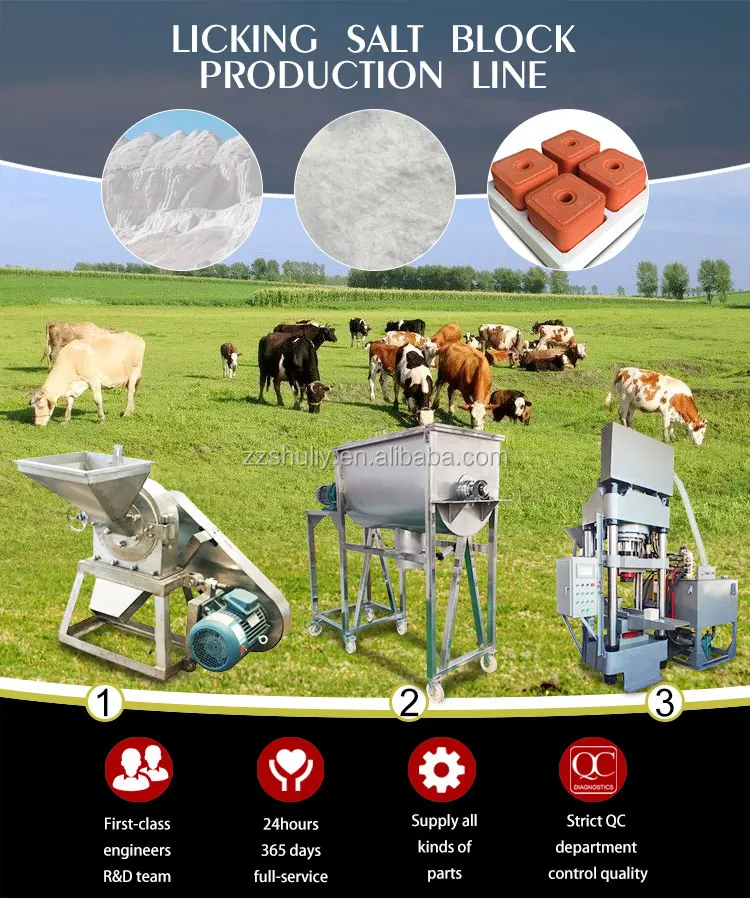

Licking Salt Block Production Line

Introduction of Licking Salt Block Production Line

Licking Salt Block is a new kind of feed that scientifically blends various nutrients needed by cattle and sheep. Unlike the common cattle and sheep feed in the past, the bricks contains calcium, phosphorus, iron, copper, manganese, zinc, iodine, magnesium and other trace elements.It has the effect of preventing disease, strengthening body.

Application of Licking Salt Block Production Line

Herbivore livestock such as cows, beef cattle, sheep, goats, and deer etc.

The mold shapes are various for optional, like square, round.It can make different logo and colors by customers’ requirements.

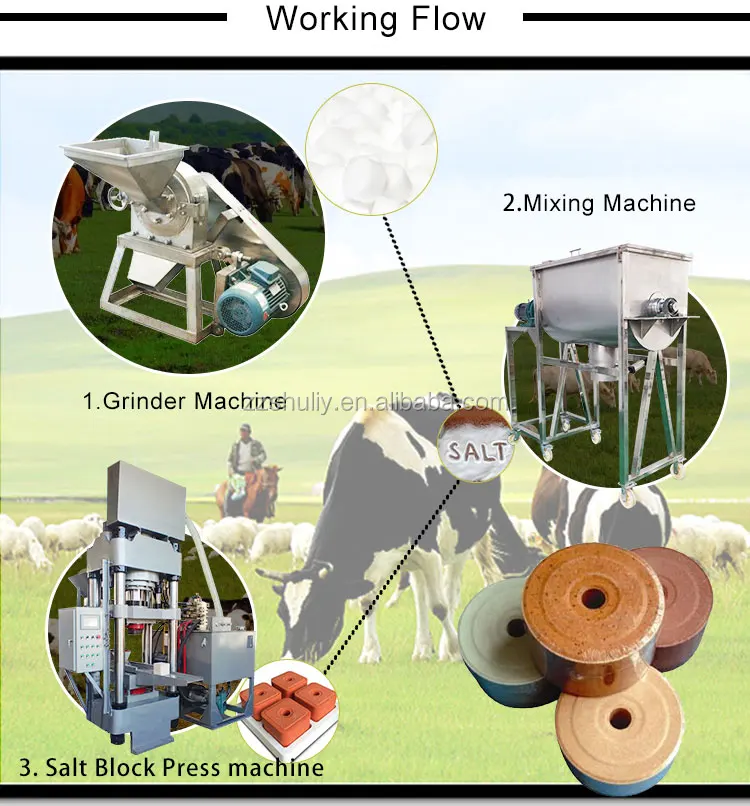

Working Flow of Licking Salt Block Production Line

1.Grinder and mixing raw material(salt and some microelement)→2.Put into the hopper→3.The material in the hopper is quantitatively added to the feeding frame→4.The feeding cylinder drives the feeding frame to advance, and the material is added into the mold, then the feeding cylinder returns to the recovery position→5.The sub-cylinder drives the piston rod and the punch of the master cylinder to be pressed down quickly→6.When the punch enters the cavity, the master cylinder press down slowly, and the material in the mold is pressed into a high-density brick by high pressure (the demoulding float cylinder is simultaneously lowered to achieve two-way floating suppression)→7.Master cylinder microliter→8.The demolding floating cylinder drives the mold frame to fall, and the brick is removed from the mold→9.Core puller,Sub-cylinder and master cylinder rise→10.The feeding cylinder advances the product and the feeding frame moves to the top of the mold→11.The demoulding cylinder drives the mold frame to form a cavity to complete the feeding, and enters the next cycle program.

Detailed Information of Licking Salt Block Machine

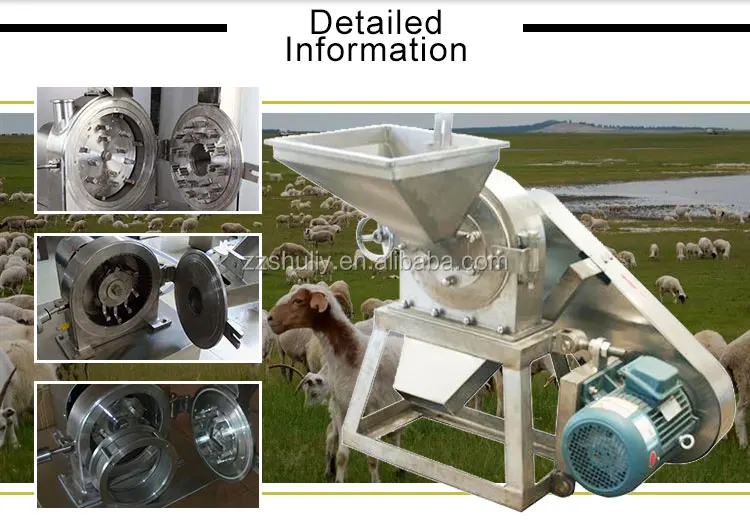

Grinder Machine

1.Make the salt more fine and smooth, good taste for cow and sheep.

2.Made of Stainless Steel, druable and long life service;

3.Small Size, convenient to transportion;

4.Structure Simple, easy for operation;

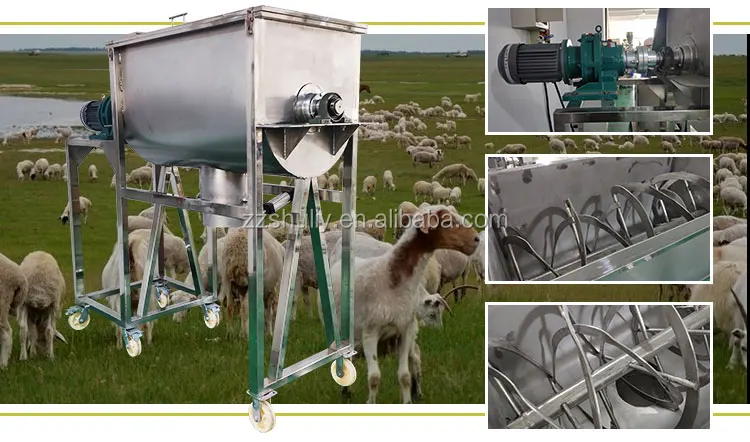

Mixing Machine

1.Large Capacity, High Working Speed;

2.Good Performance, Mixing the salt and other microelement uniformly;

3.Stainless Steel, Durable;

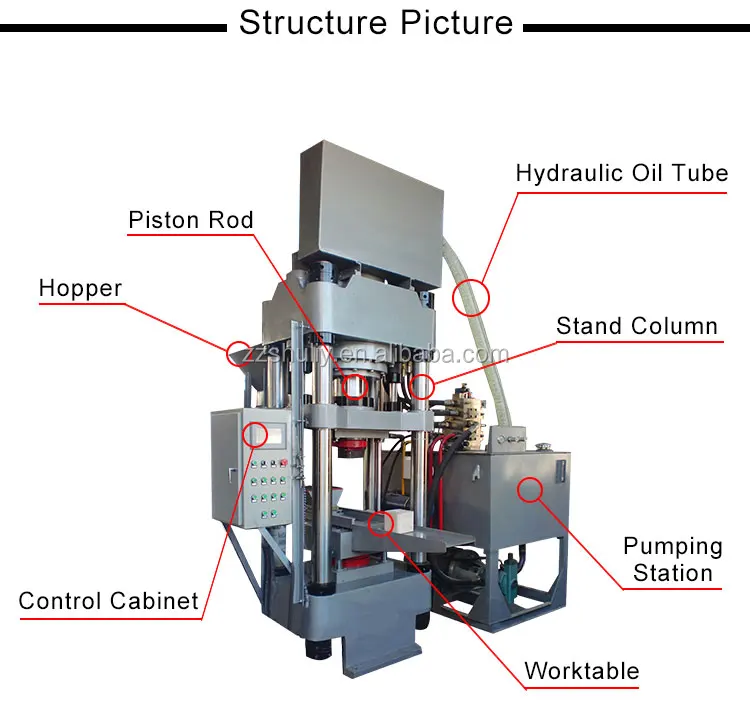

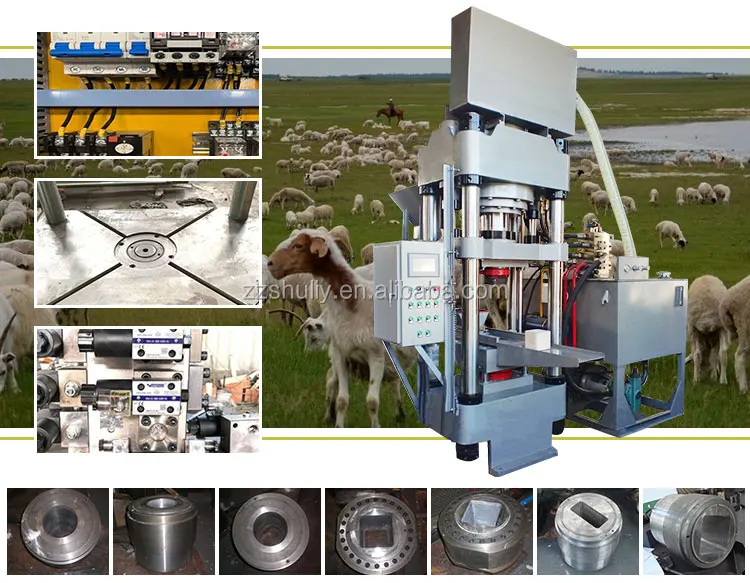

Salt Block Press Machine

Features of Licking Salt Block Machine

1.Four-column three-beam or four-column four-beam hydraulic press, compact structure, automatic, low failure rate and high work efficiency.

2.Reasonable hydraulic pump station structure. The high-flow cartridge valve block and unique oil circuit design make the hydraulic system work stably and generate less heat, which effectively realizes continuous production.

3. The salt brick machine is made of stainless steel to prevent corrosion of the equipment.

4. The equipment adopts two-way floating pressure, and the finished product has high density, the guide column is adopted with high precision. 5. The hole of the brick uses core-pulling cylinder to ensure the size and appearance of the hole.

6.The mold shapes are various for optional, like square, round.It can make different logo and colors by customers’ requirements.



The Parameter of Licking Salt Block Machine

Model		Unit	SL400	SL500	SL720
Nominal Pressure		KN	4000	5000	7200
Maximum working pressure of liquid		Mpa	25	25	25
The maximum distance between the plane under slider and worktable		MM	1200	1200	1200
Slider Stroke Parameter	Press Power	KN	4000	5000	7200
	Return Power	KN	55	55	115
	Stroke	MM	450	500	500
	Floating Press Velocity	MM/S	8	8	8
	Return Speed	MM/S	85	80	70
Power		KW	30	30	45
Block Weight		KG	2-8	5-10	10-20
Working  Efficiency		Pcs/Minute	3	3	2.5
