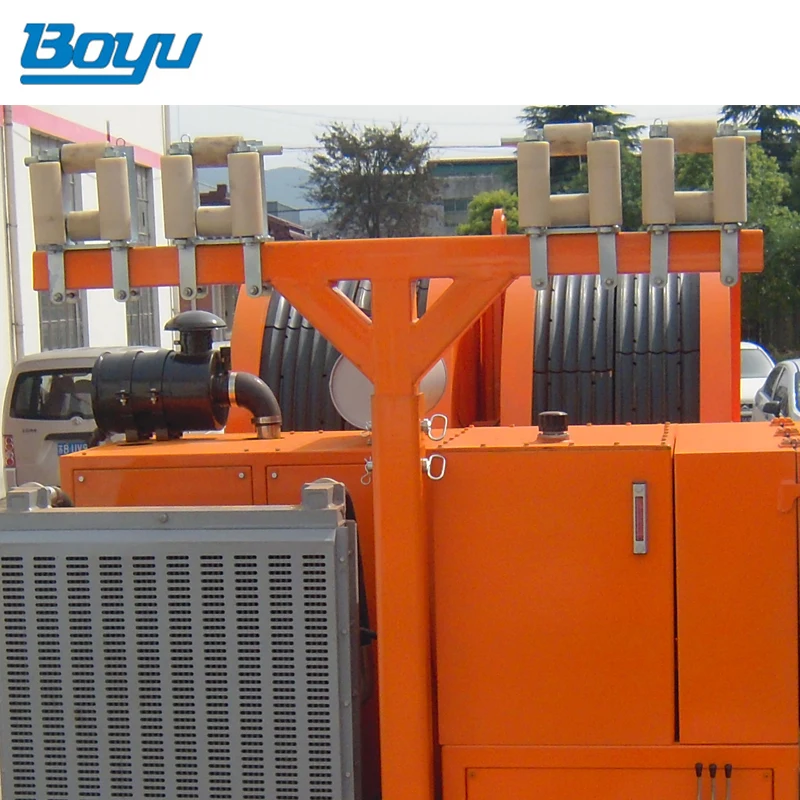

Hot Sale Exquisite TY1x160 Hydraulic Cable Tensioner Stringing Equipment

Product Overview

Description

Precision Hydraulic Cable Puller Tensioner Stringing Equipment



The machine allows for the tension stringing of one,two, three or four-bundle conductor of 630mm²; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains, suitable for use at altitudes up to 1500 meters above sea level.



Characteristics

Bull-wheel diameter: 1500mm

Groove number: 16

Max conductor diameter: 42mm

Total weight: 13500kg

Overall dimension (LxWxH): 5500×2300×2950mm



Performance

Max tension: 1x160 KN

Speed at max tension: 2.5km/h

Max feeding speed: 6km/h

Corresponding tension: 1x80 KN

Max reverse pulling force: 1x160kN

Max reverse pulling speed:1.25km/h



Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle: German Rexroth



Engine

Diesel 130hp Euro II, 4-stroke cycle, turbo-charged

Cooling system liquid

Electrical system 24V



Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.



Configuration

Negative self-acting hydraulic brakes

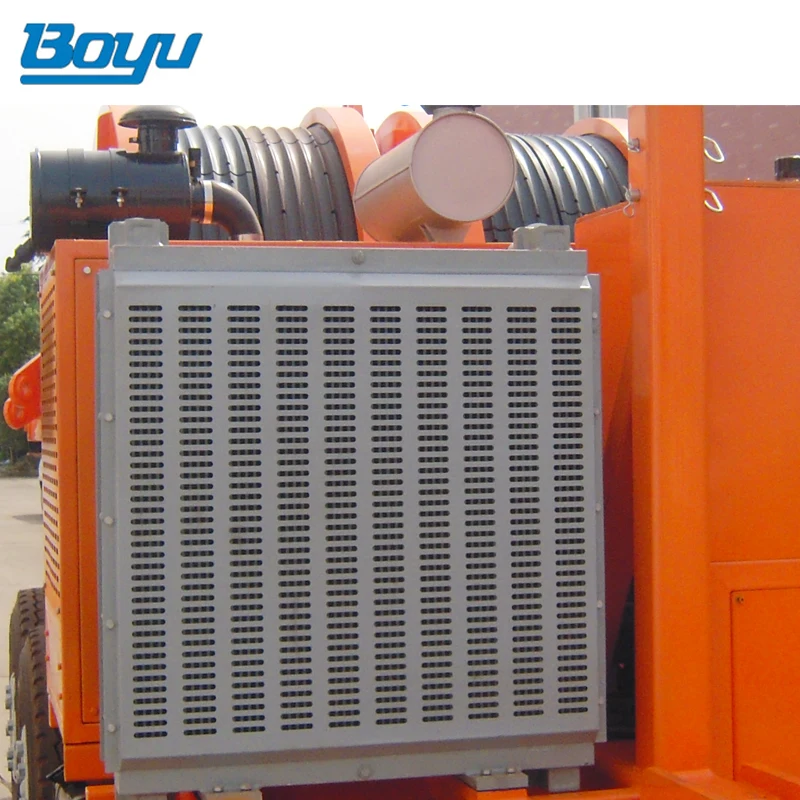

Hydraulic dynamometers, Hydraulic oil cooling system

Digital speed and meters counter

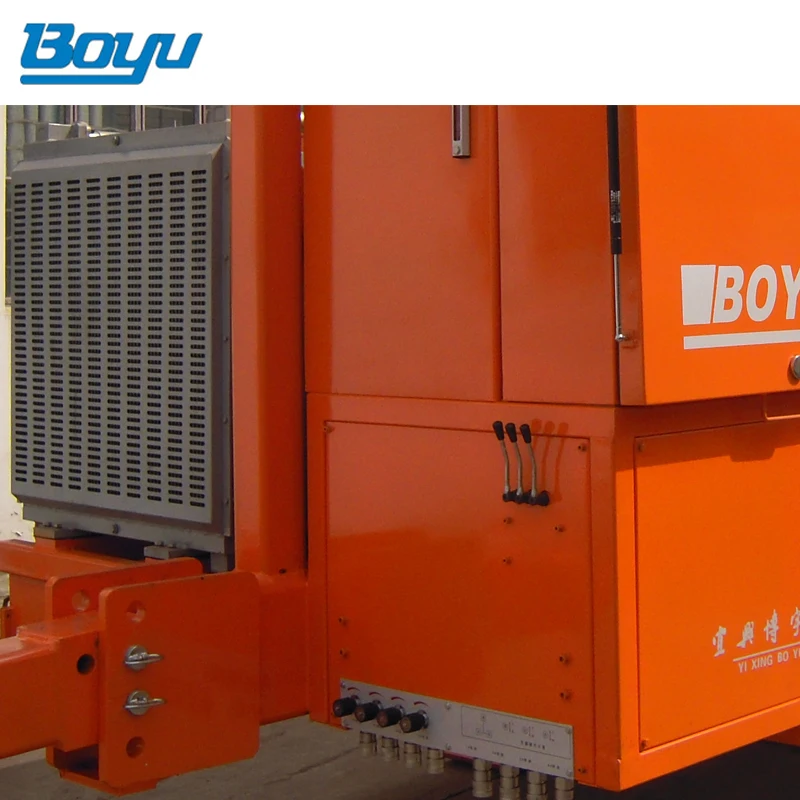

Control instruments for hydraulic system and diesel engine

Rigid axle for towing at max speed of 30km/h with parking brake

Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor

Hydraulic front and behind stabilizer

Grounding connection point



Additional Devices

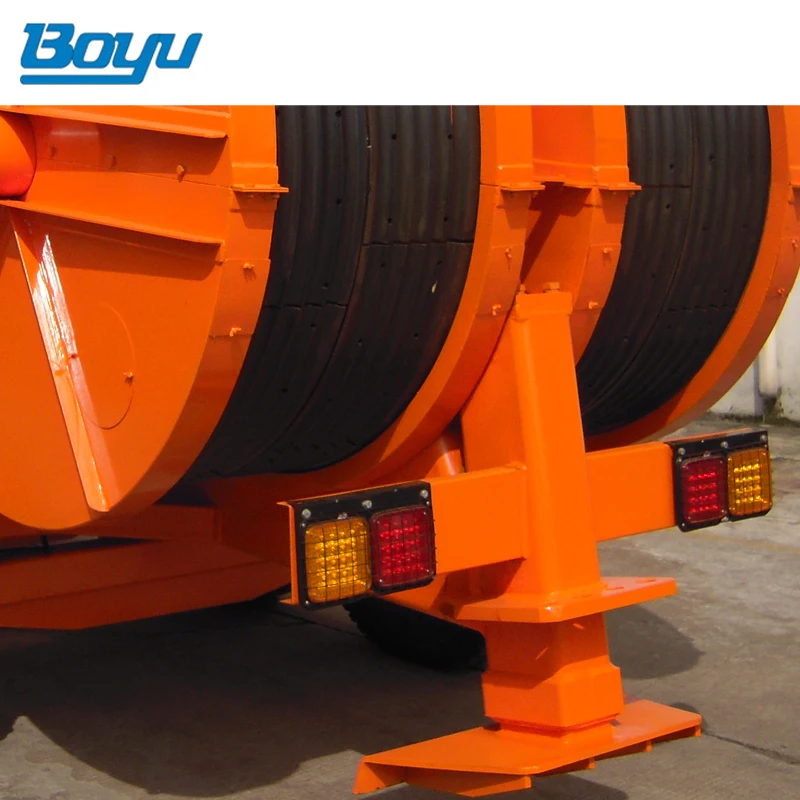

Lighting system for the trailer

Air brake system for the trailer

4 hydraulic conductor clamps for drum change operations (extra change)

Digital speed and meter counter

4 swivel guide rope roller

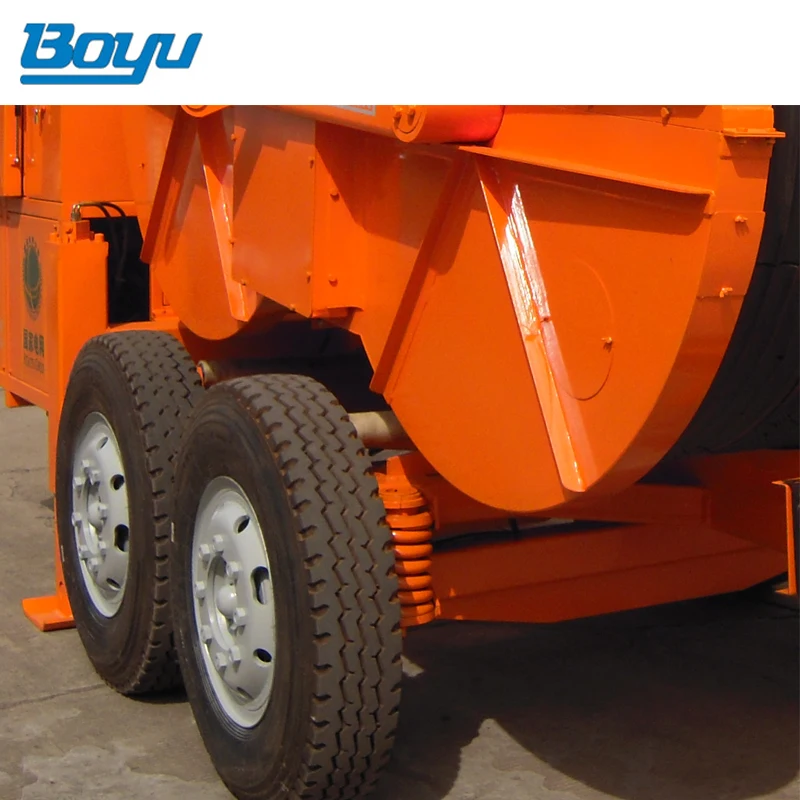

Trailer for towing at max speed of 30 km/h



Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Cable and radio remote control fully replacing all controls at machine panel.

Remote diagnosis via GSM network with GPS modem, Synchronization system

Hydraulic system for drum stand control with flat face quick action couplings

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's workshop maintenance manual, in English

Manufacturer's recommended tools.

Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).





Other models

Model	Max  intermittent tension	Max continuous tension	Speed at max tension	Max speed	Tension at max speed	Max reverse pulling force	Max reverse pulling speed	Diesel	Cooling system	Electrical system
	kN	kN	km/h	km/h	kN	kN	km/h	kw(hp)		V
TY1X7.5		7.5		2.4
TY1X20		20		5
TY1X20II		20		4
TY1X20III		20	2.5	5	10	15		10kw (3600rpm)	Air
TY1X30		30	2.5	5	15	20		12(16)		12
TY1X40	45	40	2.5	5	20	35		77(103)	Water	24
TY1X50	50	40	2.5	5	25	45	2.4	77(103)	Water	24
TY140IV	1x140	1x120	2.5	5	35	1x120	1.2	77(103)	Water	24
TY2X35	2x40/ 1x80	2x35/ 1x70	2.5	5	2x20/ 1x40	2x30/ 1x60	5	77(103)	Water	24
TY2X40	2x45/ 1x90	2x40/ 1x80	2.5	5	2x20/ 1x40	2x35/ 1x70	5	77(103)	Water	24
TY2X50	2x55/ 1x110	2x50/ 1x100	2.5	5	2x25/ 1x50	2x45/ 1x90	5	77(103)	Water	24
TY2X70	2x70/ 1x140	2x65/ 1x130	2.5	5	2x25/ 1x50	2x60/ 1x120	5	77(103)	Water	24
TY2x70IV	2x70/ 1x140	2x65/ 1x130	2.5	5	2x25/ 1x50	2x60/ 1x120	5	77(103)	Water	24
TY2X90	2x100/ 1x200	2x90/ 1x180	2.5	5	2x40/ 1x80	2x80/ 1x160	2	130kw (2500r/min)	Water	24
TY4x50	4x50/ 2x200	4x40/ 2x80	2.5	5	4x20/ 2x40	4x40/ 2x80	1.25	77(103)	Water	24



Model	Bull-wheel diameter	Max conductor diameter	Max optical fiber cable diameter	Groove width	Groove number	Total weight	Overall damension
	mm	mm	mm	mm		kg	mm
TY1X7.5	1100	24	21	220	1	850	2300*1250*1620
TY1X20	1300	40	21	55	5	1920	4080*1930*2300
TY1X20II	800	23		45	5	950	2400*1500*1650
TY1X20III	800	22.5		55	5	1150	2500*1500*1700
TY1X30	1300	40	21	60	5	2064	3700*1950*2150
TY1X40	1300	40	21	55	5	3430	4000*2000*2300
TY1X50	1300/1500	55	21	68	6	2400	4000*1900*2300
TY140IV	1500	40			16	10000	5500*2280*2700
TY2X35	1300	40			2x5	4500	4300*2250*2700
TY2X40	1300/1500	40			2x5	6230	4300*2250*2700
TY2X50	1300/1500	40			2x5	6000	4700*2300*2700
TY2X70	1700	40			2x6	7500	4700*2300*2700
TY2x70IV	1500	40			2x8	10000	5500*2280*2700
TY2X90	1900	50			2x6	7500	5400*2300*2700
TY4x50	1500	40			4x5	13000	5900*2300*2700
