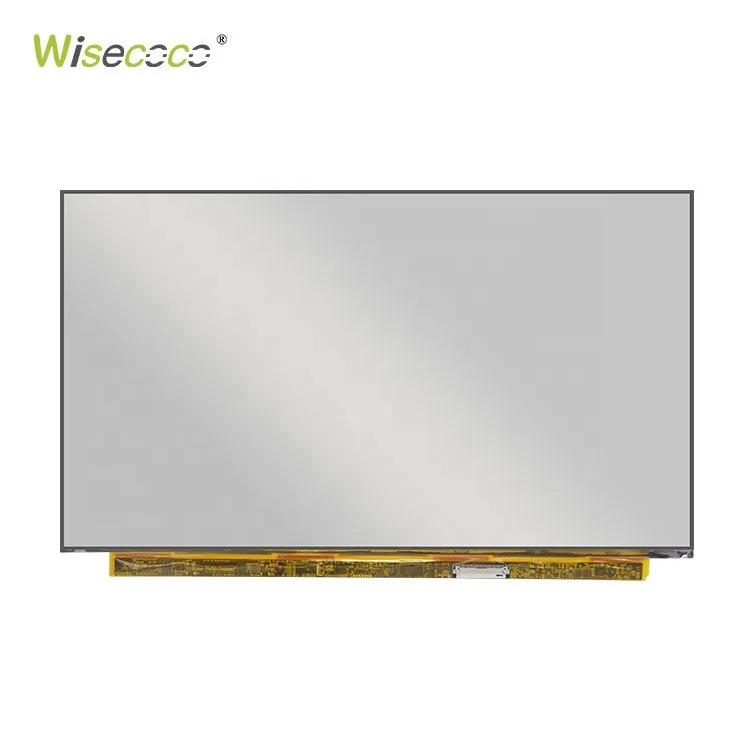

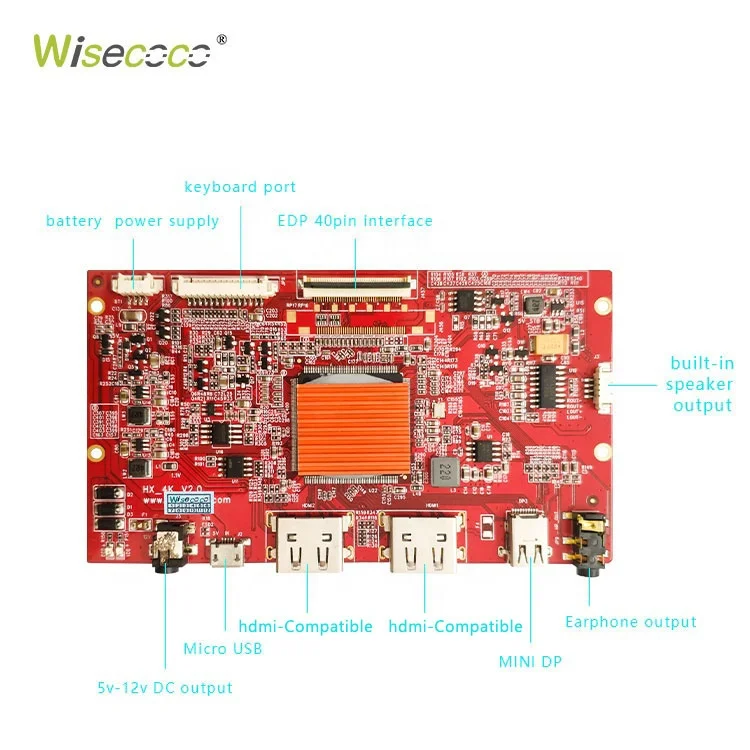

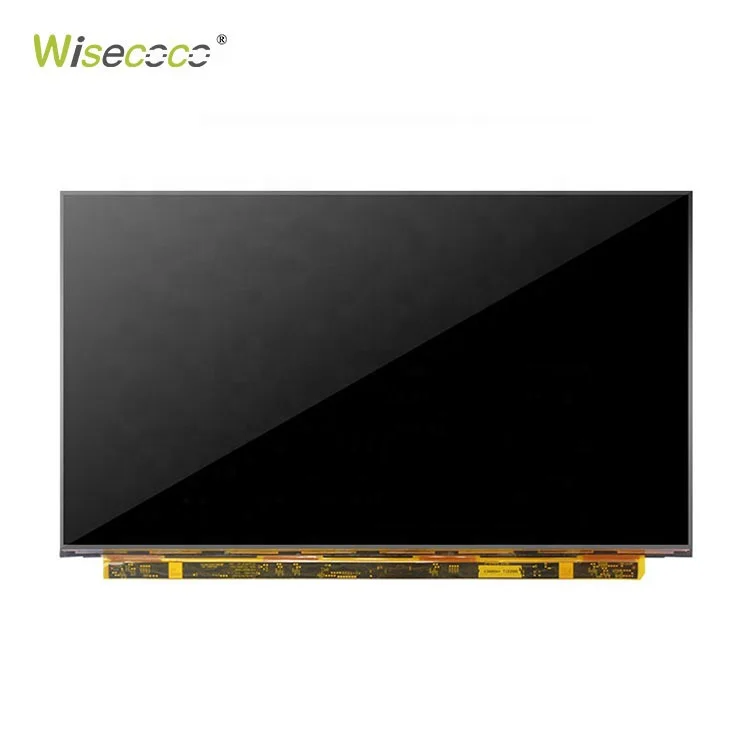

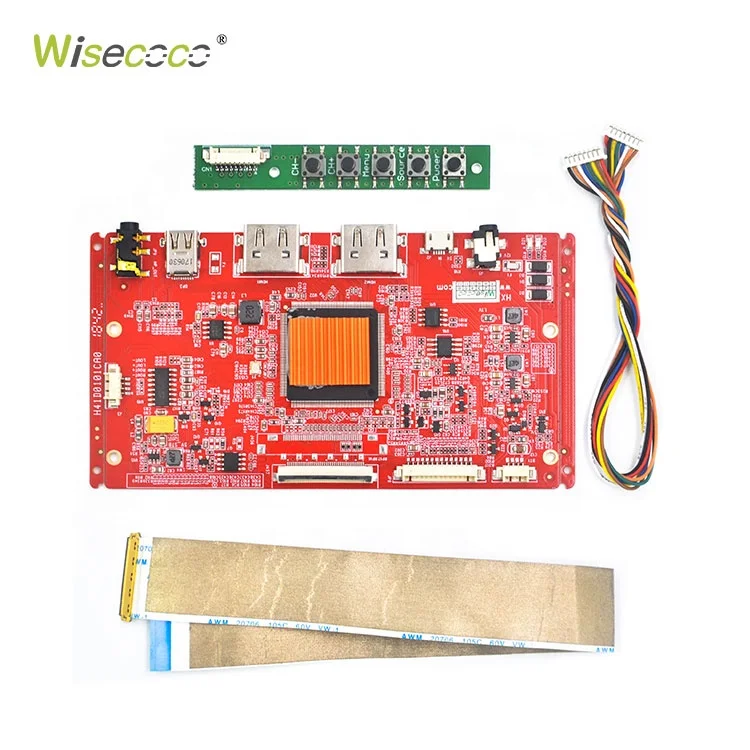

13.3 inch 3840x2160 40 pin 3d printer slim led lcd uhd 4k 60hz panel screen display edp controller driver board
General Features | |||
Diagonal Size | 13.3 inch | Type | IGZO TFT-LCD, LCM |
Pixel Format | 3840(RGB)*2160 [UHD] | Configuration | RGB Vertical Stripe |

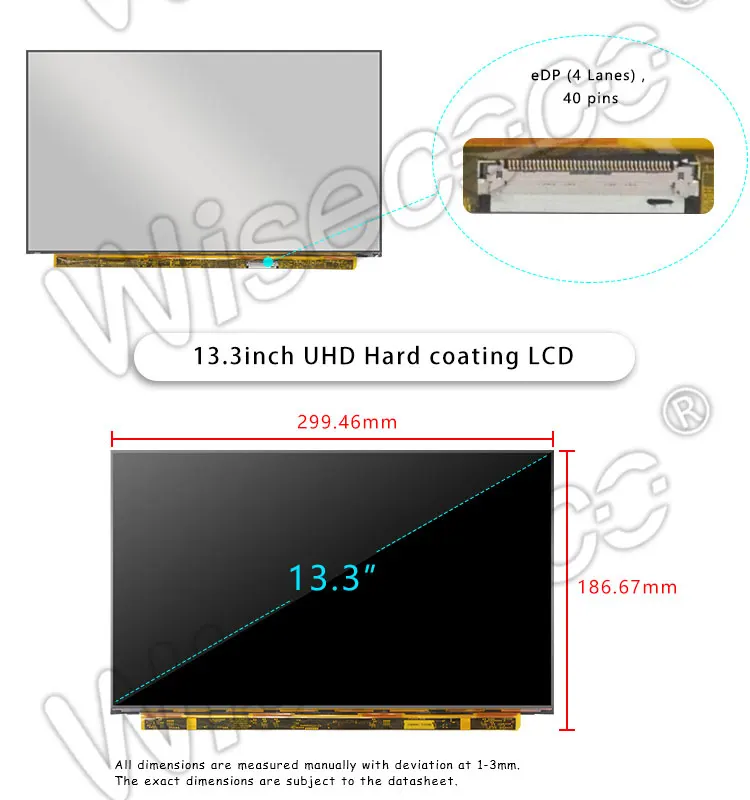

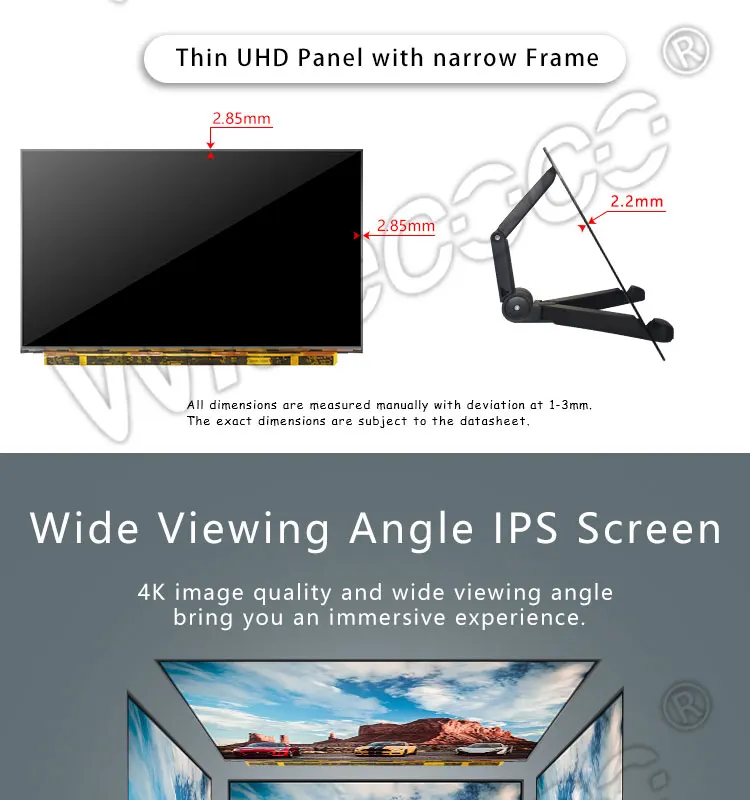

Active Area | 293.76(H)*165.24(V) mm | Outline Dim. | 299.46(H)*186.67(V)*2.2(D) mm |
Bezel Area | 296.56(H)*168.16(V) mm | Surface | Glare (Haze 0%), Hard coating (3H) |
Luminance | 340 Cd/m² (Typ.) | Contrast Ratio | 1400:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
Support Color | 16.7M 72% NTSC | Light Source | WLED , 15K hours , With LED Driver |

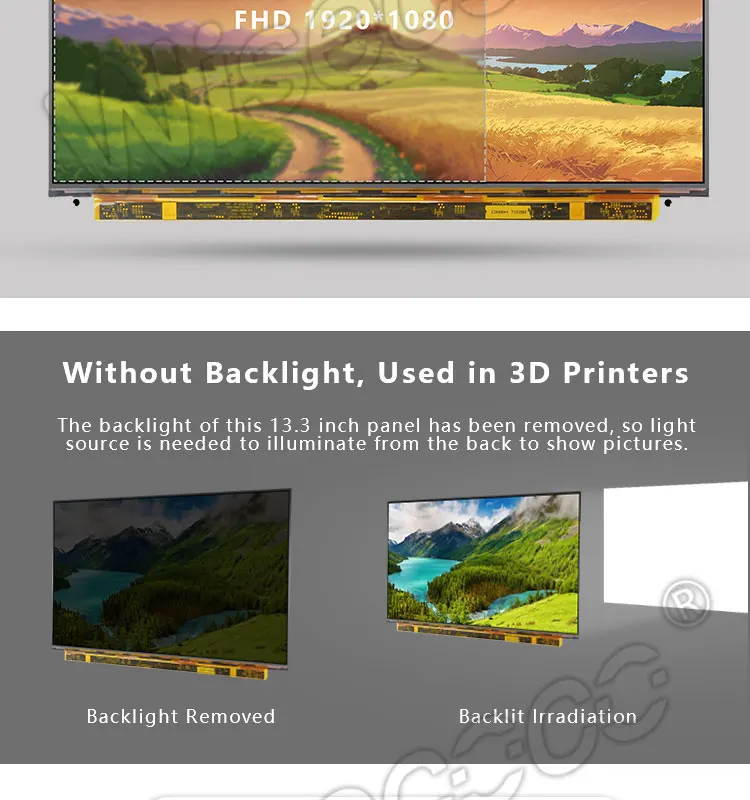

| Form Style | Slim (PCBA Flat, T≤3.2mm) | Designed For | Laptop&3D Printer |
| Frame Rate | 60Hz | Touch Panel | Available |

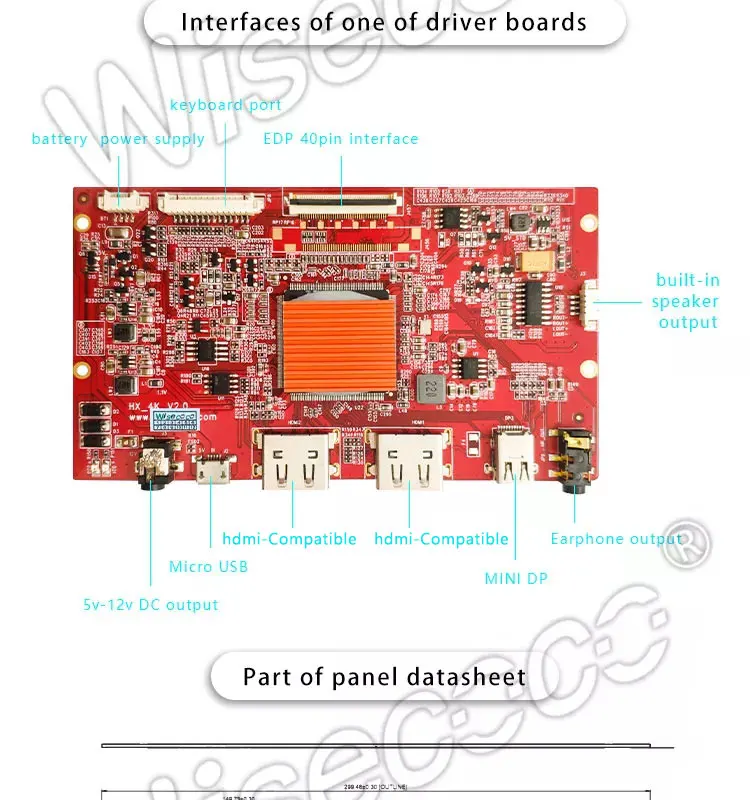

Interface Type | 40 pins eDP (4 Lanes) , Connector | ||
Power Supply | 3.3V (Typ.) | ||
Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
