Product Overview

Description

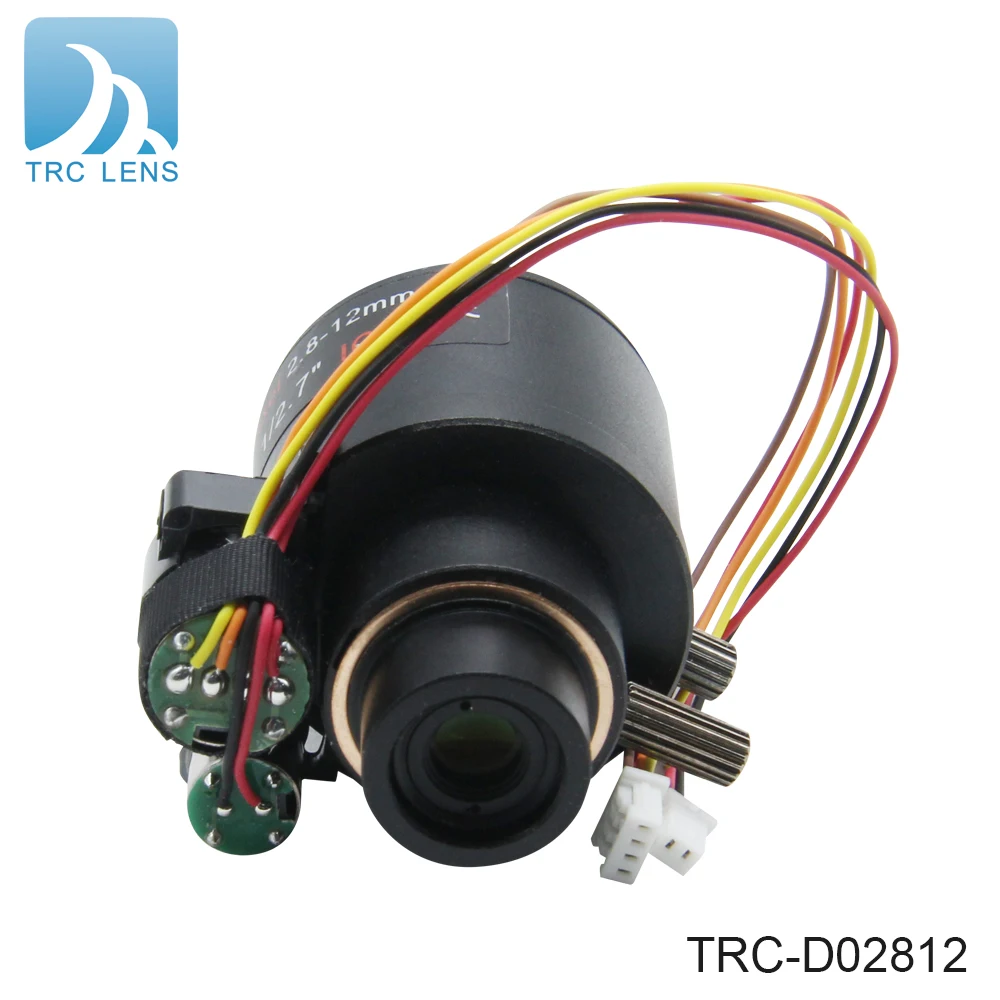

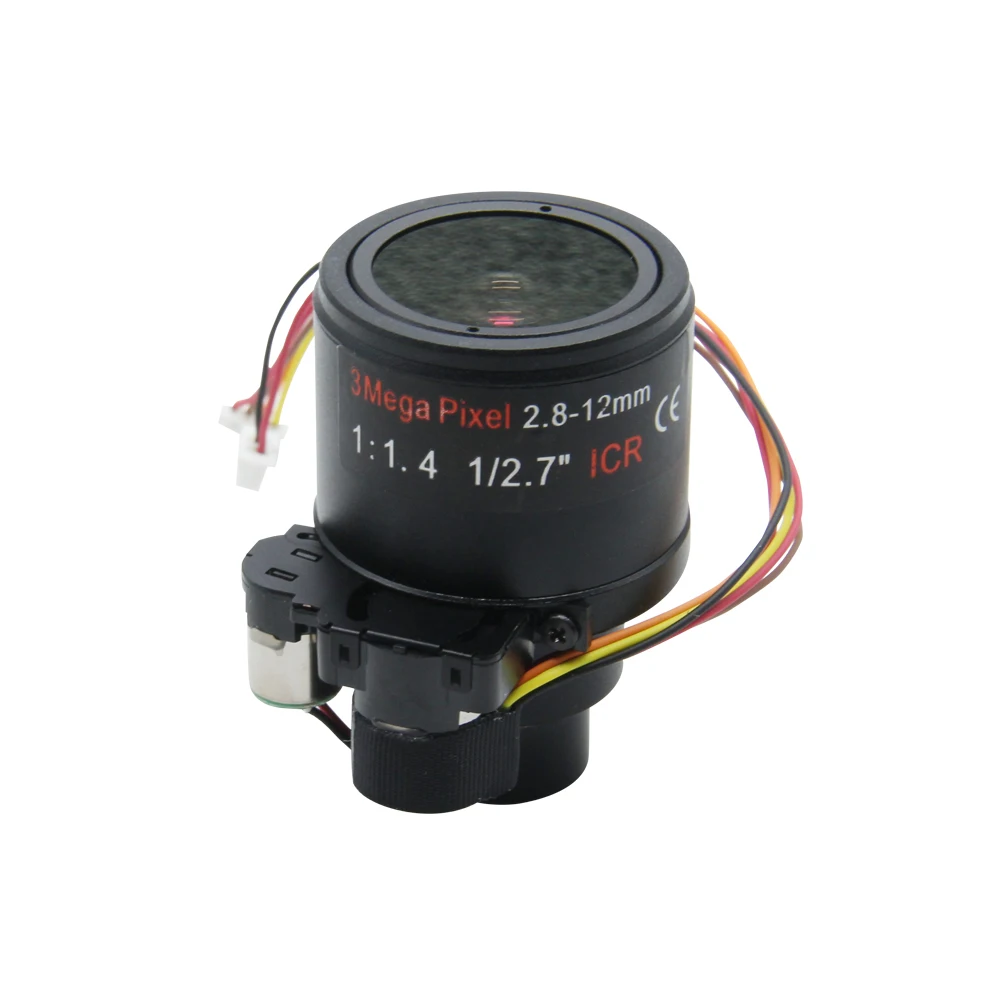

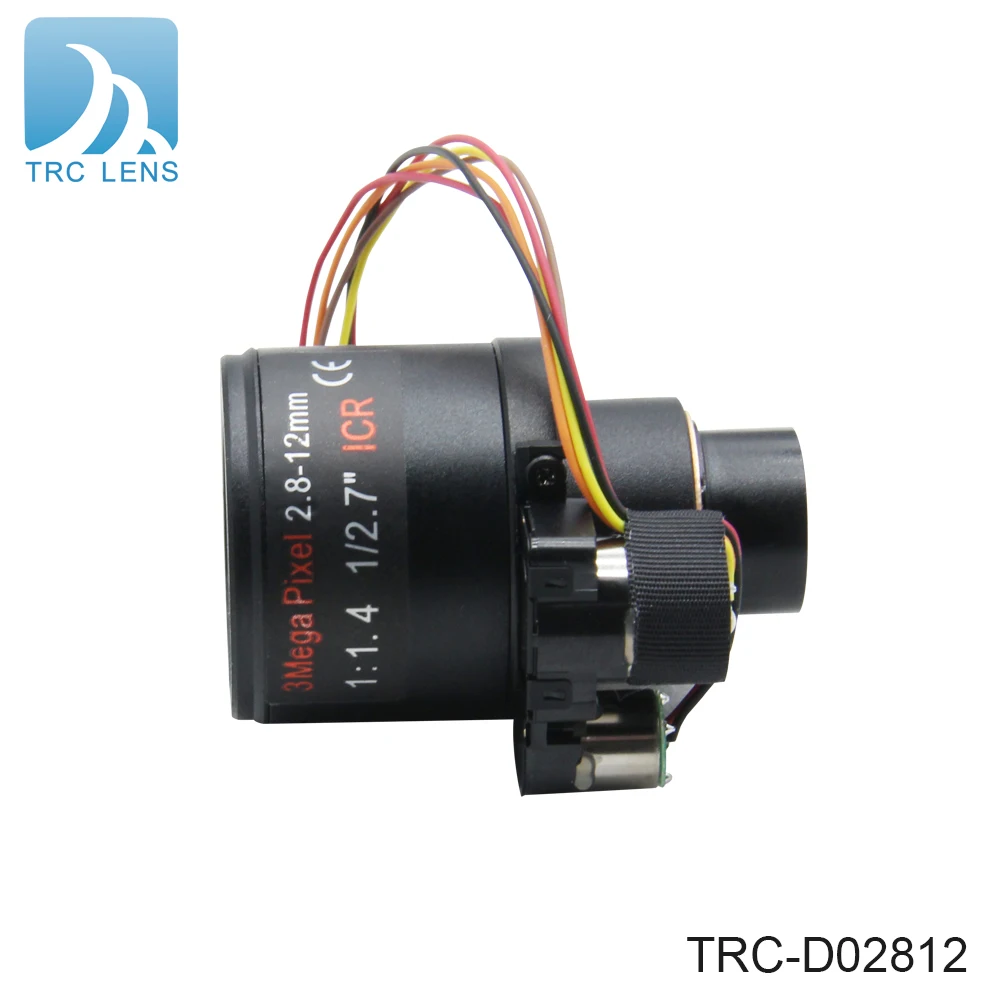

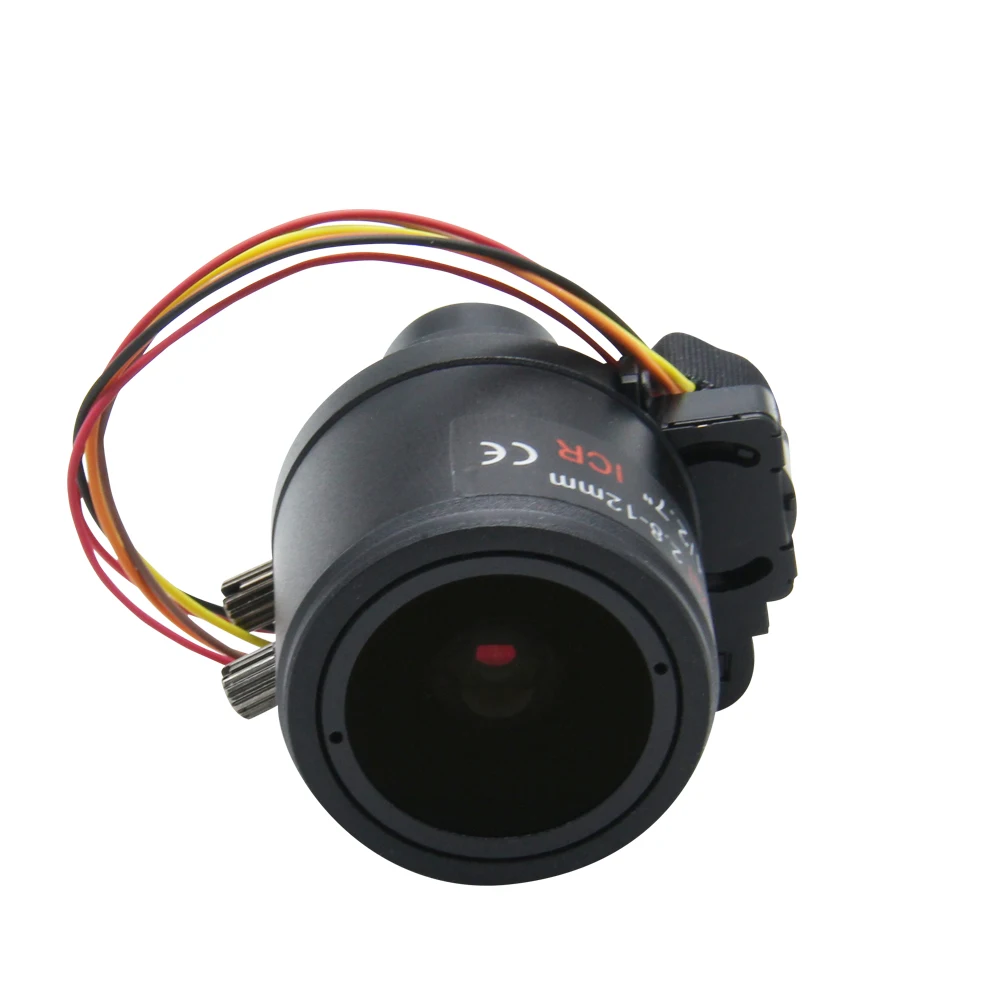

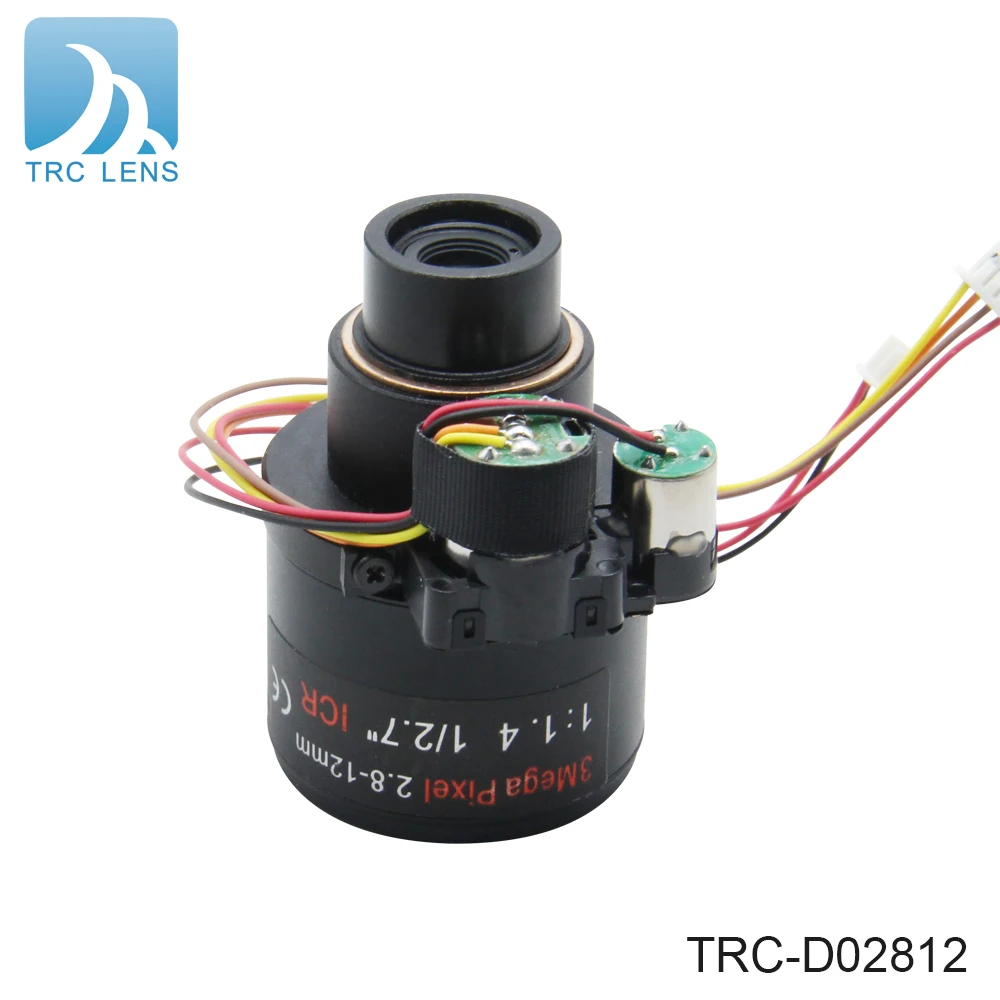

D14 Mount 3mp bullet ip Camera varifocal focus lens 2.8-12mm

Zoom Lens

VR Panorama Camera Lens

Car rearview Lens

Car DVR Lens



Sport DV Lens

Drone Lens

Smart Home Systems Lens

Special Custom Lens



>>> Click Here To Get More Information From Us Now





Resolution	3MP
Image format	1/2.7''
Focal length	2.8~12mm
Aperture	F1.8
Mount	D14
Field Angel D H V(°)		1/2.7		1/3		1/4
		Short-focus	Long-focus	Short-focus	Long-focus	Short- focus	Long-focus
	D	140	40	120	36	82.6	27.2
	H	100	32	89	29	64	21.6
	V	72	24	64	21.6	27	16.2
Optical Distortion		-64.5~-4.3%		-48~-3.5%		-24.1~-1.95%
CRA	≤6.53°(Short-focus) ≤6.13°(Long-focus)
M.O.D.	0.3m

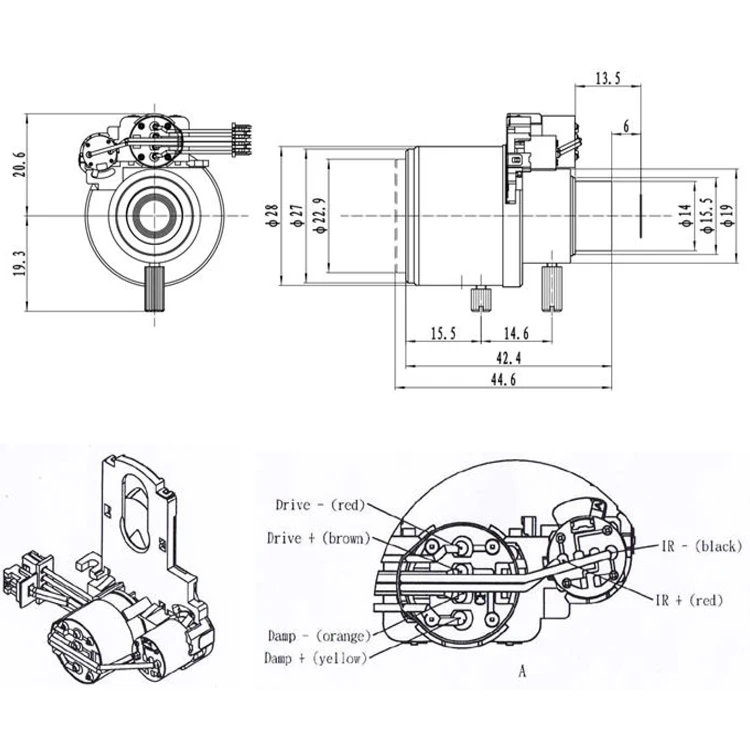

Dimension	ø28*44.6mm
Weight	33±2g
Flange BFL	13.5mm
BFL	7.1~13.6mm
MBF	6mm
IR Correction	Yes
Operation	Iris				Fixed
	Focus				Manual
	Zoom				Manual
Operating temperature	-20℃~+60℃













>>>Click here to get catalogues now



Q1:what does your warranty covers?

A1:Our product is backed by 1 year limited warranty against manufacturing defects (material& workmanship).missing /lost or worn out parts are not covered under our warranty.

Q2:Can I get some samples at the first cooperation?

A2:Yes, we can give customer some samples for test at the first cooperation wit each other.

Q3:How do you ensure your production?

A3:We have more than 200 employee in our factory for production line and the factory covers an area of 4000 square meters . And all of our product have passed the test such as SGS,CE,ISO.

Q4:When can I get the goods ?

A4:simple orders delivery within 5-7 days since payment received.massive orders delivery within 12-15 days since payment received.
