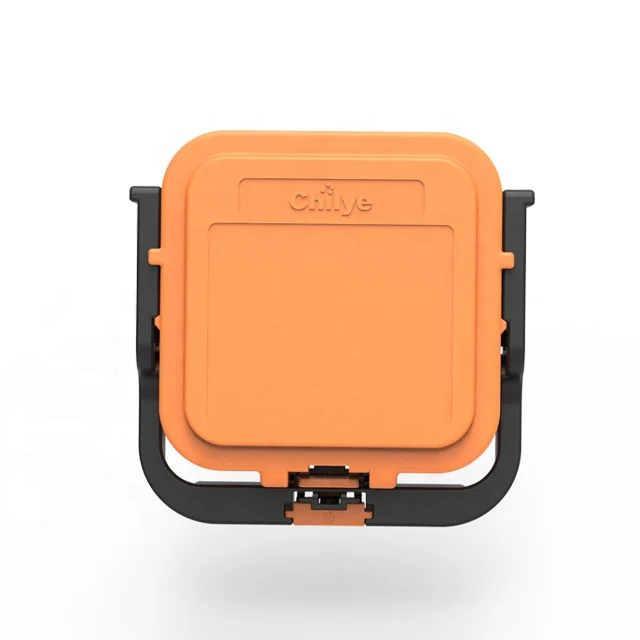

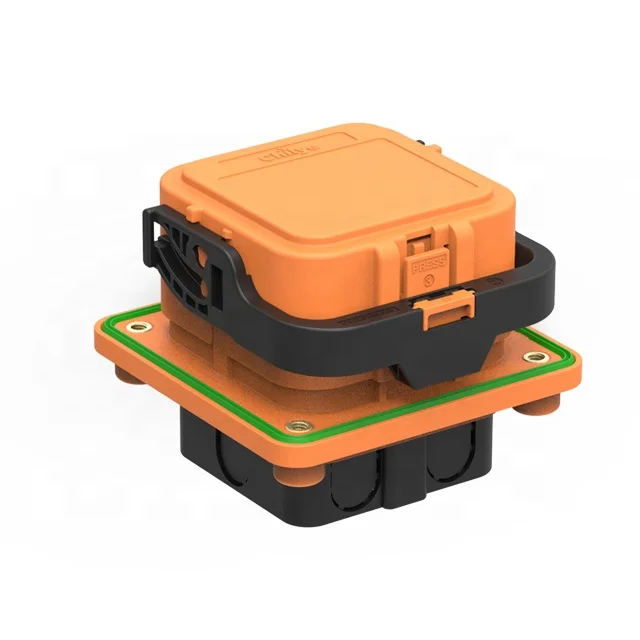

MSD 700 series Manual service disconnect for EV power system

Product Overview

Description





Manual Service Disconnect



Chilye’s MSD can fulfill quick disconnection without any tool,

utilizes a two-stage lever which help to open the HVIL circuit prior to separation of HV connectors.

This helps to control separation speed and guarantee the safety. Without using any tools,

technicians can quickly release the plug and disconnect the power.

Meanwhile there is an extensibility of broad specifications of this MSD series. Fuses with different current ratings can be assembled

in the MSD for various applications with the same structure & size,







MSD 700



Application

Power battery pack



Description

•  Flange sealing, mounting types: front mounting and rear mounting

•  Two-stage lever to open the HVIL circuit prior to separation of HV contacts

•  With a variety of fuse ratings

•  Touch proof

•  Compact space saving, lightweight

                                                HVIL circuit 0.5 mm²

      Technical Features

             Mated: IP67,IP6K9K

      Unmated:IP2XB
