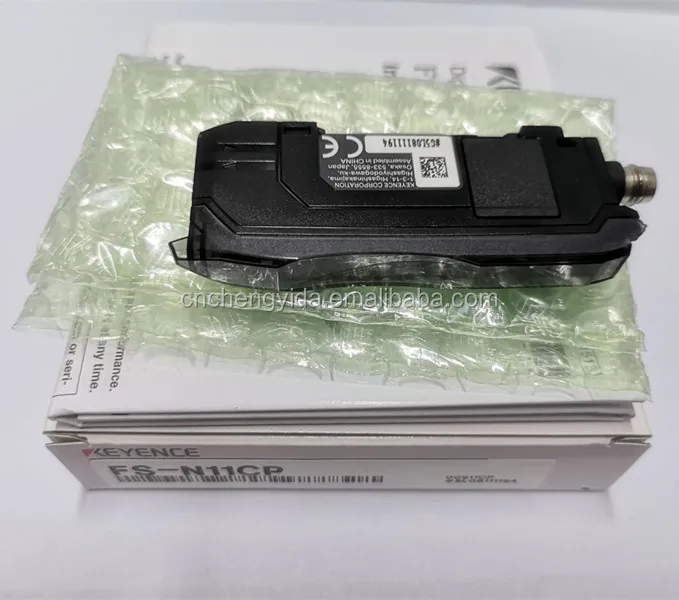

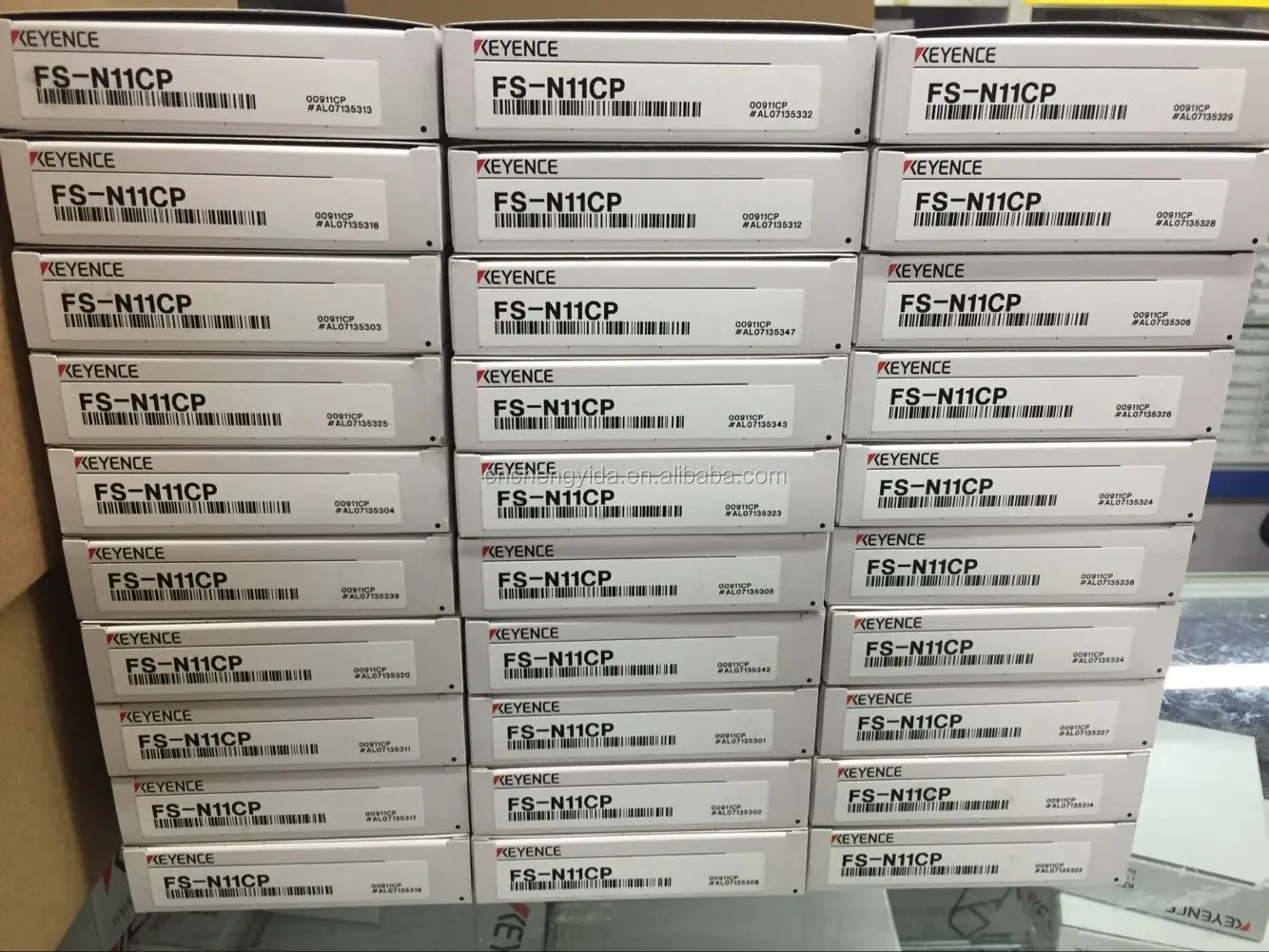

KEYENCE Digital Fiber Optic Sensors FS N11CP Fiber Amplifier M8 Connector Type PNP New original

Model

FS-N11CP

Type

Standard 1 output

Output

PNP

Light source LED

Red, 4-element LED

APC

ON/OFF switchable

Power voltage

12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less

Current Consumption

 950 mW or less

Incandescent lamp

 20,000 lux or less

Sunlight

 30,000 lux or less

Ambient temperature

-20 to +55 °C -4 to +131 °F (No freezing)*3

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06""

Shock resistance

500 m/s2, 3 times in each of the X, Y, and Z directions
