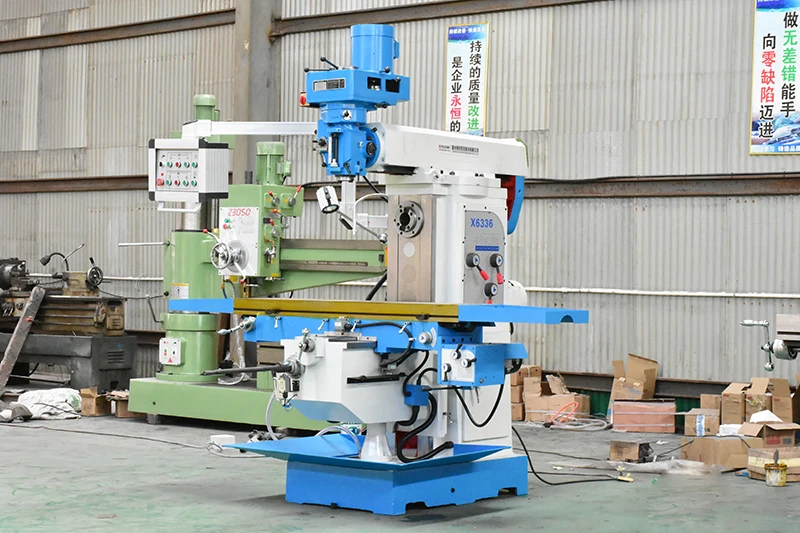

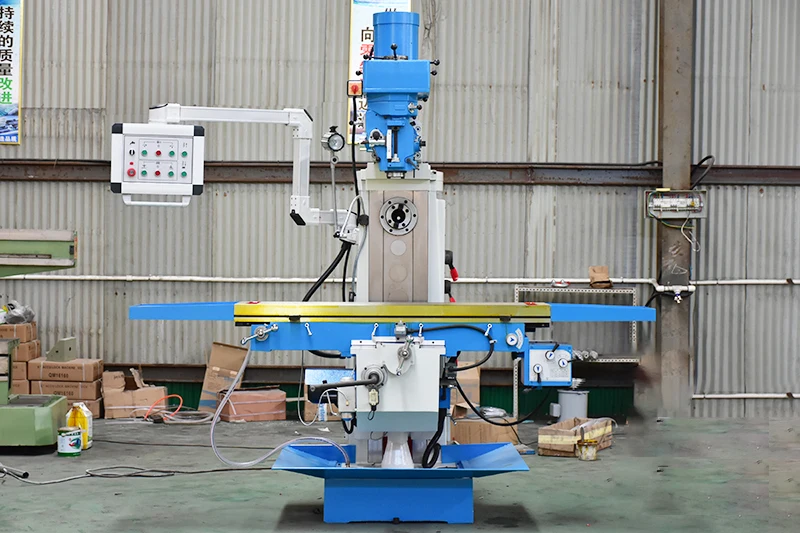

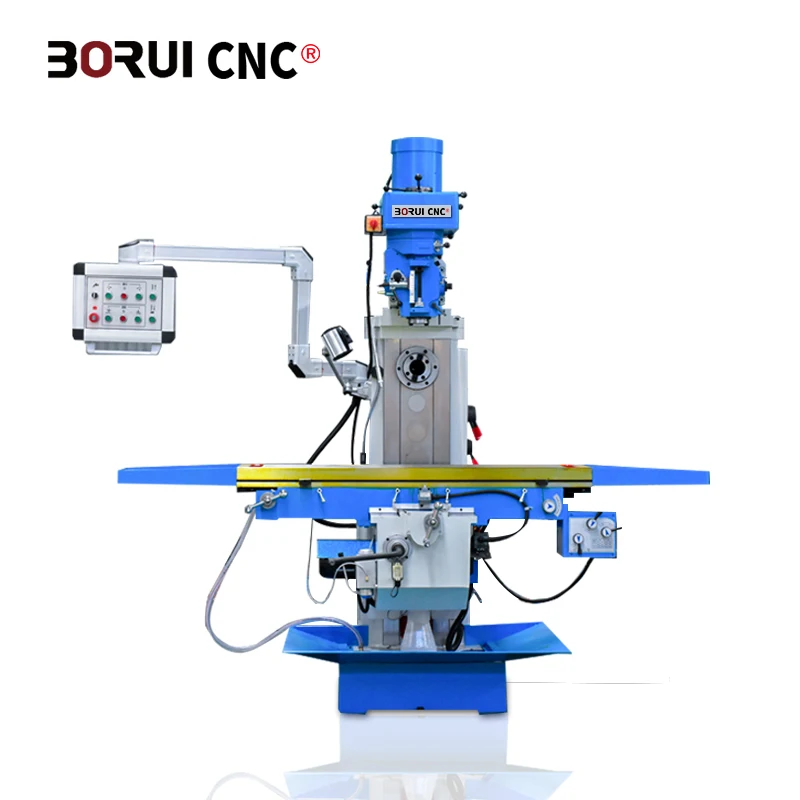

BORUI High Speed Universal Turret Vertical Radial Milling Machine Turret Milling Machine X6336
- Category: >>>
- Supplier: Tengzhou Borui CNC Machine Tool Co. Ltd.
Share on (62319538392):
Product Overview
Description
China High Speed Universal Turret Vertical Radial Milling Machine
Product Description
The main performance characteristics::
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter,
milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.

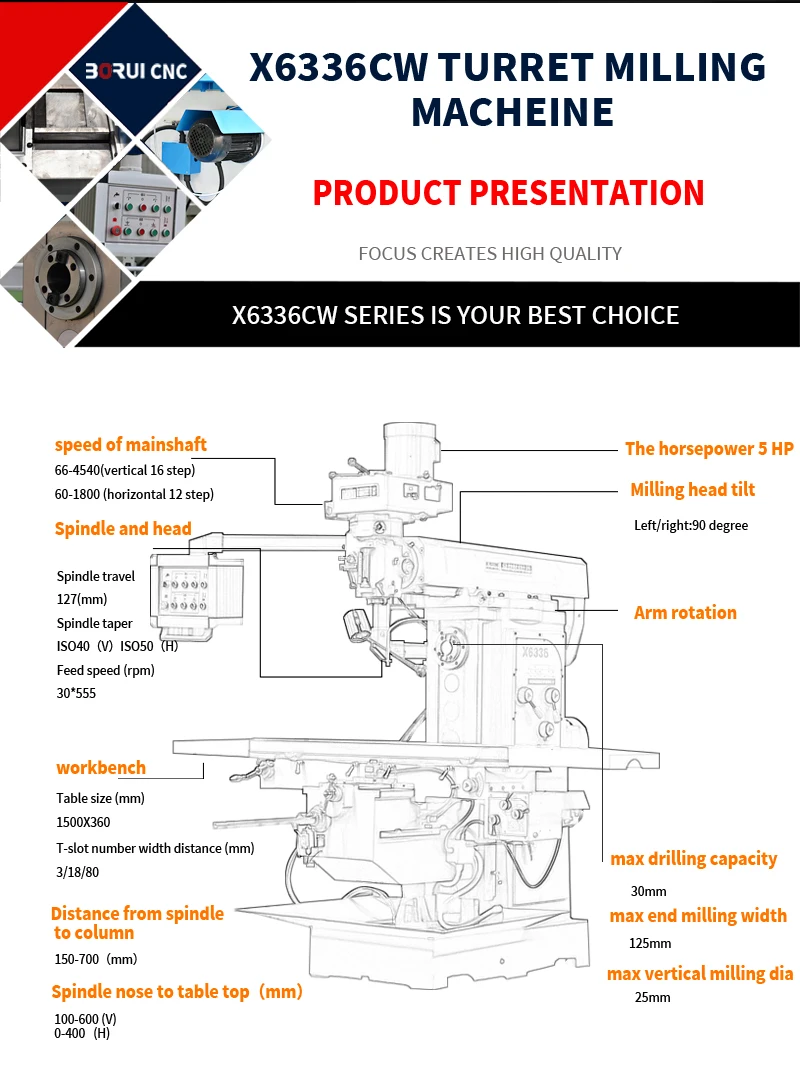

Product main technical parameters:
Specifications | Units | X6336 |
Table size | mm | 1500×360 |
Table travel | mm | 1000/320/450 |
T slot(number-width-pitch) | mm | 3-18-80 |
Spindle taper | ISO40 7:24 (V) ISO50 7:24 (H) | |
Spindle speed range | rpm | (V) 50HZ:65-4500 ,60HZ:80-5440,16 steps; Optional:variable 65-4000 (H) 60-1800,12 steps |
Spindle travel | mm | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) |
Distance between spindle nose and table surface | mm | 140-590 |
Distance between spindle axis and table surface | mm | 0-450 |
Main motor power | kw | 3.7(V)4(H) |
Head rotation (left - right ) | ° | ±90° |
Head rotation (front - rear) | ° | ±45° |
Weight | kg | 2400 |
Overall dimension | mm | 2600×2200×2550 |

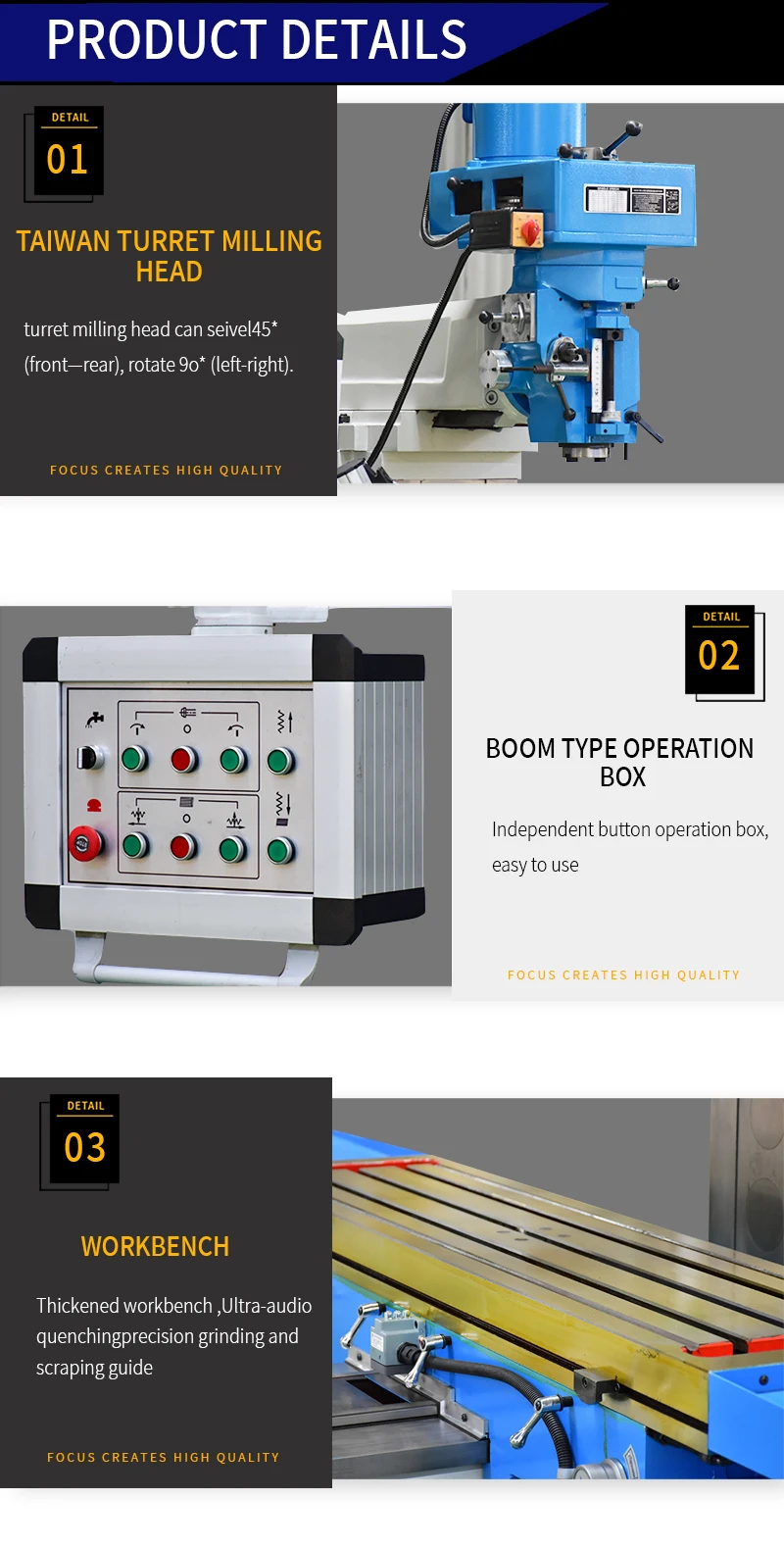

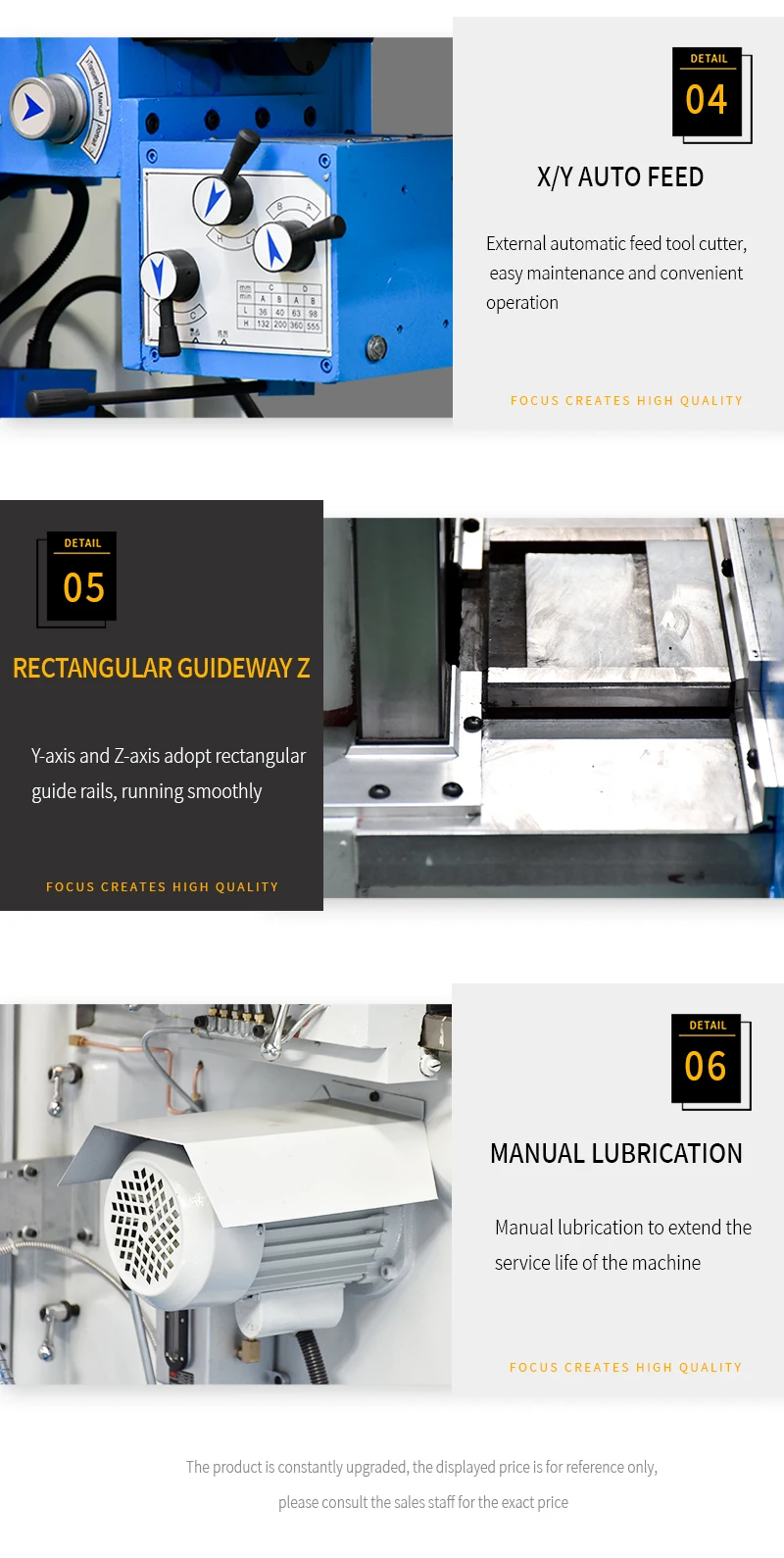

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
