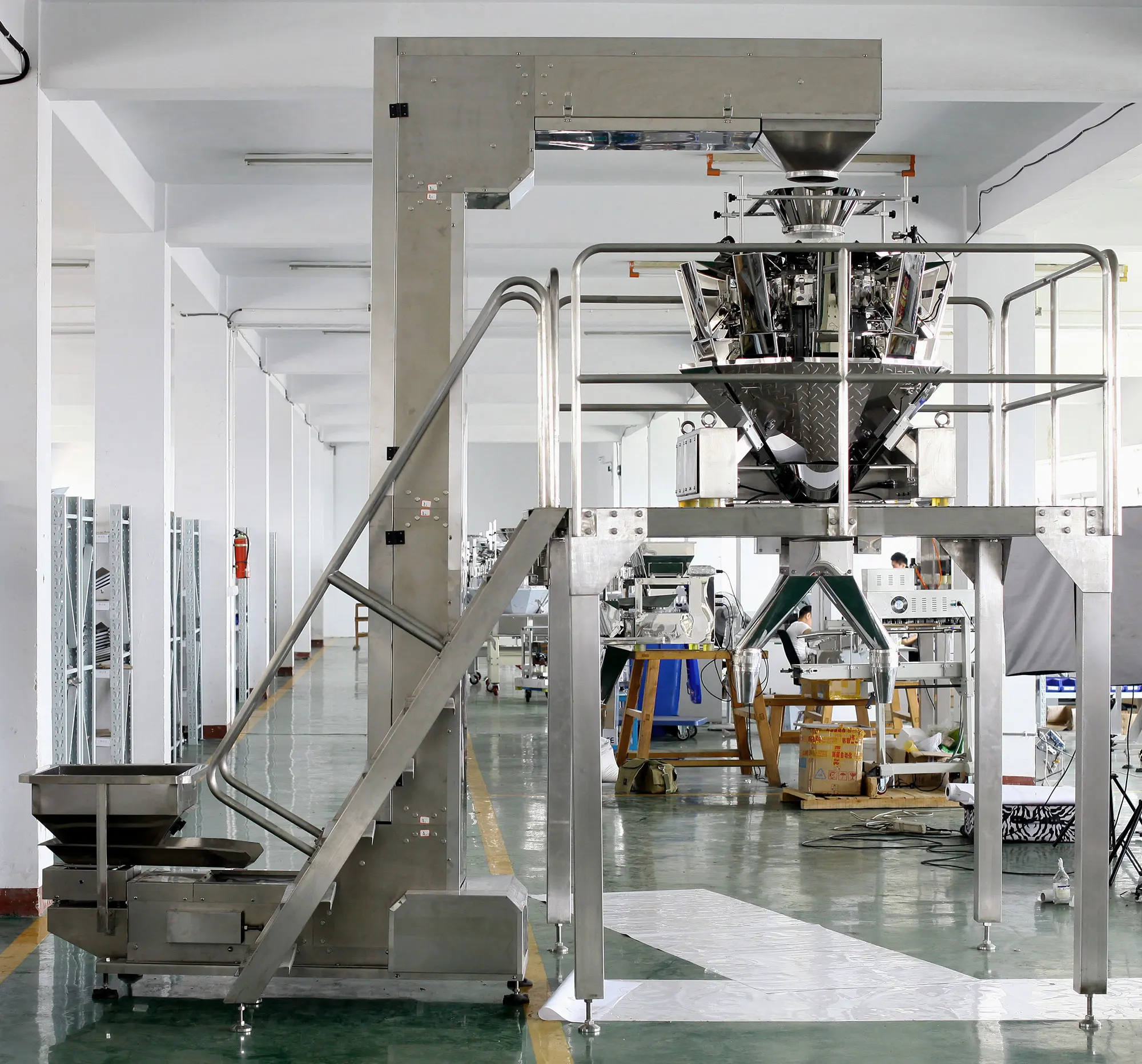

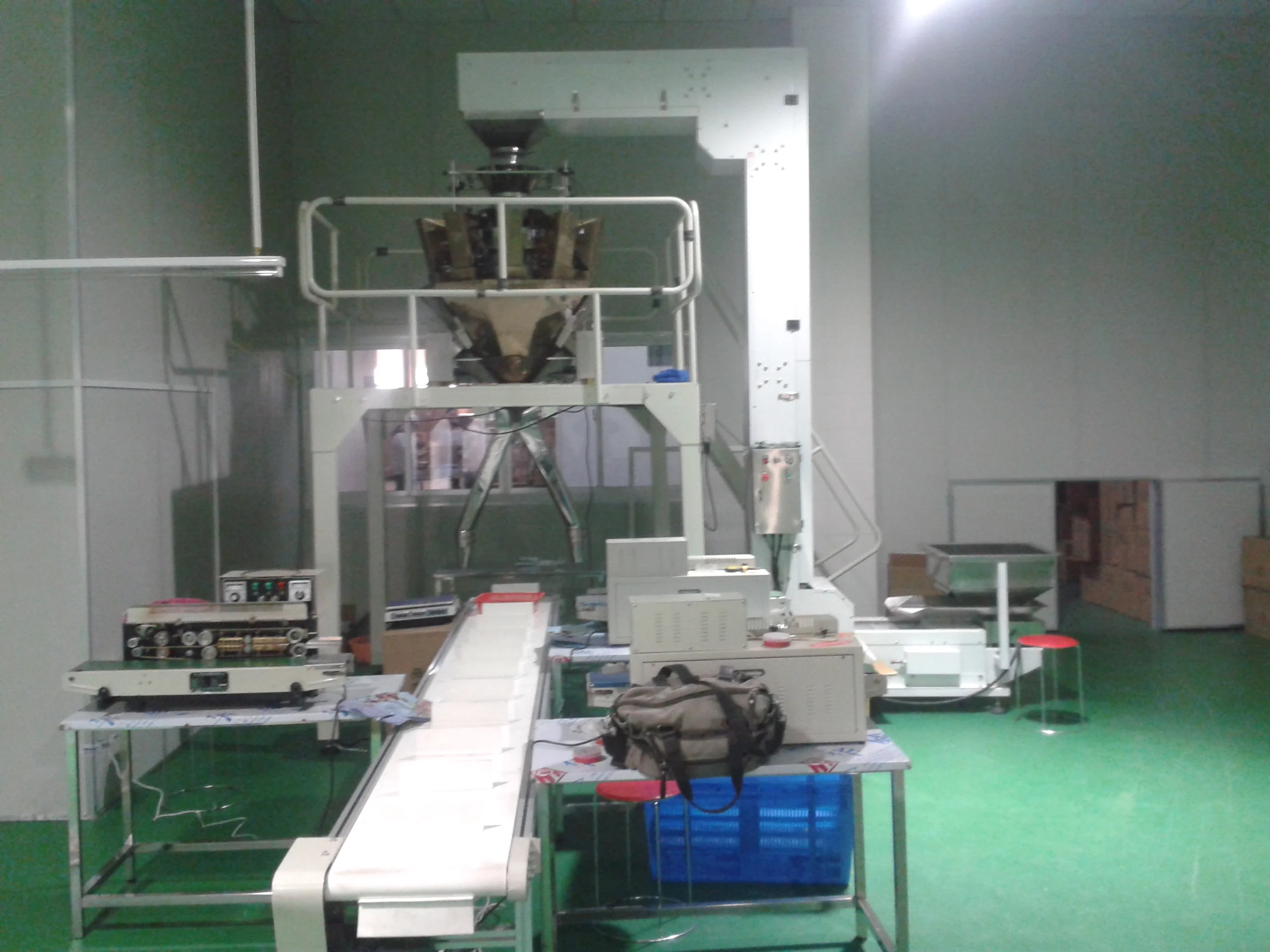

Full automatic weighing packing systems 100g 1kg salt packing machine
- Category: >>>
- Supplier: Hangzhou Zon Packaging Machinery Co. Ltd.
Share on (62319648058):
Product Overview
Description
Product Description
Application
It is suitable for weighing and packing grain, stick, slice, globose, irregular shape products such as candy,chocolate, jelly,pasta, melon seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips and other leisure foods, raisins, plum,cereals, pet food, puffed food, fruits, roasted seeds, sea food, frozen food, small hardware, etc. with pre-made bag or can.
It is suitable for weighing and packing grain, stick, slice, globose, irregular shape products such as candy,chocolate, jelly,pasta, melon seeds, peanuts, pistachios, almonds, cashews, nuts, coffee bean, chips and other leisure foods, raisins, plum,cereals, pet food, puffed food, fruits, roasted seeds, sea food, frozen food, small hardware, etc. with pre-made bag or can.
Technical Specification | ||||||||
Model | ZH-BR10 | |||||||
System Output | ≥4.8 Ton/Day | |||||||
Packing Speed | 15-35 Bags/Min | |||||||
Packing Accuracy | ±0.1-1.5g | |||||||
Technical Features | ||||||||
1. Material conveying, weighing are completed automatically. | ||||||||
2. High weighing precision and material drop is controlled by manual with low system cost. | ||||||||
3. Easy to upgrade to automatic system. | ||||||||
System Unite
1.Z shape bucket conveyor
The conveyor is applicable for vertical lifting of granule product such as corn, food, fodder, plastic and chemical industry, etc.
For this machine, the bucket is driven by the chains to lift.
Chain material: 304SS.
Bucket material: PP
Conveying Height: 2.5-3.8m
Conveying Volume: 2.5-5CBM/hour;
Controller: Frequency converter.
Machine body options: 304SS frame or Mild steel frame.
It can be customise according to customer's diferent requirement.
For this machine, the bucket is driven by the chains to lift.
Chain material: 304SS.
Bucket material: PP
Conveying Height: 2.5-3.8m
Conveying Volume: 2.5-5CBM/hour;
Controller: Frequency converter.
Machine body options: 304SS frame or Mild steel frame.
It can be customise according to customer's diferent requirement.

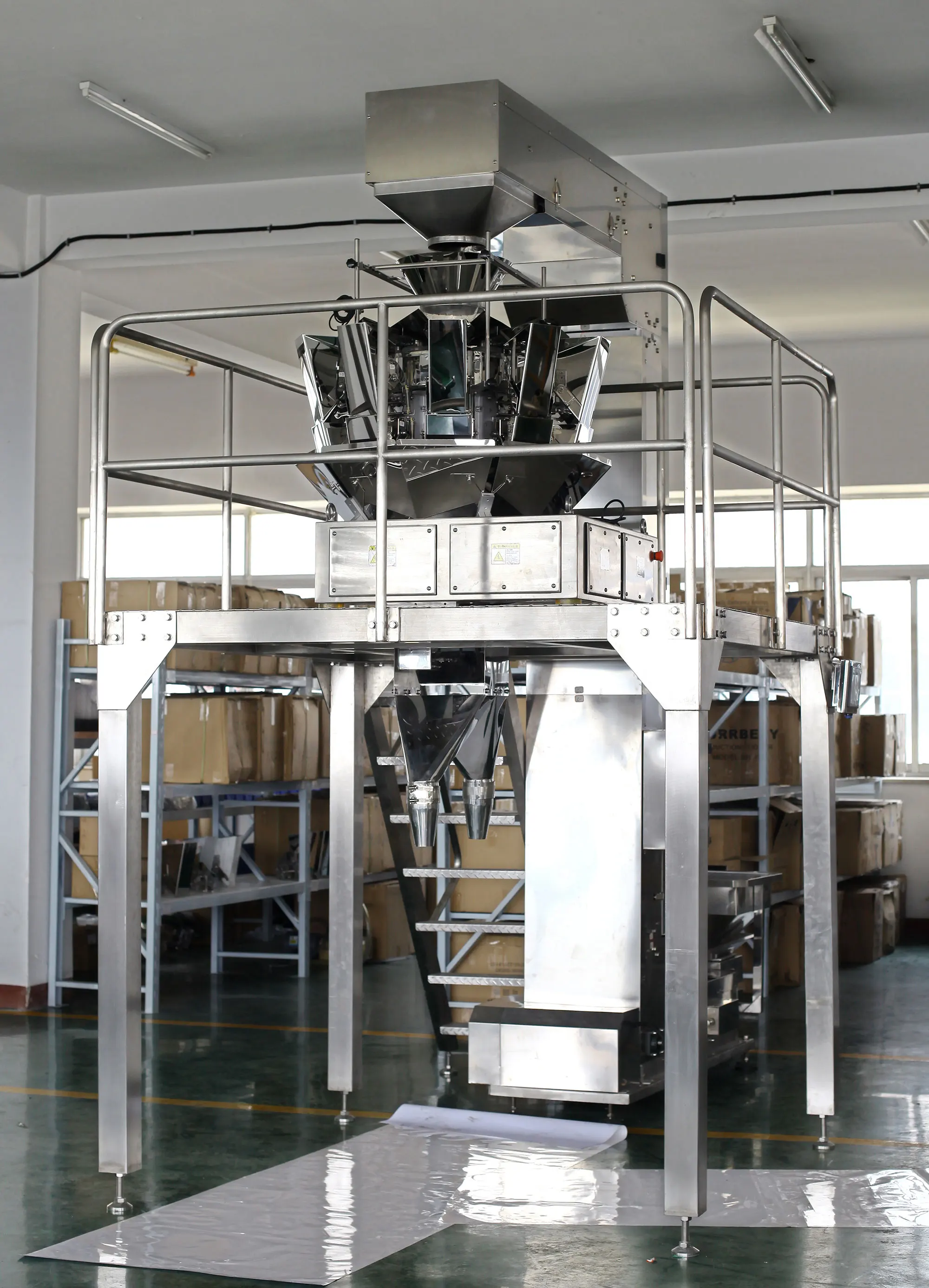

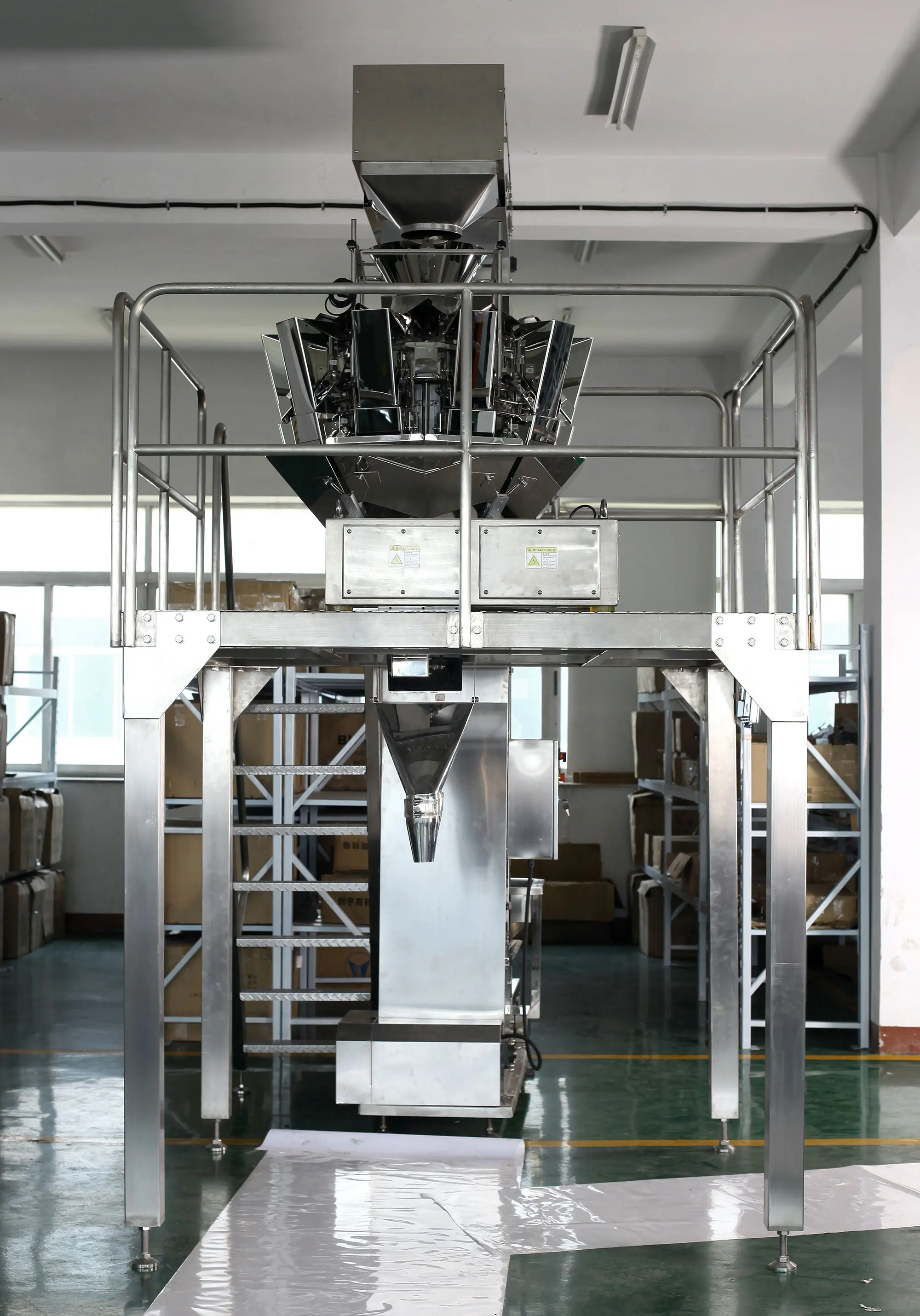

2. 10 heads multihead weigher
It is for weighing product according to your target weight.
For different product characteristics and target weight,we have different heads weighing machine.
Machine type:4 heads, 10heads ,14 heads,20 heads
Machine accuracy :± 0.1g-1.5g
Material weight range: 20-5000g
For different product characteristics and target weight,we have different heads weighing machine.
Machine type:4 heads, 10heads ,14 heads,20 heads
Machine accuracy :± 0.1g-1.5g
Material weight range: 20-5000g

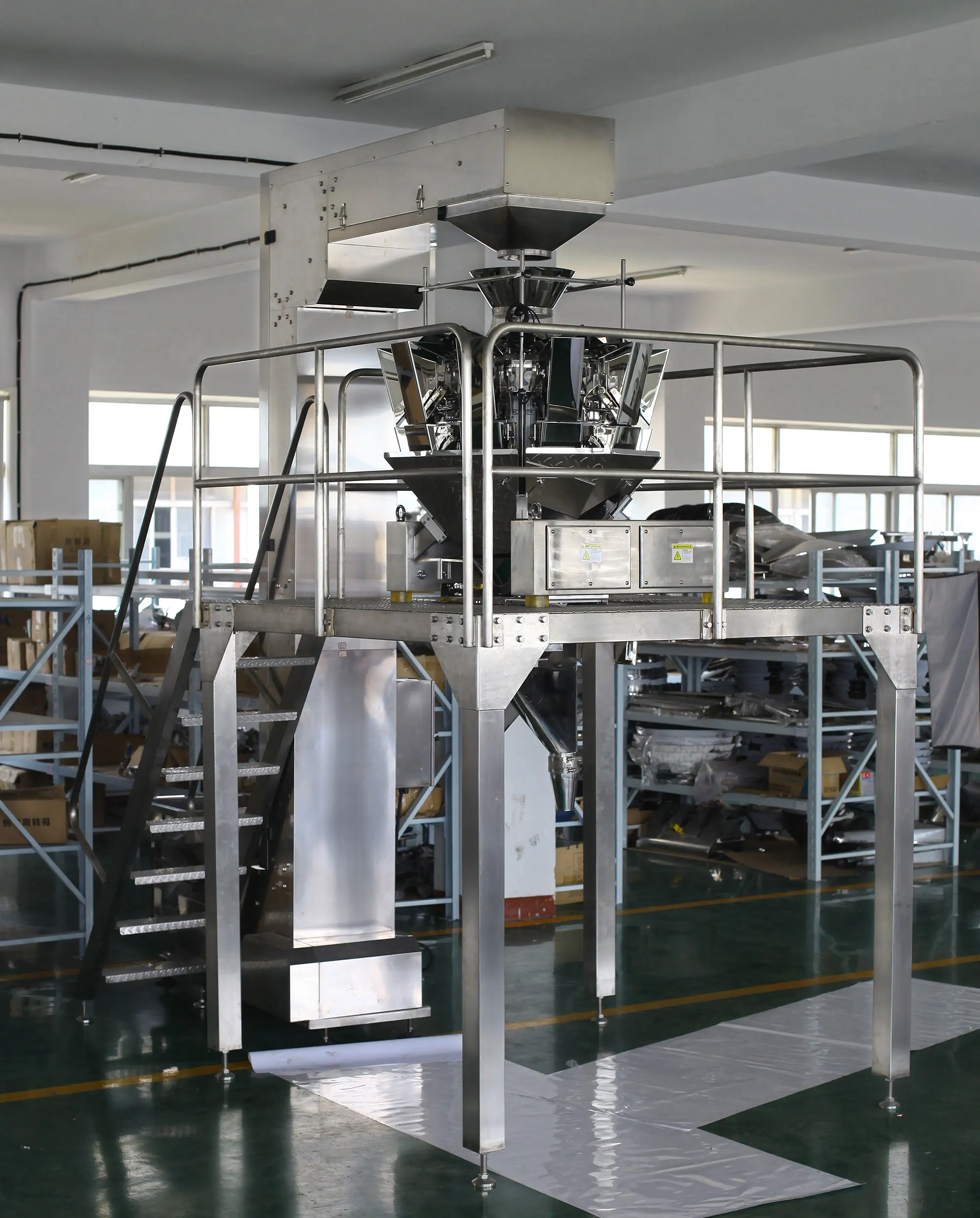

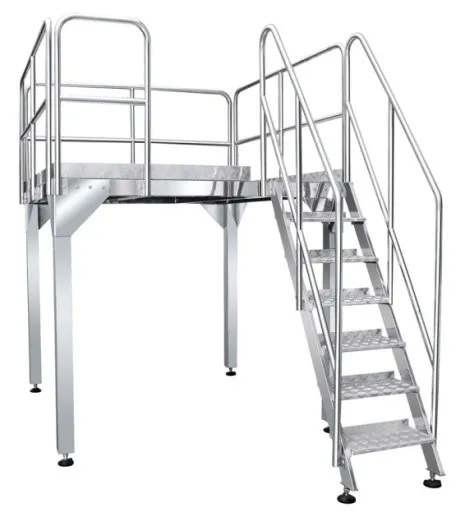

The platform is compact, stable and safe with guardrail and ladder.
The platform is mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
304SS Frame
The standard size: 1.9m(L)*1.9m(W)*1.8m(H)
The platform is mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
304SS Frame
The standard size: 1.9m(L)*1.9m(W)*1.8m(H)

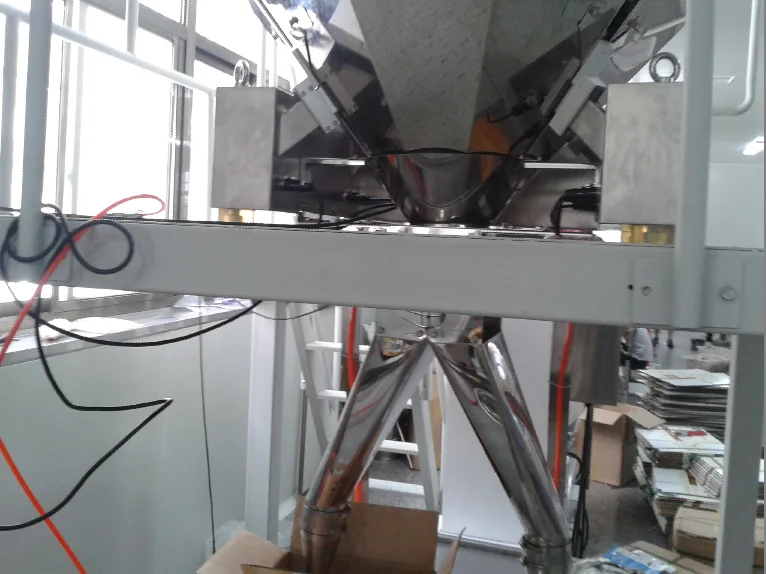

Timing hopper for collecting product.
Dispenser for separating product,and manual packing.
