220vac to 110vdc 20A Rectifier
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (62319867049):
Product Overview
Description
Specification
Item | Content | Data |
Specifications | Output voltage | 110V |
Output current | 20A | |
AC input
| LVP | 180Vac |
OVP | 270Vac | |
| DC input | LVP | 180Vdc |
| OVP | 270Vdc | |
DC output | Adjustment range of floating charge voltage | 99V-132V |
Default floating charge output voltage | 121V | |
Adjustment range of equalizing charge voltage | 110V-132V | |
Default equalizing charge output voltage | 129V | |
OVP | 135V±1V | |
OCP | 10A±1.5A | |
Output short circuit protection | Yes | |
Source change rate | ≤±0.5% | |
Load change rate | ≤±0.5% | |
Temperature coefficient | 150PPm/℃ | |
Peak ripple voltage | Vpp≤100mV | |
Switching frequency ripple voltage | Vpp≤60mV | |
Noise | ≤1mV | |
Efficiency | ≥90% | |
Environment condition | Temperature | 0~55℃ |
Humidity | ≤95%PH, Non Condensing | |
Altitude | ≤2000m | |
Load type | Resistive, capacitive and inductive | |
Safety | Hi-pot Test | DC2500V |
Leakage Current | <10mA |

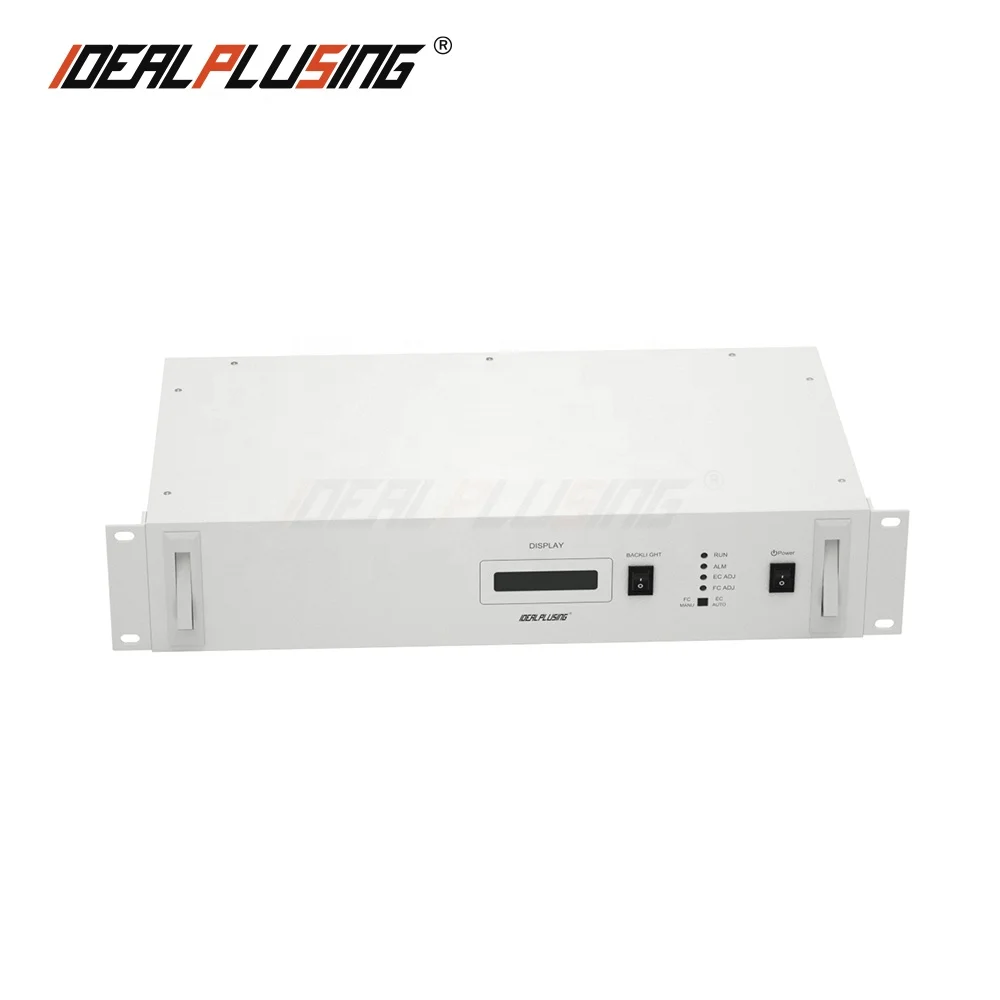

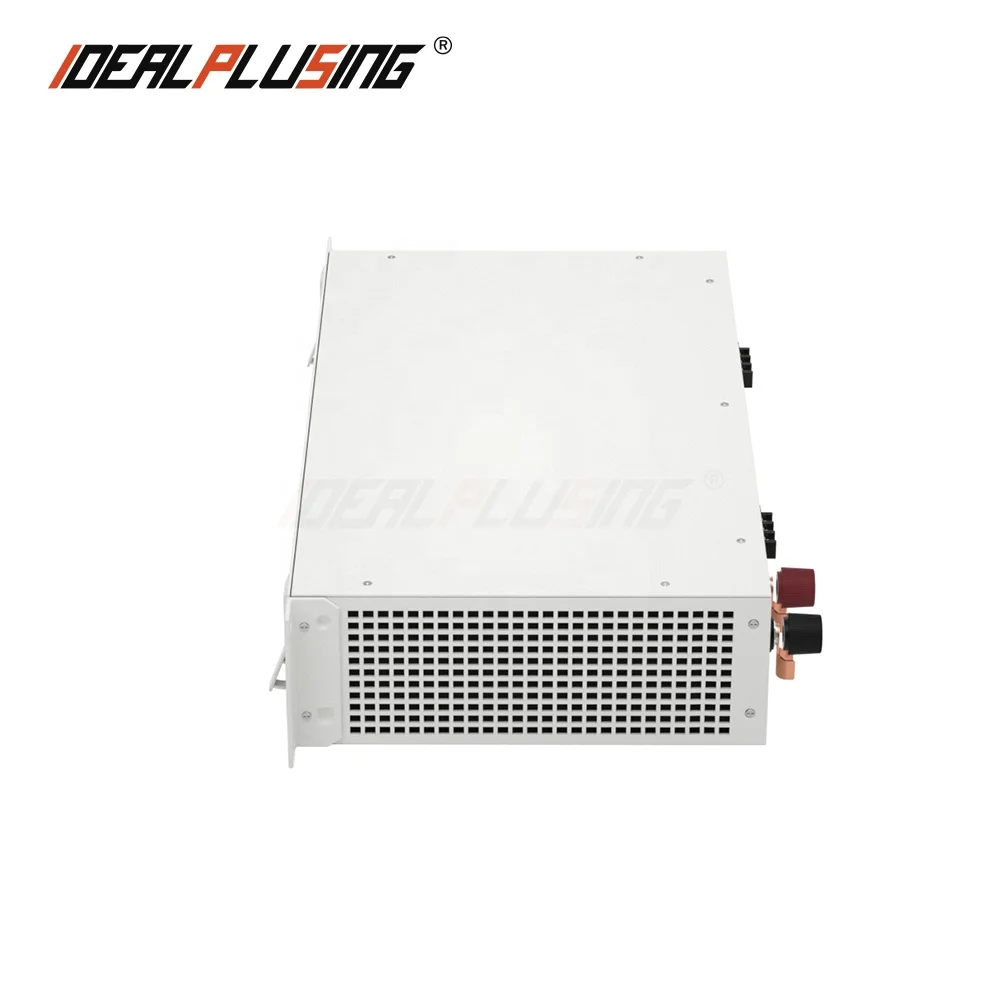

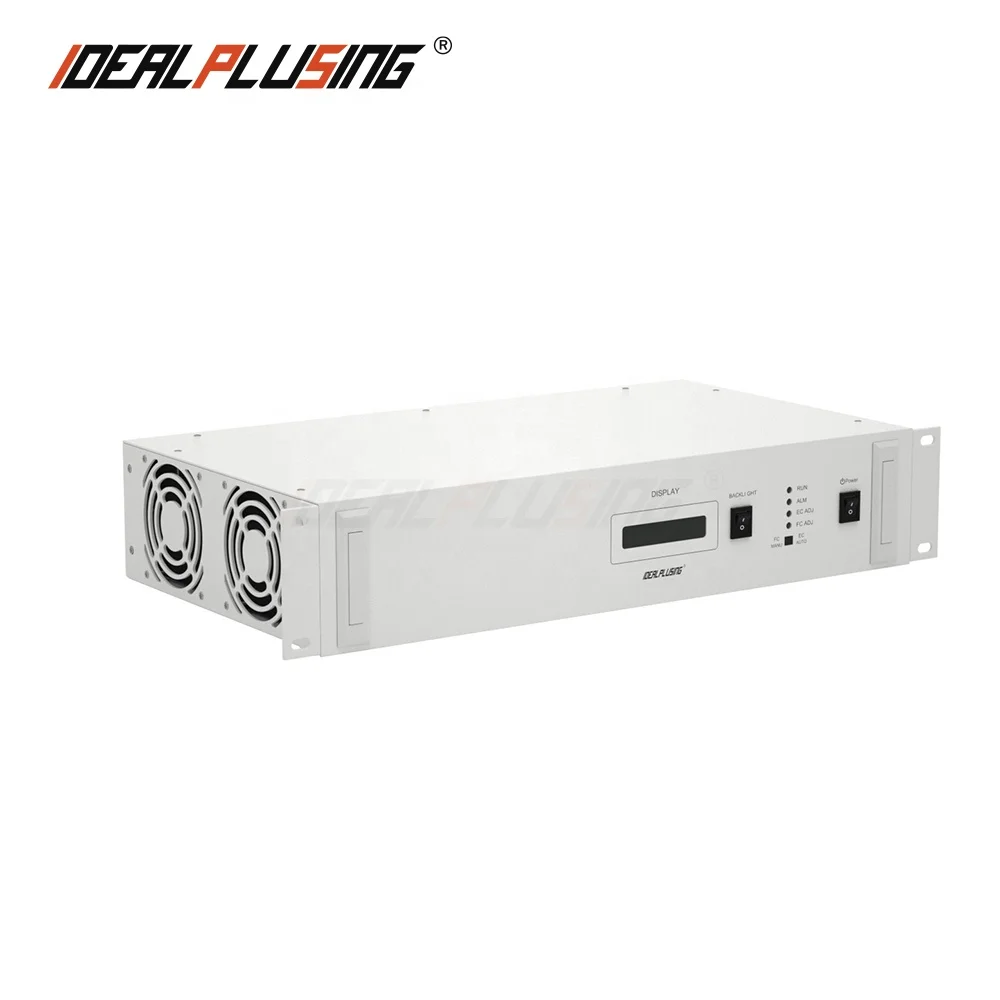

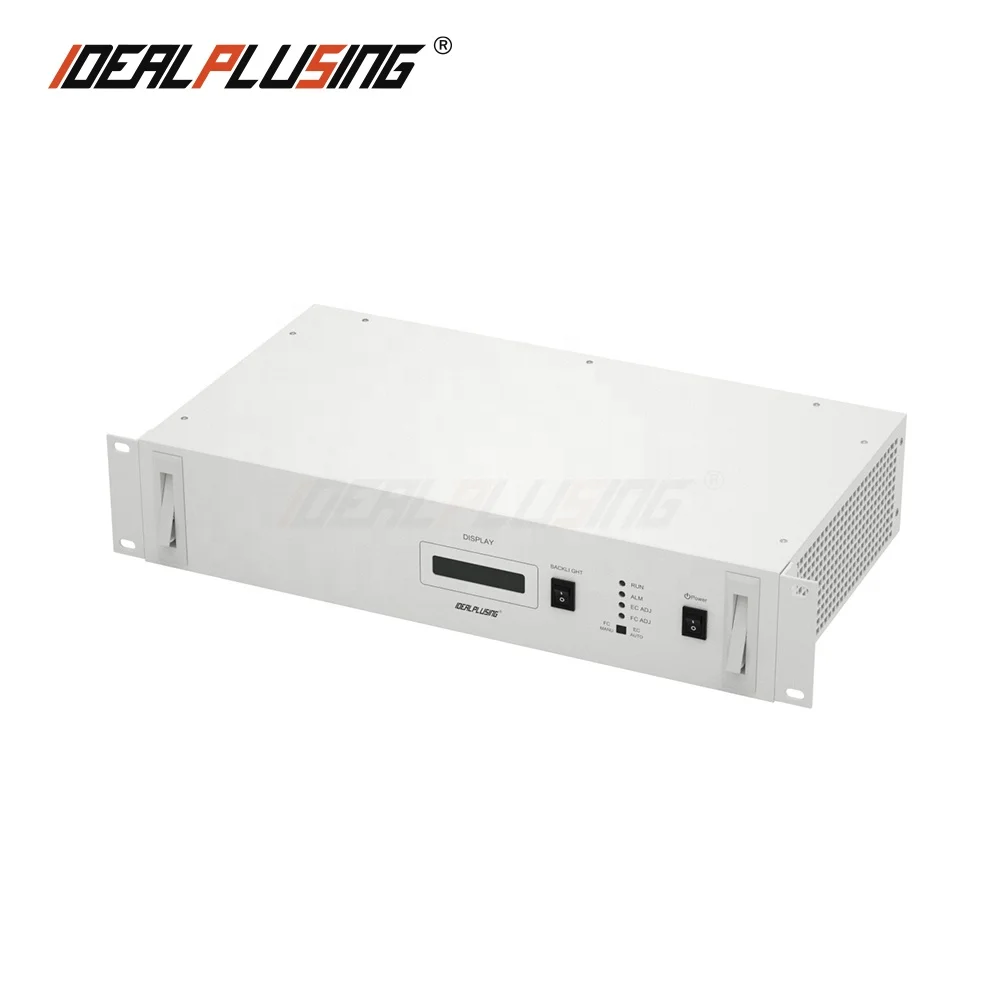

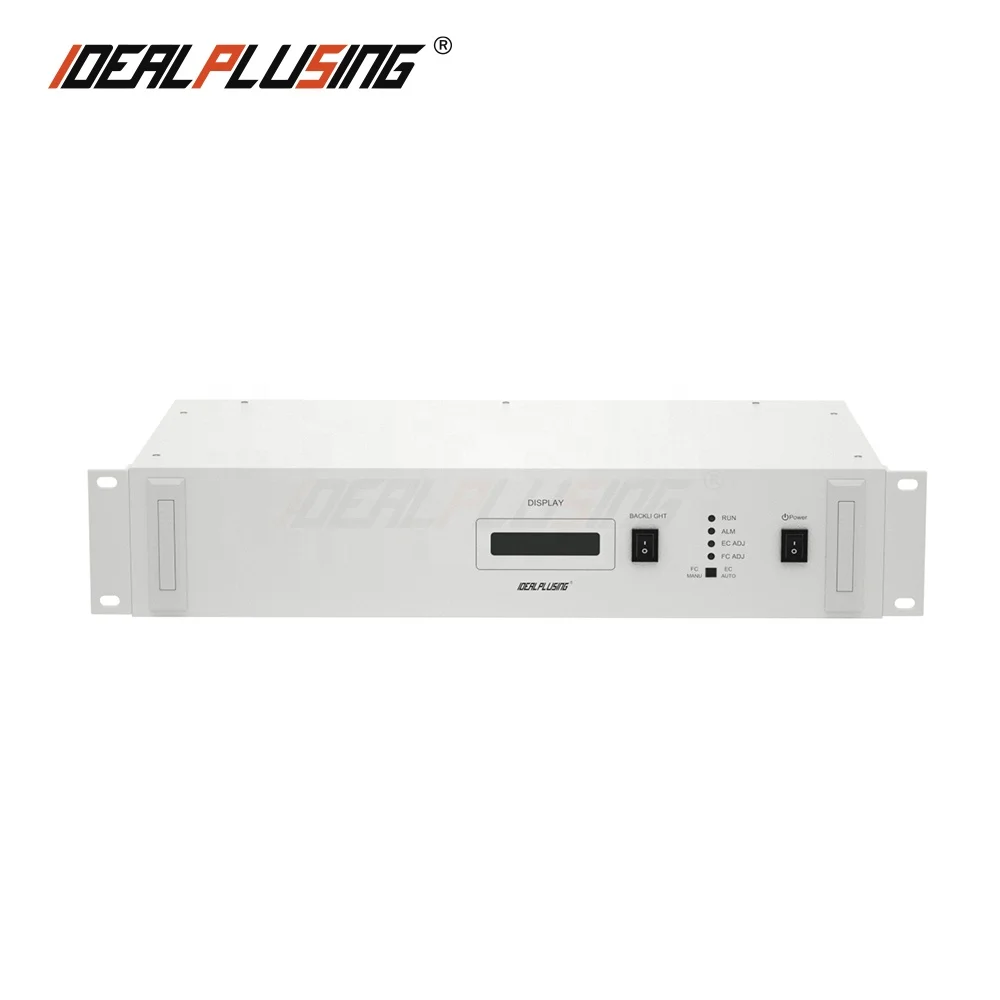

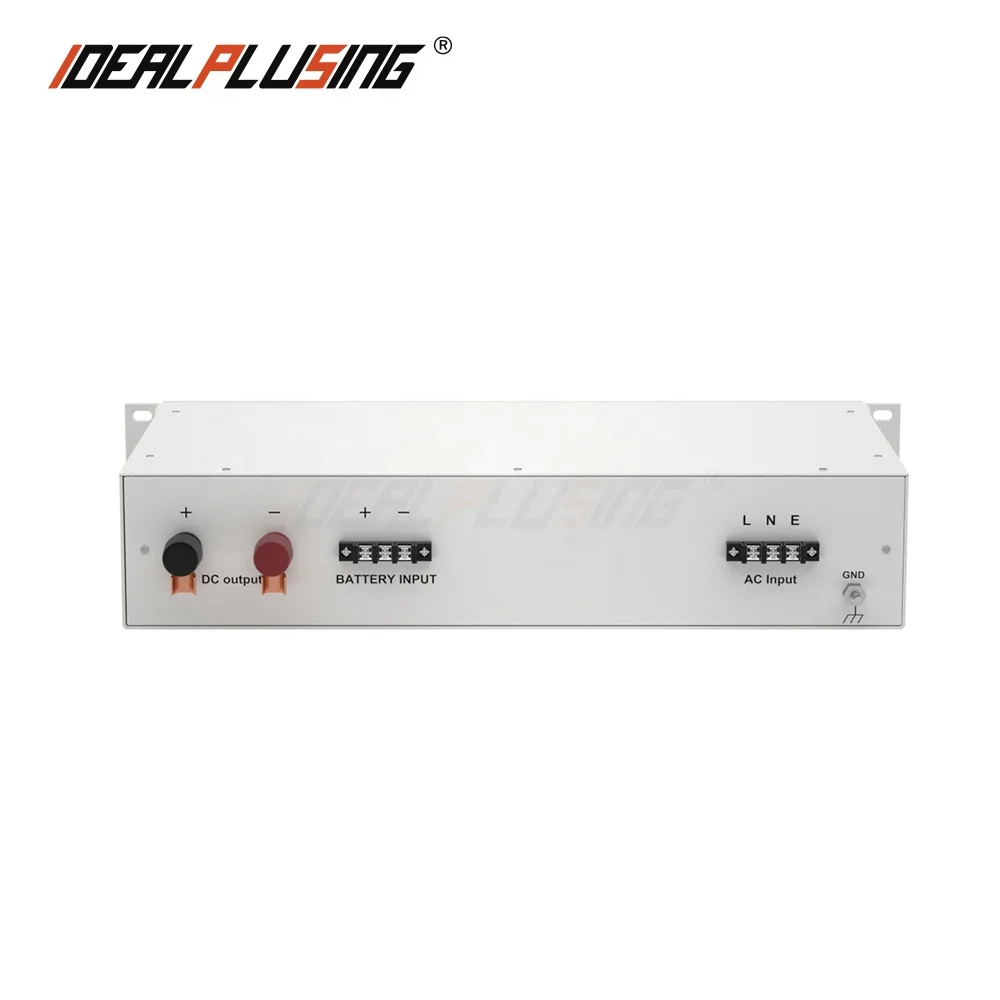

Detailed Images
Customize Range
Regard as 110vdc 20A Rectifier . we can customize as following
(1) Input: 220Vac/110Vac, 45-65HZ.
(2) Output: 24V/48V/110VDC, 5A/10A/15A/20A/25A/30A/50A/60A/75A/120A/150A/200A/450A......
Further information request for 110vdc switching power supply, please contact with IDEALPLUSING Sale team.
Factory Display
FAQ
Q1. Can I have a sample order of 220vac to 110vdc rectifier ?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of model in the stock , sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print buyer logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 1-year warranty for all power supply.
