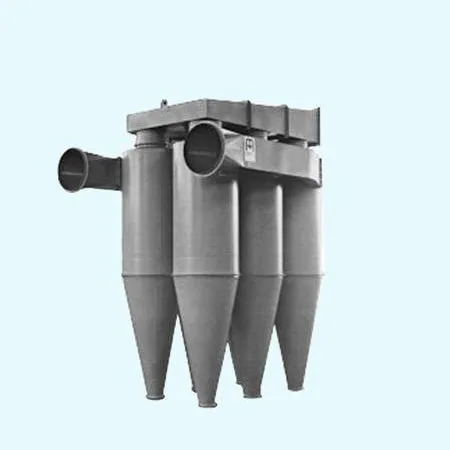

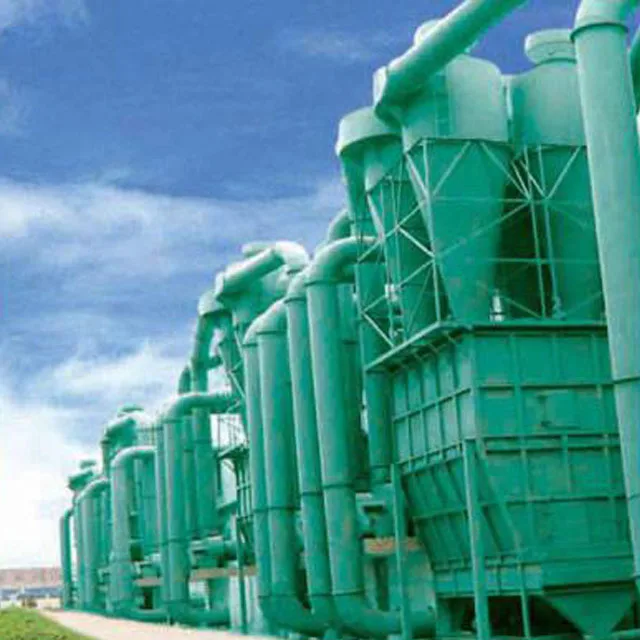

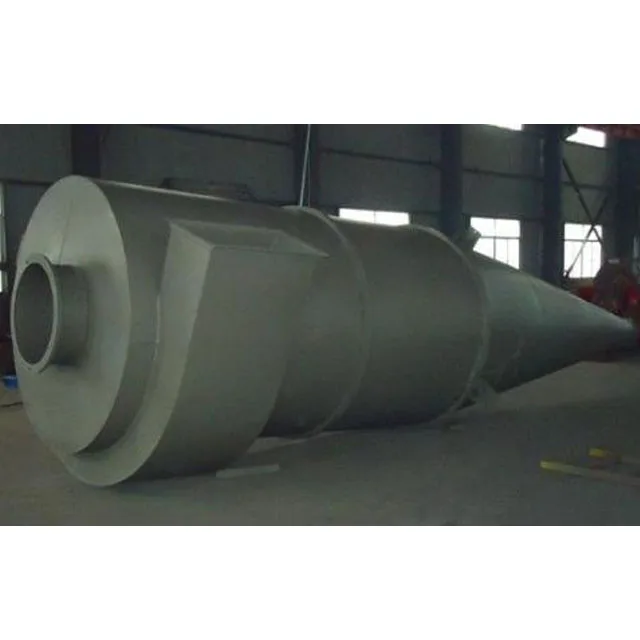

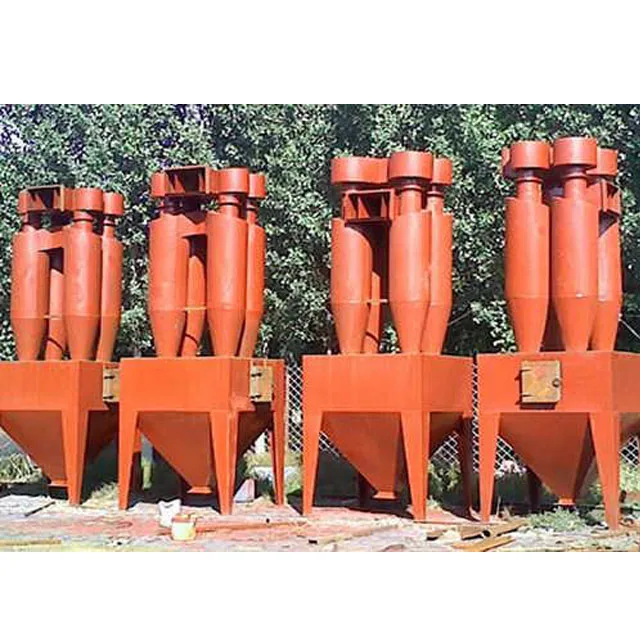

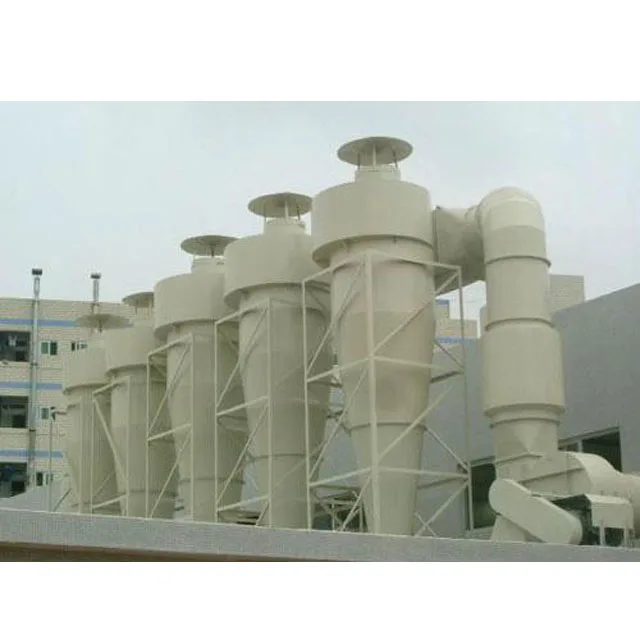

Supply Best Price Cyclone Dust Separator Collector are often employed as an Initial Stage Collector to lighten heavy dusts loads before being sent to a Primary Stage Fabric Collector. By removing coarse particles from the gas stream, and allowing later stage Fabric Collectors to solely remove finer particles, these collectors increase the efficiency and service life of Fabric Collectors (Bag houses) and their Filters. Thus protecting your larger and most costly investment from unnecessary wear and tear. It often named after the cyclone weather phenomenon, are large funnel shaped sheet metal tubes connected to ducts often used in woodshops, machine shops, manufacturing plants, and powder processing plants. Dust and debris are sucked in at the top. Air containing fine dust blows out of the other side of the top, while chips and large dust particles fall out of the bottom into a drum or bin. Dusty exhaust air is either blown outside or filtered again using media filtration.
Features
As the dirty air enters the cyclone dust collector, it is forced into a swirling movement. This results in a centrifugal force acting on the dust particles suspended in the air stream. The particles, denser than the air, are forced to move outwards, towards the cyclone dust collector wall. They then fall downwards, towards the dust exit. The clean air is eventually directed towards the centre of the cyclone and leaves through the gas exit.
Cyclone dust collector efficiency is a function of the physical parameters of the particles and the design parameters of the unit. Cyclone efficiency increases with:
1. Coarse particle size distribution
2. Higher products specific gravity
3. Lower gas density
4. Smaller outlet diameter. An increase in pressure drop also results.
Characteristic
TheSupply Best Price Cyclone Dust Separator Collector hasn't any moving parts. It's conenient for manufacture and management. With the same air volume, The cyclone collector is more smaller size, and the price is more cheaper. As the second dedusting and matched with bag filter, it can be installed vertically, also can be installed in a horizontal. So, it is easy to install and applicate. The cyclone collector efficiency of resistance is not affected for many sets of cylcone dollector in multiple using when processing the large dust gas air volume.
Technical data
Packaging & Shipping
1.International export standard packing of Supply Best Price Cyclone Dust Separator Collector
2.small parts are woodened box package 3.main engine nude,container,or customer'requirement
Company Information
Henan Zoomjo Mining Machinery Manufacturing Co., Ltd, as a joint-stock enterprise, is focusing on the production of large-sized mining machinery including ball mill, rotary kiln, etc. Located in jiaozuo city, a industry city with a long history for large equipment and machinery manufacturing, Zoomjo is becoming more and more connected to the world. For more details, please refer to our website: www.zoomjomac.com
FAQ2
Q1.How long is the warrenty of your equipments? The warranty period of our equipments is one year. Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service. What minerals are you separating? What's the maximum size of your raw minerals? How much capacity do you need per hour for your project? Q3.Can you test our samples?Do you provide beneficiation flow chart? Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. Q4. If I need the complete crushing plant can you help us to build it? A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Inquiry
Please fill in your need products and your messageand do not forget mailand/or phone if you like to be contacted.
We are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
What is theraw material do you want to process?
What is thecapacity per hour do you need?
What is theraw material input size?
What is theoutput size of your product?
I hope you can tell me these details, i will give you the best quotation ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!
