15.6 inch outdoor upward industrial portable computer case with 2 speakers supports aluminum magnesium alloy chassis
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62320418654):
Product Overview
Description
15.6” Upward Portable Industrial Computer
Product Description
Main feature:
« 15.6'' Upward Portable Industrial Computer
« Aluminum-Magnesium Alloy Chassis
« 15.6'' TFT LED, with 1920 x 1080 resolution
« Integrated with 88 keys keyboard, touch pad
« Support 2.5'' HDD, SSD driver
« Support 4 x expansion slots ( 1x PCIE-16X slots /1x PCIE-4X slots /2x PCI slots )
« WIFI/Touch Optional
Introduction:
« PIP-617UD is a upward industrial portable computer, which offers at most 4 full-size expansion slots and integrates with high brightness LED, Aluminum-Magnesium Alloy chassis.
« It can adapt to any complicated environment and it also offers cost-effectiveness, permanent, multi-functional standard platform for portable computers.
Specifications:
Material | Industrial dual Al-alloy |
Motherboard | Supports ATX Motherboard Installation Space left(Optional) |
CPU | Supports Intel Sandy/Ivy Bridge or Conroe i7/i5/I3 LGA1155 Series(Optional) |
Chipset | Supports Intel B75 Chipset (Optional) |
Display | 15.6″ TFT LED ,300nits(Optional) |
Resolution | 1600 x 900(1920 x 1080 Optional) |
Memory | Supports Max 16GB(Optional) |
Storage | SATA SSD/HDD(Optional) |
Speaker | 2*speaker, 2W(Optional) |
Expansion slot | Supports 4 x PCI/PCIE expansion slot(Optional) |
Fan | 1* Fan |
DVD±RW | Supported. |
Hard/Disc driver | 1*3.5'' HDD, 1*2.5"HDD Driver |
Keyboard | Ultrathin 88keys |
Touch pad | Supported |
In Front Control | 1 x Power button,1 x Lock button |
Operating System | WES7-WS7P, Win7 pro, Win 8 etc,Linux |
Mechanical Shock | 10G@11ms 30G@11ms |
Vibration | 0.4Grms(10~500Hz) 1.12Grms(10~500Hz) |
Power Supply | DC 12V or DC 19-24V Power input |
Dimension | 428*209*318.1mm |
Net Weight | 6kg |
Gross Weight | 12kg |
Package | 480*278*446mm |
Operating temp | -10°C ~+60°C |
Storage temp | -20°C ~+70°C |
Humidity | 10~90% condensing 5~95% non- condensing |
Certifications | CE, FCC |
Odering information:
PIP-617UD | 15.6''Industrial Upward portable Computer, w/15.6''TFT LED/Keyboard/Touch pad, w/ATX Motherboard, w/CPU LGA1155 quad core 2.0Ghz, w/Memory 16GB/500GB HDD, support 200W ATX power supply. |

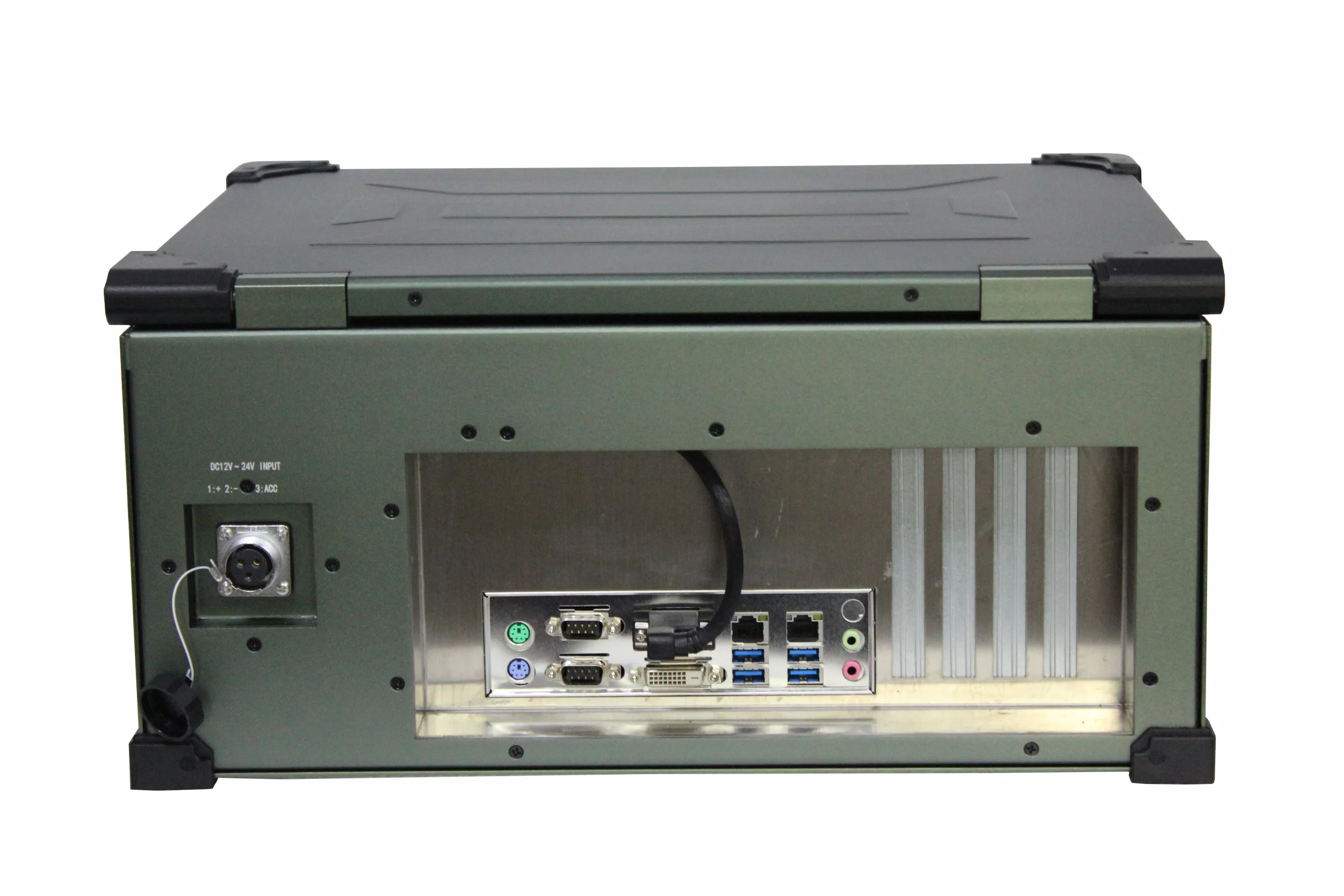

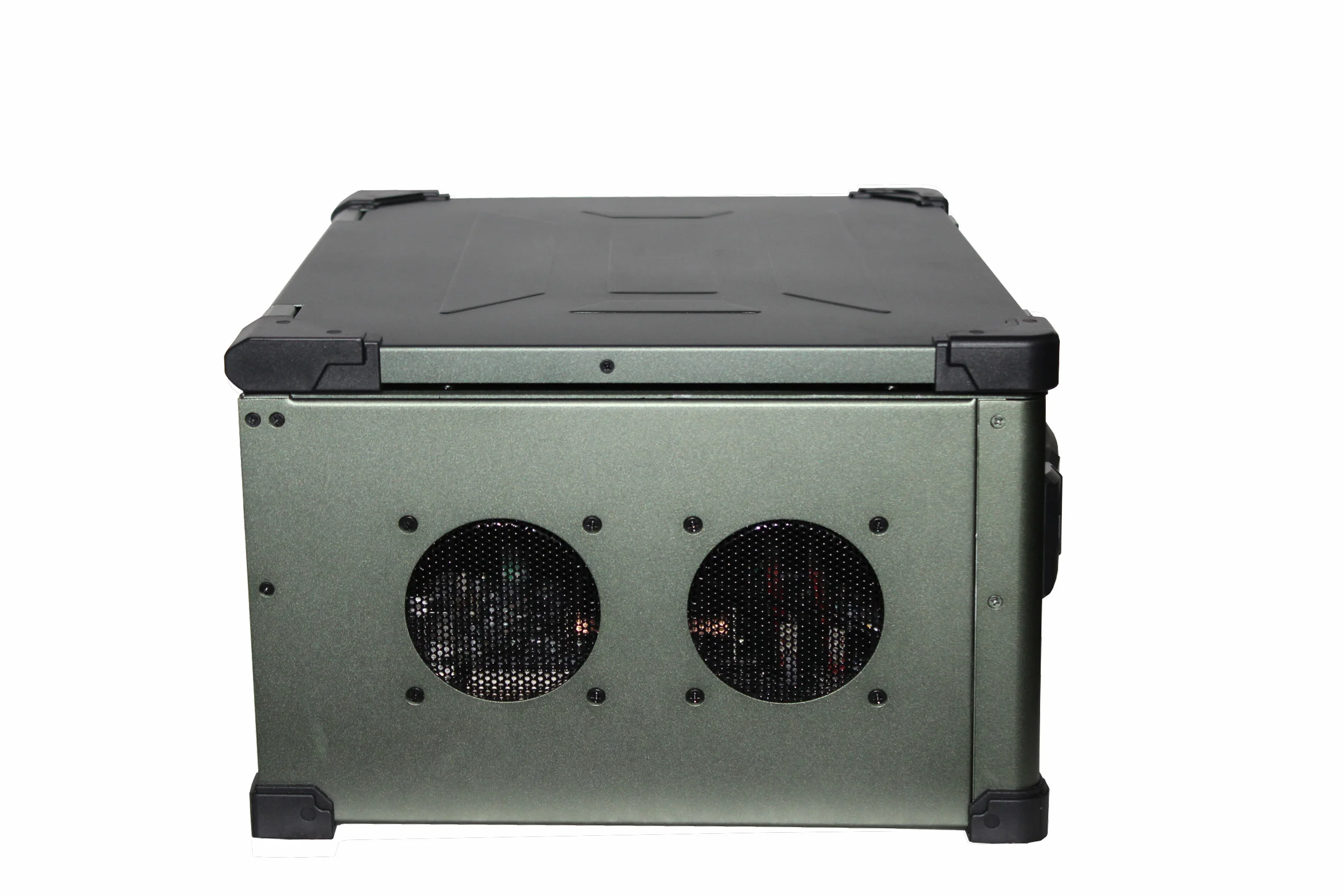

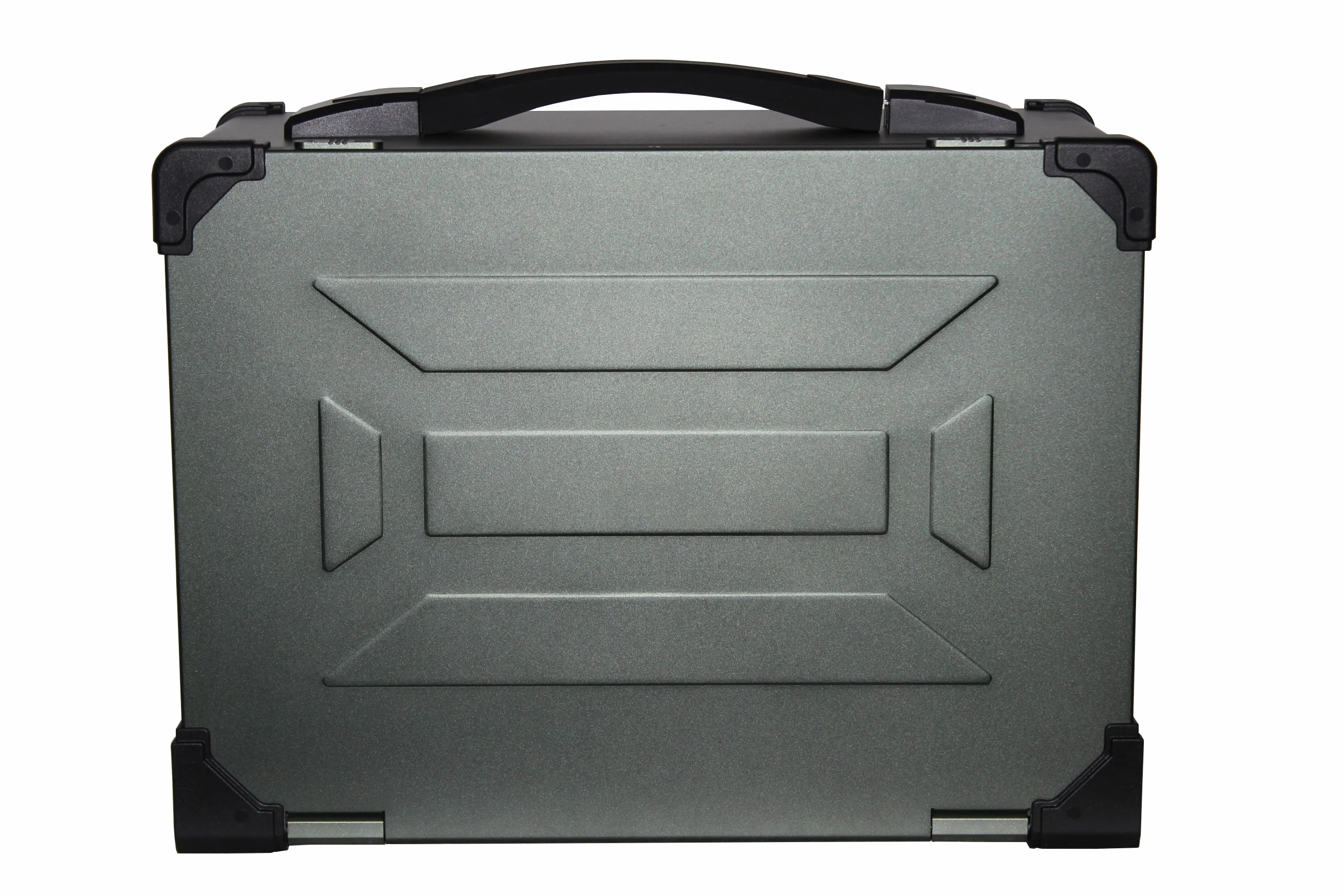

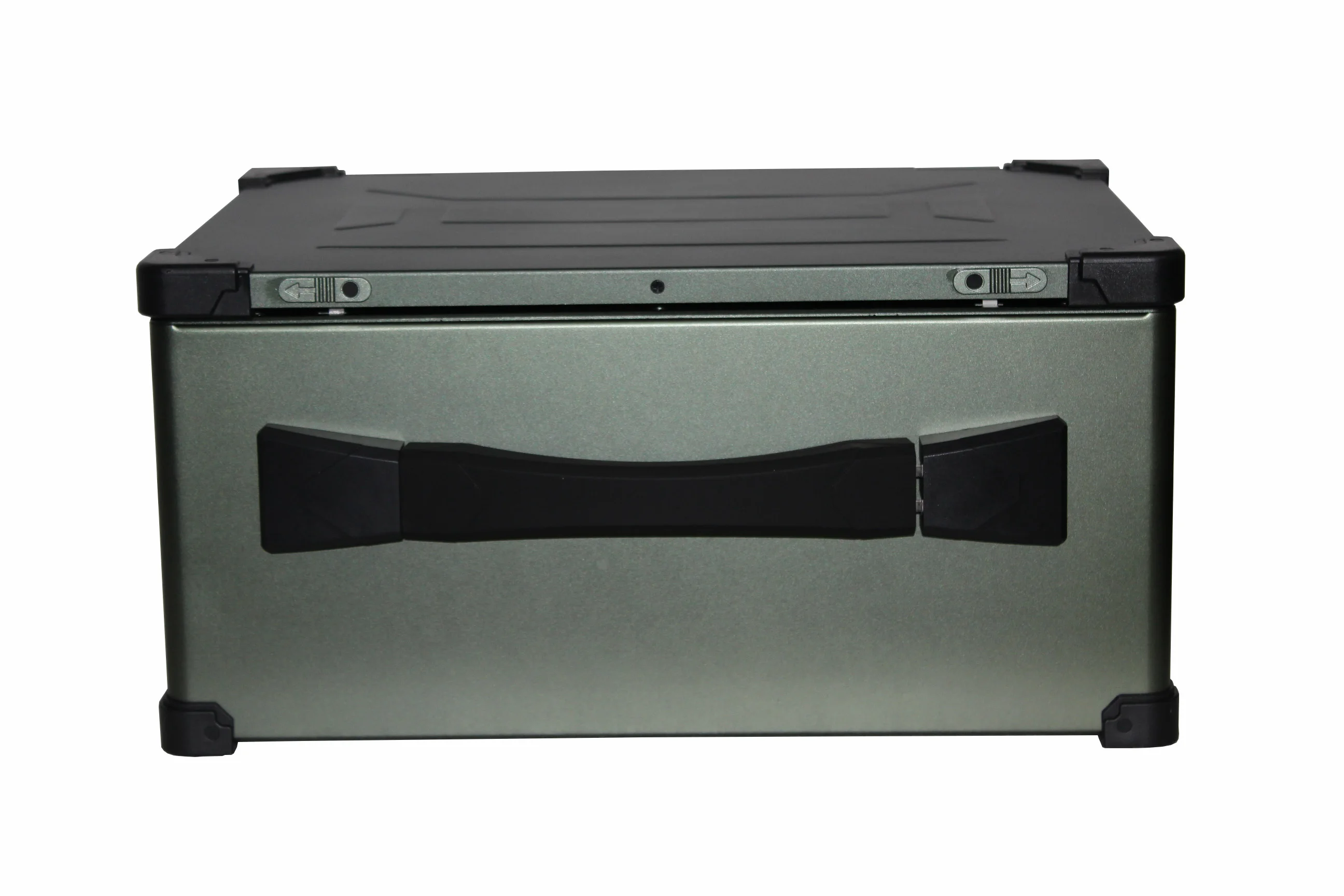

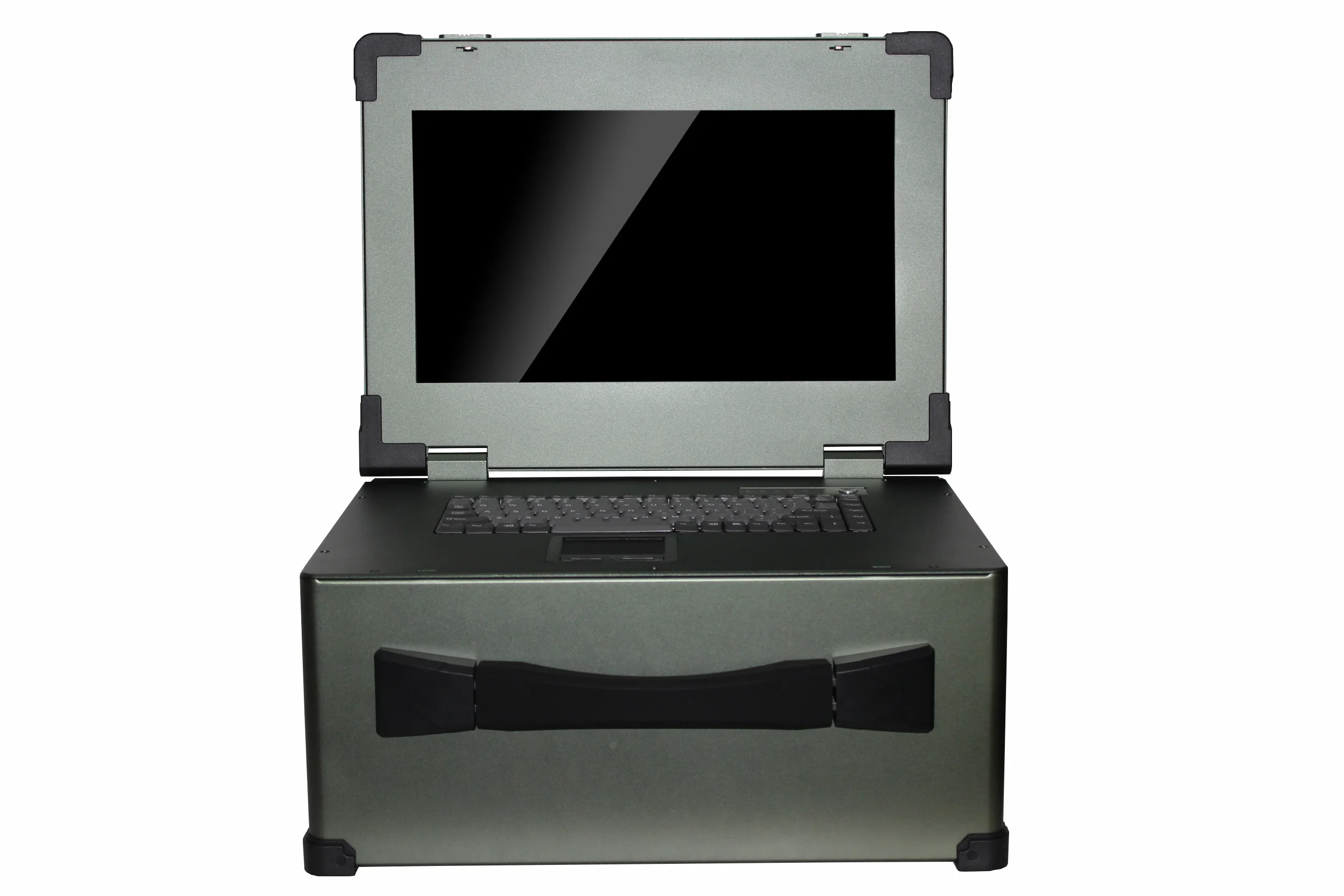

Product pictures:
More products:
Company Information
Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.
Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.
We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.
In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.
PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.
Our Services
Packaging & Shipping
Packaging: Duoble package 424mm(L) 348mm(W) 80mm(H) ;570mm(L) 430mm(W) 173mm(H).
Delivery time: Within 1day after order and samples are confirmed.
