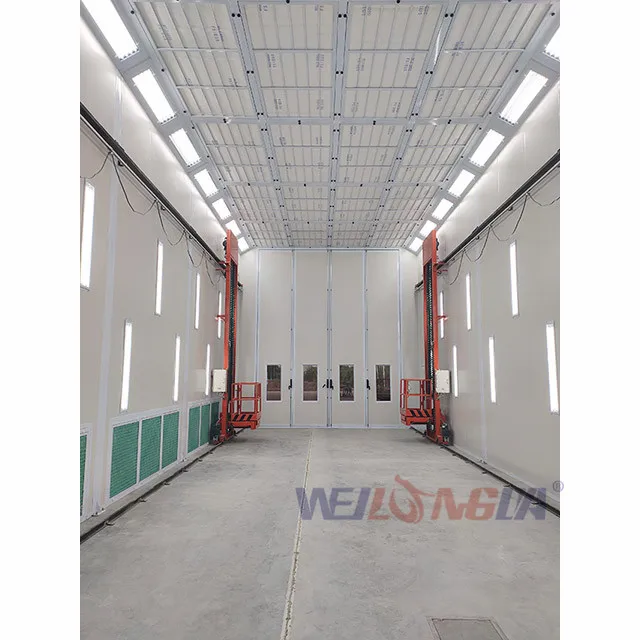

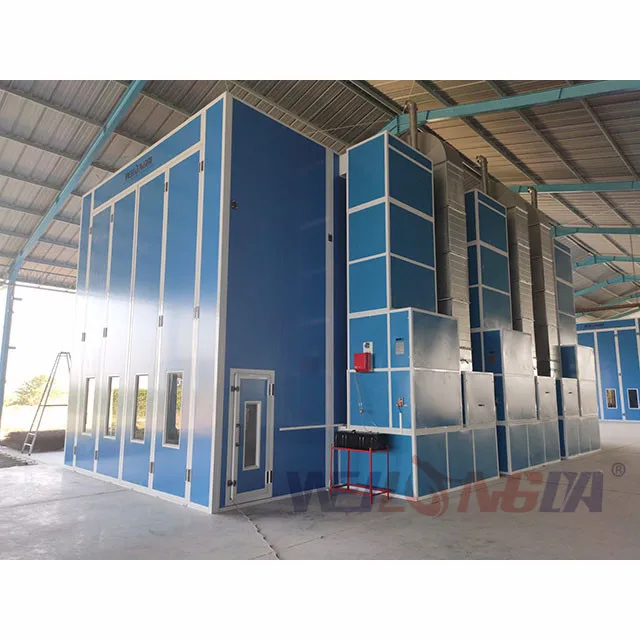

WLD 15000 Big Truck And Bus Paint Cabin

External Size:(mm)

15150x8850x5600

 Front Door:(mm)

 Aluminum Frame

 4000(w)x4800(h)

 Internal Size:(mm)

15000x5000x4800

Total Power:(kw)

47

Cabin System

Wallboard

Sandwich style EPS (epispastics polystyrene) 75mm thickness, Colorful steel skin boards 0.476mm thickness .Galvanized steel roof panel.

Door

4pieces of front doors with special rigid frame.

Air Circulation System

Air Intake system

2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper.

Air Exhaust system

1×5.5kw exhaust fan ,Total 3units of 5.5kw exhaust fan Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard

Air Flow: 24000×3m3/h. Air Speed: 0.3-0.5m/s.

Air Purification System

Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

Heating System

Each set consist of  1unit Italy Riello G20 diesel hurner,200000Kcal/h. Total 3 units of burners ,600000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

LED Lighting System

Ceiling light has 18units×4pieces of 15w lamps .Side light has 22units×2pieces of 15w lamps .Total 116pieces of 15w lamps.900 Lux.
