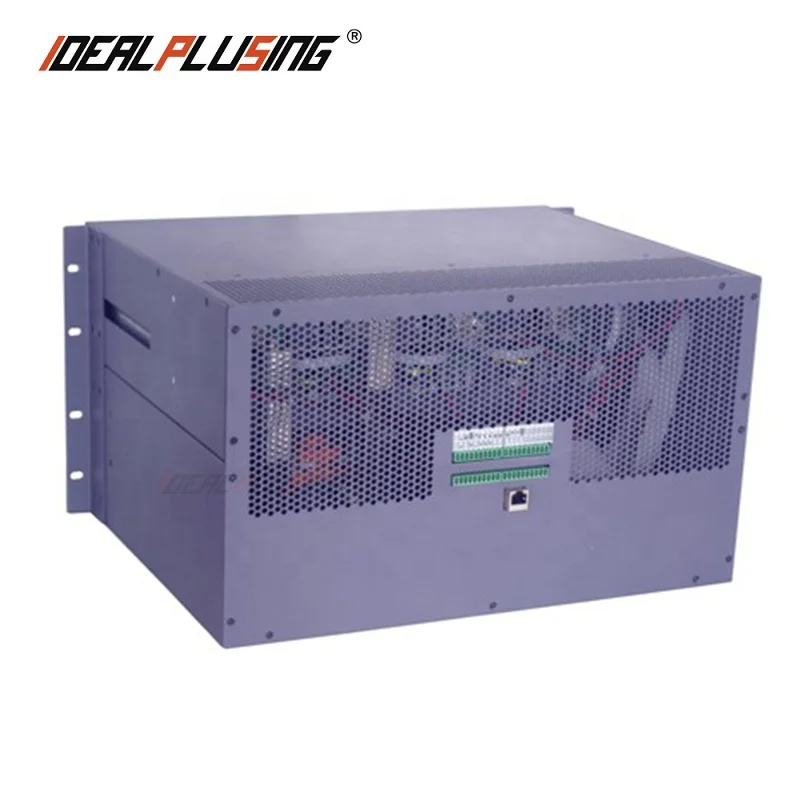

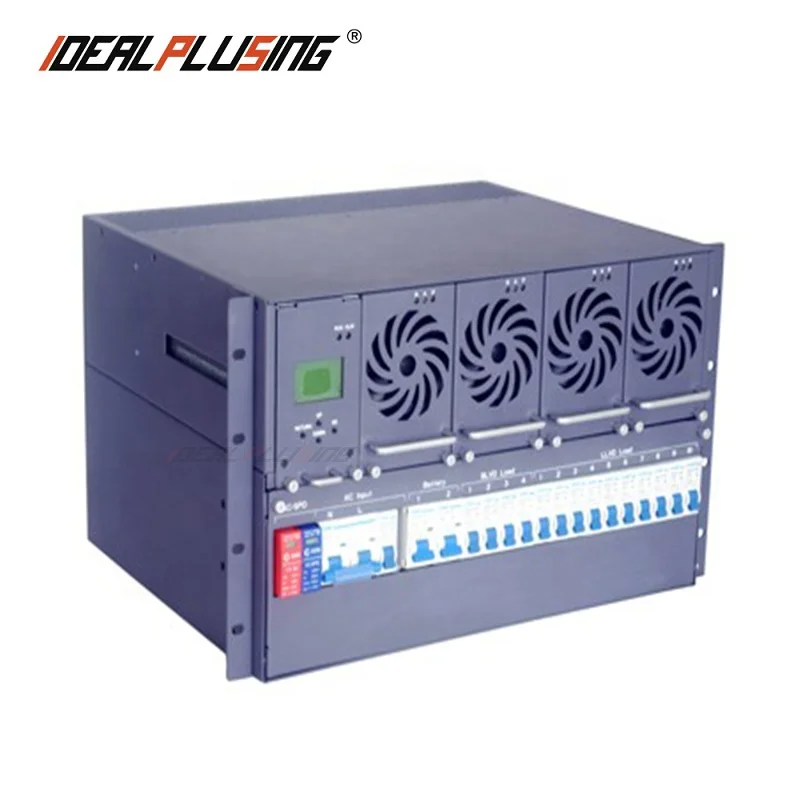

Telecom System 220v to 48v 200a 6U dc power supply
- Category: >>>
- Supplier: Guangzhou Idealplusing Information Technology Co. Ltd.
Share on (62320536251):
Product Overview
Description
Specification
Product Name | 48v 200a dc power supply |
Model | IPS-RS48200 |
Rated capacity | 200A/9600W |
AC INPUT | |
AC INPUT(AC) | 220Vac |
AC INPUT RANGE | 90Vac~175Vac/176Vac~280Vac |
MAX INPUT CURRENT | 58.7A |
Input frequency | 45-66 Hz |
Power Factor | ≥0.98 |
Conversion efficiency | 92% |
DC OUTPUT | |
Output Rated voltage | 48V / 53.5V( Connect battery) |
Output voltage range | Float:42V-59V DC / Equal:48V-57.6V DC |
Rated output current | 200A |
Maximum output power | 9600W |
Load shunt | 10 channel load output |
Battery shunt | 2 channel battery output |
Battery LVD | 34A *6 |
Connection mode | Front connection |
Rectifier module | IPS- RM 4850*4pcs |
Monitor module | 1pcs |
Multinomial function | RS485 communication interface |
Autonomous current sharing | |
Parallel connection is realized by current sharing assembly | |
Remote control/ switch machine | |
Hot swap | |
Dormancy energy saving | |
Features Protection features | Input overvoltage protection, output overvoltage protection, output overcurrent protection,Over temperature and low temperature protection, short circuit protection, sleep energy saving function. |
Operating environment | |
Operating temperature | -40℃ - +70℃ |
Humidity | 95% non-condensing |
Atmospheric pressure | 70 -106 KPa |
Altitude | 0 - 3000M |
Cooling method | Fan forced cooling |
Safety characteristics | Input - Output 3000Vdc / 10mA / 1min No flash, no breakdown |
Input - Output 1500Vdc / 10mA / 1min No flash, no breakdown | |
Output - Case 700Vdc / 10mA / 1min No flash, no breakdown | |
Weight (net weight/gross weight) Kg | 23.5KG / 28KG |
Machine size | 482mm(W)×266mm(H)×340mm(D) |
Any further request for 48v 200a dc power supply, please contact IDEALPLUSING.
4 core strengths
Customize Range
Regard as 48v 200a dc power supply. we can customize as following
(1) Input: 90Vac~175Vac/176Vac~280Vac, 45-65HZ.
(2) Output: 24V/48VDC, 10A/15A/20A/25A/30A/50A/60A/75A/120A/150A/200A/450A......
Further information request for industrial power supply, please contact with IDEALPLUSING Sale team.
FAQ
Q1. Can I have a sample order of 48v 200a dc power supply?
A: Yes, sample order is acceptable to test and check quality for the first cooperation
Q2. What about the lead time?
A: Most of model in the stock , sample lead time after receive payment 1-3 working days
Q3. Do you have any MOQ limit?
A: Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print buyer logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 1-year warranty for all power supply.
