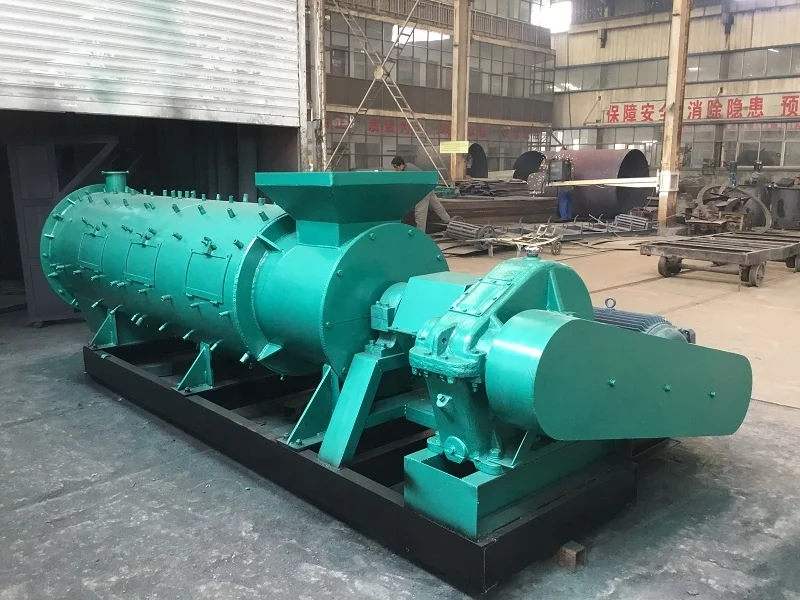

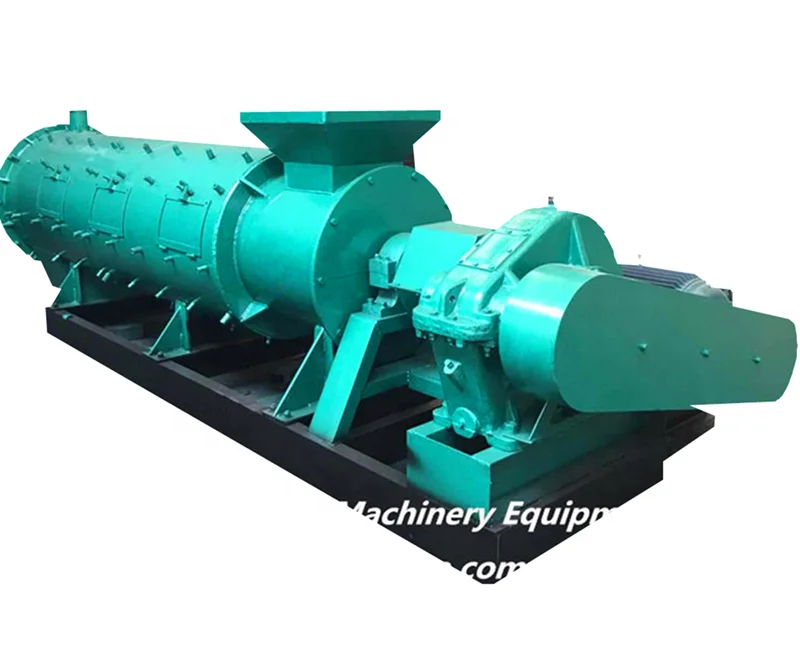

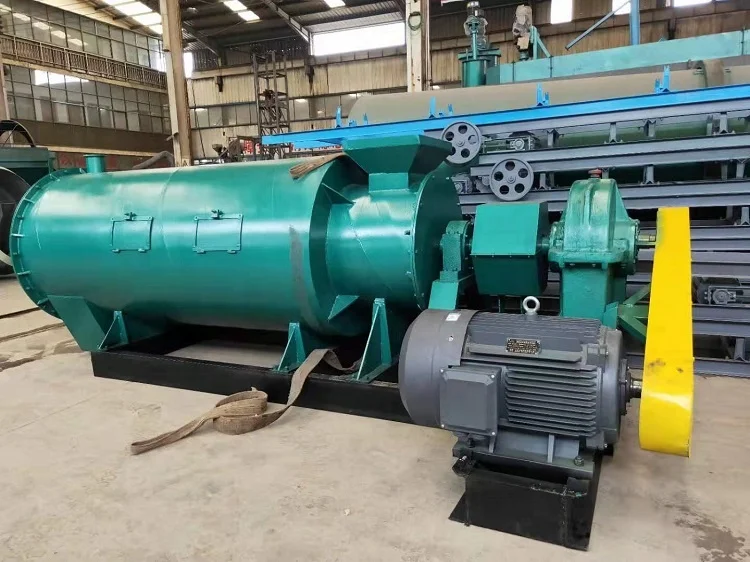

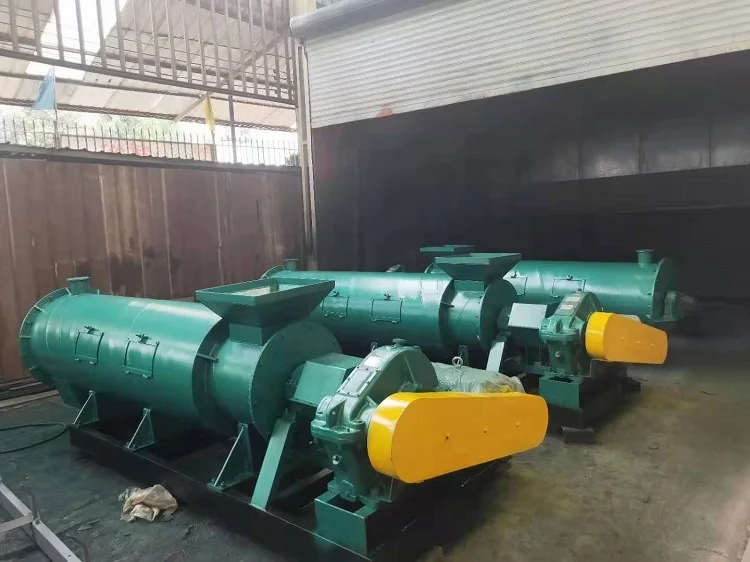

China Top Brand Organic Fertilizer Manufacturing Plant Production Line
plant safe fertilizer is widely applied to produce compound fertilizer and the capacity ranges from 10000-200000tons/year. It can granulate NPK fertilizer, NP, ANP, DAP, MAP, CAN, SSP and other materials into compound fertilizer particles in one processing line. This equipment can specially used for manufacturing compound fertilizers with different concentrations and types, such as organic fertilizers, inorganic fertilizers, biological fertilizers, and magnetic fertilizers, etc. It is mainly used for producing spherical particles with a diameter ranging from 1mm to 3mm.
Advantages of organic fertilizer making production line
1. Equipped with advanced fertilizer manufacturing technique, this fertilizer production line can finish fertilizer granulation in one process.
3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.
4. Wide adaptability of raw materials, suitable for compound fertilizer, pharmaceuticals, chemicals, fodder and so on.
5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy consumption, long service lifespan, easy maintenance and operation, etc.
6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.
7. Adjustable capacity according to customers’ requirements.
Ii. Main Technical parameters
(Type)
Motor Power Rate
(kw)
Output
(kg/h)
Drum Dia
(mm)
Granule Size
(mm)
Total Machine Weight
(kg/unit)
Total Machine Size
(mm)
JCZL-60
30
1000
600
3-4
3500
JCZL-80
45
2000
800
3-4
4000
JCZL-100
75
3000
1000
3-4
4500
JCZL-120
110
4000
1200
3-4
5000
JCZL-150
132
5000
1500
3-4
7000

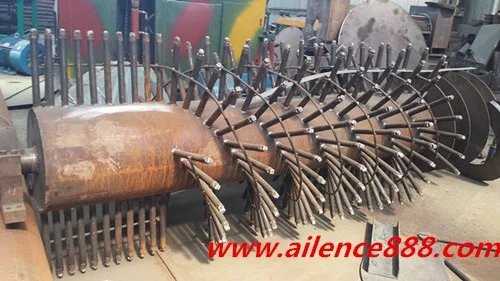

Main Components of organic fertilizer making production line
Working Flowchart of organic fertilizer making production line
The process technology of N-P-K fertilizers is advanced and reliable. According to the compatibility and crossability of the three raw materials, N-P-K compound fertilizer in different percentage composition can be manufactured applicable for different requirements of soils and crops.
1. Firstly, the raw materials are put into mixer in strict accordance with the technical requirements of each raw material quantity. Then the conveying belt sends the materials to crushing machine.
2. Then, the crusher machine smashes lump materials into small ones that the fineness meets the required for granulation. Then the conveying belt sends the materials to rotary drum granulator machine.
3. During granulating, there is a water pump to offer gas and makes fertilizer particles forming easily. The solid fertilizer powder after granulating will rise by the rotation of the cylinder and scroll down under the effect of gravity. At the same time, according to the raw material quantity, add a certain proportion adhesives for granulation. After several times repetition of the same rotation, fertilizer materials gradually form. Next the conveying belt sends the materials to rotary drum drying machine and cooling machine.
4. There are also draught fans to supply hot air and cold air to drying machine and cooling machine respectively. After drying and cooling is screening process. the coating machine can beautify the materials and keep the effect of the finished product .
5. In the process of screening, the qualified materials can be sent to packaging machine by bucket elevator, while others are conveyed back to crusher or granulator to be re-processed.
How to Produce the High Nitrogen Compound Fertilizer?
To produce high nitrogen compound fertilizer, one important equipment is needed in the granulating process: the spraying system. The melting tank melt the urea and then spray the melted liquid into the granulating machine so that it will mix with powder phosphate fertilizer, potash fertilizer and other nitrogen fertilizer. Then with the help of the granulator, the liquid and other raw materials will be mixed and granulated. This production technology is used to produce compound fertilizer or complex fertilizer with high nitrogen content from 25%-45%.
Our service
As a 30-year professional manufacturer, our target is to provide our clients with high-quality products and service. Also we promise with our great reliability, devoted responsibility, professional services and honorable credibility to meet your requirements in all aspects. Skillful after-sale-service specialists are available for all customers on site. We here highly appreciate any opportunity to cooperate with you
Pre-Sales Service
* Device model choice. * Design and manufacture products according to the special requirements of customers. * Train technicians for customers. * Send engineers and technicians to the customers to plan the site and design the best process and plan free of charge.After-Sales Service
* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. * Create a customer profile and track it
