P6SMB6.8CA P6SMB6.8A 6V8C 6V8A VR 5.8 VBR 6.45 IR(uA) 800 IPP 58.1 VC 10.5 SMB DO 214AA Bi Uni SMD TVS diode P6SMB 600W Series

Product Overview

Description

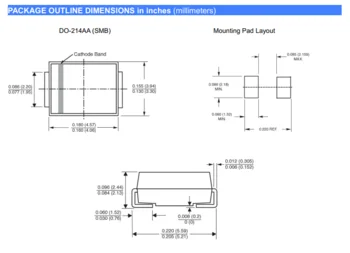

•  Case: DO-214AA/SMB
• For surface mounted applications in order to optimize board space.
• Polarity: Color band denoted positive end (cathode) except Bidirectional.
• Typical failure mode is short from over-specified voltage or current
• Fast response time: typically less than 1.0ps from 0 Volts to V_B min.
• High Temperature soldering:260°C/40 seconds at terminals.

Electrical Characteristics (@ T_A = 25°C Unless Otherwise Noted)

Parameter	Symbol	Value	Unit
Minimum Peak Pulse Power Dissipation (T  = 1 ms) (note 1)	PPK	600	Watts
Thermal Resistance Junction- to- Ambient	RTHJ-A	220	°C/W
Thermal Resistance Junction- to- Lead	RTHJ-L	100	°C/W
Operating Temperature Range	TJ	-55 to +150	°C
Storage Temperature Range	TSTG	-55 to +150	°C

Notes:

1. Non-repetitive current pulse, per Fig. 4 and derated above T_A=25℃ per Fig. 3.
