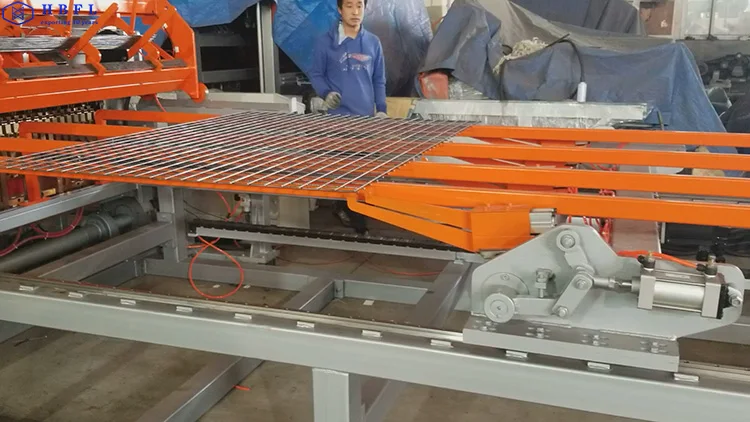

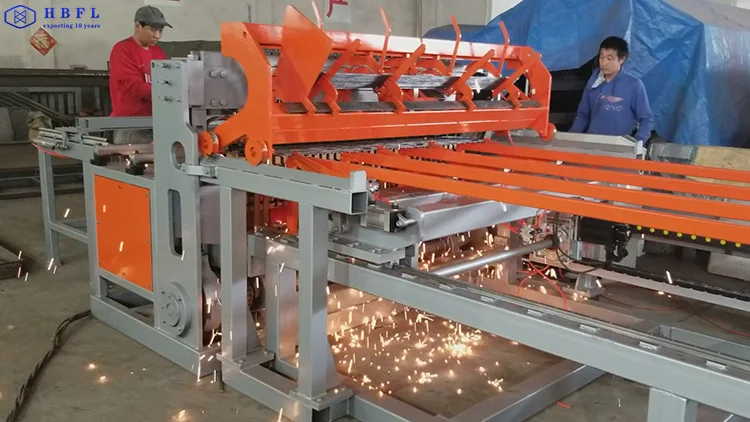

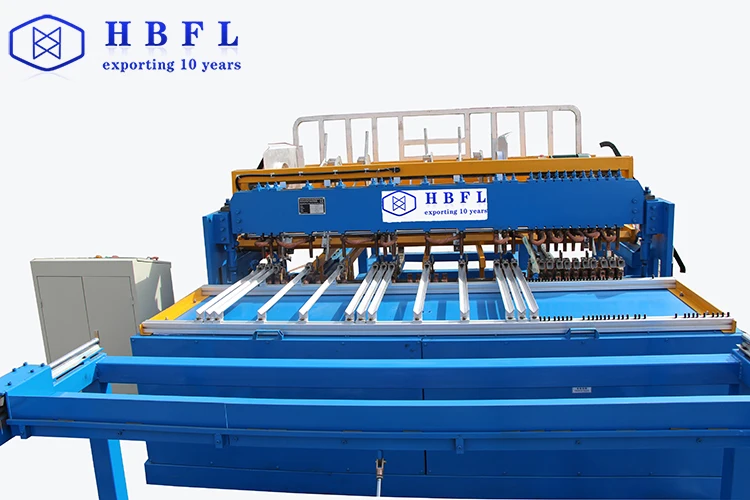

FANLIAN 5-12mm Wire Automatic Steel Bar Mesh/Reinforcing Mesh Welding Machine(ISO9001)
Product Description
Machine advantage :
The machine adopts synchronous control technology, the welding time and sub-control welding are composed of PLC digital programming system, the input panel is touch screen or key, the operation is more intelligent and reasonable, and has the characteristics of first pressing and second welding.The biggest advantage of this machine is: can appear on the same mesh weft and weft between different sizes of mesh.The welder adopts a new type of high efficiency transformer, which can be divided into eight levels to enlarge the scope of welding wire diameter.Automatic push wire, automatic feed, easy to operate, high flexibility, the output is several times of manual single-spot welding machine.
Machine usage:

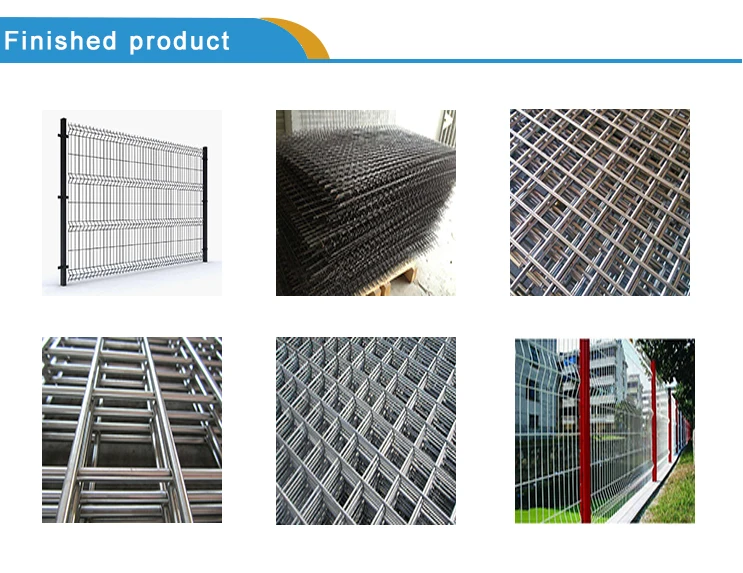

Guardrail network (highway, railway, weishan), fence network, floor casting roof network.
Mesh opening | 50-300mm(adjustable) |
Wire diameter | 2.5-6mm |
Mesh width | 2000mm |
Quantity of welding points | 41 |
Wire feeding way | Line wire :pre straight and cut ,manual feeding |
Cross wire:pre straight and cut,automatic feeding | |
Welding speed | 70-80times/min |
voltage | 380V 3P 50HZ |
Machine size | 6500×4500×1900mm |
Max distance of the outside transformer | 150m |
Main motor | 5.5KW(frequency) |
Press type | Mechanical pressure |
Welding type | Silicon controlled synchronous control |
External transformer power | 150-200KVA |
Weight | 5.5T |
transformer | 150KVA×5 |

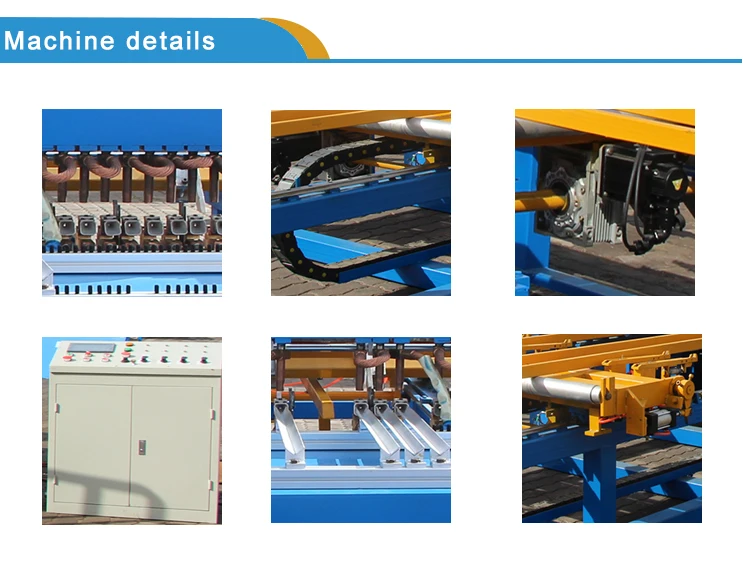

Ⅱ components

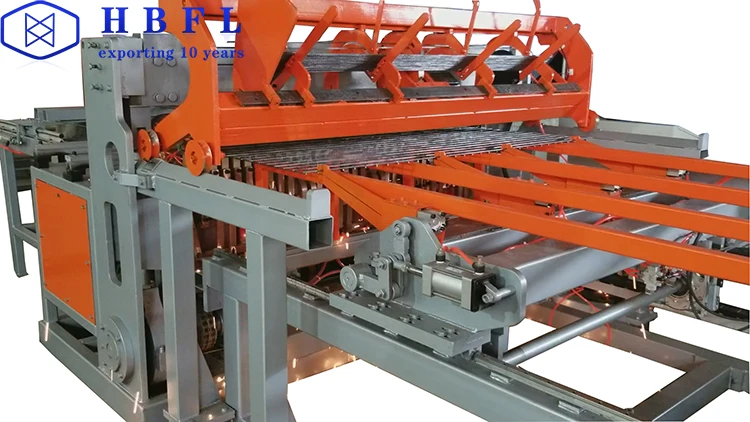

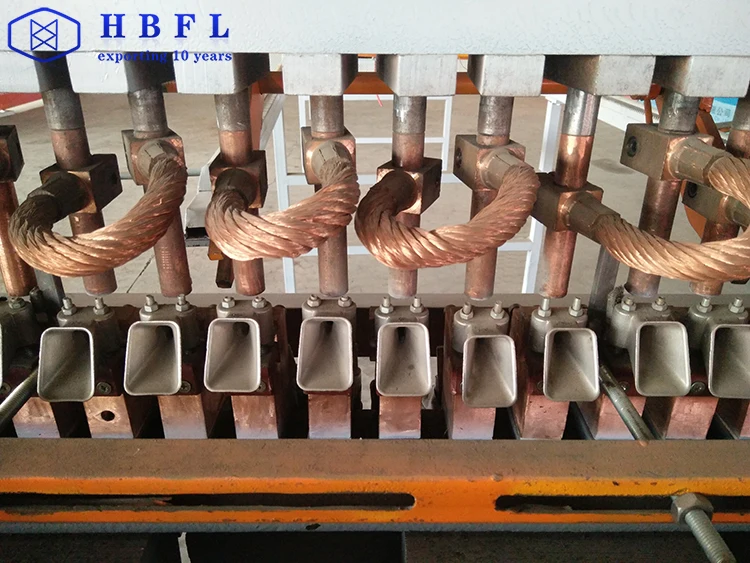

Main welding machine | 1set |
Cross wire feeding system | 1set |
Control cabinet | 1set |

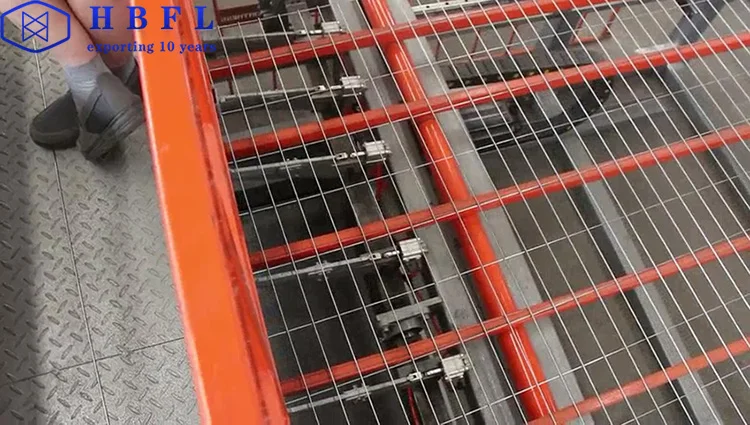

Servo motor mesh pulling system | 1set |
Company Profile
Packaging and logist
Q1:In. order to offer you an accurate price of the machine, pls confirm the following points?
A1:Wire diameter range/ mesh size rang/panel width range/panel length range/your usage of the finished panel.
Q2:delivery time?
A2:In 30 days after get your deposit.
Q3:will you test the machine before loading?
A3:Yes we will test the machine before loading .
Q4:can you customized the machine?
A4:Yes we can.
A5:if you have more question, pls come to me,I will try my best to support you.
