High Temperature 1700 Muffle Furnace Mosi2 Heating Elements
Product Description
General Description:
1700 Muffle Furnace Heating Elements is a kind of resistance heating element basically made of high pure Molybdenum Disilicide. In oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of MoSi2 element owing to the high temperature combustion, which prevent MoSi2 from continuously oxidizing. In oxidizing atmosphere, its Max temperature can reach 1800.C, and its applicable temperature is 700-1700.C(can’t be used in 400-700.C for a long time, otherwise, it will be powdered and damaged due to strong oxidizing action in low temperature).
It can be widely used in such applications as heating elements of sintering and heat treatment of ceramics, magnet, glass, metallurgy, refactory,etc.

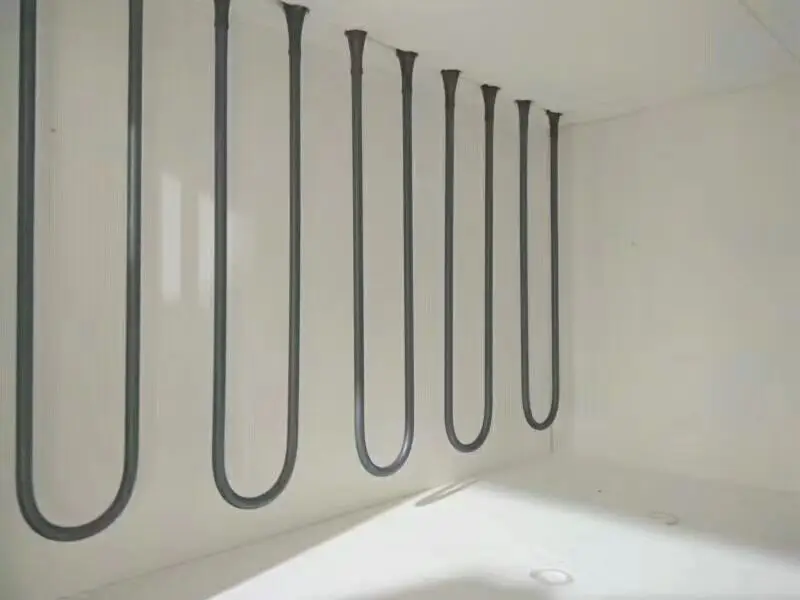

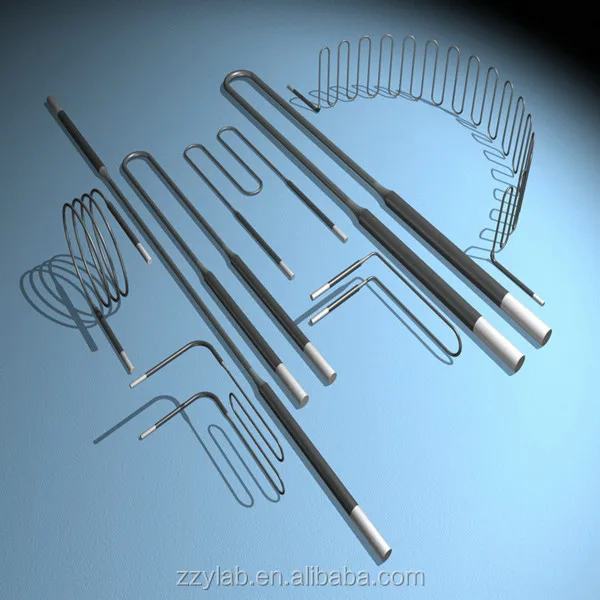

The most common shape are U&W. They are widely used for industrial and laboratory furnaces.
Physics Characters of 1700 Muffle Furnace Heating Elements:
Volume Density | Bending Strength | Vickers Hardness | Porosity Rate | Water Absorption | Heating Elongation Rate |
5.5~5.6 g/cm3 | 15-25 kg/cm3 | (HV)570kg/mm2 | 7.4% | 1.2% | 4% |
Main Specification of 1700 Muffle Furnace Heating Elements:
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24 (furnace working temperature reach 1600C)
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24(furnace working temperature reach 1700C)

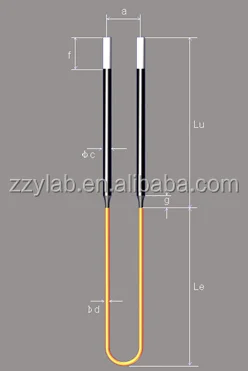

Note: When ordering, please indicate the following data:
D1=diameter of hot zone
D2= diameter of cold zone
Le=length of hot zone
Lu=length of cold zone
A=distance between two cold zones
Company Information
Our Professional Factory of 1700 Muffle Furnace Heating Elements:
Can be customized all kinds of sizes according to customer’s requirement.
Packaging & Shipping

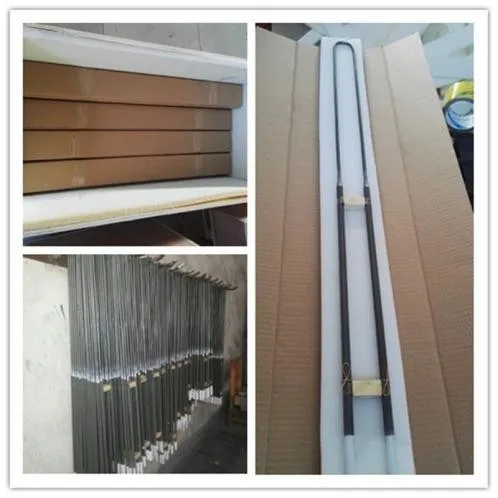

Packaging:
Standard wooden box with bubble bag and pearl cotton inside.
Shipping:
By sea: big dimension or large quantity or not urgent products, low price with a little long arrive time.
Usually within 11-45 days arrive.
By air: more than 100kgs or urgent products. Usually 7-10 days arrive, direct flight can arrive within 3-5 days.
By international express: such as FedEx/UPS/DHL/TNT/EMS or others. To door service is convenient and fast.
Usually 5-7 days arrive.
Also can arrange global shipment as clients’ requirement.
Our Services
l Professional team 24 hours online for any consulting support.
l Quick response with suitable solution and detailed quotation as clients’ requirement.
l Customized design is available.
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year (12 months) from the date of purchase. Within this period, we will, at its sole options, replace any components that fail in normal use.
Note:This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
