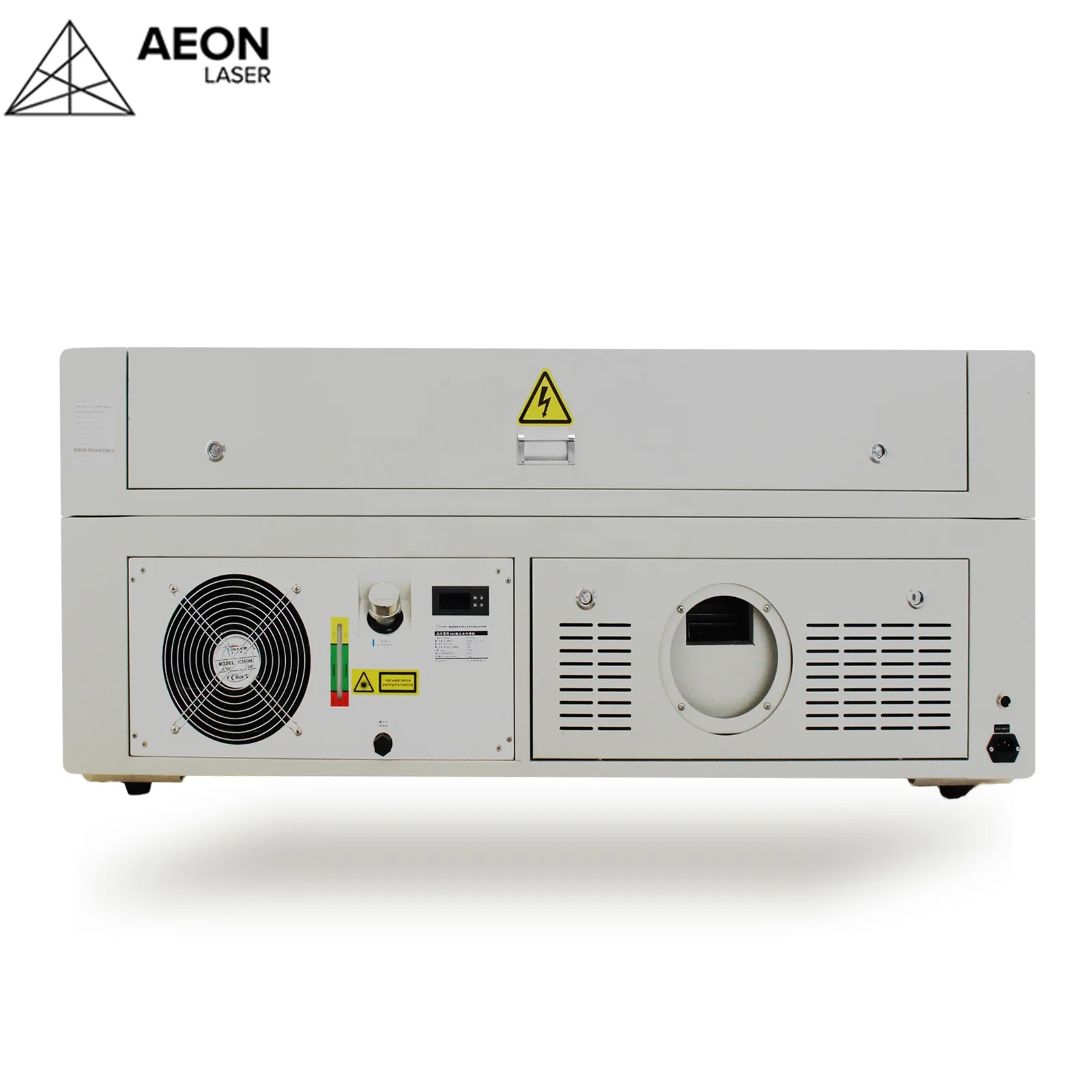

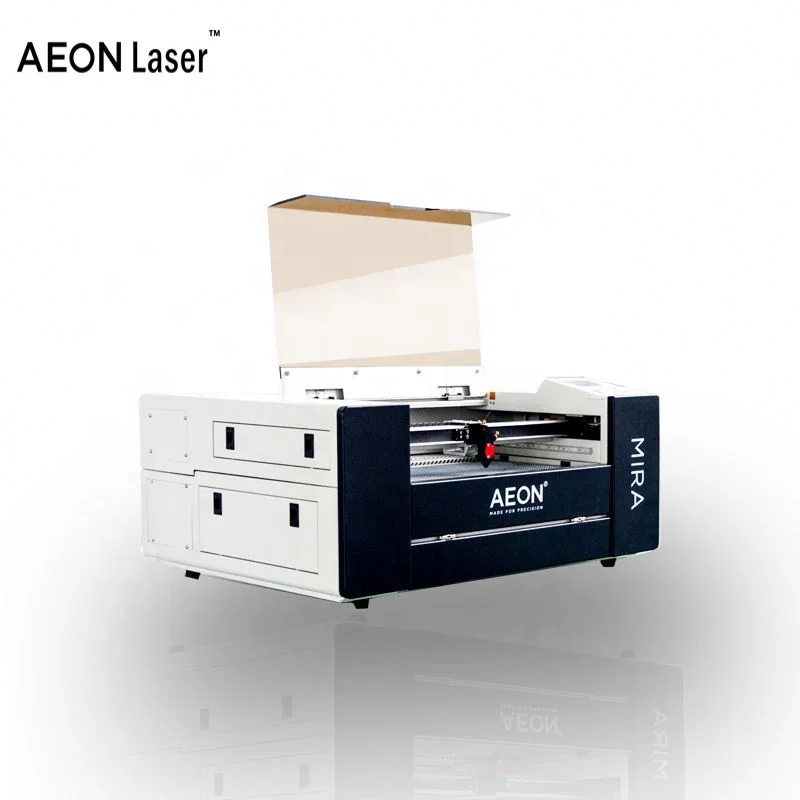

Aeon Laser Class 1 laser aeon Mira 7 cutting and engraving machine Desktop Mini engraver
- Category: Laser Cutting Machines >>>
- Supplier: Shanghai Pomelo Laser Technology Co. Ltd.
Share on (62321436397):
Product Overview
Description
Product Description
Technically & Beautifully Designed
MIRA series was designed and built on 10 years design experience, customer feedback and smart thinking.
When you need a premium machine but have limited space then you need a Mira Desktop Laser
Offering full functionality, sleek design and a sensible price it's the educational and DIY desirable desktop laser engraving machine.
Available in Glass, Metal tube options.

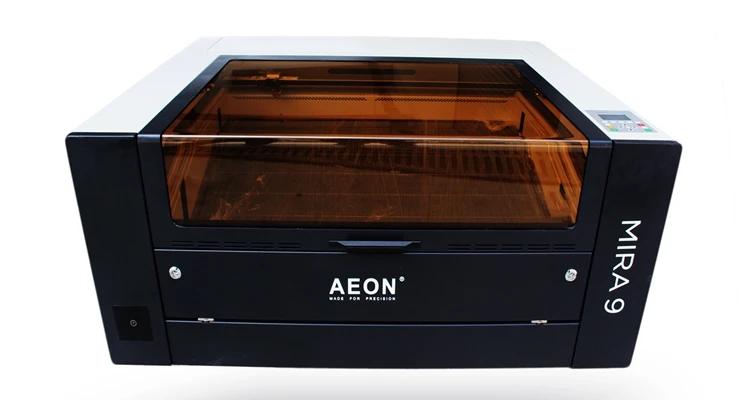

AEON CO2 mira 9 Laser Desk Type engraving cutting Machine For Desktop MDF wood acrylic | ||||||
Engraving speed | Engraving Speed | mm/sec. | 0~120000 | |||
Speed Acceleration | G | 1.8 | ||||
Cutting Speed | mm/sec. | 0~1000 | ||||
Main performance parameters | Laser Power | W | 40 | |||
Working Area | mm | 900*600 | ||||
Up and Down Range | mm | 200 | ||||
Control system | Controller | / | Ruida RDC6442 | |||
Software | / | RDWorks V8.1 | ||||
Formats | / | AI, CDR, AutoCAD files | ||||
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

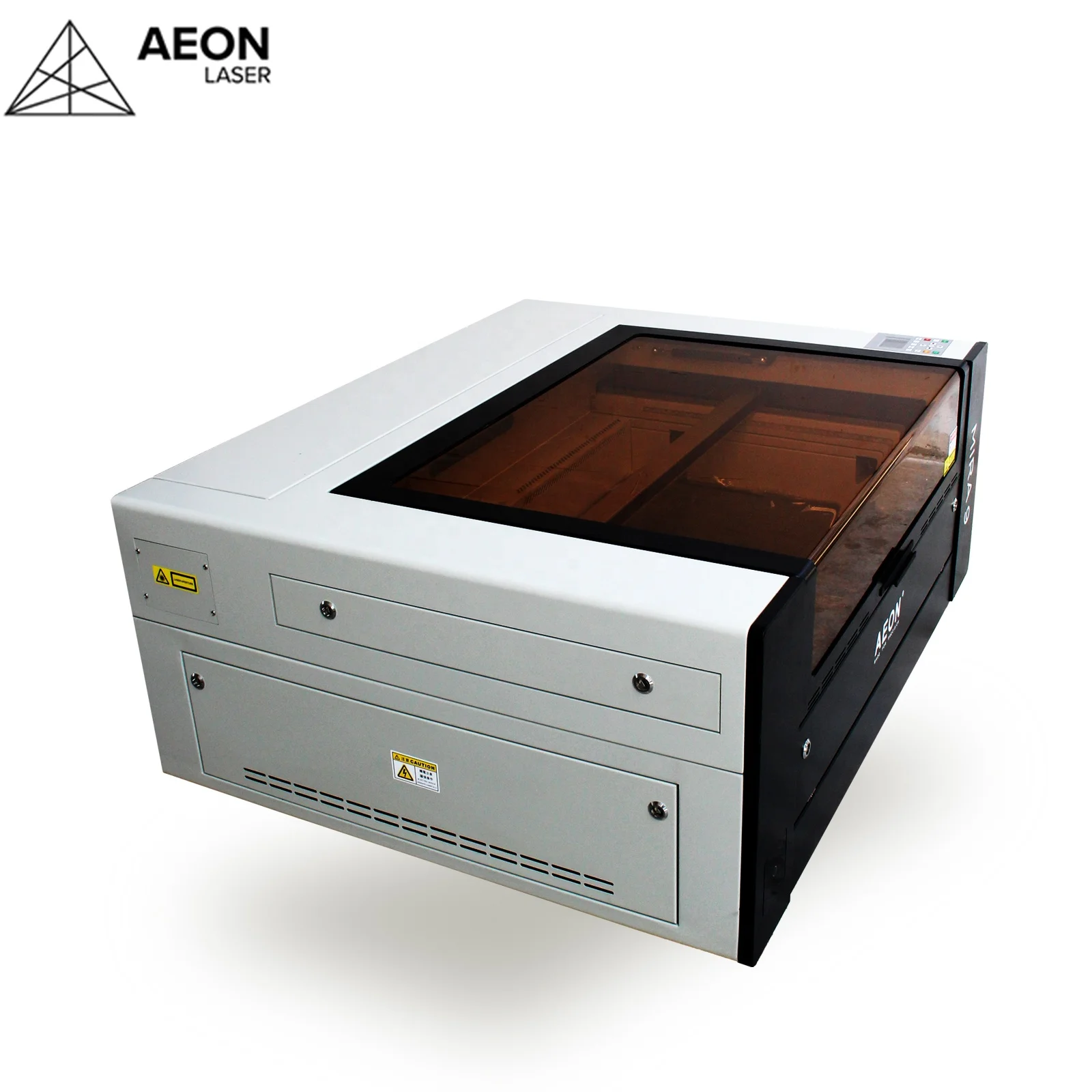

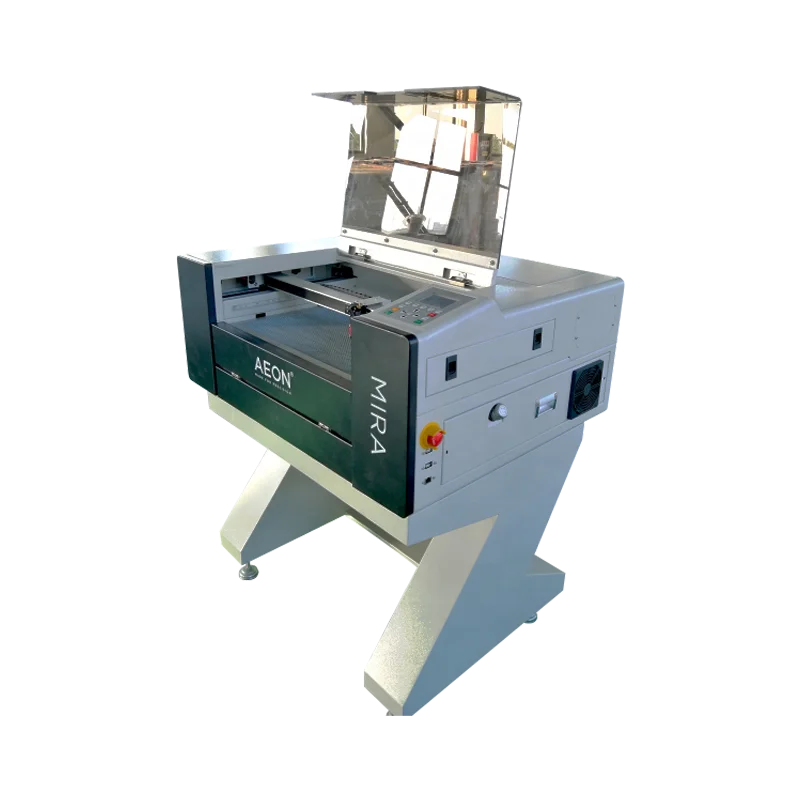

Products picture
Main Features
1) Combiner red dot pointer.
2) Very fast engraving speed.
3) Space saving.
4) Wifi and autofocus available.
5) Safe keylock protection.
Clean pack design and concise contoller.
AEON "Clean Pack" technology is designed to protect your mechanic parts from pollution of dust, dirt and smoke, giving you consistently high engraving results, ability to work at high speed, prolonged component life.

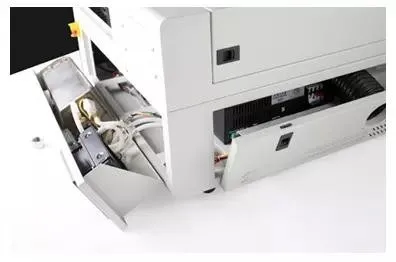

Smart all in one design.
All laser engraving machines need extraction, tube temperature control, air compression. The new MIRA smart design has all of these built into the unit. So no external devices are seen. Simplicity and smart thinking.

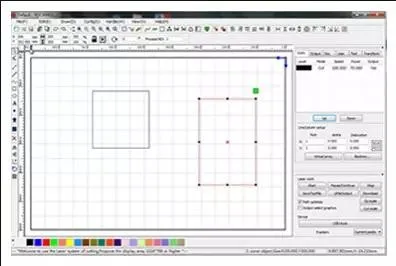

Aeon ProSMART software.
Our Aeon ProSmart software is user very friendly and it has industry required features and functions. It supports most file formats as using in graphics programs and output directly from CorelDraw, Illustrator and AutoCAD.
Our Aeon ProSmart software is user very friendly and it has industry required features and functions. It supports most file formats as using in graphics programs and output directly from CorelDraw, Illustrator and AutoCAD.
WIFI
Let's talk communication
The new MIRA series is build on a high-speed multi communication system. You can connect to your computer by Wi-Fi, USB cable, LAN network cable and transfer your data by USB Flash disk. Mira has a 256 MB memory buffer, a user friendly color screen control panel. Off memory recover function supported.

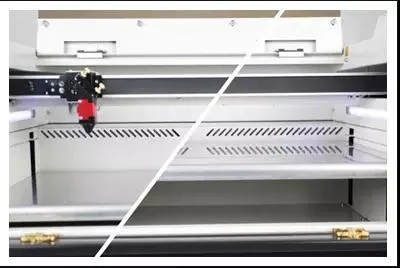

Clever Table Concept.
The new MIRA series has Honeycomb table as standard - not optional. It has a rise and fall of up to 100mm and has an automatic focus - optional function to control table height. With the opening front door open you can work with larger pieces of material giving maximum efficiency for a desktop laser.
Strong modern body.

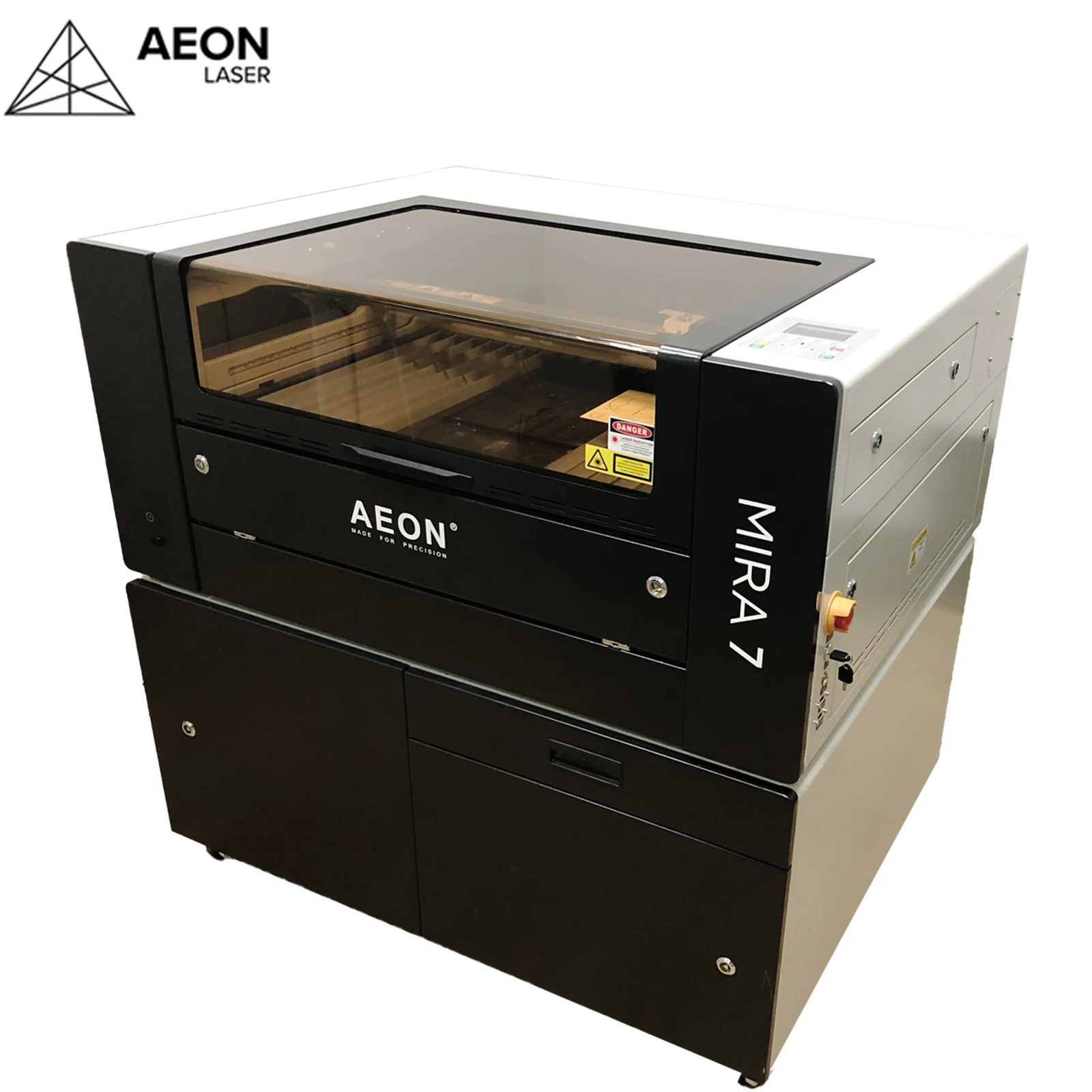

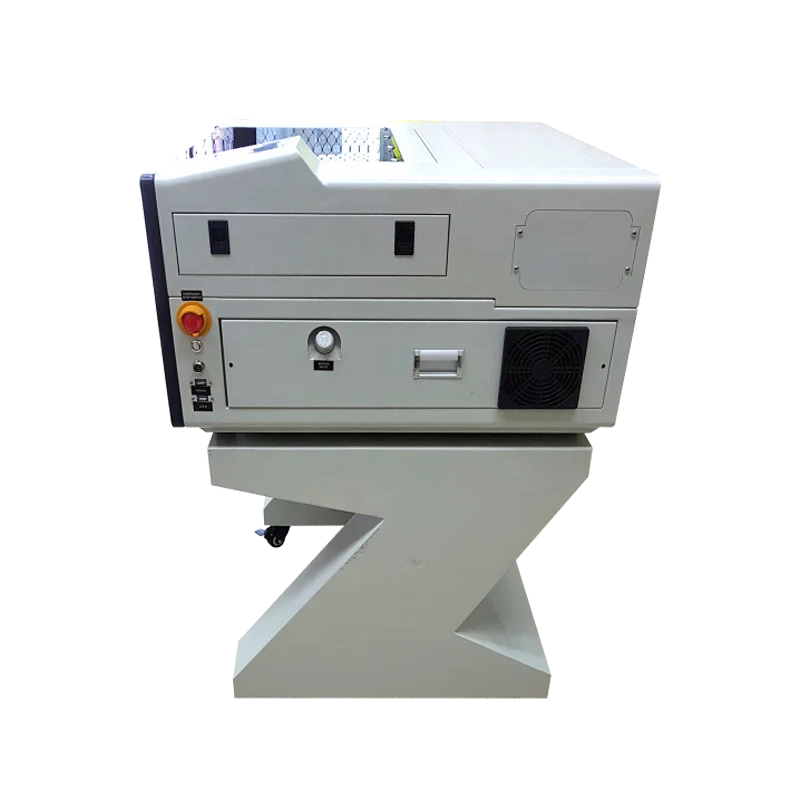

MIRA series was designed by Almira LABS from Istanbul, Turkey. It was built on 10 years design experience, customer feedback and smart thinking. Integrated recessed LED Lights on both sides fully illuminate the cabinet. Being recessed and covered provides ease of keeping your cabinet clean. Optional factory stand available.
Our Service
Warranty:
1.One Year Warranty for the Laser Engraving&Cutting Machine
2.Year Warranty for Linear Module
3.Six months' warranty for Vera Laser Tube
4.One Year Warranty for RF Laser Tube
Packing & Delivery
Packaging | ||
Size | 1420mm*1100mm*700mm | |
Weight | 238kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
1.What tube and power do I need to take?
Please inform your applications.
Generally, glass tubes are economic one but life is not longer than metal tubes. Metal tube are engraving perfectly and long lifespan but with higher price.
60W or lower is good for engraving, while 60W or bigger is good for cutting.
2.What tubes do you have?
Standard glass tube is ZR made in Jiangsu.
RECI tube available.
DAVI metal tube.
3.Wifi and autofocus included?
Yes, if you do not need these, please inform in advance.
4.Shipping time?
Depends on your order quantity and series you take. Generally in 15 working days.
