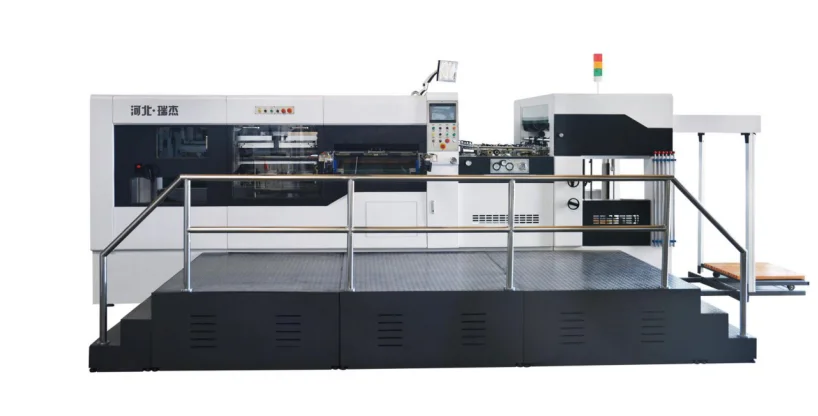

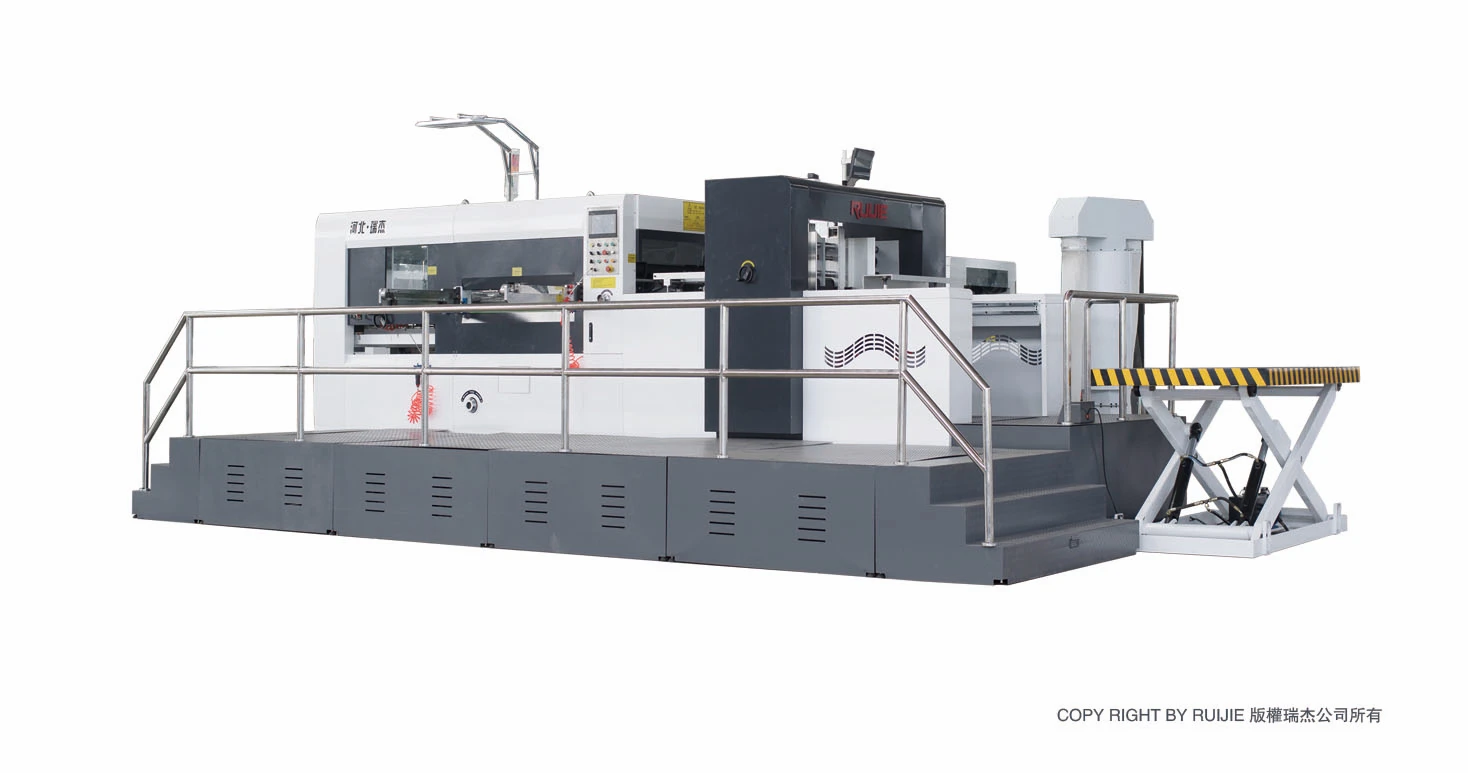

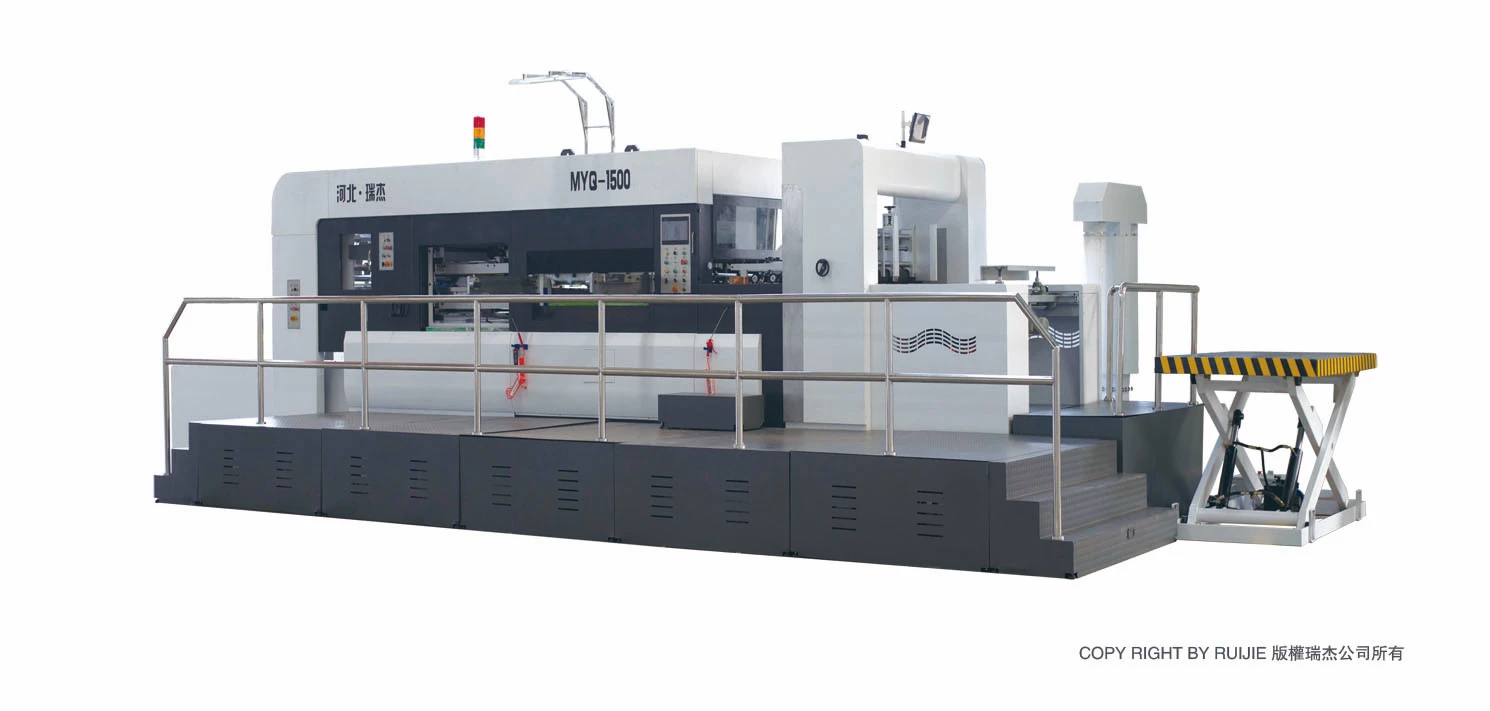

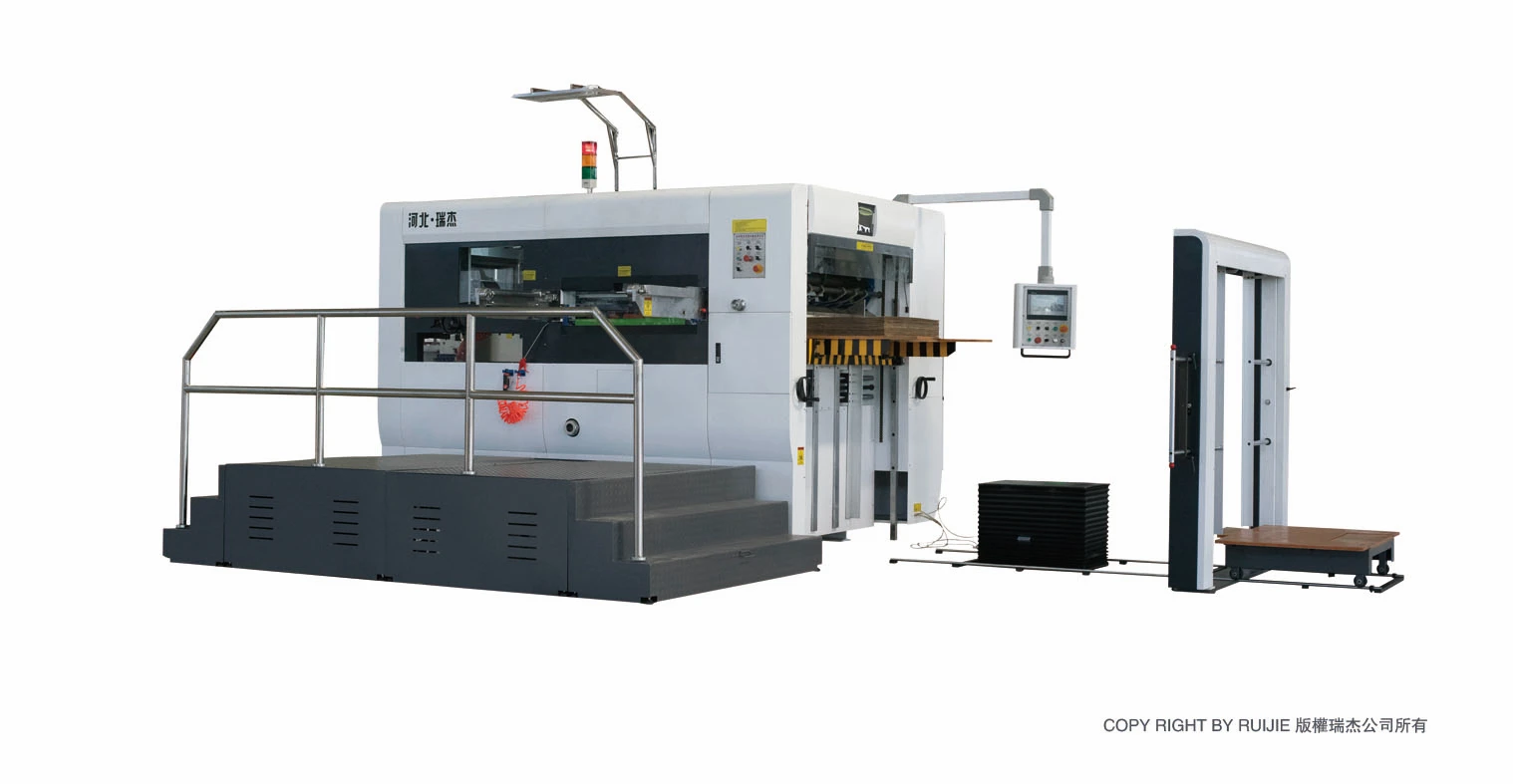

The MY1500 Lead Edge Automatic Die Cutting and Creasing Machine is the main equipment for making high-grade color box, plug and different shapes of ink cartons.The machine adopts Anchuan servo system, Gogol four axes motion controller, non-pressure feeding system, high strength gripper teeth row, whole swing front guide, automatic pushing guide, high precision interval structure, pneumatic locking plate. Pneumatic clutch, overload protector, automatic paper collecting, makes our machine has a short paper feeding distance, positioning correctly, paper collecting in order, can also do non-gripper die cutting.Computer control makes the whole machine running automatically, man-machine interface display the working condition and trouble dealing method. Key components, control systems and fasteners are imported and carefully assembled to ensure the safety and reliability of the machine. With many sensors and protection devices to ensure machine working and workers safety.
Item
Parameters
Model
MY1500
Die cutting type
Pressed flat die cutting(Lower side is movable while upper side is unmovable)
Max paper transmitting size
1510*1120mm
Min paper transmitting size
450*500mm
Max die cutting size
1490*1100mm
Max die cutting pressure
380T
Paper processed
Carrugated paper: 3-10mm
Corrugated board≤8mm
Die cutting precision
±0.1mm
Max die cutting speed
5000 sheets/h
Total power
28.5kw
Total weight
21.5T
Overall size
7400*2365*2346mm

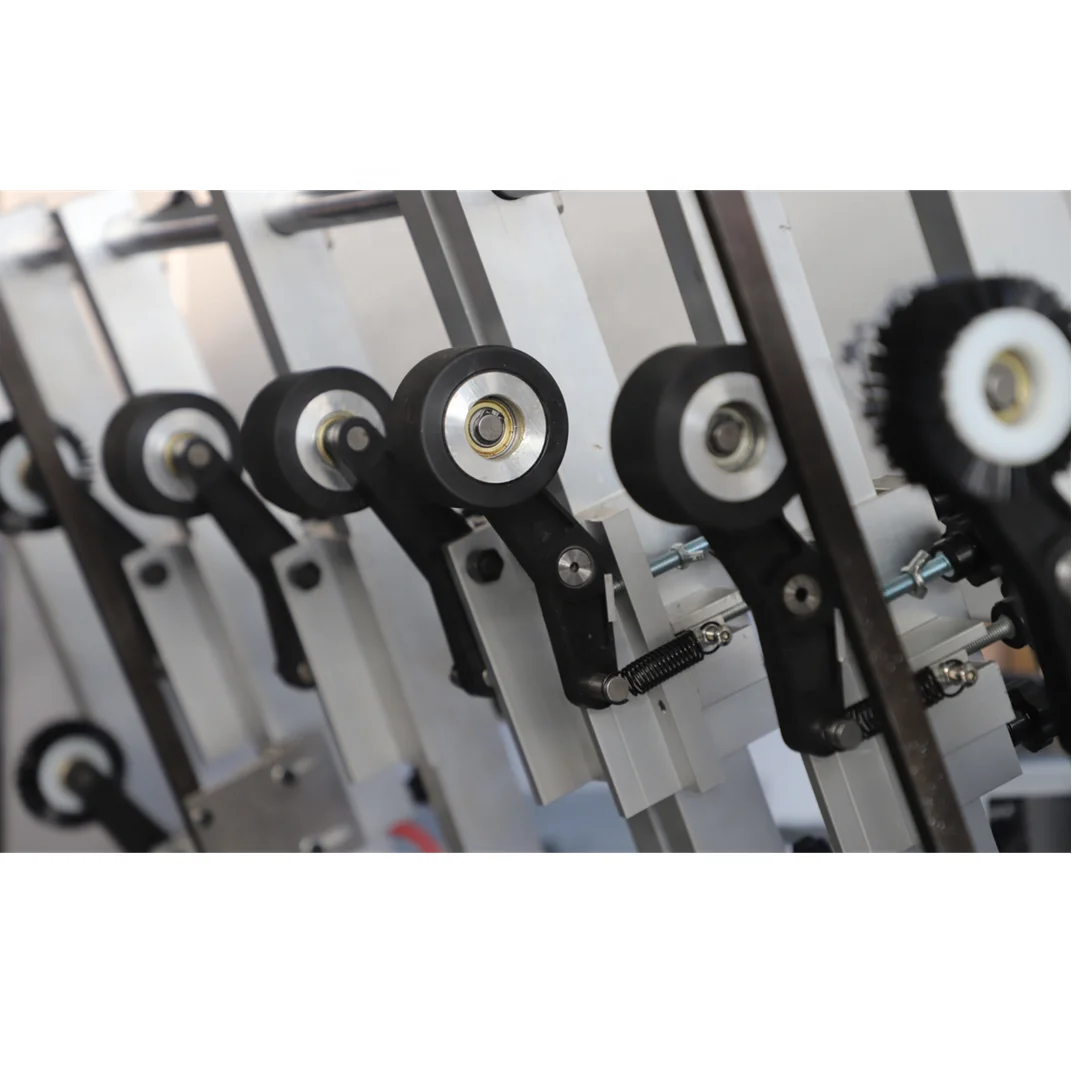

High Precise Feeder
Becker Vacuum Pump
Main Body
●免压式前沿给纸,可以防止台面对彩印纸板的刮划.
●高精度伺服控制,提供独立的送纸动力,使给纸/输纸更精确、稳定。
●Free-pressure lead edge feeder can prevent the surfuce of the cardbrod from damaging by leader.
●High-precise servo system provide the power independently.this can assure accuration and stabilize ot the cardboard.
●采用中央定位系统,模板装卸操作简单,准确。
●双层运动板框,公/母版设计更利于各种清废纸板。
●叨牙处纸边清废系统,四边全清让工作更高效。
●Match with the centerline registration system,molde is changed easily and accurately.
●Double action movement structure and male/female mode are available for different products.
●The edge gripper paper waste system realises the four edges waste stripping.

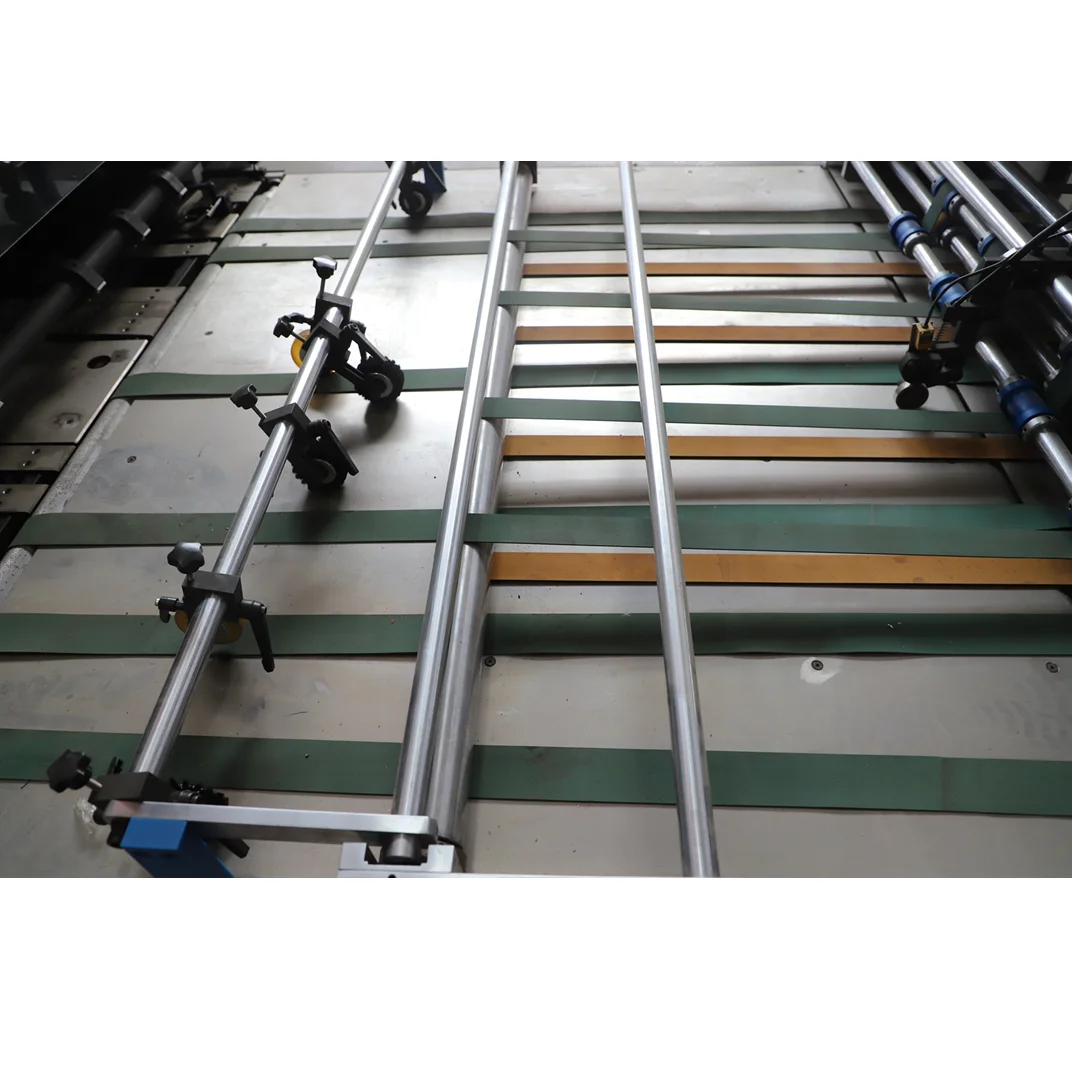

Feeder Table

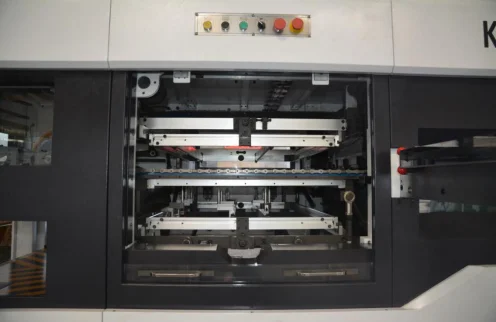

Three Frame Stripping part

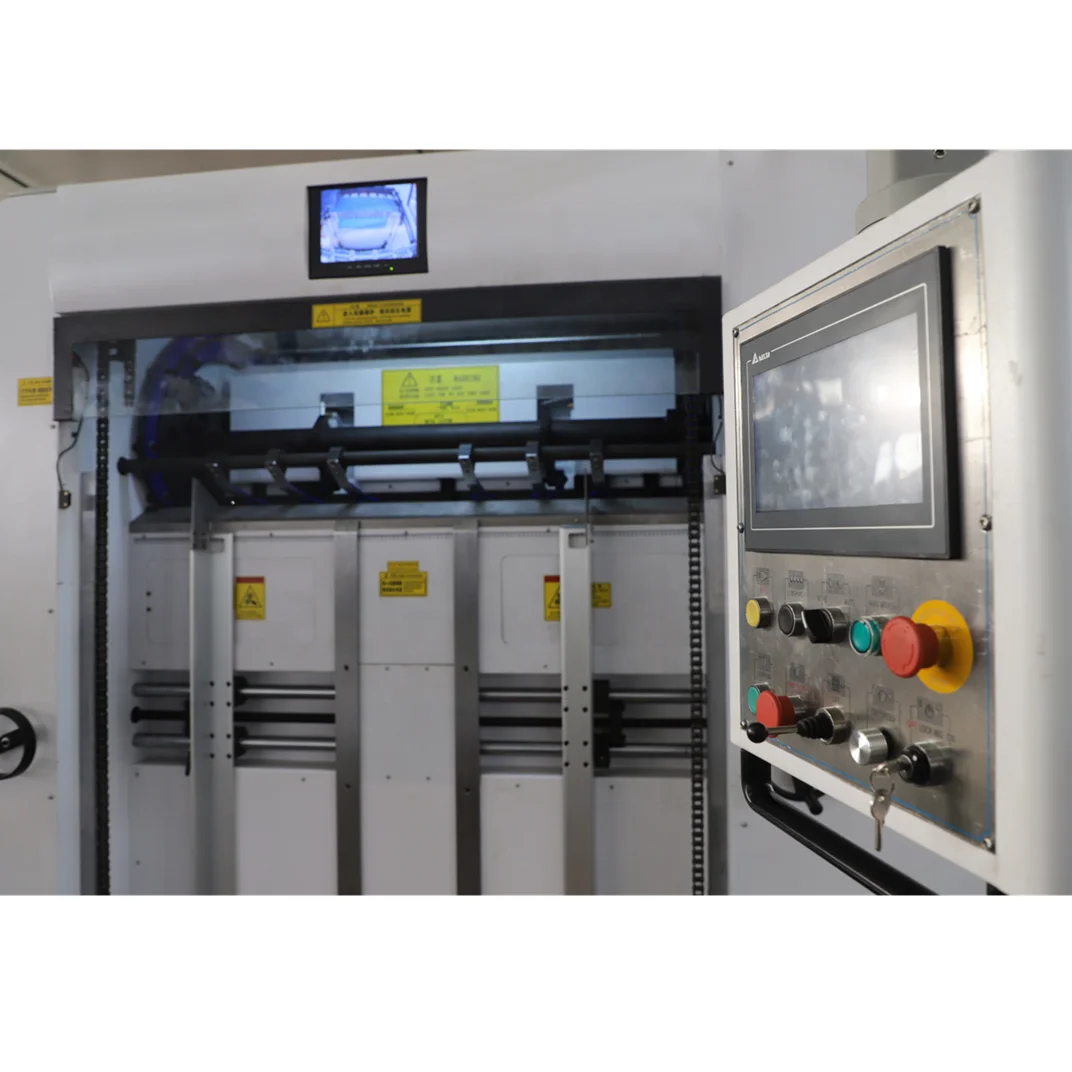

Die cutting Section
●模切部操作安全窗和气动锁装置。
●气悬浮装置使钢板拉出和推入更轻松。
●Die cutting part safety window and pneumatic die chase locking system.
●Air floation device make the diecutting plate in and out easlily.

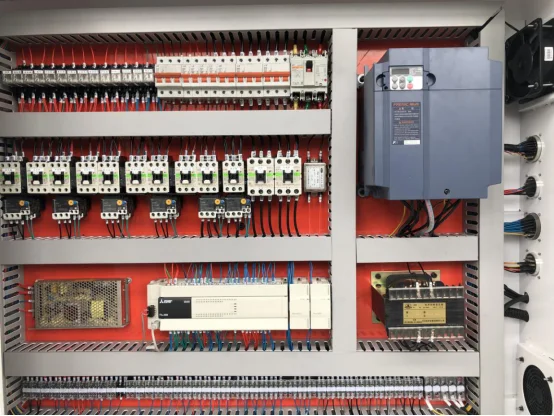

●主要电器都采用富士、西门子、施耐德、欧姆龙、LS、台达.可莱特等世界名牌产品。
●All main electric parts are imported brand,for example :Fuji Siemens, Schneider, Omron, LS, Delta, Q-Light.
●采用进口气动离合器,寿命长,噪音低,制动更平稳,离合迅速,传动力大,复合欧洲出口标准。
●Long life, low noise, brake quickly with strong driving force. It is nstalled according to European exported standard.
●主链条采用进口英国瑞诺德高精密传动链条,链条长度误差极小,抗拉强度及耐磨磨损性能极高。
●The main RENOLD chain is imported from Britain that has a minimum error of lenath, high tensile and anti-wear.

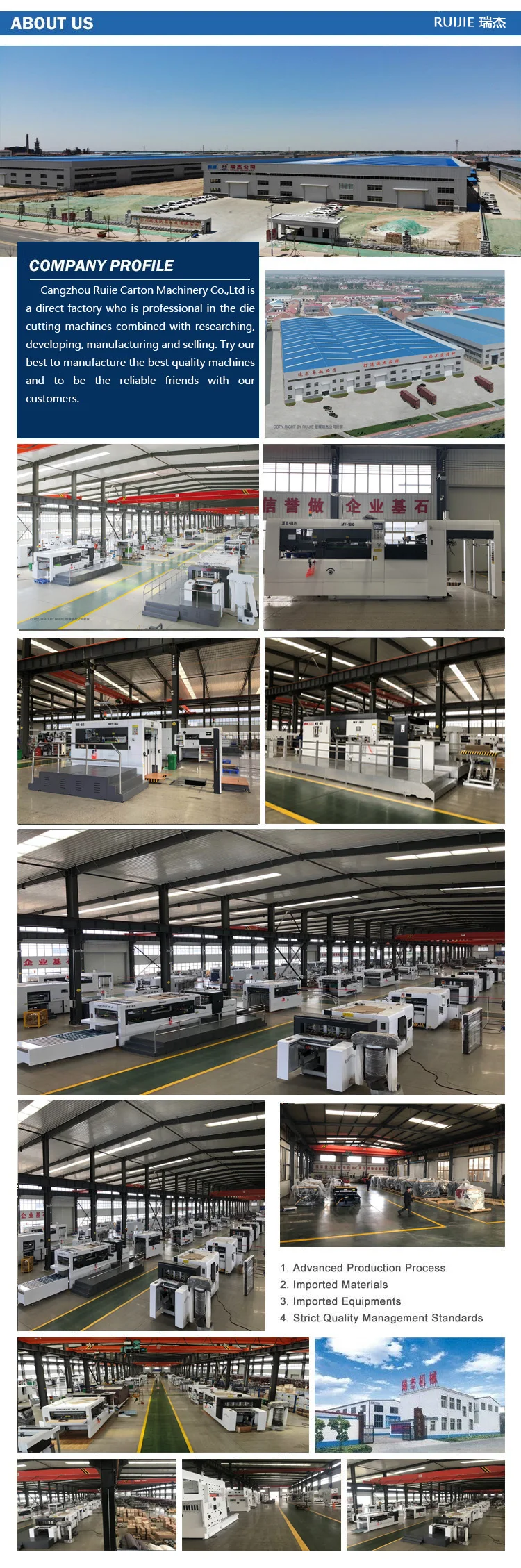

Company Introduction
Cangzhou Ruijie Carton Machinery Co., ltd is located in Dongguang, Cangzhou city, Hebei province,China. It’s a direct factory who is professional in the auto/semi-automatic die cutting and creasing machine combined with researching, developing, manufacturing and selling. By insisting to the long-term goals of “taking technology as the precursor, product quality as the core”, we also equip the modern processing working equipment the advanced die cutting technologies, which brings much more profit to our customers. Since established ,we fulfilled our machine models,improved our machine quality and extended our market gradually. It ensures the high precision ,high steady and high efficiency of our machines.
We have got the ISO9001:2008 International Quality Certificate and CE Certificate for European Union, and exported to more than twenty countries, like India, Mexico,Agentina,Egypt,UZ
FAQ
1. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County,Hebei Province,China., near to the capital city Beijing and port Tianjin. You can fly to Bejing airport directly and we will pick you up there.
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit, pay the 70% balance before delivery.
3. How does your factory do regarding quality control?
Quality is priority.We always regard great importane to quality controlling from the very small thing(even a small screw we will choose the best quality) from the begining.
4. Why we choose your Machinery?
Exporting to over 30 countries, we have gained a lot of experience that enable us to meet more and more customers.
