1.5Ton 3Meter Electric Battery Rider Stacker with EPS System
1.5Ton 3Meter Electric Battery Rider Stacker with EPS System
1.5Ton 3Meter Electric Battery Rider Stacker with EPS System
1.5Ton 3Meter Electric Battery Rider Stacker with EPS System
1.5Ton 3Meter Electric Battery Rider Stacker with EPS System
1.5Ton 3Meter Electric Battery Rider Stacker with EPS System
1.5Ton 3Meter Electric Battery Rider Stacker with EPS System

1.5Ton 3Meter Electric Battery Rider Stacker with EPS System

Share on (62321657565):


Price:$2,500.00

Quantity:


Product Overview

Description


\t\t\t\t\t\t\t\t\tProduct Decription \t\t\t\t\t\t\t

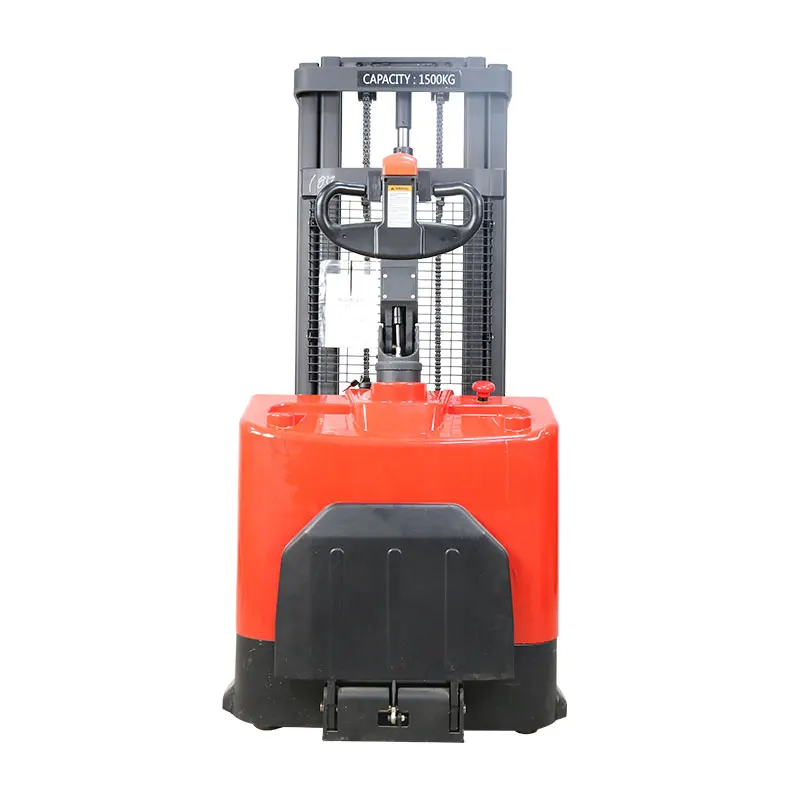

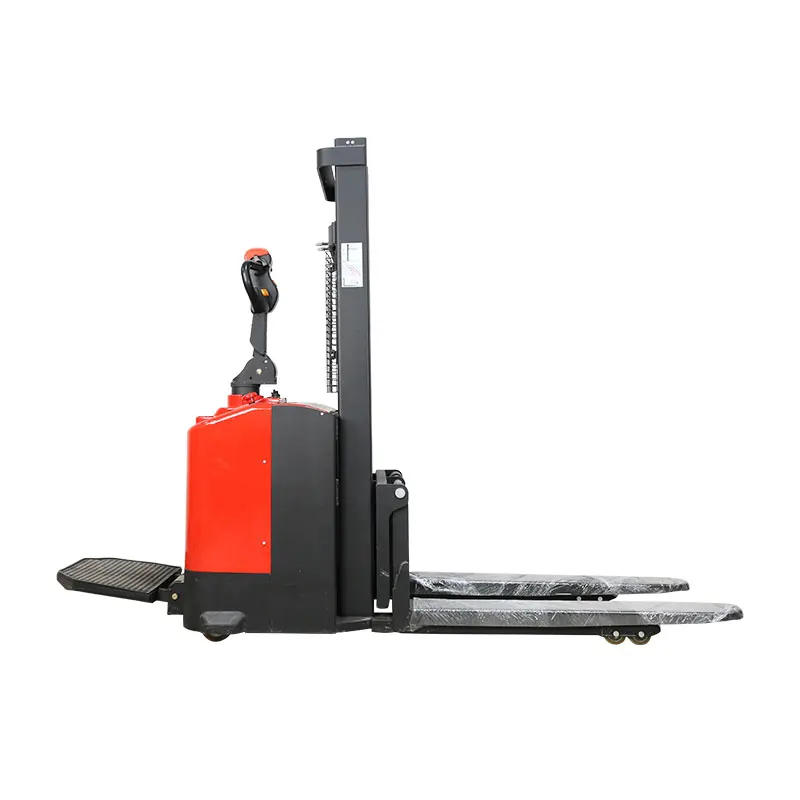

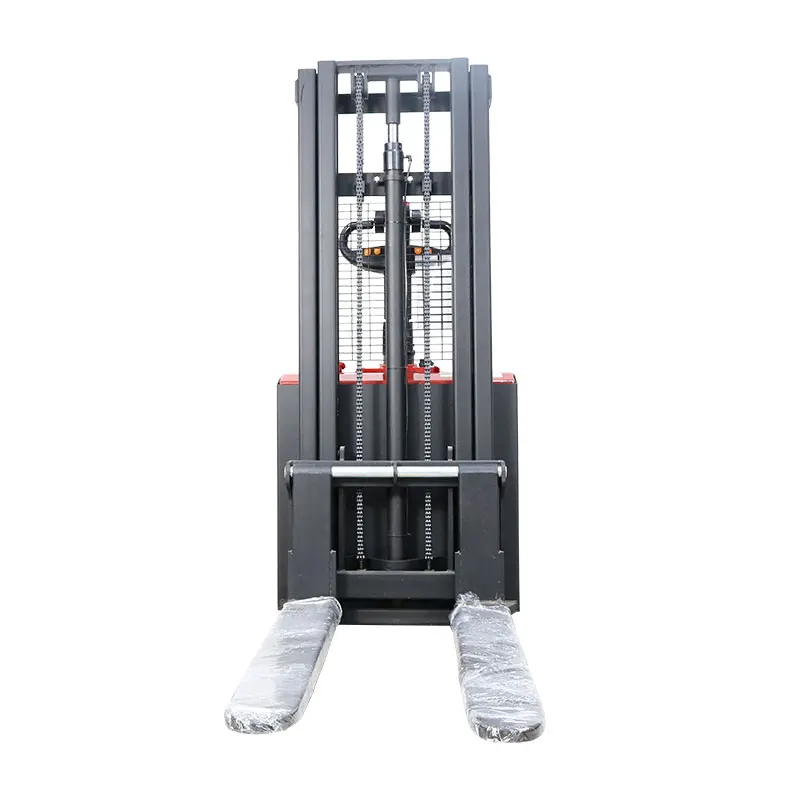

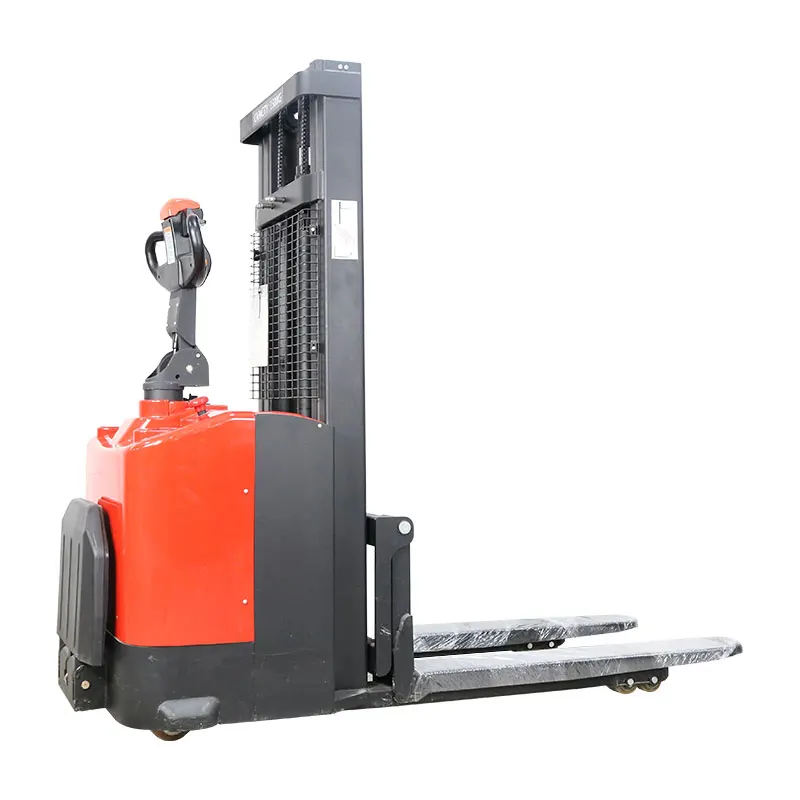

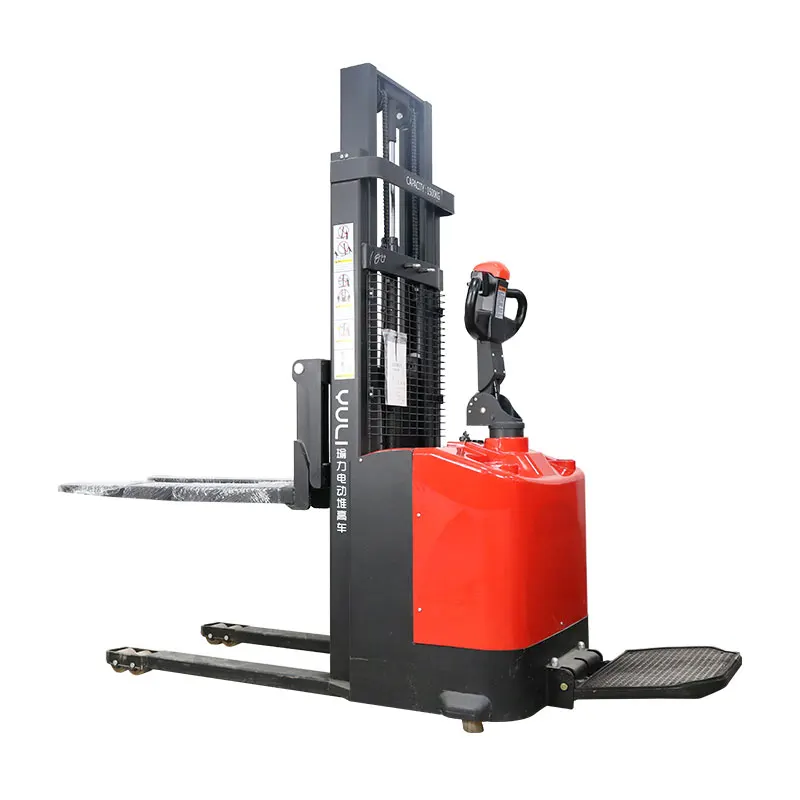

1.5Ton 3Meter Electric Battery Rider Stacker with EPS System

Advantage

Moderate price, higher configuration.

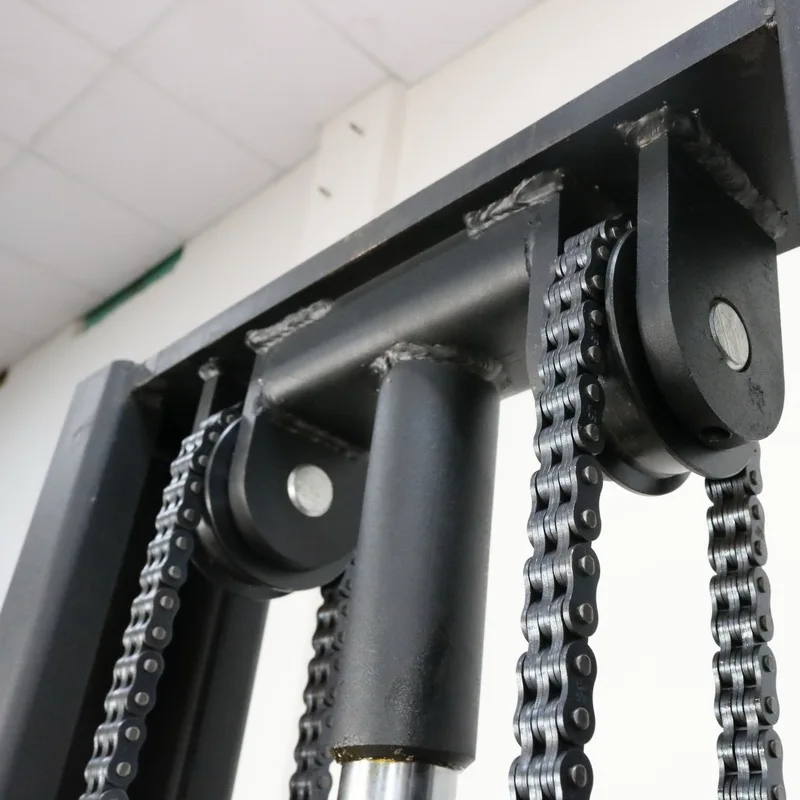

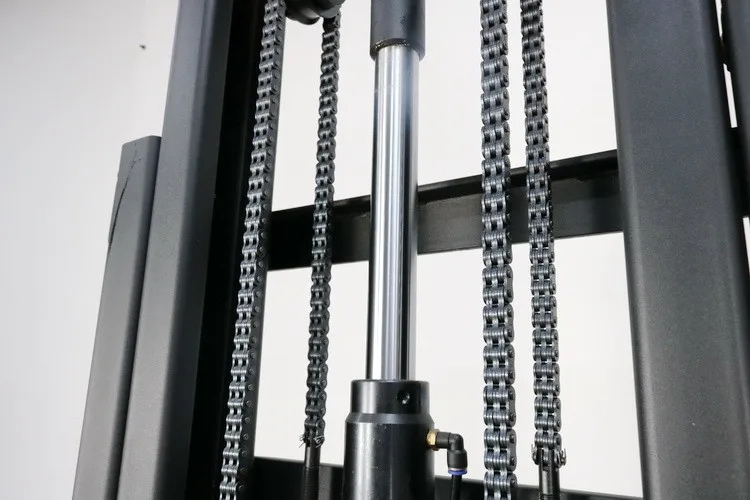

Double chain, steady lifting.

More configurations to select: protection support arms, customized fork or other attachment

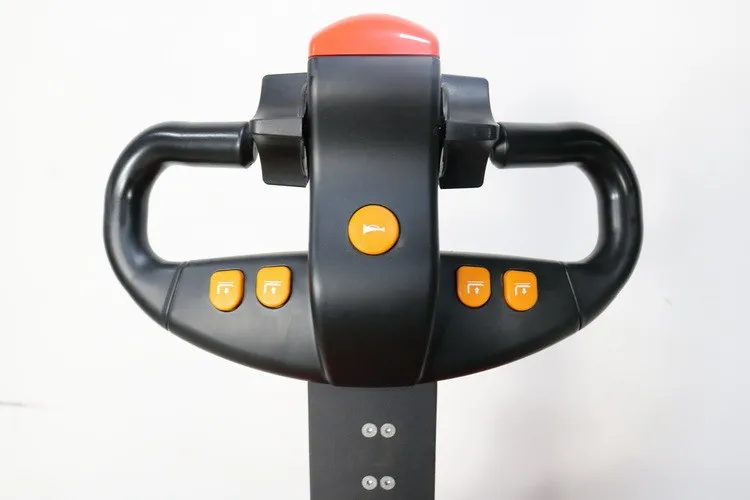

Multi-function operating handling

Easily to control the stacker to forward, revert and lift, with anticollision button at the top

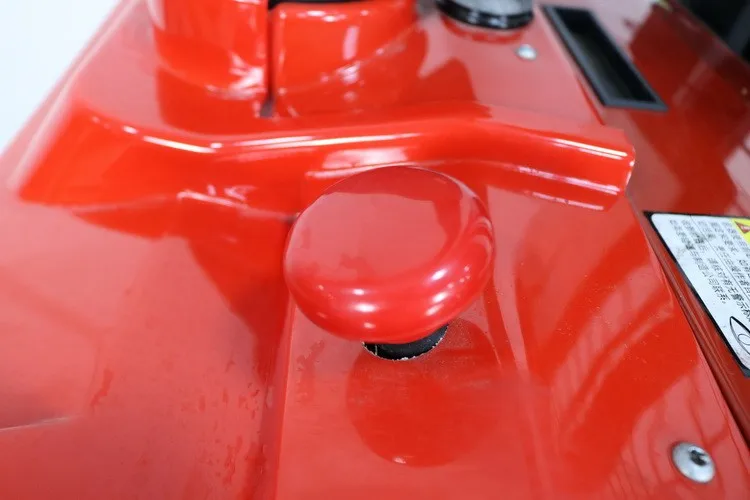

Emergency stop button

Press down it to stop the equipment if any emergency happens

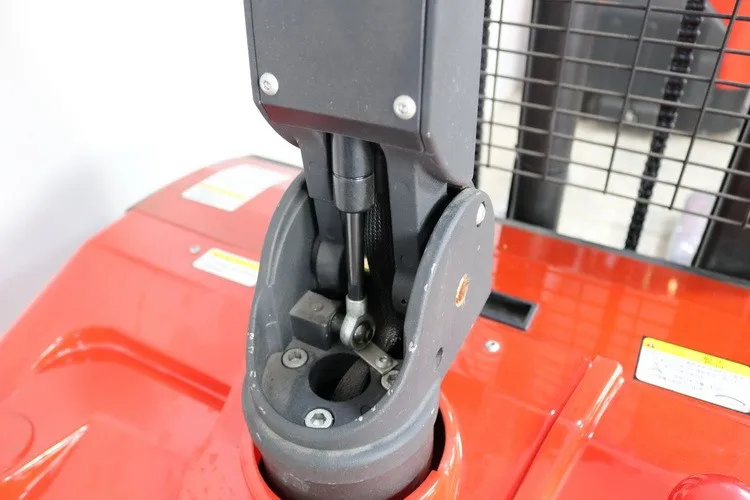

Steering system

With EPS system, help the workers contrl it easier

\t
Item Name/ Model No.
\t
CDD1530T electric stacker
\t
Material
\t
U-steel
\t
Capacity
\t
1500kg
\t
Lifting Height
\t
3000mm
\t
Mast Extended Height
\t
3450mm
\t
Overall Length
\t
2042/2462mm(with stand board)
\t
Overall Width
\t
877mm
\t
Mast Down Height
\t
1990mm
\t
Aisle Width for pallet 1000x1200mm
\t
2242/2262mm
\t
Aisle Width for pallet 800x1200mm
\t
2292/2712mm
\t
Loading Center
\t
500mm
\t
Truning Radius
\t
1660mm
\t
Battery Size
\t
2x12V/80Ah
\t
Lifting Motor
\t
2.2kW, Up speed:100/150mm/s
Down speed: 150/130mm/s
\t
Drive Motor
\t
0.75kW, travel speed 4.0/4.2km/h

Contact Information for Copy

Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com

FAQ

1.\tWhat is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.

2.\tHow is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen

3.\tHow is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
