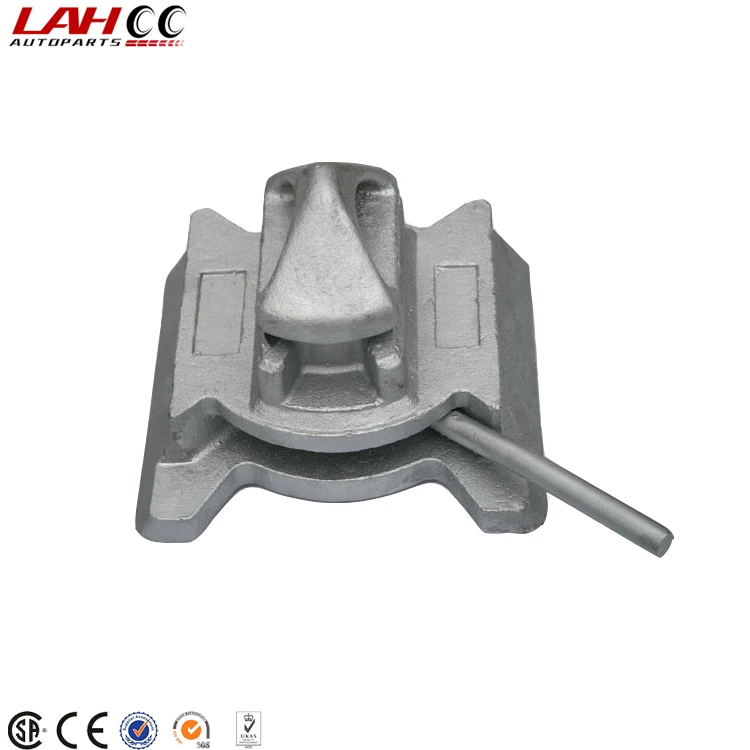

Bolted On 45 55 degree Dovetail Container Twist Lock

Product Overview

Description

Bolted On 45 55 degree Dovetail Container Twist Lock



1.Product Introduction of Container Manual Fix Dovetail Twist Lock



Manual Left or Right Locking. Type and Test Class Approved on Request



2.Product Parameter of Container Manual Fix Dovetail Twist Lock



- Min. breaking loads tension 500 kN / shear 420 kN
- Approval from any classification society
- 55° side angle of housing
- Left hand locking
- Hot dip galvanised
- Internal locking mechanism made of stainless steel components



Container Dovetail Twist Lock
Type	45 degree	55 degree	bolt on dovetail twist lock
Weight	5.8 kgs	6.4 kgs	12.0 kgs
Material	Casting Steel	Casting Steel	Casting Steel
Finish	Hot Dip Galvanized	Hot Dip Galvanized	Hot Dip Galvanized
M. B. L Tension:	500 KN
M. B. L Shear	420 KN
M. B. L Compression	2000 KN



We also supply different kinds of trailer container twist lock for your choice;
