Product Overview
Description
Product Description

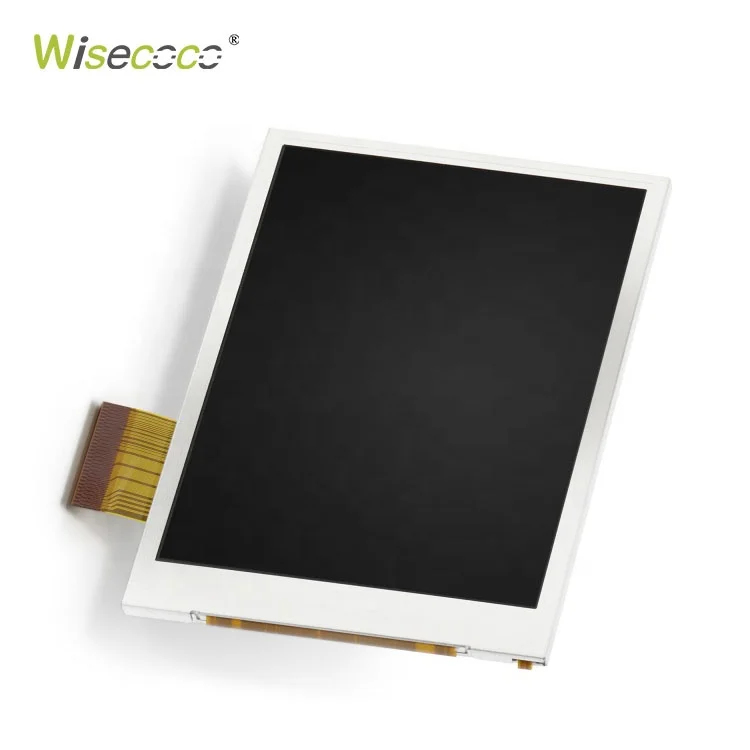

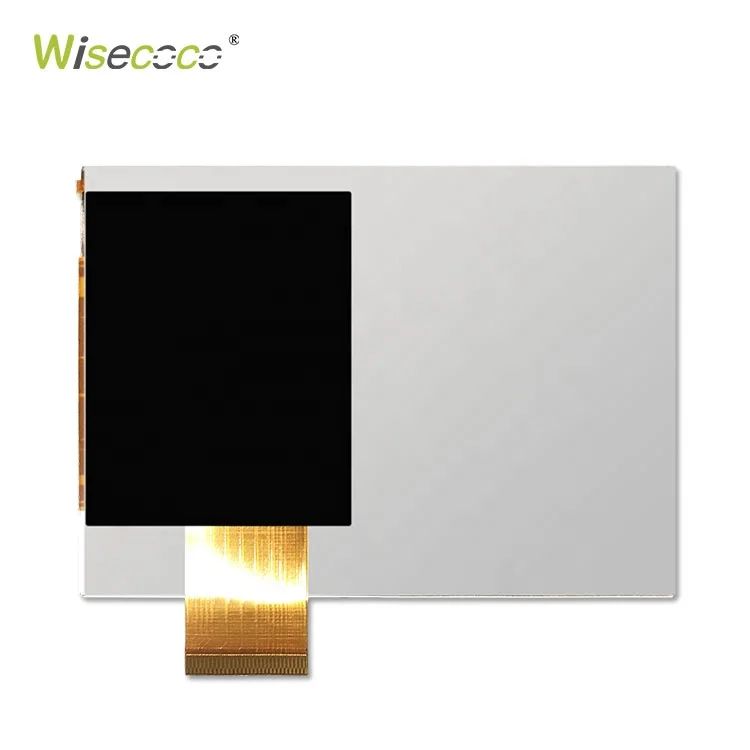

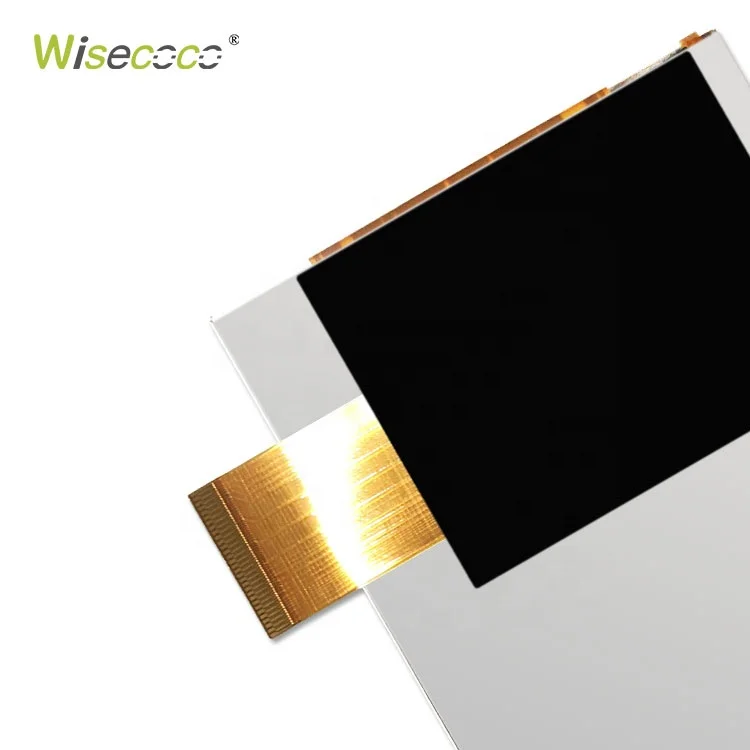

3.7 inch 480x640 resolution high contrast led backlight rgb ips lcd display 640x480 panel lcm fpc connector camera module screen
General Features | |||
Diagonal Size | 3.7 inch | Type | LCM , CG-Silicon |
Resolution | 480(RGB)×640 , VGA | Pixel Format | RGB Vertical Stripe |

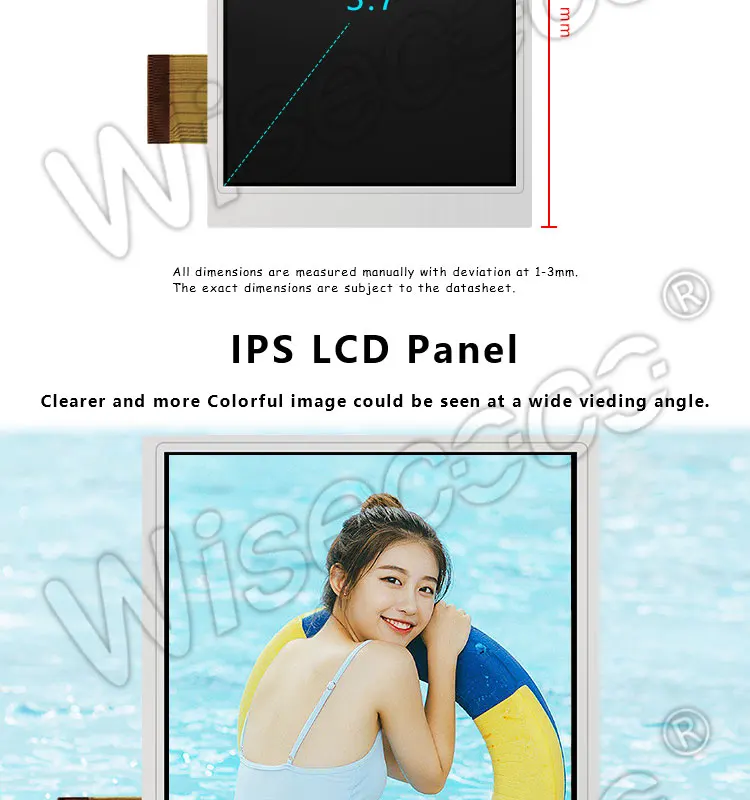

Active Area | 56.16(W)×74.88(H) mm | Outline Dim. | 65(W)×89.2(H) ×3.6(D) mm |
Bezel Opening | 58.8(W)×78.0(H) mm | Surface | Antiglare |
Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 900:1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 15/20 (Typ.)(Tr/Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) | Operating Mode | ASV, Normally Black, Transflective |
Support Color | 262K/16.7M 50% NTSC | Light Source | 6S1P WLED , 10K hours , Without Driver |
Weight | 38.0g (Typ.) | Designed For | Handheld & PDA |
Frame Rate | 60Hz | Touch Panel | 4-wire Resistive Touch |

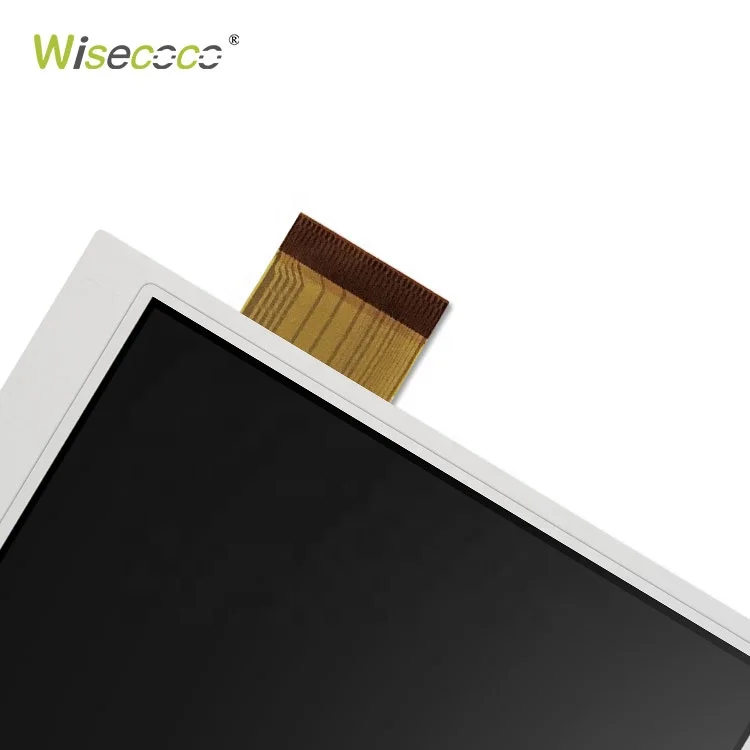

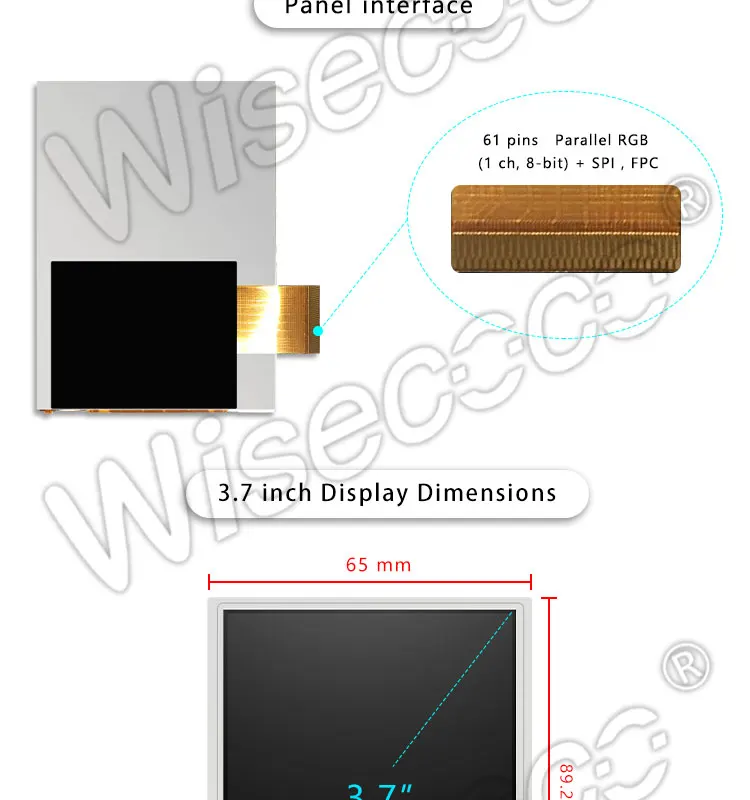

Interface Type | Parallel RGB (1 ch, 8-bit) + SPI , 61 pins , FPC | ||
Power Supply | 5.5/1.8V (Typ.)(VDD5/VCI) | ||
Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
Welcome to contact us and get our best service!
