High Speed Embossed Hot Foil Stamp Printing Machine for Cigar Filters

Share on (62321820337):


Price:$100,000.00

Quantity:


Product Overview

Description


Product Paramenters
 Film running direction from unwind to rewind
From left to right
 Printing colors
8
Max. material width
1250mm
Max .mechanical speed
200m/min (版径cylinder dia.≥Φ175mm)
Unwinding diameter
Φ800mm
Rewinding diameter
Φ800mm
Accuracy of registration
Horizontal≤±0.1mm (auto) (constant speed)Longitudinal≤±0.1mm (auto)(constant speed)
 Tension range
3~25kg
 Accuracy of tension
Unwind and rewind±0.3kg
Traction ±0.3kg
Paper core diameter
Φ76mm× Φ92mm
Pressure of rubber rollers
380kg
Rubber roller hardness
(A)70°~75°
Diameters of cylinders
Φ120mm~Φ300mm
Length of cylinders
1000-1350mm
Reciprocation of doctor blades
±5 mm
Pressure of air source
0.6Mpa≤P≤1.0Mpa
Maximum temperature of drying chambers
80℃
Recycling rate of hot air
0~50%
Accuracy of temperature controlling
±2℃
Heating style
 electricity or steam or gas
Maximum hot air speed in drying chambers
25m/s
Film length in drying chambers
1.6m 2m for last color
Printing materials
PET:12~60μm BOPP: 20~60μm

CPP:20~60μm OPP: 20~60μm

cellophane:20~30μm
ELS Machine Main features
1.Independent disc type rotary turret with double working positions and wallboard
2.Two unwinding shafts adopt independent active unwind style
3.Automatic web splicing with alarming, the new web will rotate and the pre-drive speed is synchronized with the speed of the machine.
4.The synchronous strip makes the transfer more convenience and little noise
5.Double-cylinder consists of steel and rubber roller
6.The doctor assembly is pneumatic controlled and can be adjusted by a handle in three directions
7.Remote service
8.Separate drive motor inverter
9.Each unit equipped with separate drying system
10.Touch HMI
11.Energy saving and friendly environment
Details Images

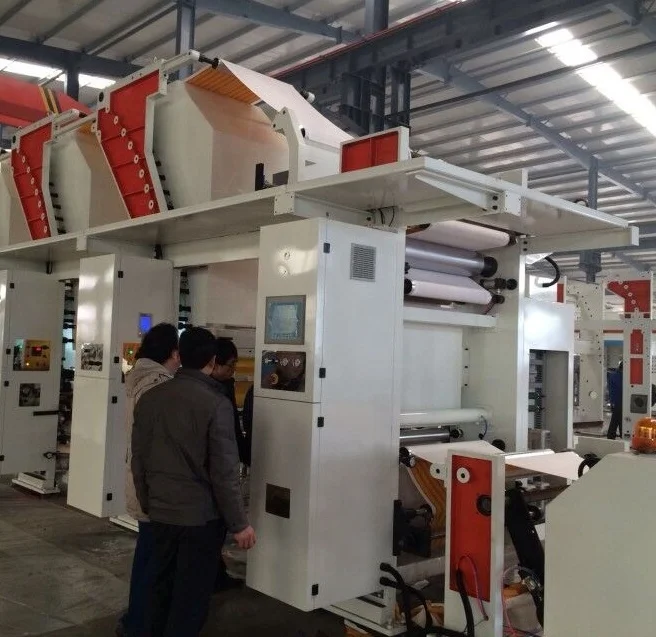

Rotogravure printing machine structures:

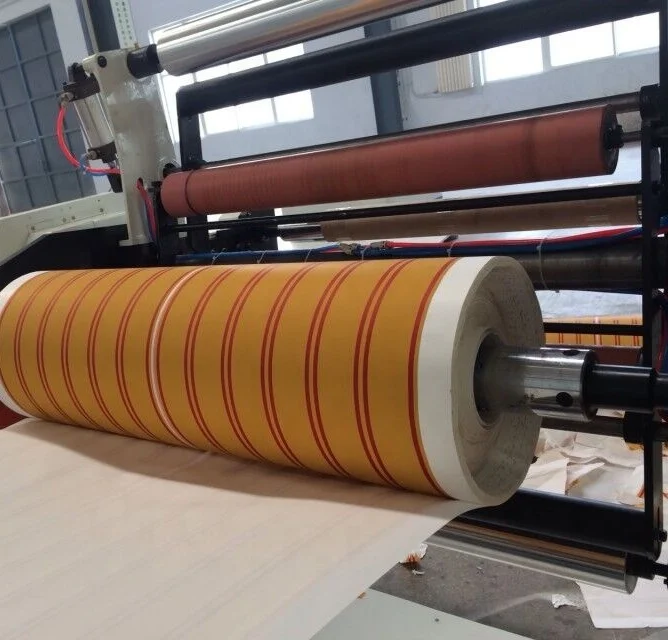

- Unwinding unit
- Infeeding part

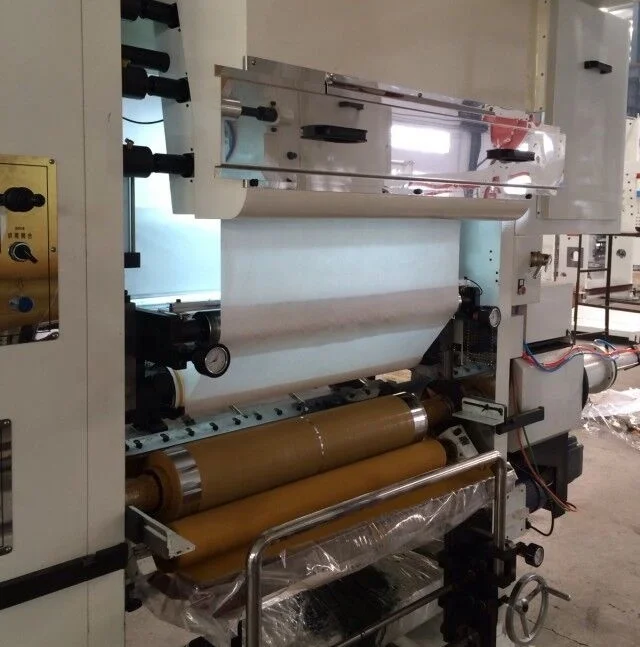

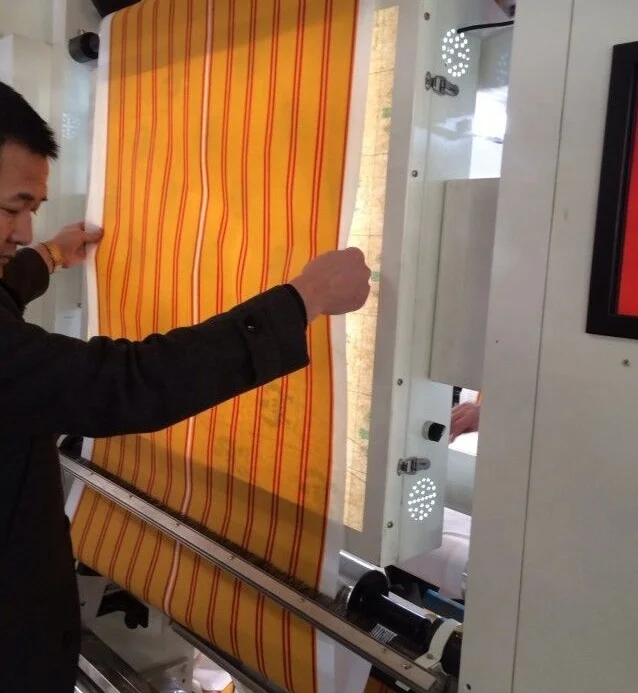

- Printing part
- Drying part
- Cooling part
- Outfeeding part

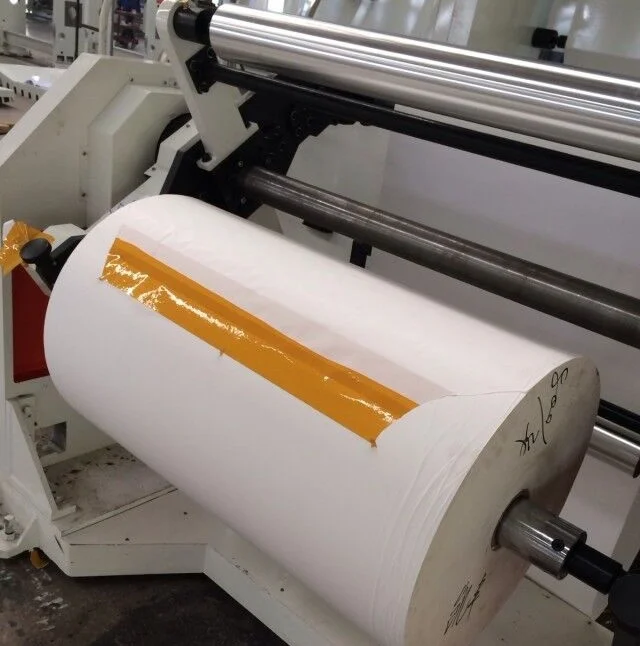

- Rewinding unit
